Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

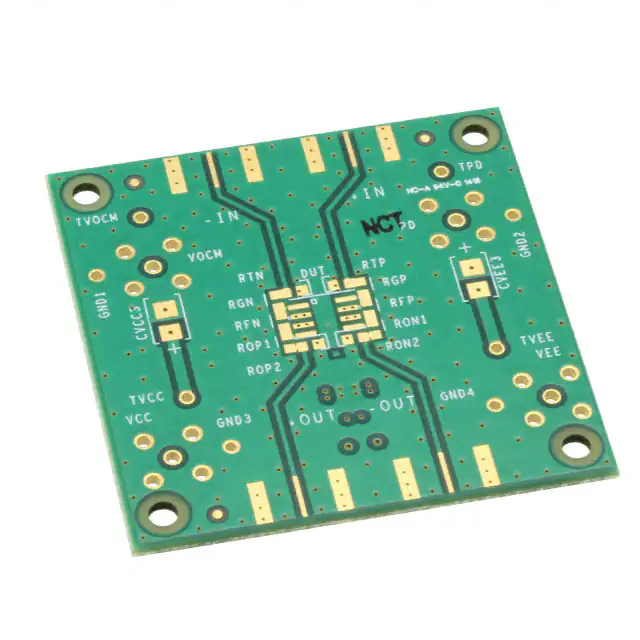

EVAL-FDA-1RZ-8BARE BOARD 8-SOIC |
11 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
EVAL-FDA-2CPZ-24BARE BOARD 24-LFCSP |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | Differential | Differential | - | - | - | - | - | 24-LFCSP Package | Unpopulated (Bare) Board(s) |
|

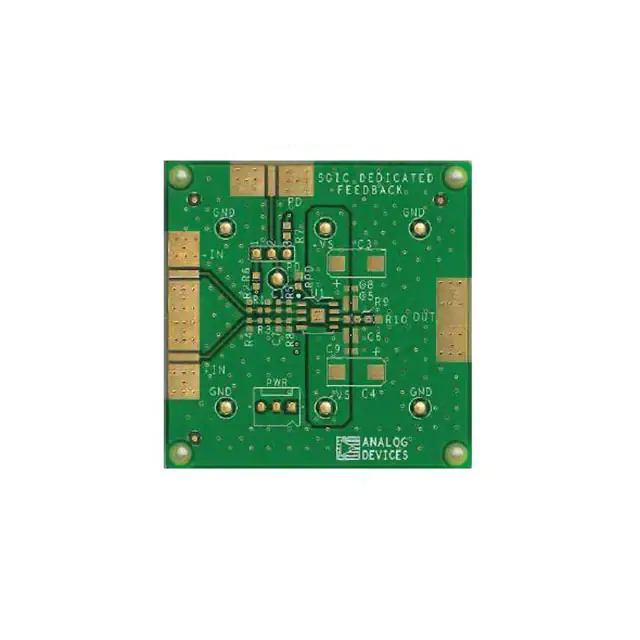

EVAL-HSOPAMP-E-1RZBARE BOARD 8-SOIC |
2 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

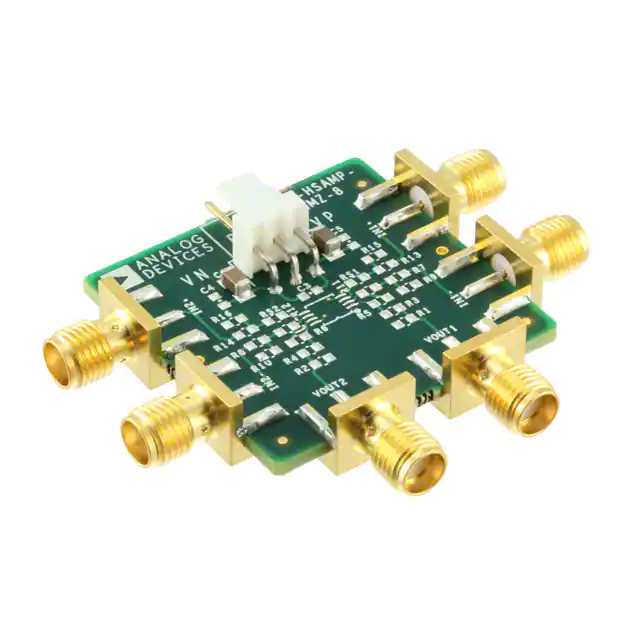

EVAL-HSAMP-2RMZ-8BARE BOARD 8-MSOP |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-MSOP Package | Unpopulated (Bare) Board(s) |
|

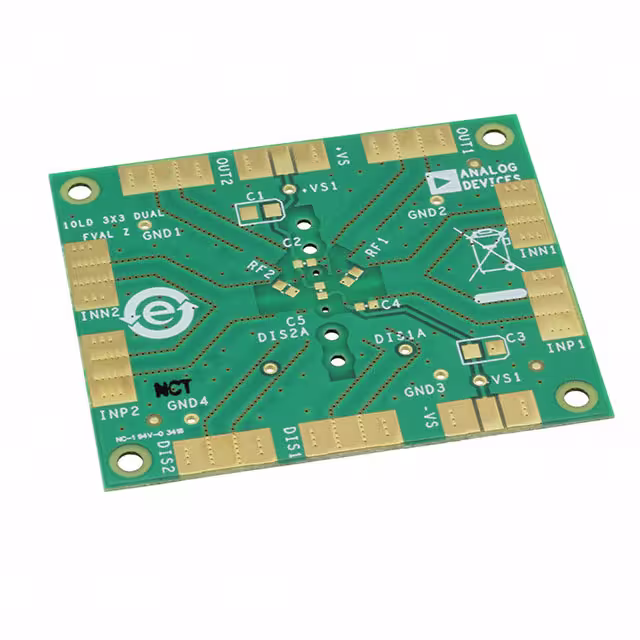

EVAL-HSAMP-2CPZ-10BARE BOARD 10-LFCSP |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 10-LFCSP Package | Unpopulated (Bare) Board(s) |
|

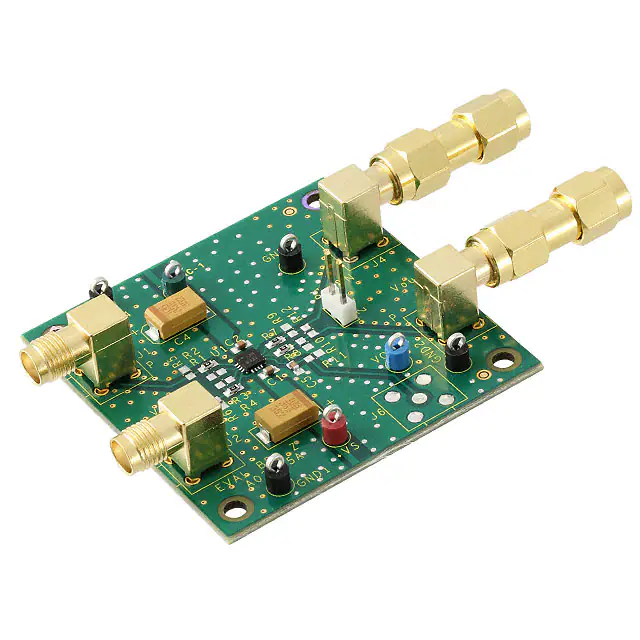

AD8475-EVALZEVAL BOARD FOR AD8475 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 50V/µs | 150 MHz | 110 mA | 3 mA | 3V ~ 10V, ±1.5V ~ 5V | AD8475 | Board(s) |
|

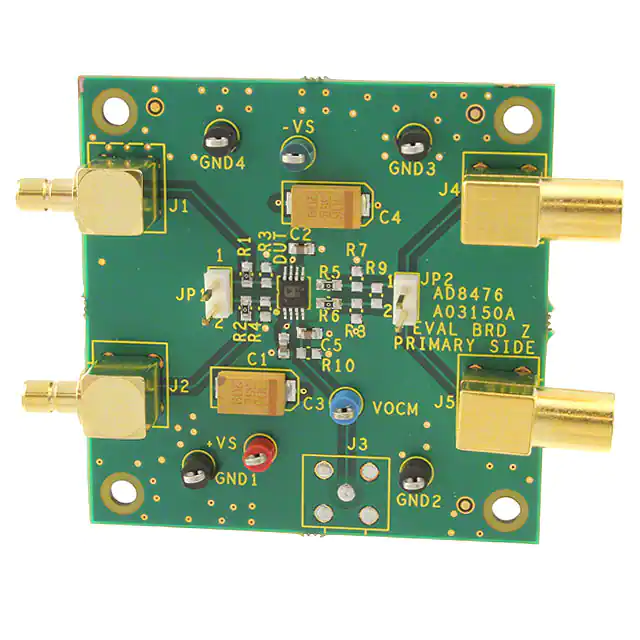

AD8476-EVALZEVAL BOARD FOR AD8476 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 10V/µs | 6 MHz | 35 mA | 330 µA | 3V ~ 18V, ±1.5V ~ 9V | AD8476 | Board(s) |
|
EVAL-FDA-1CPZ-16BARE BOARD 16-LFCSP |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | - | - | - | - | - | 16-LFCSP Package | Unpopulated (Bare) Board(s) |
|

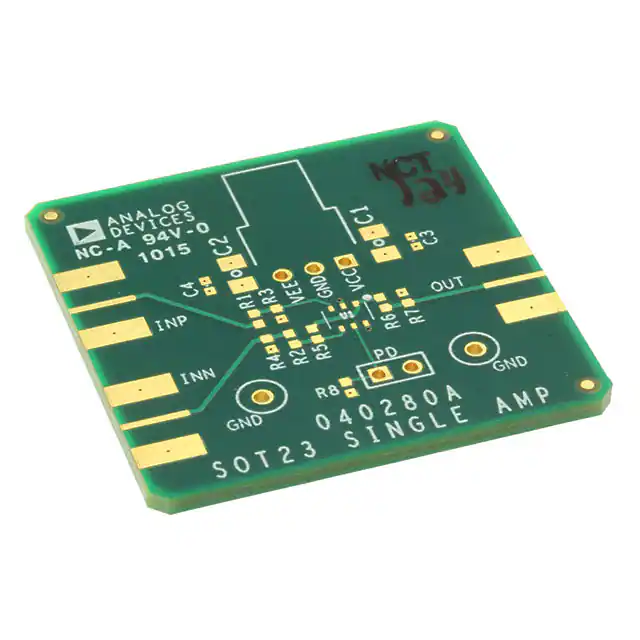

EVAL-HSOPAMP-1RJZBARE BOARD SOT-23-5 SOT-23-6 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|

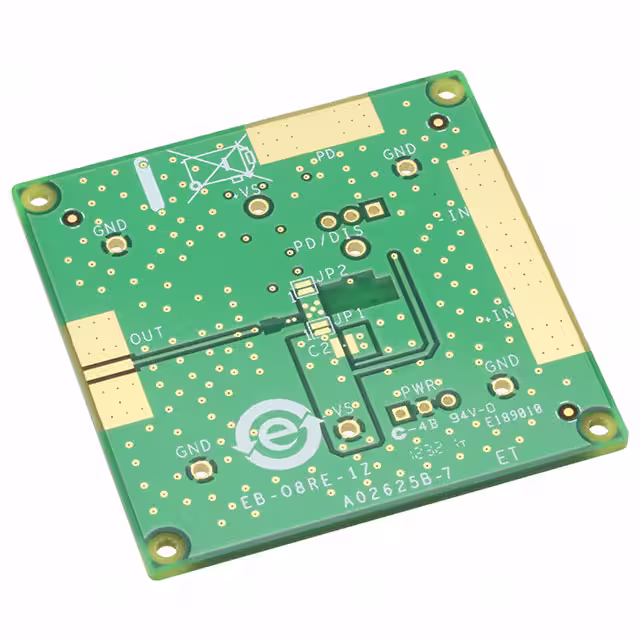

EVAL-HSOPAMP-N-1RZBARE BOARD 8-SOIC |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

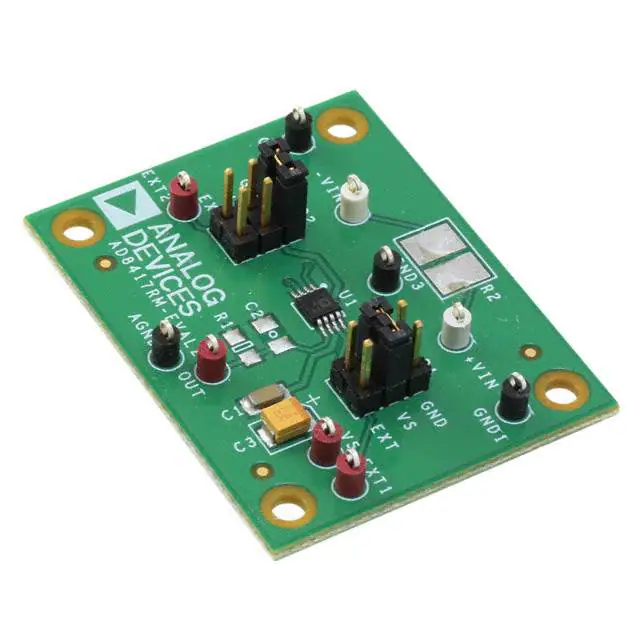

AD8417RM-EVALZEVAL BOARD FOR AD8417 |
6 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 1V/µs | 250 Hz | - | 4.1 mA | 2.7V ~ 5.5V | AD8417 | Board(s) |
|

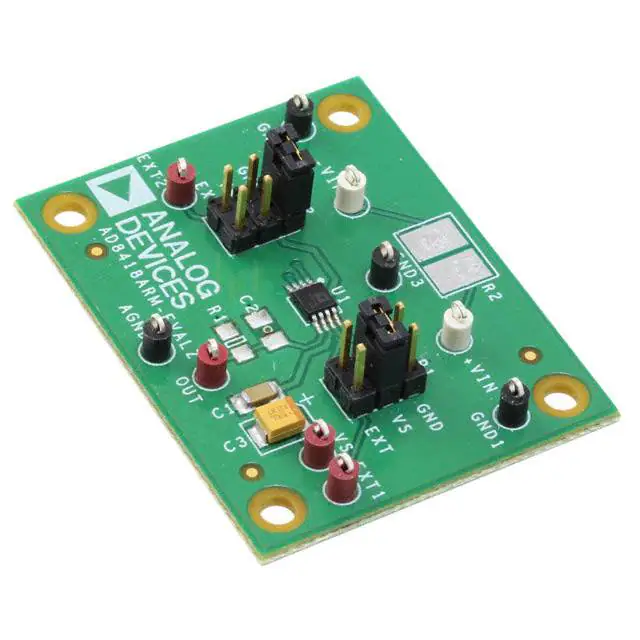

AD8418ARM-EVALZEVAL BOARD FOR AD8418A |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 1V/µs | 250 kHz | - | 4.1 mA | 2.7V ~ 5.5V | AD8418A | Board(s) |
|

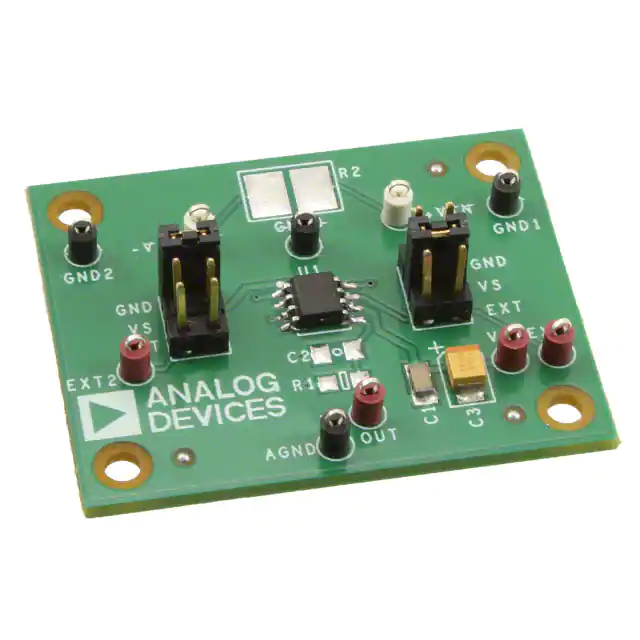

AD8418R-EVALZEVAL BOARD FOR AD8418 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 1V/µs | 250 Hz | - | 2.6 mA | 2.7V ~ 5.5V | AD8418 | Board(s) |
|

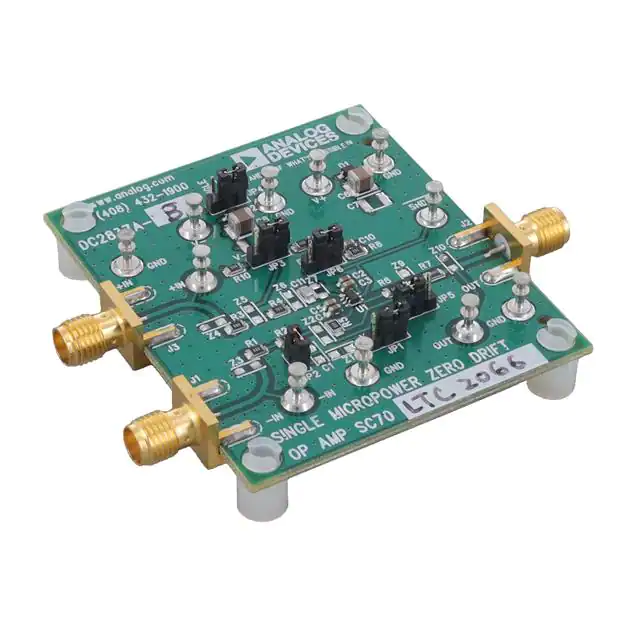

DC2837A-BLOW SUPPLY VOLTAGE LTC2066 ZERO |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Zero-Drift | Single-Ended, Rail-to-Rail | 0.0175V/µs | - | 51 mA | 7.5 µA | 1.7V ~ 5.25V | LTC2066 | Board(s) |
|

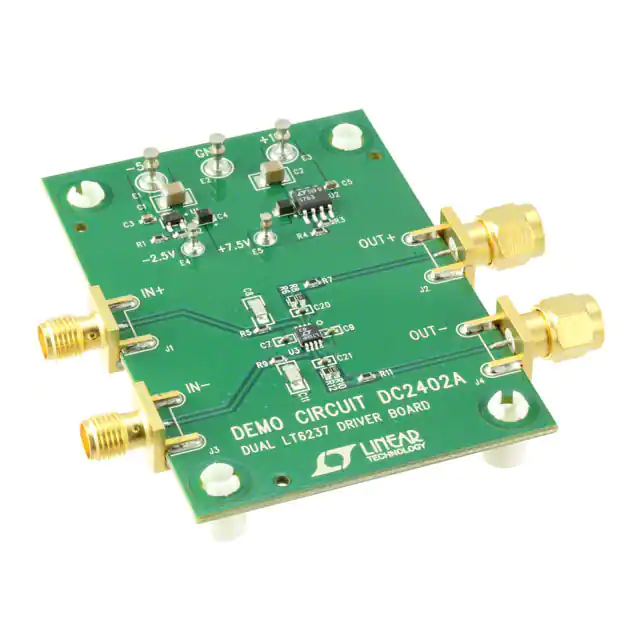

DC2402ADEMO BOARD FOR LT6237 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 70V/µs | 90 MHz | 30 mA | 3.3 mA | 3V ~ 12.6V, ±1.5V ~ 6.3V | LT6237 | Board(s) |
|
DC2623ADEMO BOARD FOR LTC6404-1 + AD800 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 450V/µs | 600 MHz | 65 mA | 27.8 mA | 2.7V ~ 5.25V | LTC6404-1 | Board(s) |
|
DC2837A-ALOW SUPPLY VOLTAGE LTC2063 ZERO |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Zero-Drift | Single-Ended, Rail-to-Rail | 0.0035V/µs | - | 51 mA | 1.4 µA | 1.7V ~ 5.25V | LTC2063 | Board(s) |
|

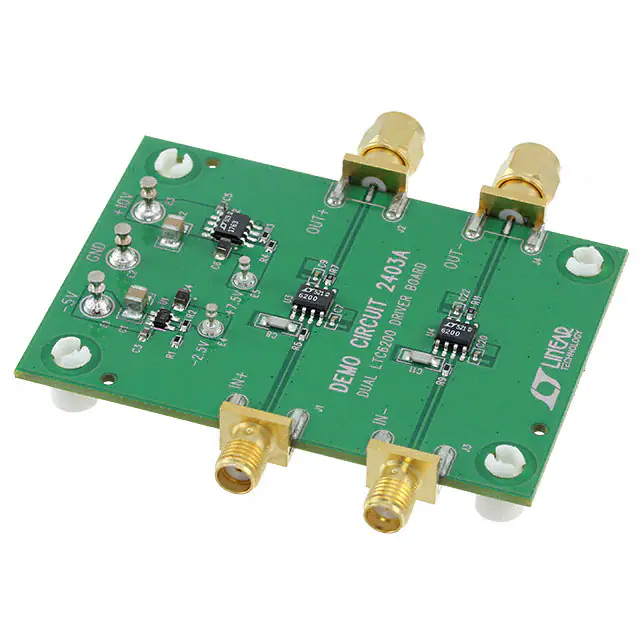

DC2403AEVAL BOARD ADC DRIVER LT6200 |
9 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 50V/µs | - | 90 mA | 20 mA | 2.5V ~ 12.6V, ±1.25V ~ 6.3V | LT6200 | Board(s) |
|

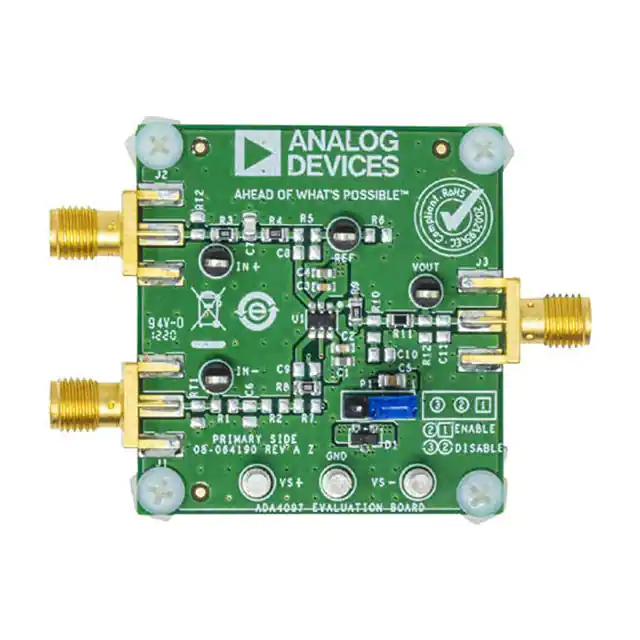

EVAL-ADA4097-1HUJZEVAL BOARD FOR ADA4097-1 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 0.1V/µs | - | 45 mA | 42 µA | 3V ~ 50V, ±1.5V ~ 25V | ADA4097-1 | Board(s) |
|

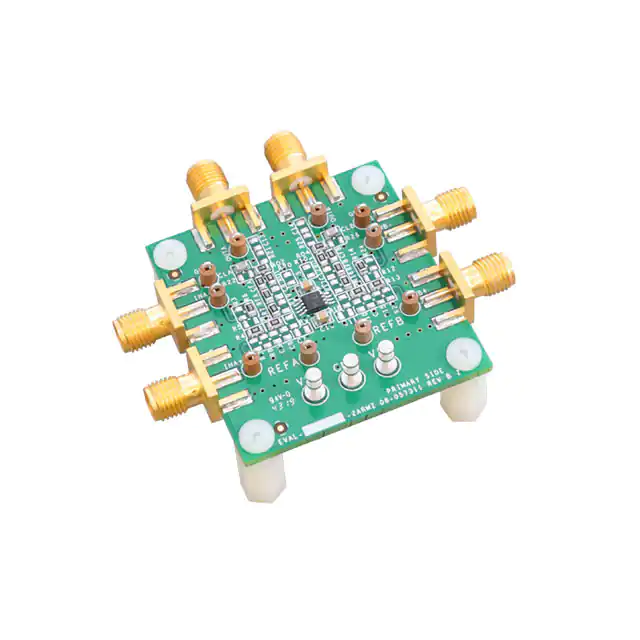

EVAL-ADA4522-2ARMZEVAL BOARD FOR ADA4522-2 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Zero-Drift | Single-Ended, Rail-to-Rail | 1.7V/µs | 6.5 MHz | 32 mA | 830 µA | 5V ~ 55V, ±2.5V ~ 27.5V | ADA4522-2 | Board(s) |
