Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
INA826EVMEVAL BOARD FOR INA826 |
24 |
|
Datasheet | - | Bulk | Active | 1 - Single | Instrumentation | Single-Ended, Rail-to-Rail | 1V/µs | 1 MHz | 16 mA | 200 µA | 3V ~ 36V, ±1.5V ~ 18V | INA826 | Board(s) |
|
INA190EVMEVAL BOARD FOR INA190 |
21 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 0.3V/µs | 45 kHz | - | 48 µA | 1.7V ~ 5.5V | INA190 | Board(s) |
|
INAEVM-ALT-SO8INAEVM-ALT-SO8 |
21 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Single-Ended | - | - | - | - | - | 8-SOIC Package | Partially Populated Board(s) - Main IC/Module/Part Not Included |
|
INA290EVMEVAL BOARD FOR INA290 |
20 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 2V/µs | 1.1 MHz | - | 370 µA | 2.7V ~ 20V | INA290 | Board(s) |
|
INA281EVMEVAL BOARD FOR INA281 |
14 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 2.5V/µs | 1.3 MHz | - | 1.5 mA | 2.7V ~ 20V | INA281 | Board(s) |
|
INA293EVMEVAL BOARD FOR INA293 |
9 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 2.5V/µs | 1.3 MHz | - | 1.5 mA | 2.7V ~ 20V | INA293 | Board(s) |
|
OPA1622EVMEVAL BOARD FOR OPA1622 |
8 |
|
Datasheet | SoundPlus™ | Bulk | Active | 2 - Dual | Audio | Single-Ended | 10V/µs | - | 145 mA | 2.6 mA | 4V ~ 36V, ±2V ~ 18V | OPA1622 | Board(s) |
|

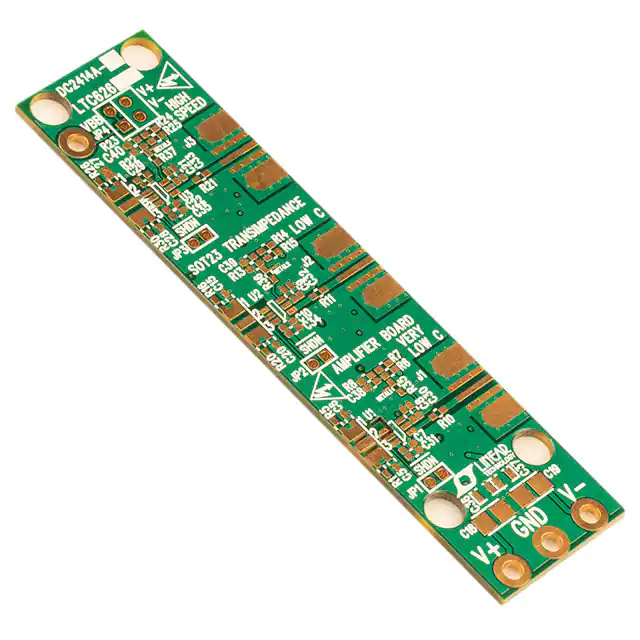

DC2414AEVAL BOARD LTC6268 LTC6268-10 |
16 |
|
Datasheet | - | Box | Active | 1 - Single | Transimpedance | Single-Ended | - | - | - | - | - | LTC6268, LTC6268-10 | Unpopulated (Bare) Board(s) |
|

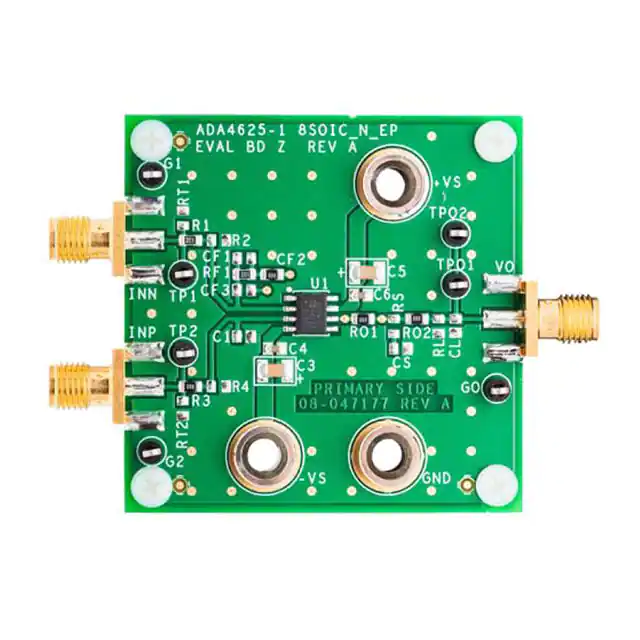

EVAL-ADA4625-1ARDZEVAL BOARD |
23 |
|
Datasheet | - | Box | Active | 1 - Single | J-FET | Single-Ended, Rail-to-Rail | 48V/µs | 16 MHz | 33 mA | 4 mA | 5V ~ 36V, ±2.5V ~ 18V | ADA4625-1 | Board(s) |
|

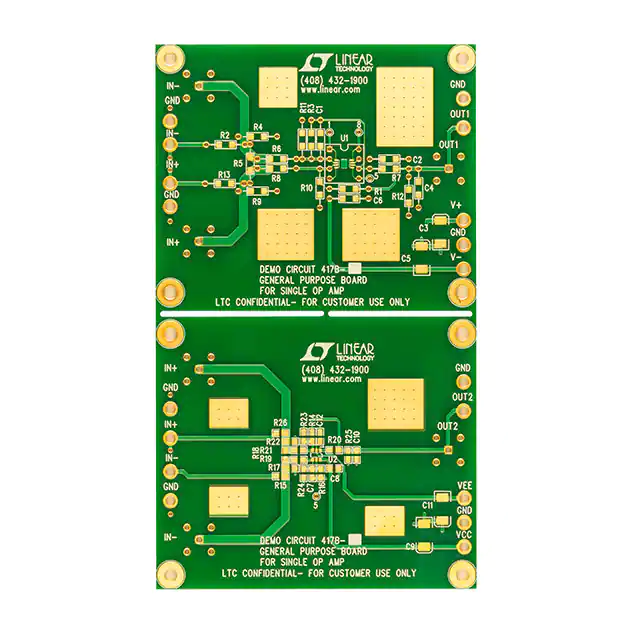

DC417BDEMO BRD MULTI FOOTPRNT SNGL OP |
21 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-DFN, 8-DIP, 8-MSOP, 8-SOIC, SOT-23-5, SOT-23-6 Package | Partially Populated Board(s) |
|
EVAL-ADA4510-2ARZEVAL BOARD FOR ADA4510-2 |
17 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 19V/µs | 13.5 MHz | 22 mA | 1.45 mA | ±3V ~ 20V, 6V ~ 40V | ADA4510-2 | Board(s) |
|
STEVAL-AETKT1V2EVAL BRD TSC2010 TSC2011 TSC2012 |
6 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 7V/µs | 750 kHz | 36 mA | 1.6 mA | 2.7V ~ 5.5V | TSC2010, TSC2011, TSC2012 | Board(s) |
|
EVAL-INAMP-82RZEVAL BOARD 8-SOIC |
36 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | - | - | - | - | - | - | 8-SOIC Package | Partially Populated Board(s) |
|

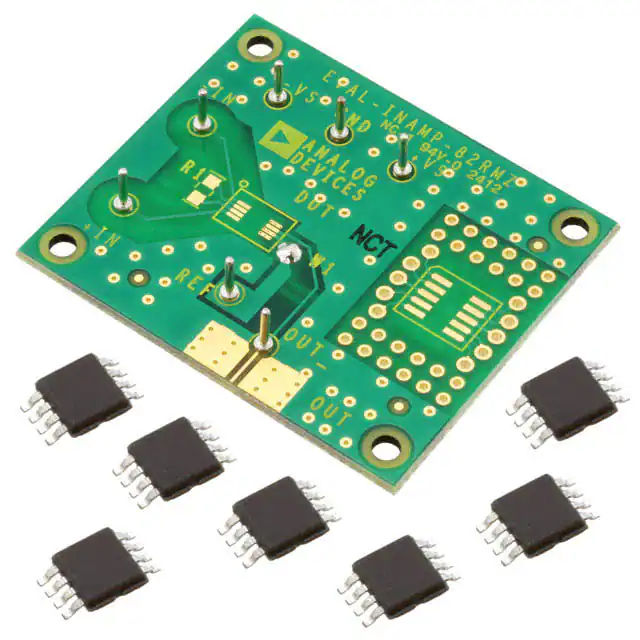

EVAL-INAMP-82RMZEVAL BOARD 8-MSOP |
15 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | - | - | - | - | - | - | 8-MSOP Package | Partially Populated Board(s) |
|
|
EVAL-ADA4351-2EBZEVAL BOARD FOR ADA4351-2 |
17 |
|
Datasheet | - | Box | Active | 2 - Dual | Transimpedance | Single-Ended, Rail-to-Rail | 8V/µs | - | 75 mA | 3.3 mA | 2.7V ~ 5.5V, ±1.85V ~ 2.75V | ADA4351-2 | Board(s) |
|
EVAL-INAMP-62RZEVAL BOARD 8-DIP 8-SOIC |
13 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | - | - | - | - | - | - | 8-DIP, 8-SOIC Package | Partially Populated Board(s) |
|
THS4131EVMEVAL BOARD FOR THS4131 |
19 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 67V/µs | 170 MHz | 85 mA | 13 mA | 4V ~ 33V, ±2V ~ 16.5V | THS4131 | Board(s) |
|
LOG114EVMEVAL BOARD FOR LOG114 |
13 |
|
Datasheet | - | Box | Active | 1 - Single | Logarithmic | - | 5V/µs | 5 MHz | 18 mA | 10 mA | 4.8V ~ 11V, ±2.4V ~ 5.5V | LOG114 | Board(s) |
|
THS4031EVMEVAL BOARD FOR THS4031 |
9 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 100V/µs | 100 MHz | 90 mA | 8.5 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4031 | Board(s) |
|
AMC1301EVMEVAL BOARD FOR AMC1301 |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Differential | - | - | 13 mA | 7.2 mA | 3V ~ 5.5V | AMC1301 | Board(s) |
