Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPA818DRGEVMEVAL BOARD FOR OPA818 |
5 |
|
Datasheet | - | Box | Active | 1 - Single | J-FET | Single-Ended | 1400V/µs | 765 MHz | 55 mA | 27.7 mA | 6V ~ 13V, +4/-2V ~ 6.5V | OPA818 | Board(s) |
|
BUF634ADDAEVMEVAL BOARD FOR BUF634A |
4 |
|
Datasheet | - | Box | Active | 1 - Single | Buffer | Single-Ended | 3750V/µs | 210 MHz | 250 mA | 17 mA | 4.5V ~ 36V, ±2.25V ~ 18V | BUF634A | Board(s) |
|
BUF634ADEVMEVAL BOARD FOR BUF634A |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Buffer | Single-Ended | 3750V/µs | 210 MHz | 64 mA | 3.7 mA | 4.75V ~ 27V, ±2.4V ~ 13.5V | BUF634A | Board(s) |
|
LMH32404RHFEVMEVAL BOARD FOR LMH32404 |
3 |
|
Datasheet | - | Box | Active | 4 - Quad | Transimpedance | Differential | 750V/µs | 250 MHz | 26.6 mA | 28 mA | 3V ~ 3.65V | LMH32404RHF | Board(s) |
|
AD8336-EVALZEVAL BOARD FOR AD8336 |
8 |
|
Datasheet | X-AMP® | Box | Active | 1 - Single | Variable Gain | Single-Ended | 550V/µs | 115 MHz | 20 mA | 28 mA | ±3V ~ 12V | AD8336 | Board(s) |
|
AD8367-EVALZEVAL BOARD FOR AD8367 |
1 |
|
Datasheet | X-AMP® | Box | Active | 1 - Single | Variable Gain | Single-Ended | - | 500 MHz | - | 26 mA | 2.7V ~ 5.5V | AD8367 | Board(s) |
|
AD8250-EVALZEVAL BOARD FOR AD8250 |
13 |
|
Datasheet | iCMOS® | Box | Active | 1 - Single | Instrumentation | Single-Ended | 25V/µs | 10 MHz | 37 mA | 4.1 mA | 10V ~ 30V, ±5V ~ 15V | AD8250 | Board(s) |
|

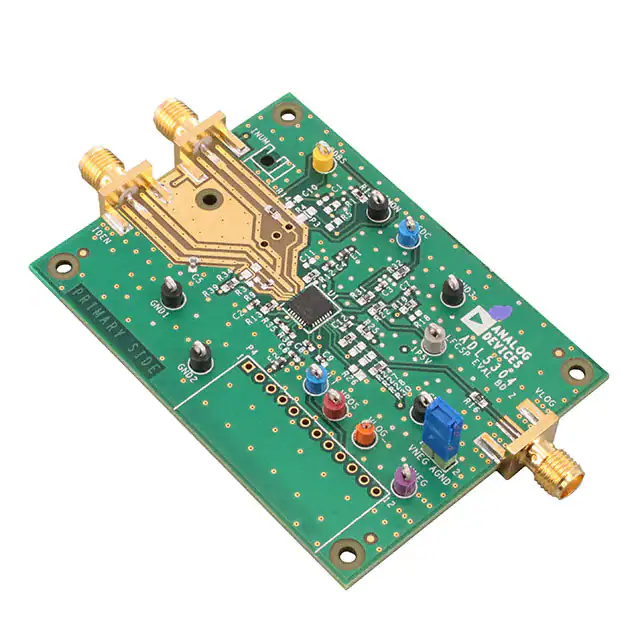

ADL5304-EVALZEVAL BOARD FOR ADL5304 |
7 |
|
Datasheet | - | Bulk | Active | 1 - Single | Logarithmic | Single-Ended | - | 4 MHz | - | 13.5 mA | 4.5V ~ 5.5V | ADL5304 | Board(s) |
|

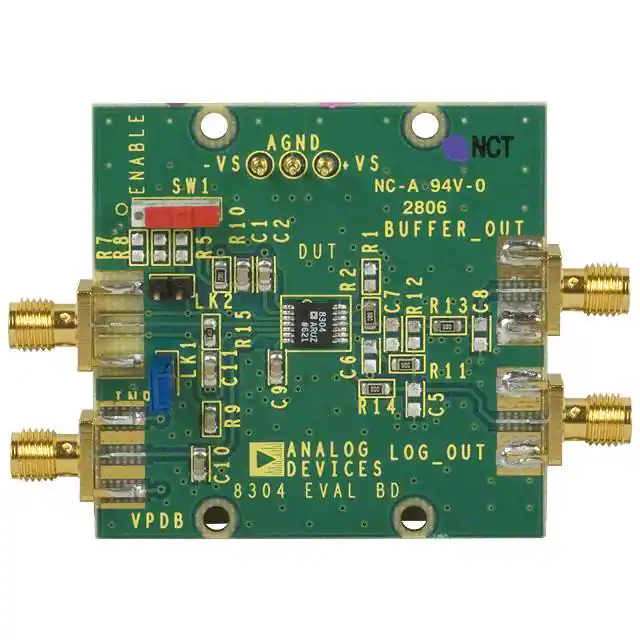

AD8304-EVALZEVAL BOARD FOR AD8304 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Logarithmic | Single-Ended | 15V/µs | 10 MHz | - | 4.5 mA | 3V ~ 5.5V | AD8304 | Board(s) |
|

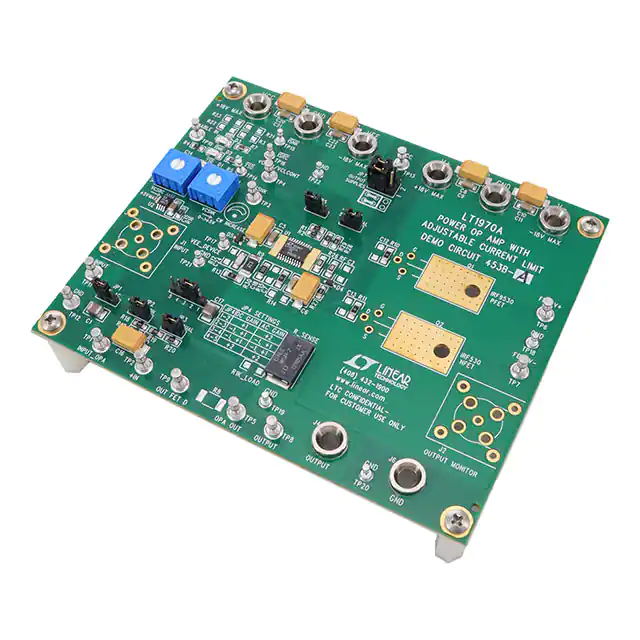

DC453B-ALT1970ACFE - POWER OP AMP WITH A |
13 |
|
Datasheet | - | Bulk | Active | 1 - Single | Power | - | 1.6V/µs | - | 500 mA | 7 mA | 5V ~ 36V, ±2.5V ~ 18V | LT1970A | Board(s) |
|

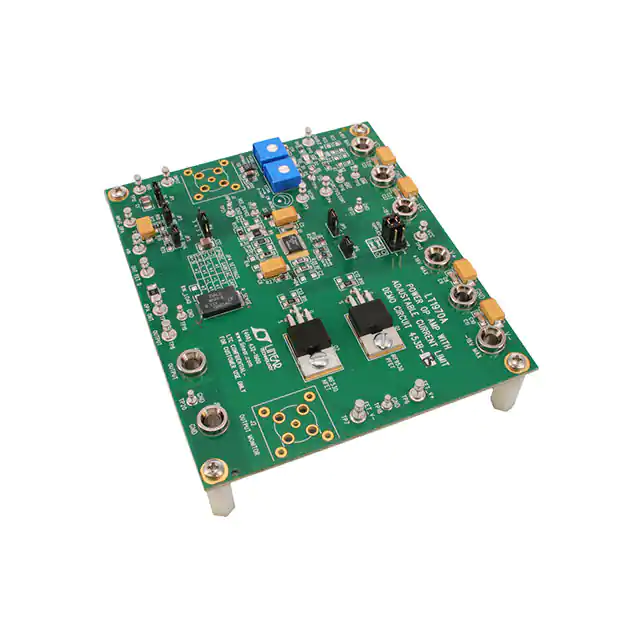

DC453B-BLT1970ACFE - POWER OP AMP WITH A |
7 |
|
Datasheet | - | Bulk | Active | 1 - Single | Power | - | 1.6V/µs | - | 5 A | 7 mA | 5V ~ 36V, ±2.5V ~ 18V | LT1970A | Board(s) |
|

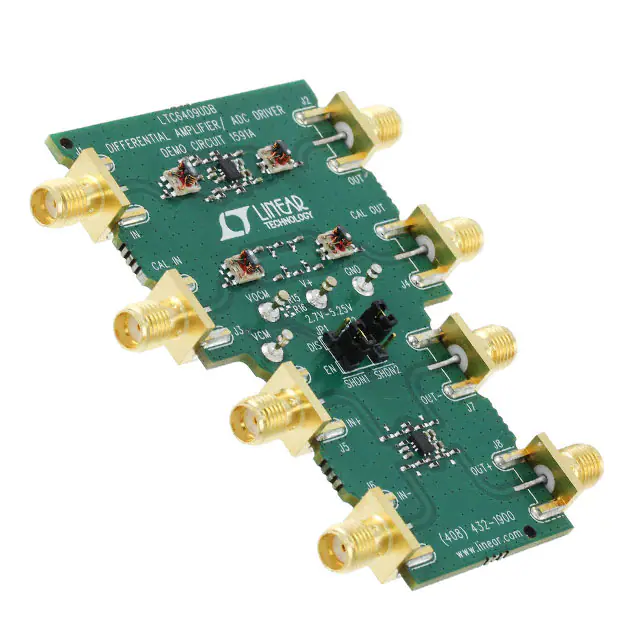

DC1591AEVAL BOARD FOR LTC6409 |
4 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Single-Ended | 3300V/µs | 2 GHz | 95 mA | 52 mA | 2.7V ~ 5.25V | LTC6409 | Board(s) |
|

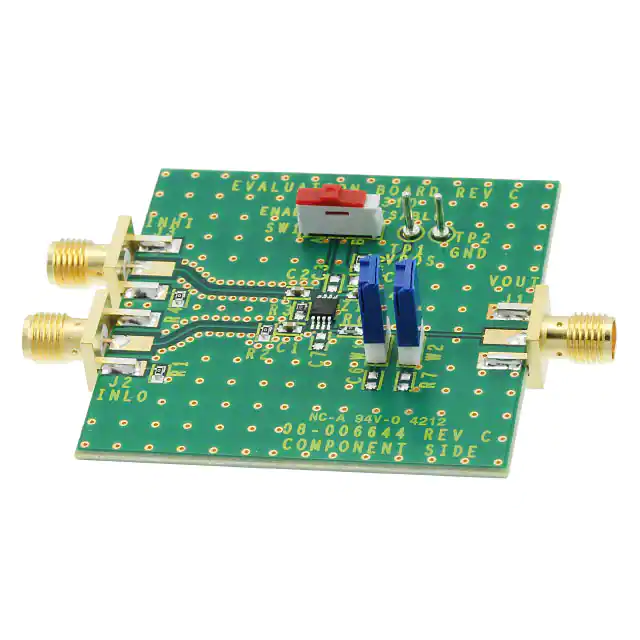

AD8310-EVALZEVAL BOARD FOR AD8310 |
4 |
|
Datasheet | - | Box | Active | 1 - Single | Logarithmic | Single-Ended | - | 900 MHz | 500 µA | 8 mA | 2.7V ~ 5.5V | AD8310 | Board(s) |
|
LMH6629SDEVAL/NOPBEVAL BOARD FOR LMH6629 |
10 |
|
Datasheet | - | Box | Active | 1 - Single | Voltage Feedback | Single-Ended | 1600V/µs | 1 GHz | 250 mA | 15.5 mA | 2.7V ~ 5.5V | LMH6629 | Board(s) |
|
BUF802RGTEVMEVAL BOARD FOR BUF802 |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Buffer | Single-Ended | 7000V/µs | 3.1 GHz | - | 34 mA | 9V ~ 13V, ±4.5V ~ 6.5V | BUF802 | Board(s) |
|

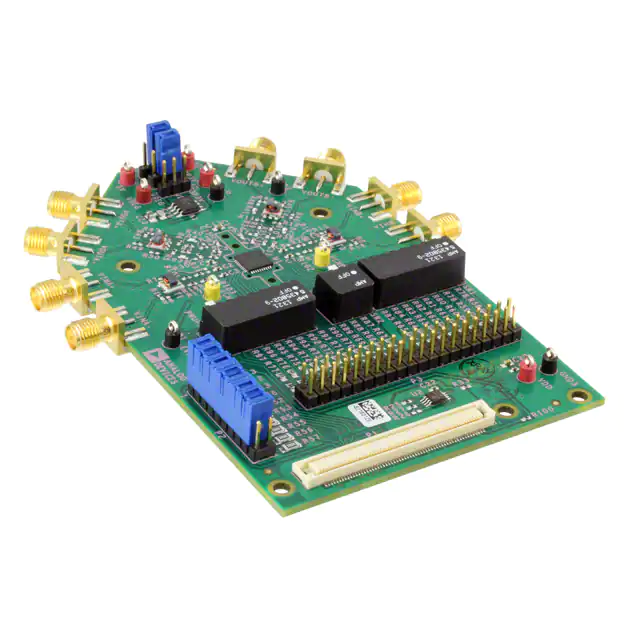

ADL5205-EVALZEVAL BOARD FOR ADL5205 |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | Variable Gain | Differential | 5000V/µs | 1.7 GHz | 22 mA | 175 mA | 3.15V ~ 5.25V | ADL5205 | Board(s) |
|

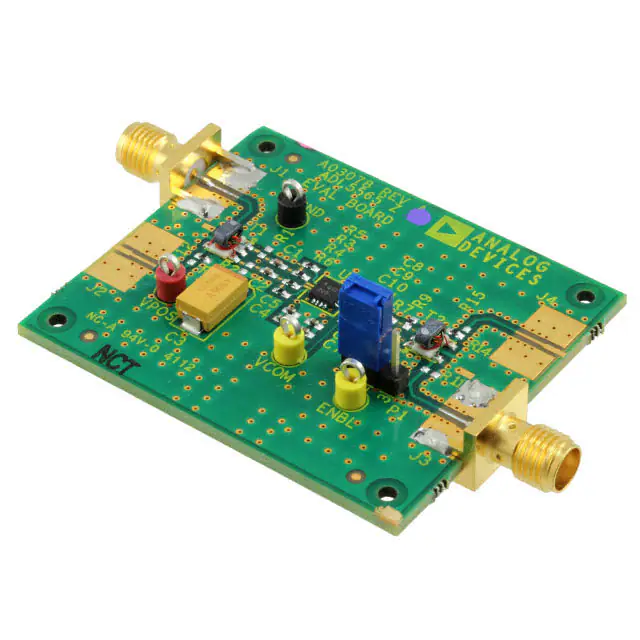

ADL5565-EVALZEVAL BOARD FOR ADL5565 |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 11000V/µs | 7 GHz | 30 mA | 80 mA | 2.8V ~ 5.2V | ADL5565 | Board(s) |
|
TI-PLABS-AMP-EVMTI PRECISION LABS OP AMP BOARD |
5 |
|
Datasheet | - | Box | Active | 1 - Single, 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | OPA140, OPA171, OPA188, OPA211, OPA277 | Partially Populated Board(s) |
|

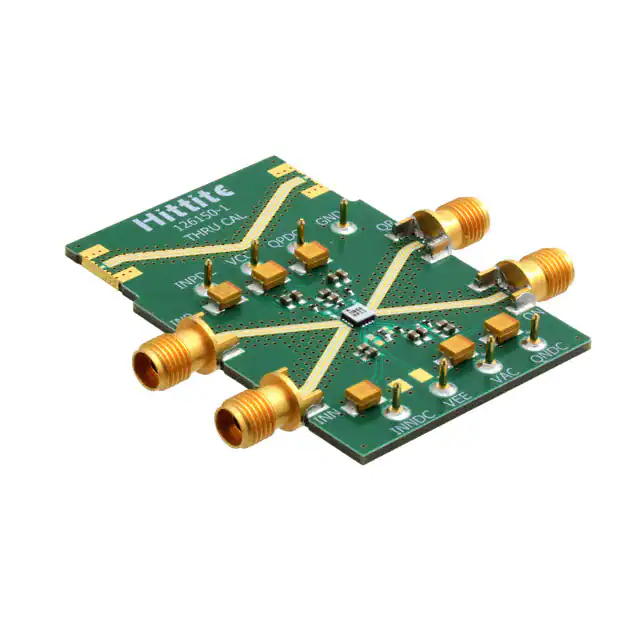

EVAL01-HMC866LC3EVAL BOARD HMC866LC3 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Limiting | Differential | - | 26.5 GHz | - | 85 mA | 3.13V ~ 3.47V | HMC866LC3 | Board(s) |
|
DEM-OPA-MSOP-1BUNPOPULATED DEMO BOARD |
31 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-MSOP Package | Unpopulated (Bare) Board(s) |
