Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPA928EVMEVAL BOARD FOR OPA928 |
11 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 6V/µs | - | 65 mA | 275 µA | 4.5V ~ 36V, ±2.25V ~ 18V | OPA928 | Board(s) |
|
ADA4530-1R-EBZ-TIAEVAL BOARD FOR ADA4530-1 |
10 |
|
Datasheet | - | Box | Active | 1 - Single | Transimpedance | Single-Ended, Rail-to-Rail | 1.4V/µs | 6 MHz | 15 mA | 900 µA | 4.5V ~ 16V, ±2.25V ~ 8V | ADA4530-1 | Board(s) |
|
EVAL01-HMC865LC3BOARD EVAL FOR HMC865LC3 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Limiting | Differential | - | 26.5 GHz | - | 90 mA | 3.13V ~ 3.47V | HMC865LC3 | Board(s) |
|

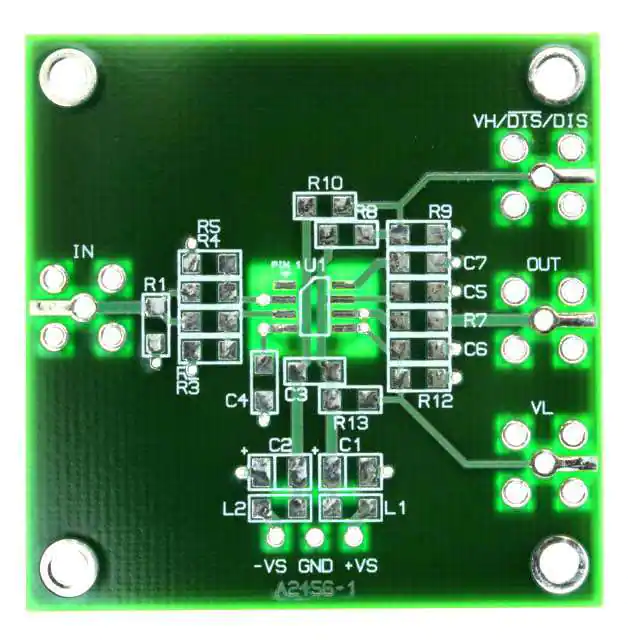

DEM-OPA-SO-1APCB DEMO GENERIC FOR 8SOIC OPAMP |
73 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SOT-1ADEMO FIXTURE FOR SOT-23 OPAMP'S |
36 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
OPAMPEVM-SOT23UNIV EVAL MOD FOR SOT23 PKG |
29 |
|
Datasheet | - | Bulk | Active | 1 - Single, 2 - Dual | General Purpose | - | - | - | - | - | - | 8-MSOP, 8-SOIC, 8-TSSOP, SOT-23-5 Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SO-2ABOARD DEMO FOR 8SOIC DUAL OPAMPS |
27 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
ADA4945-1CP-EBZEVAL BOARD FOR ADA4950-1 |
75 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 600V/µs | 145 MHz | 170 mA | 4 mA | 3V ~ 10V, ±1.5V ~ 5V | ADA4945-1 | Board(s) |
|
DIYAMP-SOIC-EVMAMPLIFIER CIRCUIT EVAL MOD |
60 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) |
|
|
DIYAMP-SOT23-EVMEVALUATION MODULE |
26 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) |
|
|
INA-DDF-EVMEVAL BOARD FOR DDF |
25 |
|
Datasheet | - | Box | Active | 1 - Single, 2 - Dual | Instrumentation | Single-Ended | - | - | - | - | - | INA350AB, INA350CD, INA351AB, INA351CD | Partially Populated Board(s) - Main IC/Module/Part Not Included |
|
|
DIYAMP-SC70-EVMDIYAMP-SC70-EVM |
11 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) |
|
DUAL-DIYAMP-EVMDUAL-DIYAMP-EVM |
9 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) |
|
|
AD8411ARM-EVALZEVAL BOARD FOR AD8411A |
7 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended, Rail-to-Rail | 10V/µs | 2.7 MHz | - | 7.8 mA | 2.9V ~ 5.5V | AD8411A | Board(s) |
|
EVAL-PRAOPAMP-1RZBARE BOARD 8-SOIC |
35 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
EVAL-PRAOPAMP-2RZBARE BOARD 8-SOIC |
20 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
EVAL-ADA4625-2ARDZEVALUATION BOARD |
23 |
|
Datasheet | - | Box | Active | 2 - Dual | J-FET | Single-Ended, Rail-to-Rail | 48V/µs | 16 MHz | 33 mA | 4 mA | 5V ~ 36V, ±2.5V ~ 18V | ADA4625-2 | Board(s) |
|
EVAL-HSOPAMP-1RZBARE BOARD 8-SOIC |
42 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
EVAL-HSAMP-2RZ-8BARE BOARD 8-SOIC |
16 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
INA240EVMEVAL BOARD FOR INA240 |
39 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2V/µs | 400 kHz | - | 1.8 mA | 2.7V ~ 5.5V | INA240 | Board(s) |
