Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD8061AR-EBZBOARD EVAL FOR AD8061AR |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Voltage Feedback | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
AD8011AR-EBZBOARD EVAL FOR AD8011AR |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Feedback | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
AD8010AR-EBZBOARD EVAL FOR AD8010 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Feedback | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
AD825AR-EBZBOARD EVAL FOR AD825AR AMP |
0 |
|
Datasheet | - | Box | Active | 1 - Single | J-FET | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
AD9631AR-EBZBOARD EVAL FOR AD9631AR |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Voltage Feedback | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

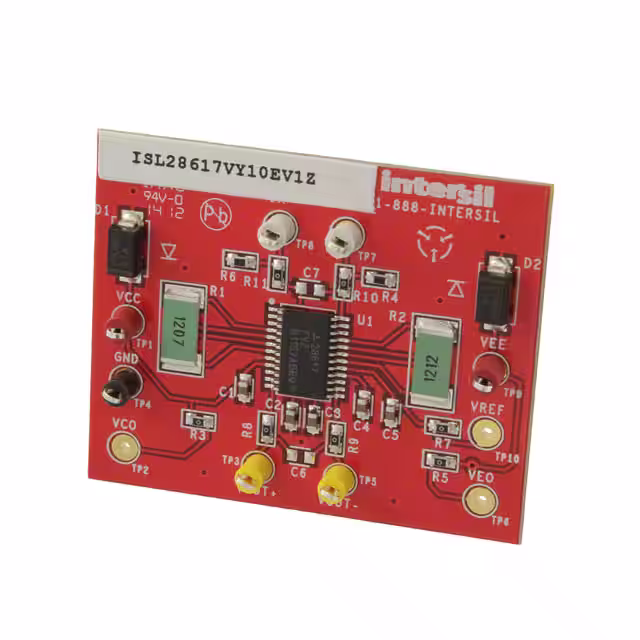

ISL28617VY10EV1ZBOARD EVAL FOR ISL28617 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Instrumentation | Differential | 4V/µs | 5.5 MHz | 45 mA | 2.05 mA | 8V ~ 40V, ±4V ~ 20V | ISL28617 | Board(s) |
|

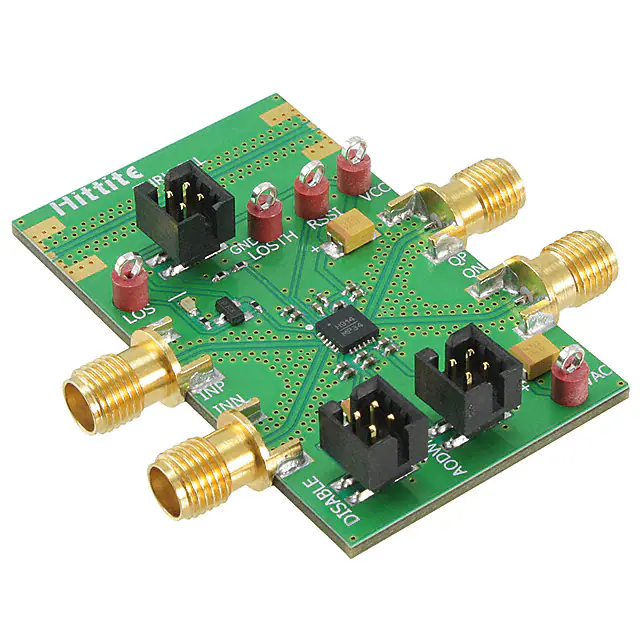

128915-HMC914LP4EEVAL BOARD FOR HMC914LP4E |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Limiting | Differential | - | 9.5 GHz | - | 47 mA | 3V ~ 3.6V | HMC914LP4E | Board(s) |
|

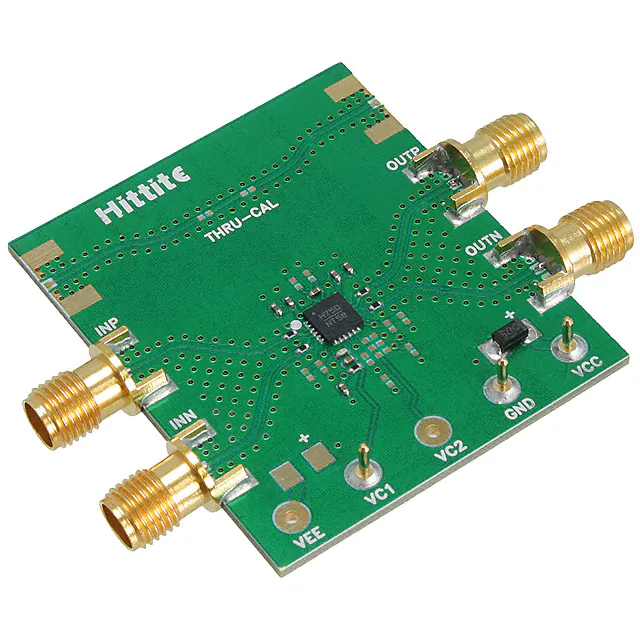

121600-HMC750LP4EVAL BOARD FOR HMC750LP4E |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Limiting | Differential | - | 11 GHz | - | 106 mA | 4.6V ~ 5.4V | HMC750LP4E | Board(s) |
|
TS1100-25DBBOARD DEMO TS1100-25 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1100-25 | Board(s) |
|

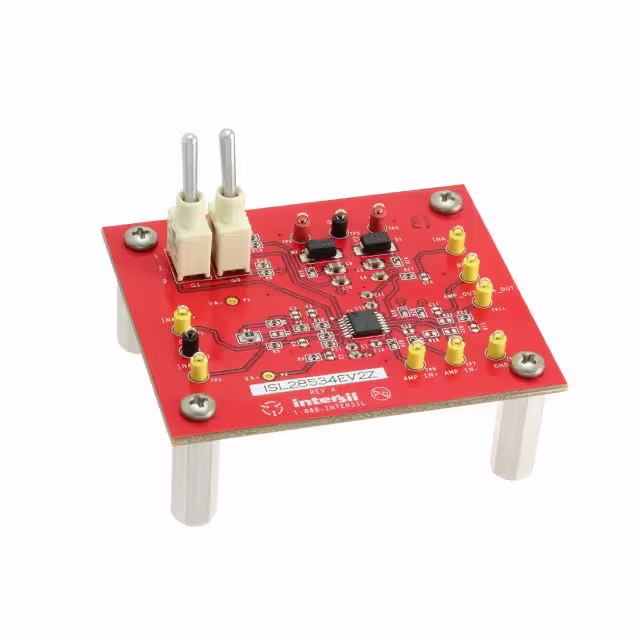

ISL28534EV2ZEVAL BOARD FOR ISL28534 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Zero-Drift | Rail-to-Rail | 0.8V/µs | - | 45 mA | 2.9 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28534 | Board(s) |
|
|
TS1100-100DBDEMO BOARD TS1100-100 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 4.5 kHz | - | 680 nA | 2V ~ 27V | TS1100-100 | Board(s) |
|
|
TS1100-50DBDEMO BOARD TS1100-50 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1100-50 | Board(s) |
|
TS1102-50DBDEMO BOARD TS1102-50 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1102-50 | Board(s) |
|
|
TS1108-200DBDEMO BOARD TS1108-200 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | - | - | - | - | TS1108-200 | Board(s) |
|
|
TS1108-20DBDEMO BOARD TS1108-20 OPAMP |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | - | - | - | - | TS1108-20 | Board(s) |
|
|
HV264DB1EVAL BOARD FOR HV264 |
0 |
|
Datasheet | - | Box | Obsolete | 4 - Quad | General Purpose | Single-Ended | 9V/µs | 25 kHz | 3 mA | 5 mA | 4.5V ~ 5.5V, 50V ~ 200V | HV264 | Board(s) |
|
|
EL8170FWZ-EVALEVAL INSTRUMENT AMPLIFIER |
0 |
|
- |
- | Box | Obsolete | 1 - Single | Instrumentation | Single-Ended, Rail-to-Rail | 0.55V/µs | 192 kHz | 32 mA | 65 µA | 2.4V ~ 5.5V | EL8170 | Board(s) |
