Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL28635EV2ZEVAL BOARD FOR ISL28635 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Instrumentation | Differential, Rail-to-Rail | 0.8V/µs | - | - | 3 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28635 | Board(s) |
|
AMP-PDK-SOIC-14EVAL BOARD FOR AMP |
0 |
|
- |
- | Bulk | Active | 4 - Quad | General Purpose | - | - | - | - | - | - | - | - |
|
|
AMP-PDK-VSSOP-8EVAL BOARD FOR AMP |
0 |
|
- |
- | - | Active | 2 - Dual | General Purpose | - | - | - | - | - | - | - | - |
|
|
ISL28113SOT23EVAL1ZEVALUATION BOARD FOR ISL28113 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Rail-to-Rail | 1V/µs | - | 22 mA | 90 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28113 | Board(s) |
|
|
ISL28114SOT23EVAL1ZEVALUATION BOARD FOR ISL28114 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Rail-to-Rail | 2.5V/µs | - | 31 mA | 300 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28114 | Board(s) |
|
|
ISL28213MSOPEVAL2ZEVALUATION BOARD FOR ISL28213 |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 1V/µs | - | 22 mA | 90 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28213 | Board(s) |
|
ISL28214MSOPEVAL2ZEVALUATION BOARD FOR ISL28214 |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 2.5V/µs | - | 31 mA | 300 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28214 | Board(s) |
|
|
DC599ALT6203CDD - DUAL, 100MHZ, RAIL T |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | Rail-to-Rail | 25V/µs | - | 40 mA | 2.8 mA | 2.5V ~ 12.6V, ±1.25V ~ 6.3V | LT6203CDD | Board(s) |
|
|
ISL28248SOICEVAL1ZEVALUATION BOARD ISL28248 8SOIC |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 4V/µs | 13 MHz | 68 mA | 900 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28248 | Board(s) |
|
|
ISL28136EVAL1ZEVALUATION BOARD FOR ISL28136 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 1.9V/µs | 13 MHz | 56 mA | 900 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28136 | Board(s) |
|
|
ISL28191EVAL1ZEVALUATION BOARD FOR ISL28191 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Voltage Feedback | Single-Ended, Rail-to-Rail | 17V/µs | 61 MHz | 130 mA | 2.6 mA | 3V ~ 5.5V, ±1.5V ~ 2.75V | ISL28191 | Board(s) |
|
|
ISL28148EVAL1ZEVALUATION BOARD FOR ISL28148 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 4V/µs | 13 MHz | 75 mA | 900 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28148 | Board(s) |
|
|
ISL28291EVAL1ZEVALUATION BOARD FOR ISL28291 |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | Voltage Feedback | Single-Ended, Rail-to-Rail | 17V/µs | 61 MHz | 130 mA | 2.6 mA | 3V ~ 5.5V, ±1.5V ~ 2.75V | ISL28291 | Board(s) |
|
|
ISL28213SOICEVAL2ZEVALUATION BOARD FOR ISL28213 |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 1V/µs | - | 22 mA | 90 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28213 | Board(s) |
|
ISL28214SOICEVAL2ZEVALUATION BOARD FOR ISL28214 |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 2.5V/µs | - | 31 mA | 300 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28214 | Board(s) |
|

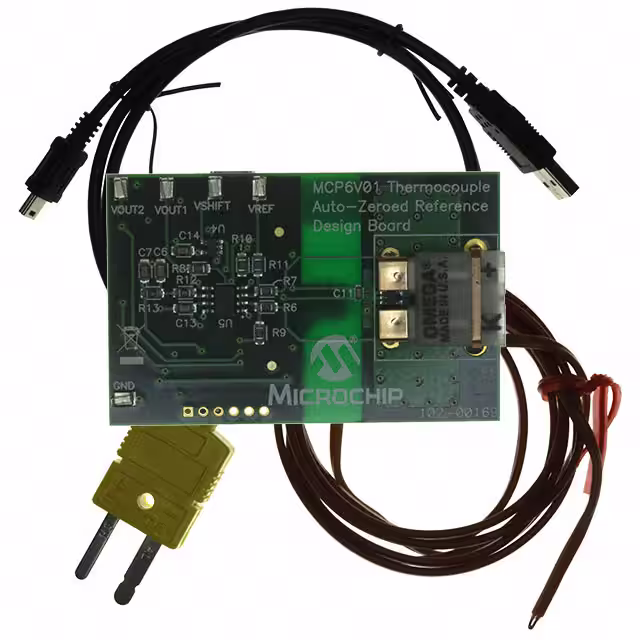

MCP6V01RD-TCPLREF DESIGN THERMCPL FOR MCP6V01 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Chopper (Zero-Drift) | Rail-to-Rail | 0.5V/µs | - | 22 mA | - | 1.8V ~ 5.5V | MCP6V01 | Board(s), Cable(s), Accessories |
|
ISL28233SOICEVAL1ZEVAL BOARD FOR ISL28233 8SOIC |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | Chopper (Zero-Drift) | Rail-to-Rail | 0.2V/µs | - | 19 mA | 18 µA | 1.65V ~ 5.5V, ±0.825V ~ 2.75V | ISL28233 | Board(s) |
|
|
DC594ALT1638CDD - DUAL, OVER-THE-TOP, |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | Rail-to-Rail | 0.4V/µs | - | 40 mA | 205 µA | 2.5V ~ 44V, ±1.25V ~ 22V | LT1638CDD | Board(s) |
|
ISL28433SOICEVAL1ZEVAL BOARD FOR ISL28433 14SOIC |
1 |
|
Datasheet | - | Box | Active | 4 - Quad | Chopper (Zero-Drift) | Rail-to-Rail | 0.2V/µs | - | 19 mA | 18 µA | 1.65V ~ 5.5V, ±0.825V ~ 2.75V | ISL28433 | Board(s) |
|
|
AD8225-EVALZEVAL BOARD FOR AD8225 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Single-Ended | 5V/µs | 900 kHz | 18 mA | 1.05 mA | 3.4V ~ 36V, ±1.7V ~ 18V | AD8225 | Board(s) |
