Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADA4807-1ARJZ-EBZEVAL BOARD FOR ADA4807 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|

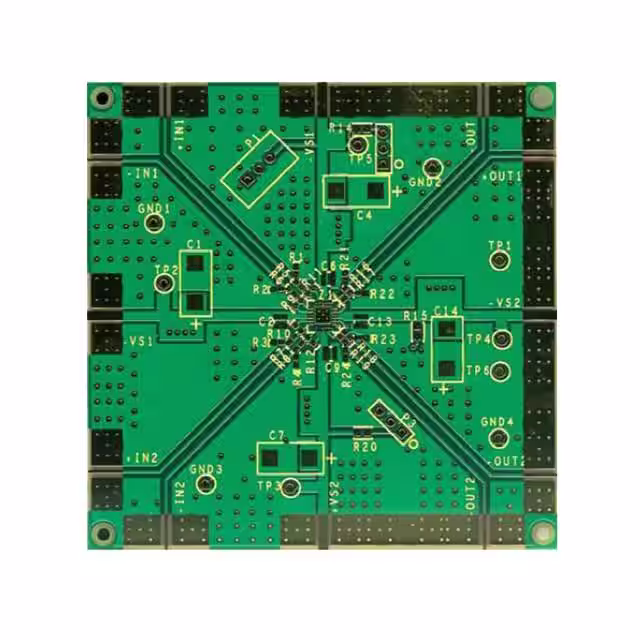

ADA4938-2ACP-EBZEVAL BOARD FOR ADA4938 |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Differential | Differential | - | - | - | - | - | 24-LFCSP Package | Unpopulated (Bare) Board(s) |
|
ADA4807-2ACPZ-EBZEVAL BOARD ADA4807-2 10LFCSP |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 10-LFCSP Package | Unpopulated (Bare) Board(s) |
|
|
ADA4807-2ARMZ-EBZEVAL BOARD ADA4807-2 10MSOP |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 10-MSOP Package | Unpopulated (Bare) Board(s) |
|
ADA4940-1AR-EBZEVAL BOARD FOR ADA4940 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Differential | Differential | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
ISL28130ISENSEV1ZEVAL BOARD FOR ISL28130 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended, Rail-to-Rail | - | - | - | - | 1.8V ~ 5.5V, ±0.9V ~ 2.75V | ISL28130 | Board(s) |
|
ADM00375BOARD EVAL FOR MCP6H04 OP AMP |
0 |
|
Datasheet | - | Bulk | Obsolete | 4 - Quad | General Purpose | Rail-to-Rail | 0.8V/µs | - | 50 mA | 135 µA | 3.5V ~ 16V, ±1.75V ~ 8V | MCP6H04 | Board(s) |
|
|
AD8036-EBBOARD EVAL FOR AD8036 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
AD8037-EBBOARD EVAL FOR AD8037 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
STEVAL-AETKT1V1EVAL BOARD FOR TSC2011 |
0 |
|
- |
- | Bulk | Obsolete | 1 - Single | Current Sense | Single-Ended | 7V/µs | 750 kHz | 36 mA | 1.6 mA | 2.7V ~ 5.5V | TSC2011 | Board(s) |
|
|
ISL1571IRZ-EVALEVAL BOARD FOR ISL1571IRZ |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | 1200V/µs | 250 MHz | 1 A | 15 mA | 4.5V ~ 12V, ±2.25V ~ 6V | ISL1571 | Board(s) |
|
|
ISL1571IUEZ-EVALEVAL BOARD FOR ISL1571IUEZ |
0 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | 1200V/µs | 250 MHz | 1 A | 15 mA | 4.5V ~ 12V | ISL1571 | Board(s) |
|
|
CLC5509PCASMEVAL BOARD FOR CLC5509 |
0 |
|
- |
- | - | Obsolete | 1 - Single | Programmable Gain | Single-Ended | - | 33 MHz | 45 mA | 9 mA | 4.75V ~ 5.25V | CLC5509 | Board(s) |
|
ADA4806-1RJ-EBZEVAL BOARD FOR ADA4806 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Voltage Feedback | Single-Ended, Rail-to-Rail | 190V/µs | 120 MHz | 58 mA | 570 µA | 2.7V ~ 10V, ±1.35V ~ 5V | ADA4806-1 | Board(s) |
|
|
FDA-FILTER-CPZEVAL BOARD FILTER FOR LFCSP |
0 |
|
Datasheet | - | Box | Not For New Designs | 1 - Single | Differential | Differential | - | - | - | - | - | 16-LFCSP Package | Unpopulated (Bare) Board(s) |
|

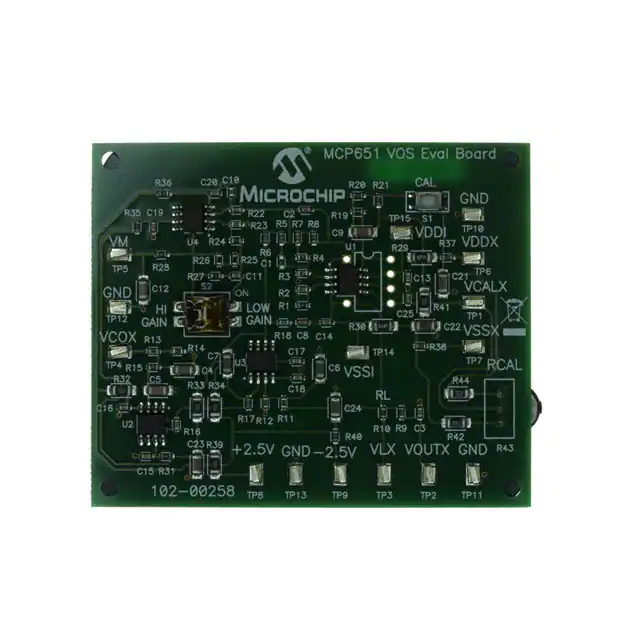

MCP651EV-VOSEVAL BOARD FOR MCP651 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 30V/µs | - | 100 mA | 6 mA | 2.5V ~ 5.5V | MCP651 | Board(s) |
|

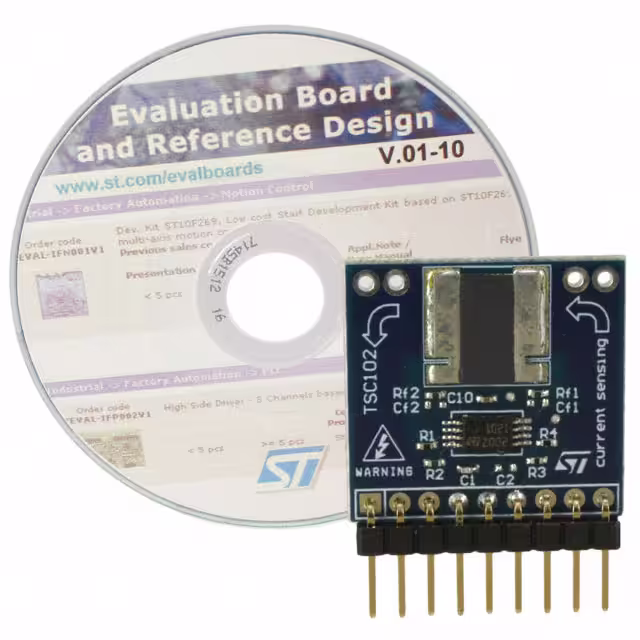

STEVAL-ISQ010V1EVAL BOARD FOR TSC102 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 0.4V/µs | 800 kHz | 30 mA | 420 µA | 3.5V ~ 5.5V | TSC102 | Board(s) |
|
|
ADA4851-1YRJ-EBZBOARD EVALUATION FOR ADA4851 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | - | - | - | - | - | - | SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
|
ISL28134ISENSEV1ZBOARD EVAL FOR ISL28134 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | - | - | 3V ~ 5V | ISL28134 | Board(s) |
|
|
ISL28133CSENSEV1ZBOARD EVAL FOR ISL28133 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | - | - | 5V | ISL28133 | Board(s) |
