Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

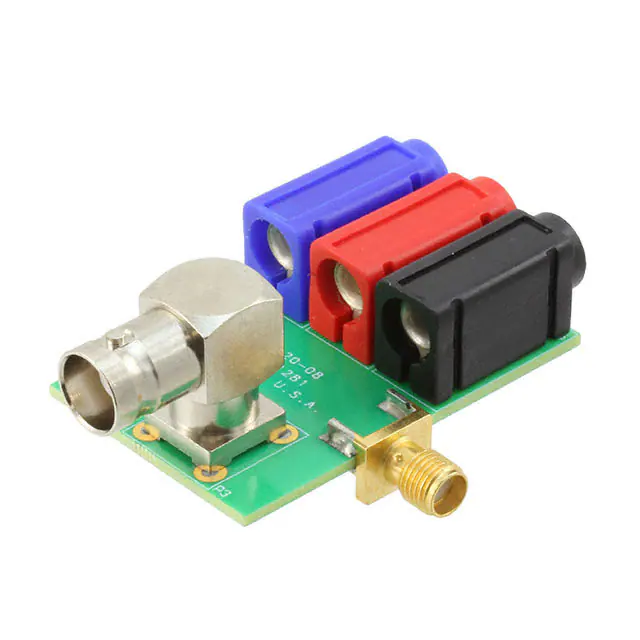

LMV861MGEVALEVAL BOARD FOR LMV861 |
1 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 20V/µs | - | 150 mA | 2.47 mA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | LMV861 | Board(s) |
|

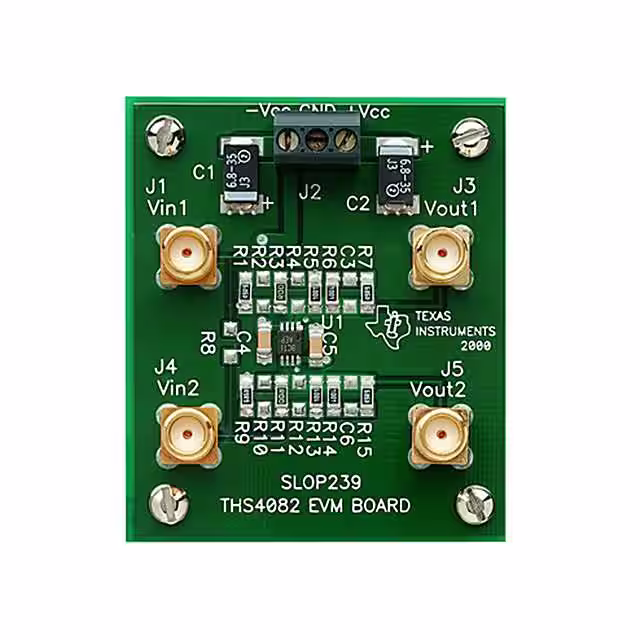

THS4082EVMEVAL BOARD FOR THS4082 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Voltage Feedback | Single-Ended | 230V/µs | 175 MHz | 85 mA | 3.4 mA | 9V ~ 33V, ±4.5V ~ 16.5V | THS4082 | Board(s) |
|

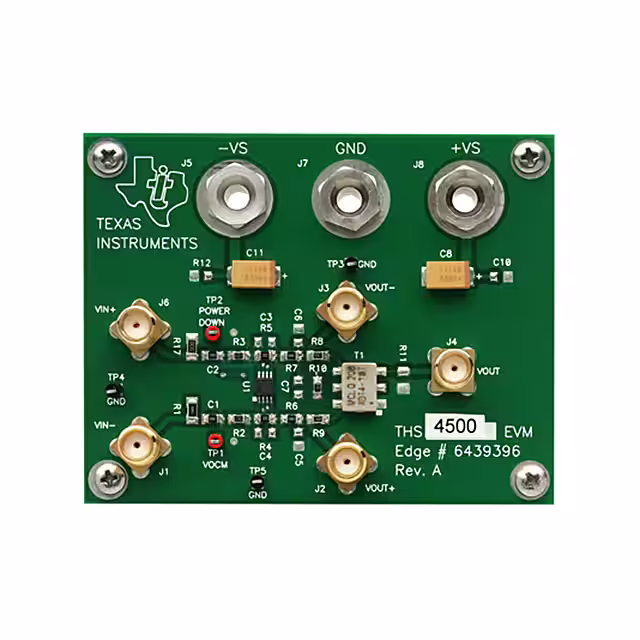

THS4500EVMEVAL BOARD FOR THS4500 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Differential | Differential | 2800V/µs | 370 MHz | 120 mA | 23 mA | 4.5V ~ 15V, ±2.25V ~ 7.5V | THS4500 | Board(s) |
|
THS4221EVMEVAL BOARD FOR THS4221 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended, Rail-to-Rail | 990V/µs | 230 MHz | 100 mA | 14 mA | 2.7V ~ 15V, ±1.35V ~ 7.5V | THS4221 | Board(s) |
|

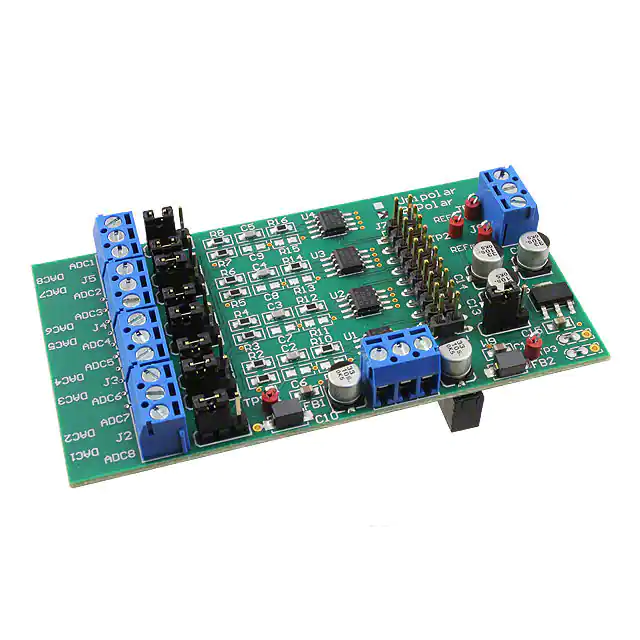

DAPSIGCNDBRDBPEVMEVAL BOARD FOR OPA2132 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | General Purpose | Single-Ended | 20V/µs | - | 36 mA | 4 mA | 5V ~ 36V, ±2.5V ~ 18V | OPA2132 | Board(s) |
|

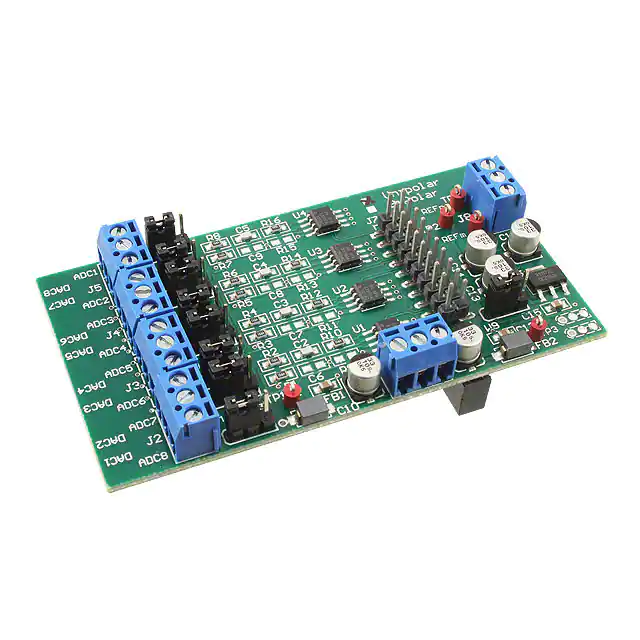

DAPSIGCNDBRDUNPEVMEVAL BOARD FOR OPA2350 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 22V/µs | - | 40 mA | 5.2 mA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | OPA2350 | Board(s) |
|

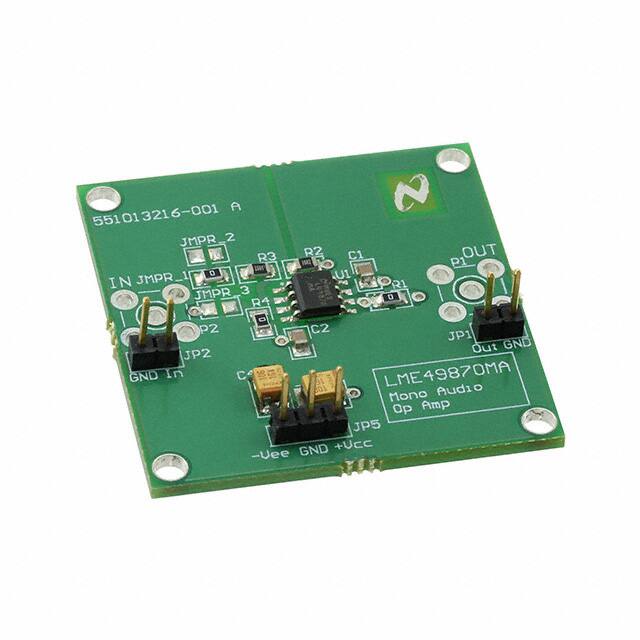

LME49870MABDEVAL BOARD FOR LME49870 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Audio | Single-Ended | 20V/µs | - | 37 mA | 5 mA | ±2.5V ~ 22V | LME49870 | Board(s) |
|
LMV831MGEVALEVAL BOARD FOR LMV831 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended | 2V/µs | - | 66 mA | 250 µA | 2.7V ~ 5.5V | LMV831 | Board(s) |
|
LMV862MMEVALEVAL BOARD FOR LMV862 |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 20V/µs | - | 150 mA | 4.85 mA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | LMV862 | Board(s) |
|
|
DC595A2X 80MHZ, 25V/S L PWR R2R IN & O |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | General Purpose | Rail-to-Rail | 25V/µs | - | 50 mA | 1.6 mA | 2.3V ~ 12.6V, ±1.15V ~ 6.3V | LT1801CDD | Board(s) |
|
ZXFV203EVEVAL BOARD FOR ZXFV203 |
0 |
|
Datasheet | - | Bulk | Obsolete | 3 - Triple | Video | Single-Ended | 600V/µs | 210 MHz | 40 mA | 7.5 mA | ±4.75V ~ 5.25V | ZXFV203 | Board(s) |
|

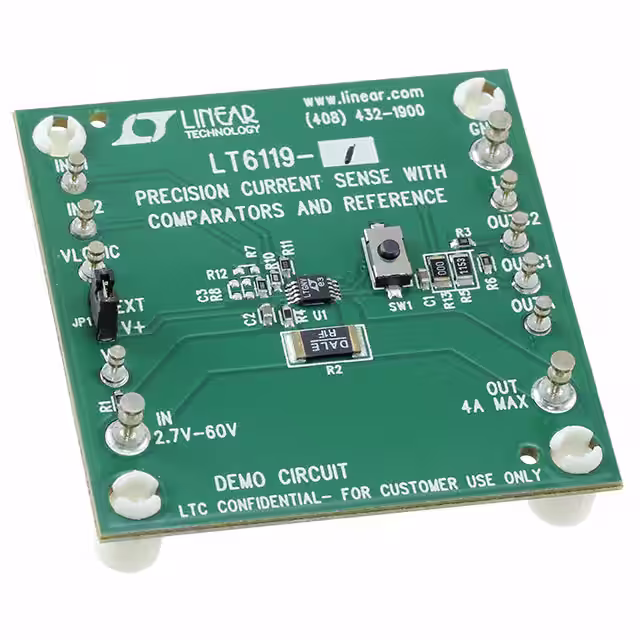

DC2261A-BEVAL BOARD FOR LT6119-2 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | 1 mA | 600 µA | 2.7V ~ 60V | LT6119-2 | Board(s) |
|

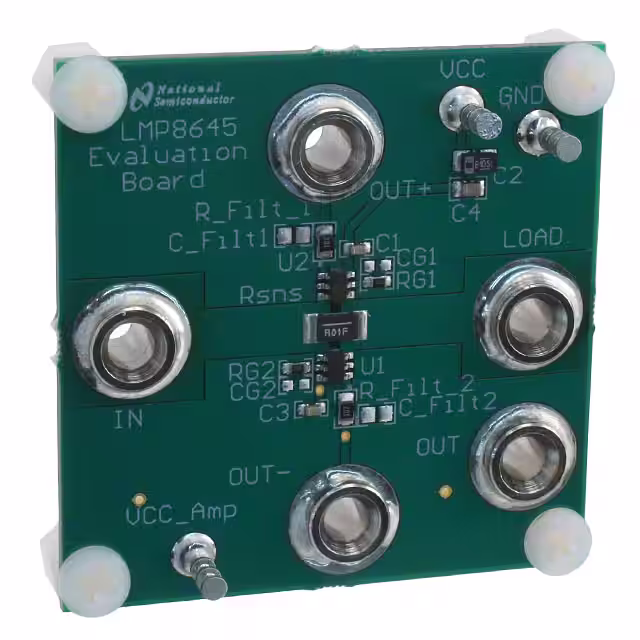

LMP8645MKEVAL/NOPBEVAL BOARD FOR LMP8645 |
1 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Current Sense | Single-Ended | 0.6V/µs | 860 kHz | 5 mA | 2.2 mA | 2.7V ~ 12V | LMP8645 | Board(s) |
|

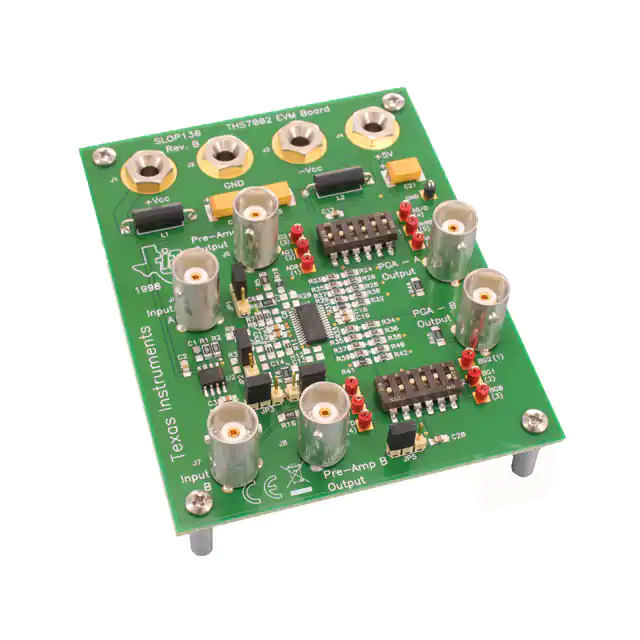

THS7002EVMEVAL BOARD FOR THS7002 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Programmable Gain | Single-Ended | 85V/µs | 100 MHz | 95 mA | 7 mA | 9V ~ 32V, ±4.5V ~ 16V | THS7002 | Board(s) |
|

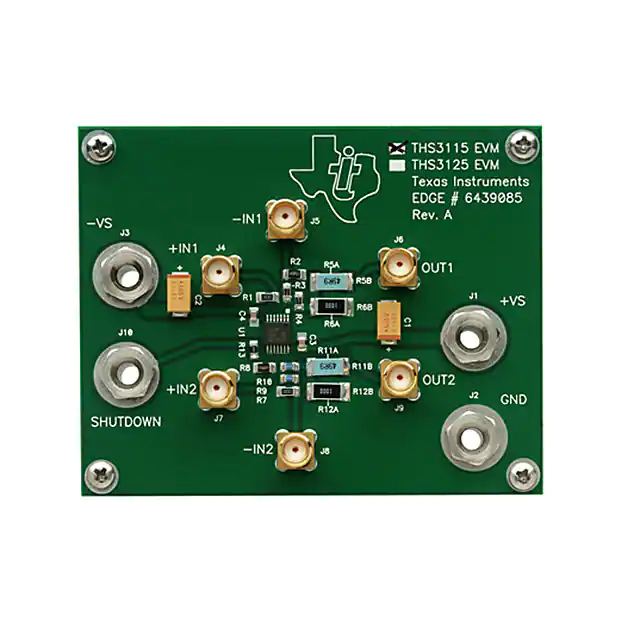

THS3115EVMEVAL BOARD FOR THS3115 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Current Feedback | Single-Ended | 1550V/µs | 110 MHz | 270 mA | 4.9 mA | 10V ~ 30V, ±5V ~ 15V | THS3115 | Board(s) |
|

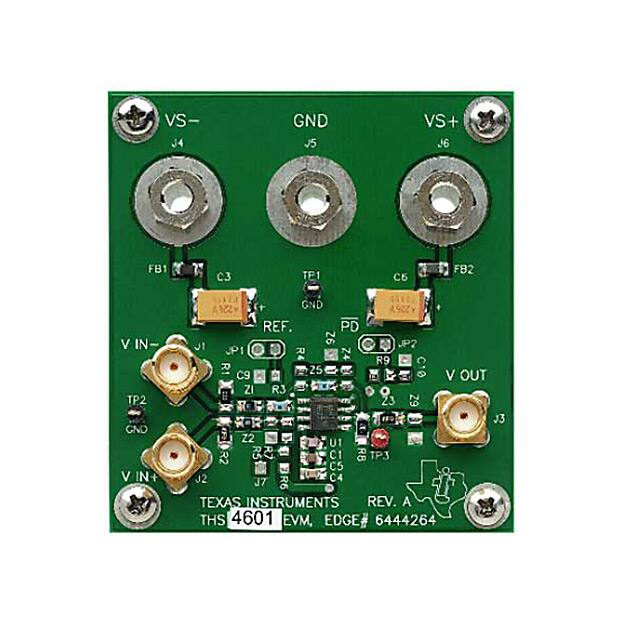

THS4601EVMEVAL BOARD FOR THS4601 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | Single-Ended | 100V/µs | 440 MHz | 80 mA | 10 mA | 10V ~ 30V, ±5V ~ 15V | THS4601 | Board(s) |
|
THS4211EVM-UGEVAL BOARD FOR THS4211 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 970V/µs | 1 GHz | 220 mA | 19 mA | 5V ~ 15V, ±2.5V ~ 7.5V | THS4211 | Board(s) |
|
LMP8481MMEVM-HEVAL BOARD FOR LMP8481 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | 1V/µs | 270 kHz | - | 88 µA | 4.5V ~ 75V | LMP8481 | Board(s) |
|
|
LMP8481MMEVM-TEVAL BOARD FOR LMP8481 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | 1V/µs | 270 kHz | - | 88 µA | 4.5V ~ 75V | LMP8481 | Board(s) |
|
ISL28533EV2ZEVAL BOARD FOR ISL28533 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Zero-Drift | Rail-to-Rail | 0.8V/µs | - | 45 mA | 2.9 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28533 | Board(s) |
