Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

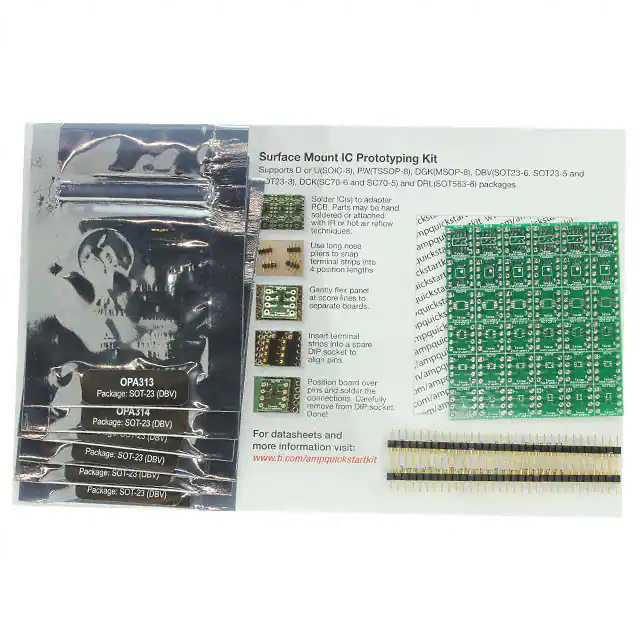

AMPQUICKKIT-EVMEVAL MODULE FOR AMPQUICKKIT |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | OPA170, OPA171, OPA172, OPA313, OPA314, OPA316 | Unpopulated (Bare) Board(s) |
|
DC954A-CEVAL BOARD FOR LT6402-20 |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Differential | Differential | 400V/µs | 300 MHz | 35 mA | 30 mA | 4V ~ 5.5V, ±2V ~ 2.5V | LT6402-20 | Board(s) |
|
ISL28134SOICEVAL1ZEVAL BOARD FOR ISL28134 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Chopper (Zero-Drift) | Rail-to-Rail | 1.5V/µs | - | 65 mA | 675 µA | - | ISL28134 | Board(s) |
|
|
THS4505EVMEVAL BOARD FOR THS4505 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Differential | Differential | 1800V/µs | 260 MHz | 130 mA | 16 mA | 4.5V ~ 15V, ±2.25V ~ 7.5V | THS4505 | Board(s) |
|

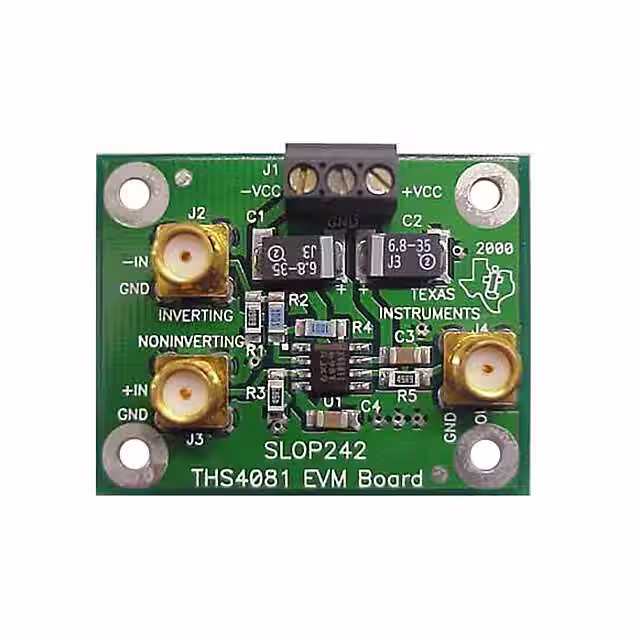

THS4081EVMEVAL BOARD FOR THS4081 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 230V/µs | 175 MHz | 85 mA | 3.4 mA | 9V ~ 33V, ±4.5V ~ 16.5V | THS4081 | Board(s) |
|
|
THS4001EVMEVAL BOARD FOR THS4001 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 400V/µs | 270 MHz | 100 mA | 7.8 mA | 5V ~ 32V, ±2.5V ~ 16V | THS4001 | Board(s) |
|

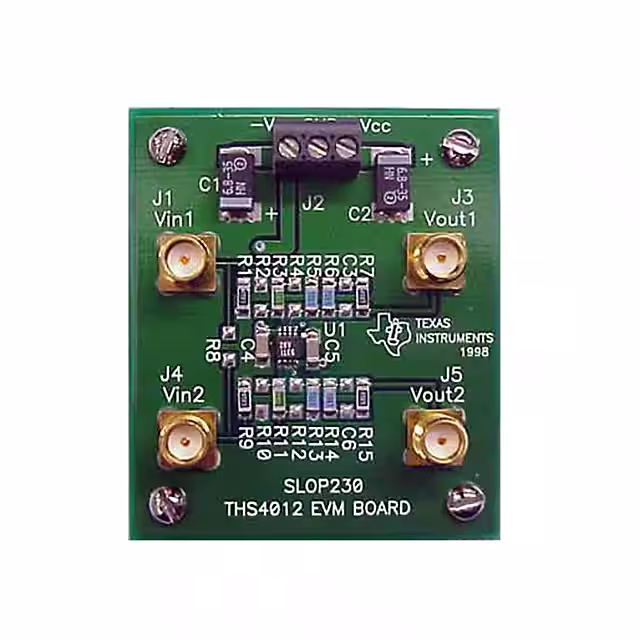

THS4012EVMEVAL BOARD FOR THS4012 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Voltage Feedback | Single-Ended | 310V/µs | 290 MHz | 110 mA | 7.8 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4012 | Board(s) |
|

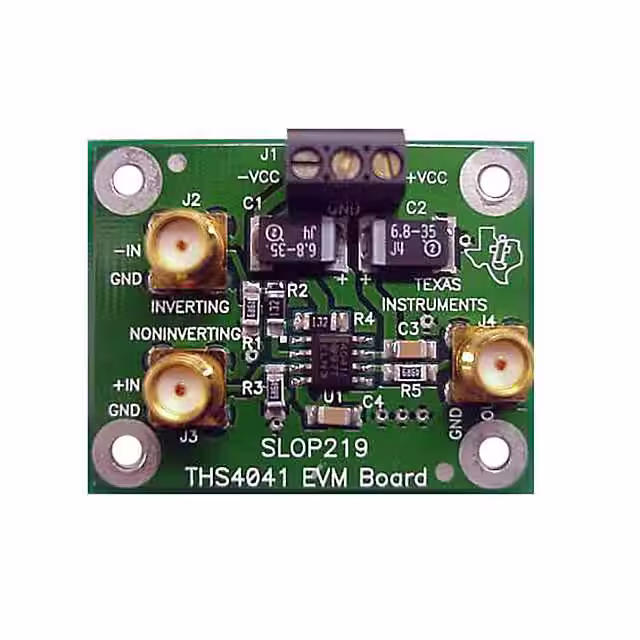

THS4041EVMEVAL BOARD FOR THS4041 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 400V/µs | 165 MHz | 100 mA | 8 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4041 | Board(s) |
|

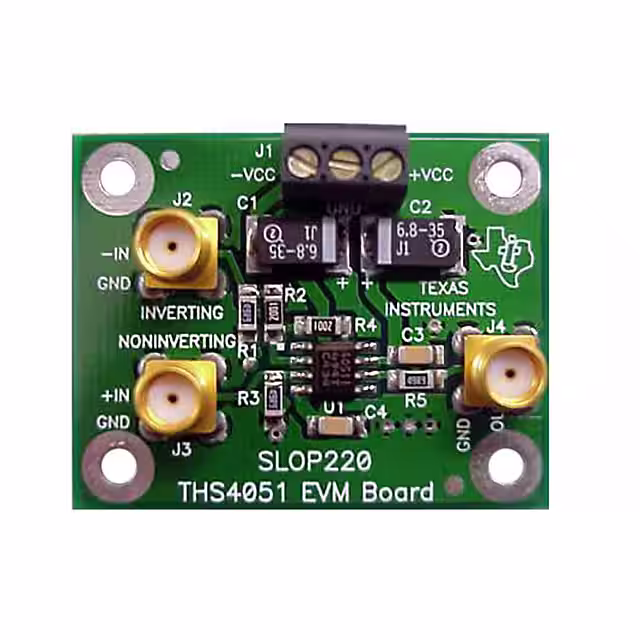

THS4051EVMEVAL BOARD FOR THS4051 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 240V/µs | 70 MHz | 100 mA | 8.5 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4051 | Board(s) |
|

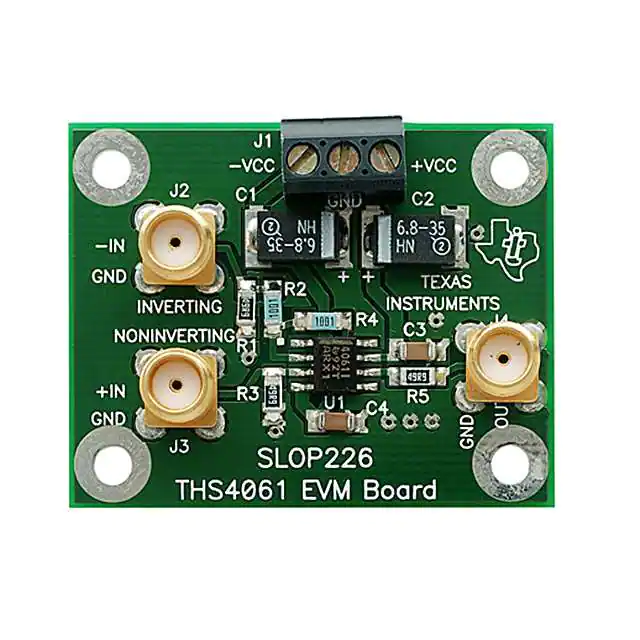

THS4061EVMEVAL BOARD FOR THS4061 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 400V/µs | 180 MHz | 115 mA | 7.8 mA | 9V ~ 33V, ±4.5V ~ 16.5V | THS4061 | Board(s) |
|

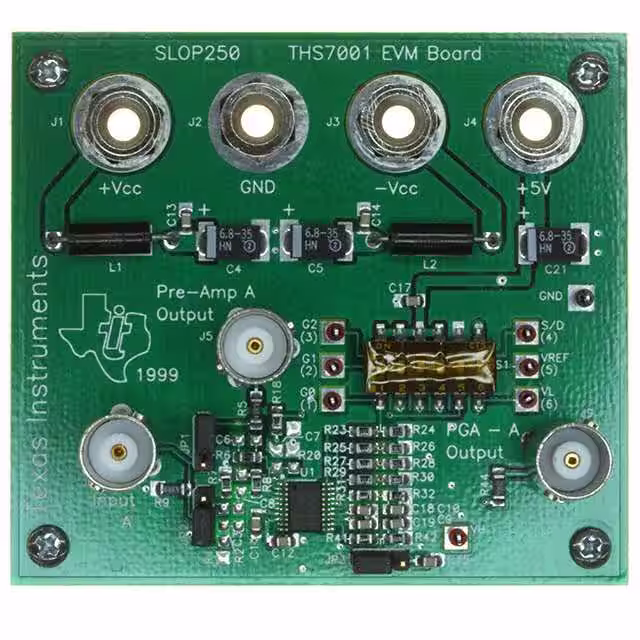

THS7001EVMEVAL BOARD FOR THS7001 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Programmable Gain | Single-Ended | 85V/µs | 100 MHz | 95 mA | 7 mA | 9V ~ 32V, ±4.5V ~ 16V | THS7001 | Board(s) |
|
THS4151EVMEVAL BOARD FOR THS4151 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Differential | Differential | 650V/µs | 150 MHz | 85 mA | 17.5 mA | 4V ~ 33V, ±2V ~ 16.5V | THS4151 | Board(s) |
|
THS4121EVMEVAL BOARD FOR THS4121 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Differential | Differential | 55V/µs | 100 MHz | 100 mA | 11 mA | 3V ~ 3.5V, ±1.5V ~ 1.75V | THS4121 | Board(s) |
|

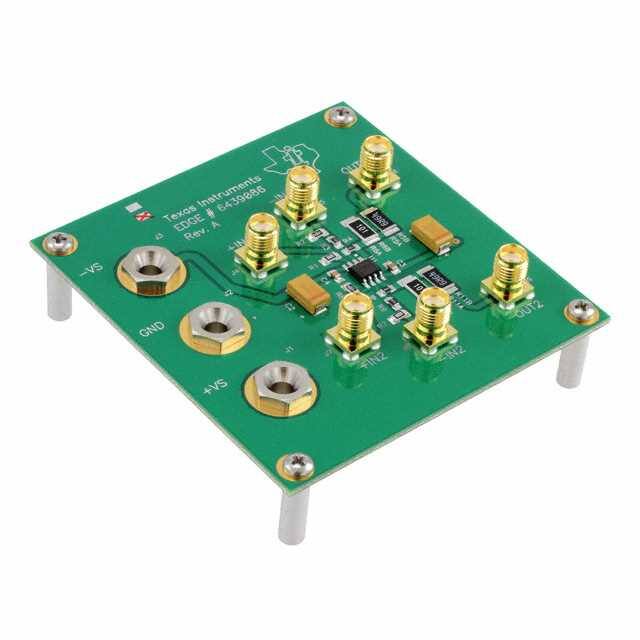

THS3122EVMEVAL BOARD FOR THS3122 |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | 2 - Dual | Current Feedback | Single-Ended | 1550V/µs | 160 MHz | 440 mA | 8.4 mA | 10V ~ 30V, ±5V ~ 15V | THS3122 | Board(s) |
|

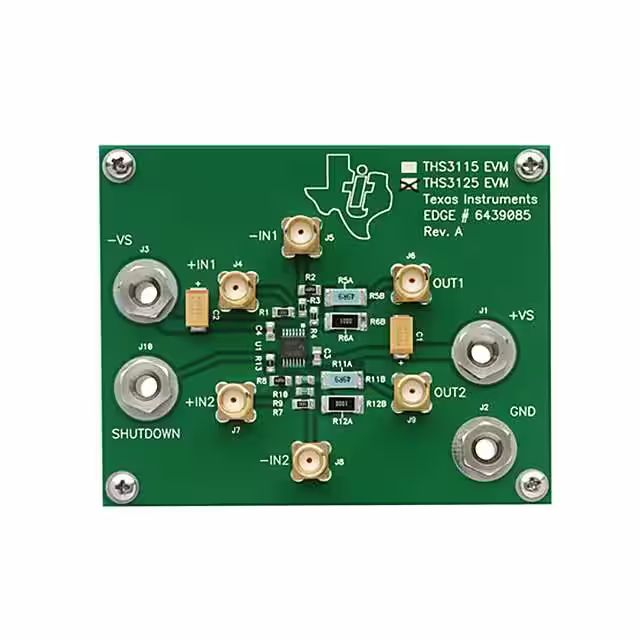

THS3125EVMEVAL BOARD FOR THS3125 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Current Feedback | Single-Ended | 1550V/µs | 160 MHz | 440 mA | 8.4 mA | 10V ~ 30V, ±5V ~ 15V | THS3125 | Board(s) |
|

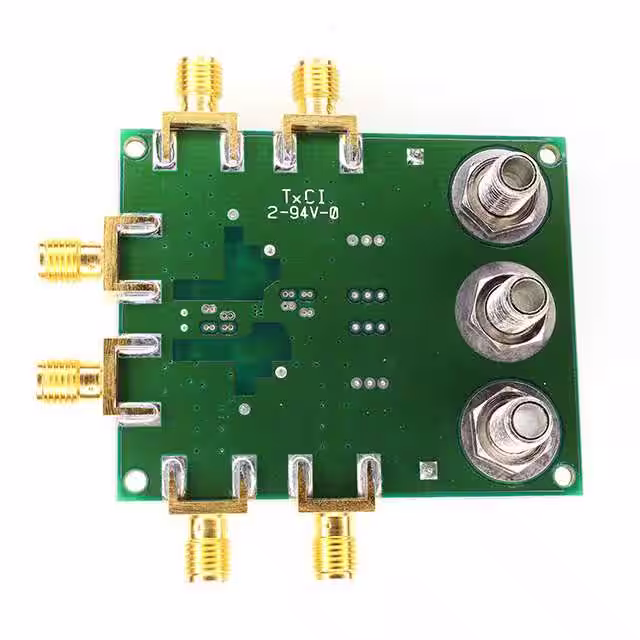

THS4222EVMEVAL BOARD FOR THS4222 |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | Voltage Feedback | Single-Ended, Rail-to-Rail | 990V/µs | 230 MHz | 100 mA | 14 mA | 2.7V ~ 15V, ±1.35V ~ 7.5V | THS4222 | Board(s) |
|

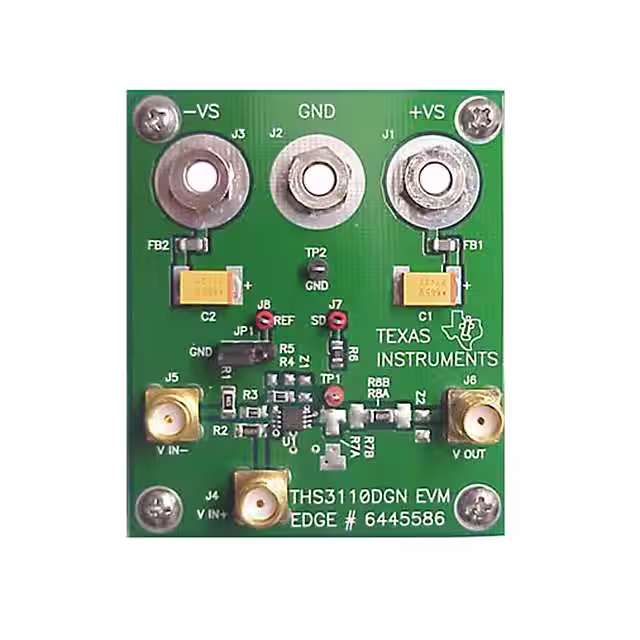

THS3110EVMEVAL BOARD FOR THS3110 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Current Feedback | Single-Ended | 1300V/µs | 100 MHz | 260 mA | 4.8 mA | 10V ~ 30V, ±5V ~ 15V | THS3110 | Board(s) |
|
|
THS4304DGKEVMEVAL BOARD FOR THS4304 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended | 830V/µs | 3 GHz | 140 mA | 18 mA | 2.7V ~ 5V, ±1.35V ~ 2.5V | THS4304 | Board(s) |
|
|
LME49725MABDEVAL BOARD FOR LME49725 |
0 |
|
- |
- | Box | Obsolete | 2 - Dual | Audio | Single-Ended | 15V/µs | - | 22 mA | 3 mA | 9V ~ 36V, ±4.5V ~ 18V | LME49725 | Board(s) |
|
|
LME49722MABDEVAL BOARD FOR LME49722 |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Audio | Single-Ended | 22V/µs | - | 28 mA | 12.3 mA | ±2.5V ~ 18V | LME49722 | Board(s) |
