Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
INA253EVMEVAL BOARD FOR INA253 |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2.4V/µs | 350 kHz | - | 1.8 mA | 2.7V ~ 5.4V | INA253 | Board(s) |
|

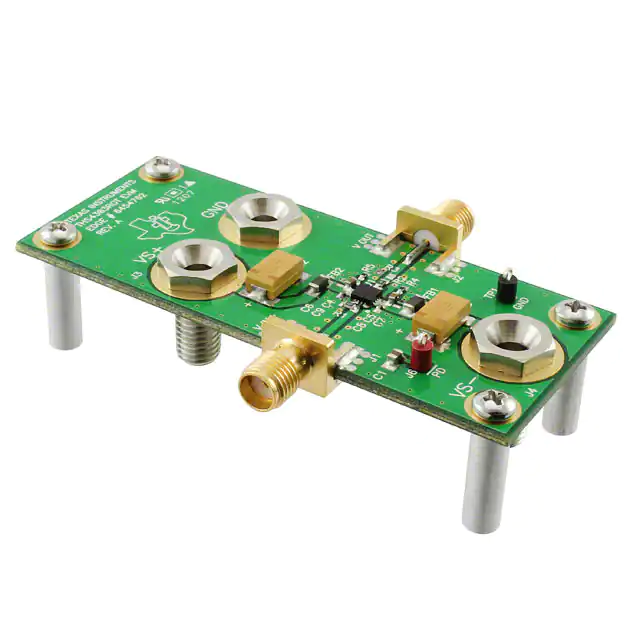

THS4303EVMEVAL BOARD FOR THS4303 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 5500V/µs | 1.8 GHz | 180 mA | 34 mA | 3V ~ 5V, ±1.5V ~ 2.5V | THS4303 | Board(s) |
|
INA241AEVMEVAL BOARD FOR INA241A |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | - | 8V/µs | 1.1 MHz | - | 2.5 mA | 2.7V ~ 20V | INA241A | Board(s) |
|

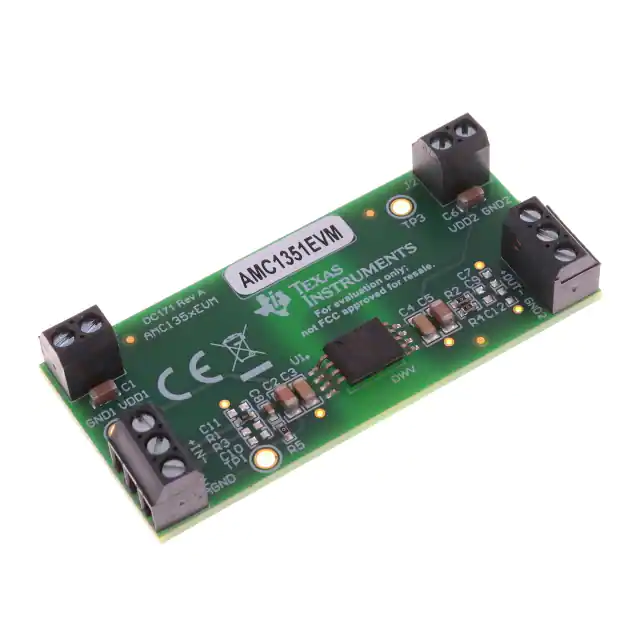

AMC1351EVMEVAL BOARD FOR AMC1351 |
17 |
|
Datasheet | - | Box | Active | 1 - Single | Isolation | Differential | - | - | 14 mA | 7 mA | 3V ~ 5.5V | AMC1351 | Board(s) |
|
DC1192AEVAL BOARD FOR LT6105 |
9 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 2V/µs | 100 kHz | 1 mA | 240 µA | 2.85V ~ 36V | LT6105 | Board(s) |
|
AD8495-EVALZEVAL BOARD FOR AD8495 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Thermocouple | Single-Ended | - | 25 kHz | 7 mA | 180 µA | 2.7V ~ 36V, ±2.7V ~ 18V | AD8495 | Board(s) |
|
DC1538AEVAL BOARD FOR LT6350 |
8 |
|
Datasheet | - | Box | Active | 2 - Dual | Differential | Differential, Rail-to-Rail | 48V/µs | 33 MHz | 45 mA | 4.8 mA | 2.7V ~ 12V, ±1.35V ~ 6V | LT6350 | Board(s) |
|

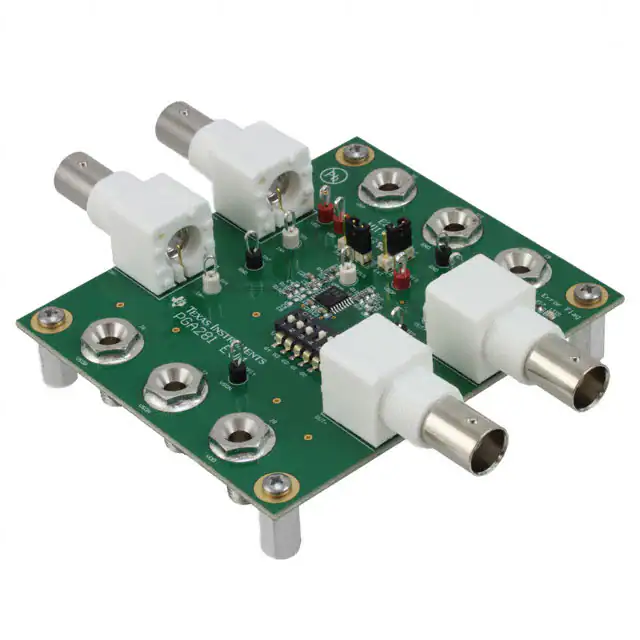

PGA281EVMEVAL BOARD FOR PGA281 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | Programmable Gain | Differential, Rail-to-Rail | 2V/µs | - | 15 mA | 15 mA | 10V ~ 36V, ±5V ~ 18V | PGA281 | Board(s) |
|
AD8224-EVALZEVAL BOARD FOR AD8224 |
8 |
|
Datasheet | - | Box | Active | 2 - Dual | Instrumentation | Differential, Single-Ended, Rail-to-Rail | 2V/µs | 1.5 MHz | 15 mA | 750 µA | 4.5V ~ 36V, ±2.25V ~ 18V | AD8224 | Board(s) |
|
|
INA851EVMEVAL BOARD FOR INA851 |
15 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Differential | 37V/µs | 22 MHz | 37 mA | 6 mA | 8V ~ 36V, ±4V ~ 18V | INA851 | Board(s) |
|
THP210EVMEVAL BOARD FOR THP210 |
10 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 15V/µs | 7 MHz | 31 mA | 950 µA | 3V ~ 36V, ±1.5V ~ 18V | THP210 | Board(s) |
|
DC2319A-AEVAL BOARD FOR LTC6363 |
6 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 75V/µs | 35 MHz | 90 mA | 1.9 mA | 5V, ±5V | LTC6363 | Board(s) |
|
|
AD8338-EVALZEVAL BOARD FOR AD8338 |
5 |
|
Datasheet | - | Bulk | Active | 1 - Single | Variable Gain | Differential | 50V/µs | 18 MHz | 5 mA | 6 mA | 3.5V ~ 5V | AD8338 | Board(s) |
|
AD8331-EVALZEVAL BOARD FOR AD8331 |
3 |
|
Datasheet | X-AMP® | Box | Active | 1 - Single | Variable Gain | Differential | 1200V/µs | 120 MHz | 45 mA | 25 mA | 4.5V ~ 5.5V | AD8331 | Board(s) |
|
THS4541RGTEVMEVAL BOARD FOR THS4541 |
16 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 1500V/µs | 620 MHz | 100 mA | 10 mA | 2.7V ~ 5.4V, ±1.35V ~ 2.7V | THS4541 | Board(s) |
|

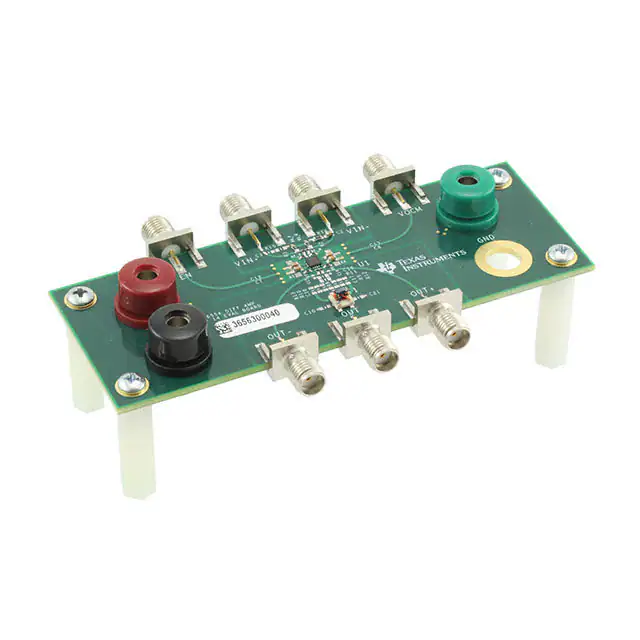

LMH6554LE-EVAL/NOPBEVAL BOARD FOR LMH6554 |
13 |
|
Datasheet | - | Box | Active | 1 - Single | Current Feedback | Differential | 6200V/µs | 2.8 GHz | 150 mA | 52 mA | 4.7V ~ 5.25V | LMH6554 | Board(s) |
|

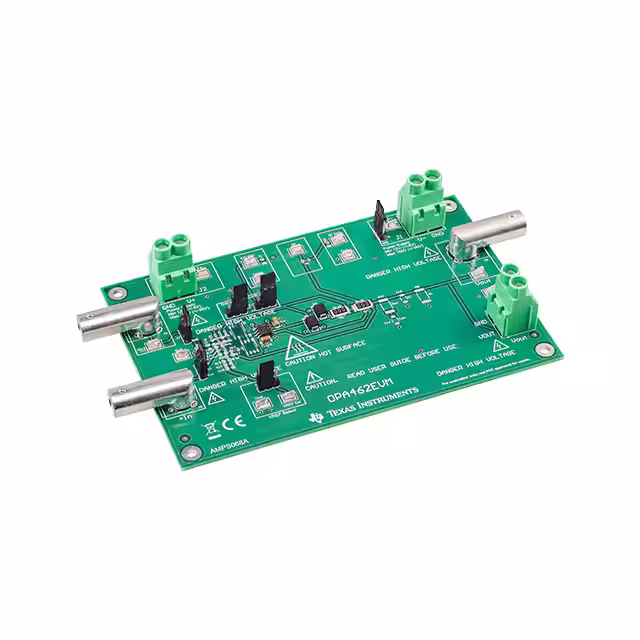

OPA462EVMEVAL BOARD FOR OPA462 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | 32V/µs | - | 45 mA | 3.2 mA | 12V ~ 180V, ±6V ~ 90V | OPA462 | Board(s) |
|

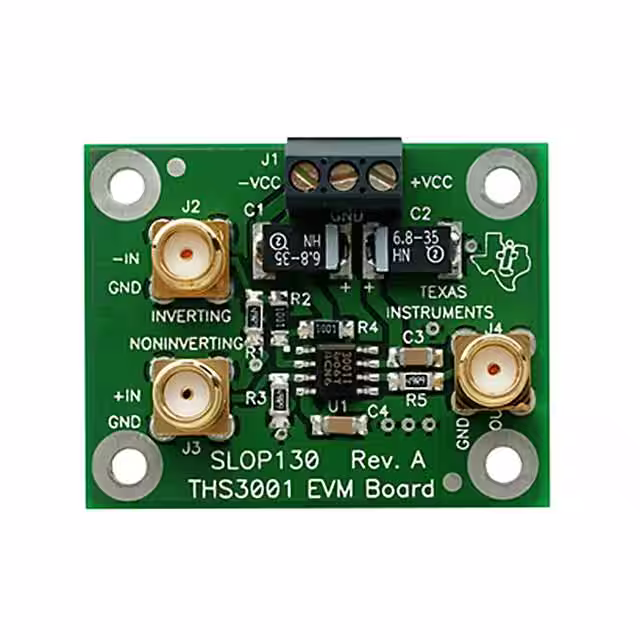

THS3001EVMEVAL BOARD FOR THS3001 |
7 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Single-Ended | 6500V/µs | 420 MHz | 120 mA | 6.6 mA | 9V ~ 33V, ±4.5V ~ 16.5V | THS3001 | Board(s) |
|

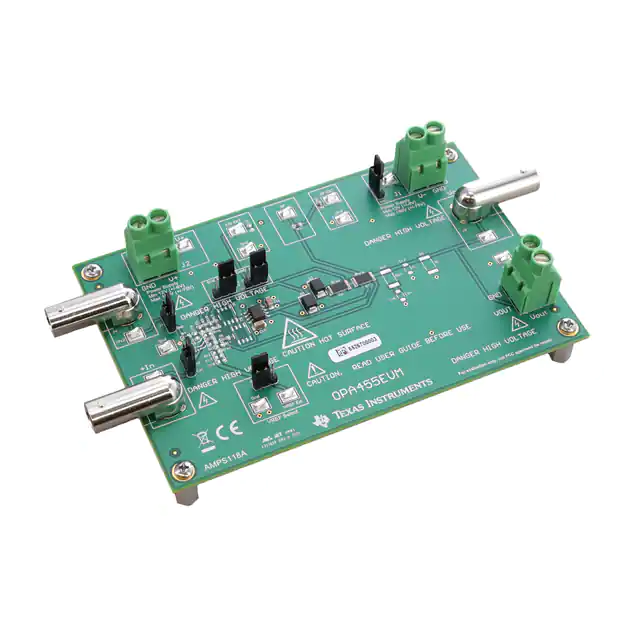

OPA455EVMEVAL BOARD FOR OPA455 |
6 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | 32V/µs | - | 45 mA | 3.2 mA | 12V ~ 150V, ±6V ~ 75V | OPA455 | Board(s) |
|

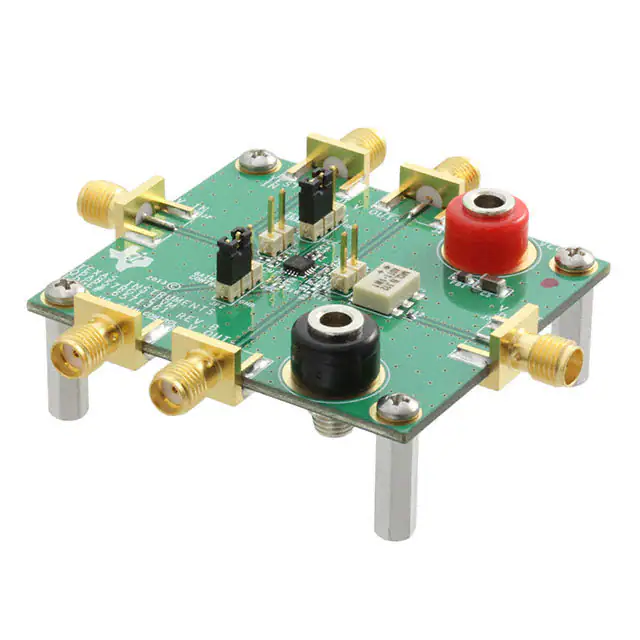

OPA857EVMEVAL BOARD FOR OPA857 |
5 |
|
Datasheet | - | Box | Active | 1 - Single | Transimpedance | Single-Ended | 215V/µs | 125 MHz | 50 mA | 25 mA | 2.6V ~ 3.6V | OPA857 | Board(s) |
