Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

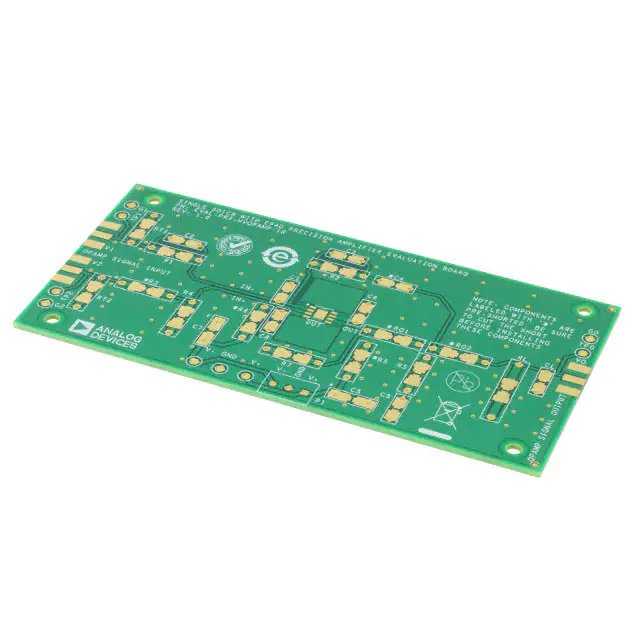

EVALPRAHVOPAMP-1RZEVAL BOARD OPAMP |
2 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

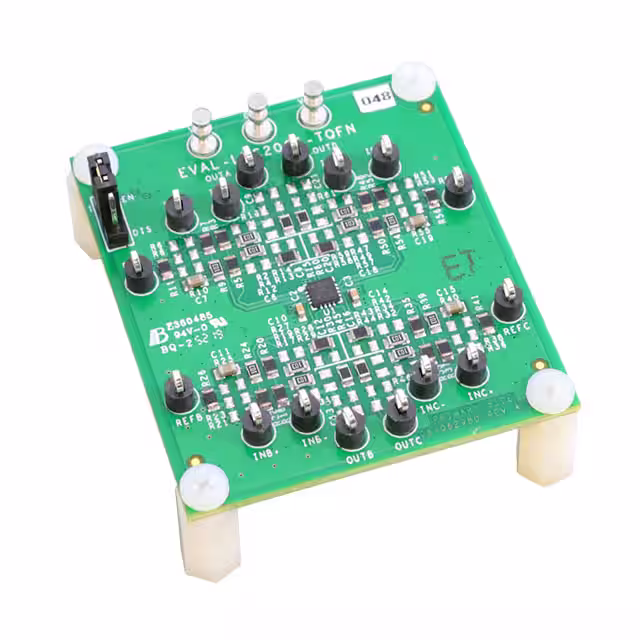

EVAL-LTC2065-TQFNEVALUTION BOARD FOR LTC2065 |
1 |
|
Datasheet | - | Box | Active | 4 - Quad | Zero-Drift | Single-Ended, Rail-to-Rail | 0.0035V/µs | - | 51 mA | 1.4 µA | 1.7V ~ 5.25V | LTC2065 | Board(s) |
|

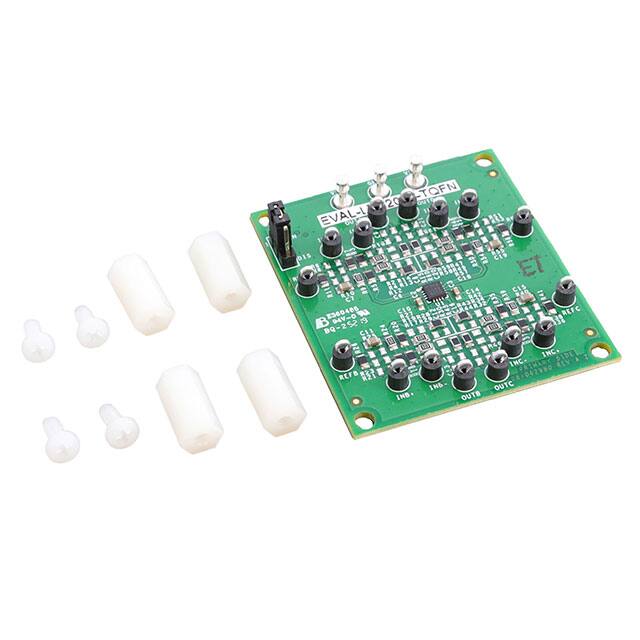

EVAL-LTC2068-TQFNEVAL BOARD FOR LTC2068 |
1 |
|
Datasheet | - | Bulk | Active | 4 - Quad | Zero-Drift | Single-Ended, Rail-to-Rail | 0.0175V/µs | - | 51 MA | 7.5 µA | 1.7V ~ 5.25V | LTC2068 | Board(s) |
|

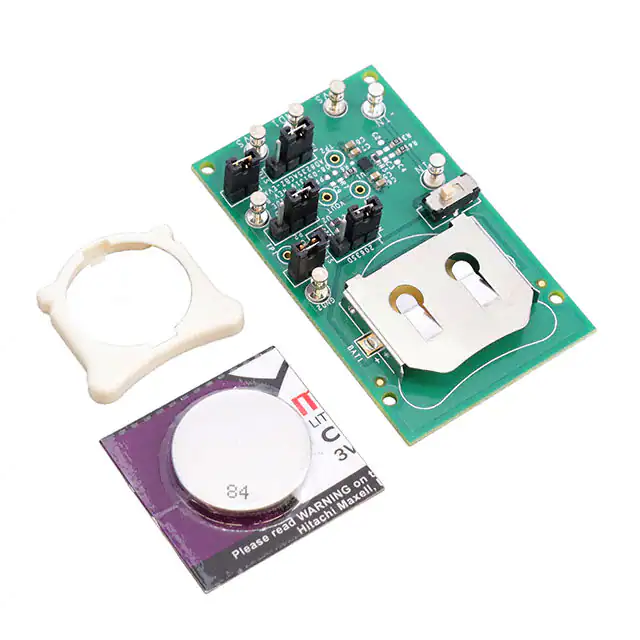

AD8235ACBZ-EVALZEVAL BOARD FOR AD8235 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Single-Ended, Rail-to-Rail | - | 23 kHz | 55 mA | 30 µA | 1.8V ~ 5.5V | AD8235 | Board(s) |
|
AMC1411EVMEVAL BOARD FOR AMC1411 |
15 |
|
Datasheet | - | Box | Active | 1 - Single | Isolation | Differential | - | - | 14 mA | 7.1 mA | 3V ~ 5.5V | AMC1411 | Board(s) |
|
INA4290EVMEVAL BOARD FOR INA4290 |
8 |
|
Datasheet | - | Box | Active | 4 - Quad | Current Sense | Single-Ended | 2V/µs | 1.1 MHz | - | 1.25 mA | 2.7V ~ 120V | INA4290 | Board(s) |
|
INA250EVMEVAL BOARD FOR INA250 |
5 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 0.2V/µs | 50 kHz | - | 200 µA | 2.7V ~ 36V | INA250 | Board(s) |
|
AMC1302EVMEVAL BOARD FOR AMC1302 |
5 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Differential | - | - | 14 mA | 7.2 mA | 3V ~ 5.5V | AMC1302 | Board(s) |
|
THS4011EVMEVAL BOARD FOR THS4011 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 310V/µs | 290 MHz | 110 mA | 7.8 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4011 | Board(s) |
|

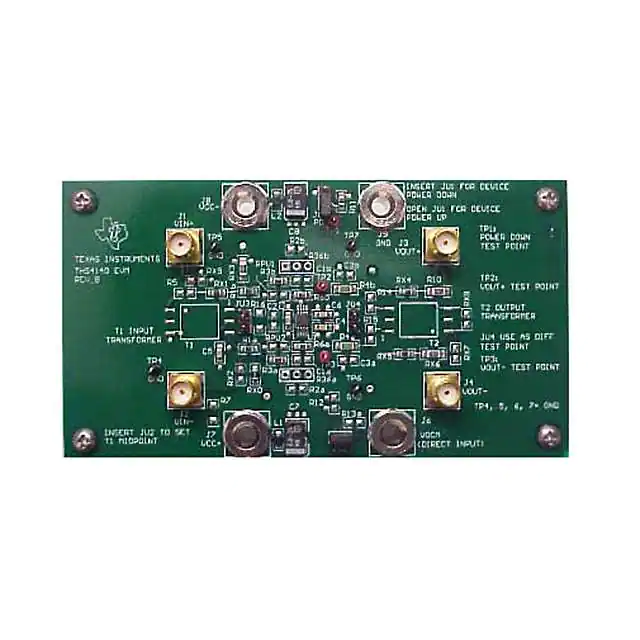

THS4140EVMEVAL BOARD FOR THS4140 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 450V/µs | 160 MHz | 85 mA | 15 mA | 4V ~ 33V, ±2V ~ 16.5V | THS4140 | Board(s) |
|

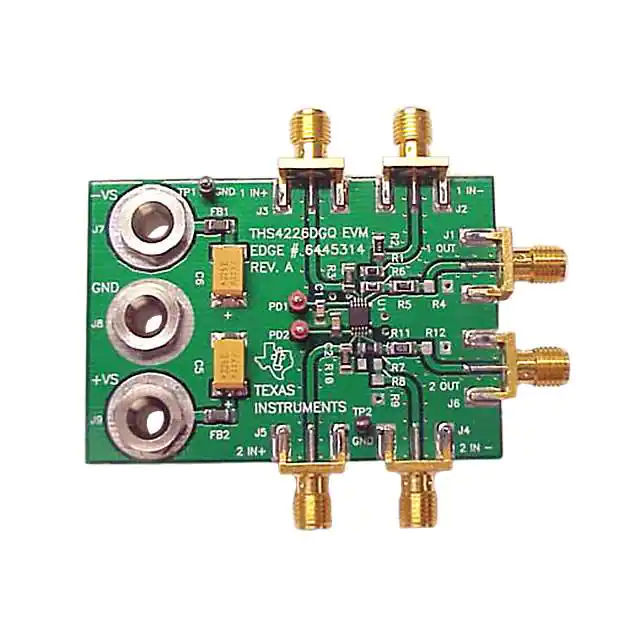

THS4226EVMEVAL BOARD FOR THS4226 |
3 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Voltage Feedback | Single-Ended, Rail-to-Rail | 990V/µs | 230 MHz | 100 mA | 14 mA | 2.7V ~ 15V, ±1.35V ~ 7.5V | THS4226 | Board(s) |
|

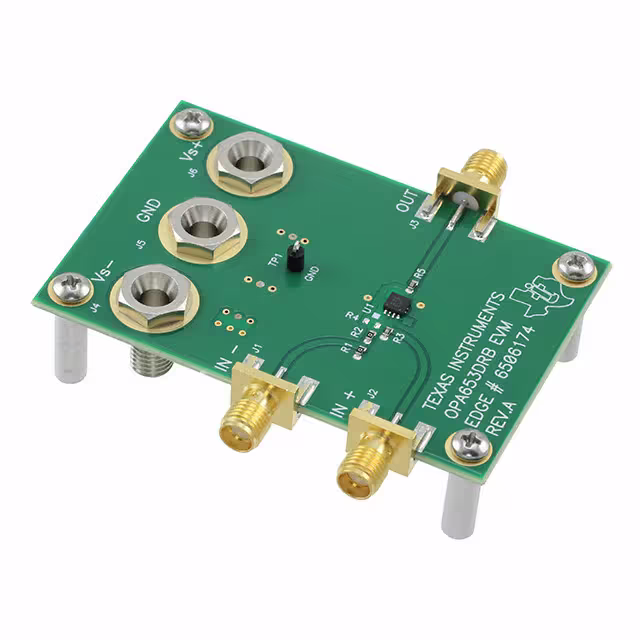

OPA653EVMEVAL BOARD FOR OPA653 |
3 |
|
Datasheet | - | Box | Active | 1 - Single | J-FET | Single-Ended | 2675V/µs | 500 MHz | 70 mA | 32 mA | ±3.5V ~ 6.5V | OPA653 | Board(s) |
|

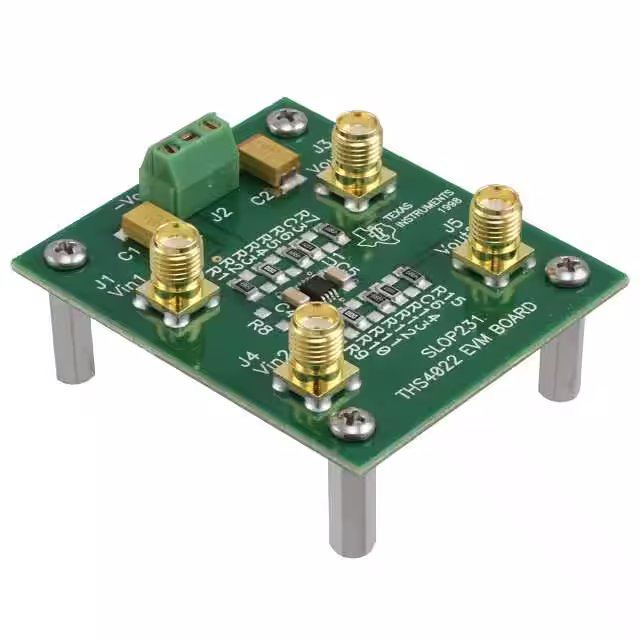

THS4022EVMEVAL BOARD FOR THS4022 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Voltage Feedback | Single-Ended | 470V/µs | 350 MHz | 100 mA | 7.8 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4022 | Board(s) |
|

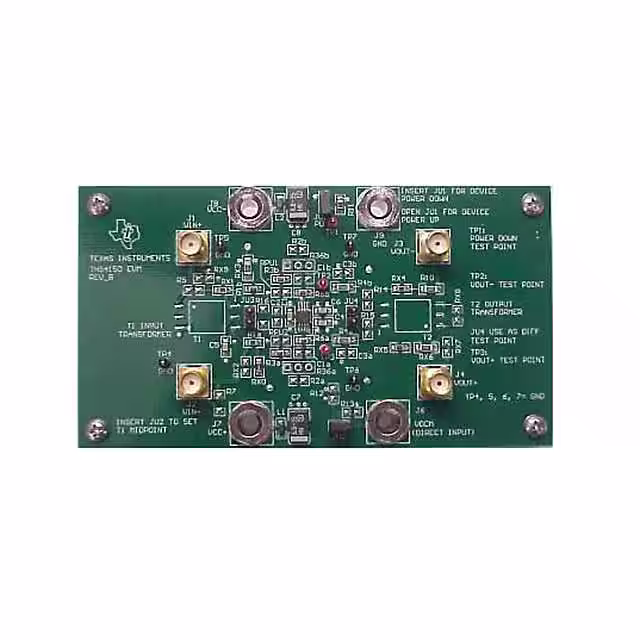

THS4150EVMEVAL BOARD FOR THS4150 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 650V/µs | 150 MHz | 85 mA | 17.5 mA | 4V ~ 33V, ±2V ~ 16.5V | THS4150 | Board(s) |
|

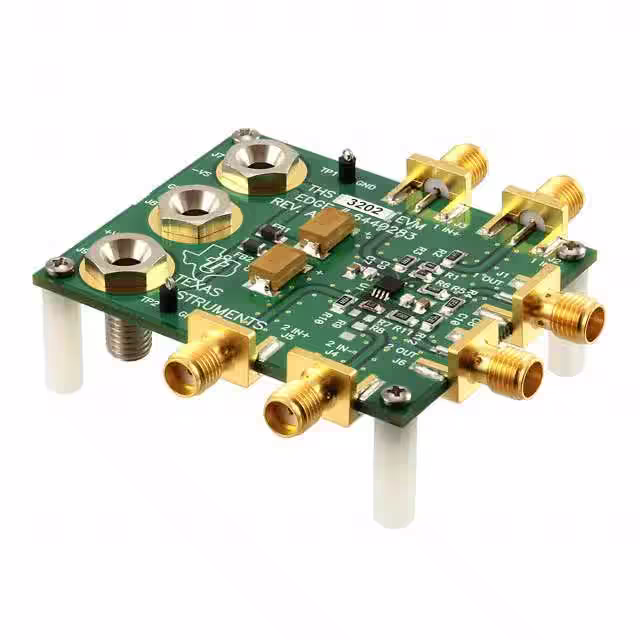

THS3202EVMEVAL BOARD FOR THS3202 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Current Feedback | Single-Ended | 9000V/µs | 2 GHz | 120 mA | 15 mA | 6.6V ~ 15V, ±3.3V ~ 7.5V | THS3202 | Board(s) |
|

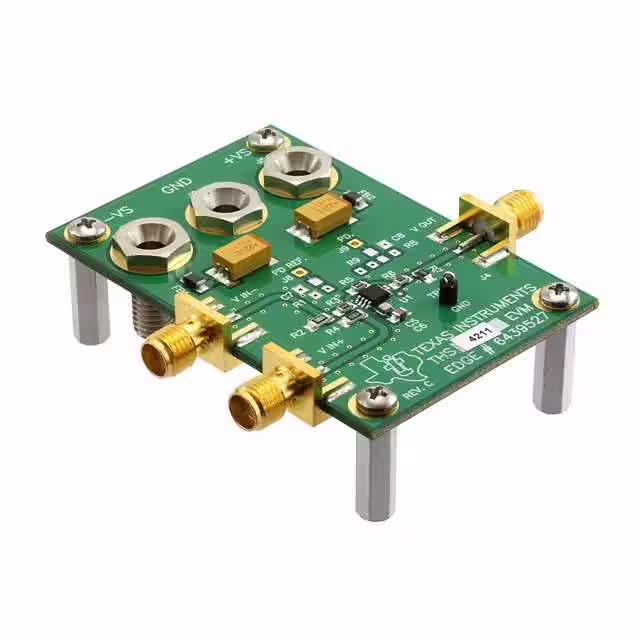

THS4211EVMEVAL BOARD FOR THS4211 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 970V/µs | 1 GHz | 220 mA | 19 mA | 5V ~ 15V, ±2.5V ~ 7.5V | THS4211 | Board(s) |
|

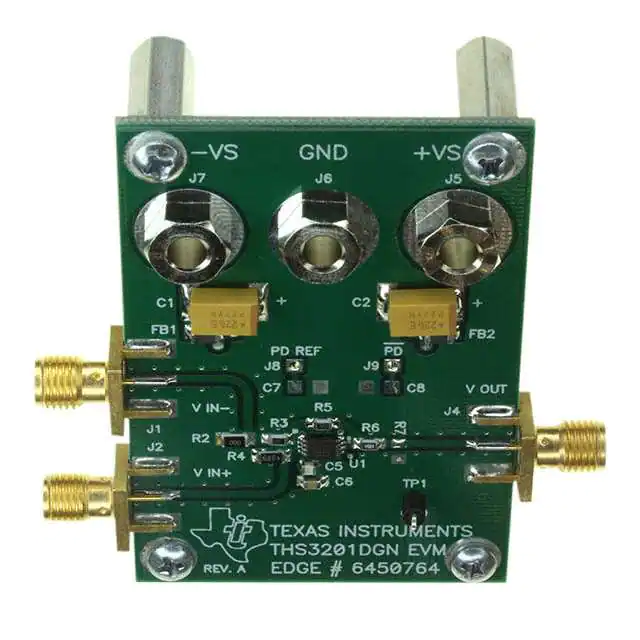

THS3201EVMEVAL BOARD FOR THS3201 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Single-Ended | 9800V/µs | 1.8 GHz | 115 mA | 14 mA | 6.6V ~ 15V, ±3.3V ~ 7.5V | THS3201 | Board(s) |
|

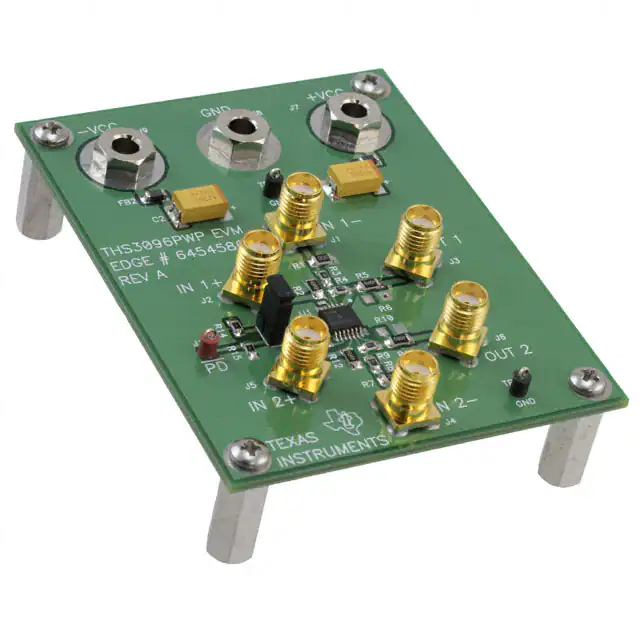

THS3096EVMEVAL BOARD FOR THS3096 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Current Feedback | Single-Ended | 5700V/µs | 160 MHz | 280 mA | 9.5 mA | 10V ~ 30V, ±5V ~ 15V | THS3096 | Board(s) |
|
THS4509EVMEVAL BOARD FOR THS4509 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 6600V/µs | 2 GHz | 96 mA | 37.7 mA | 3V ~ 5V, ±1.5V ~ 2.5V | THS4509 | Board(s) |
|
THS4511EVMEVAL BOARD FOR THS4511 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 4900V/µs | 1.6 GHz | 96 mA | 39.2 mA | 3.75V ~ 5.25V | THS4511 | Board(s) |
