Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-LTC6563TQFN-EZKITLTC6563 EVAL KIT |
3 |
|
Datasheet | - | Box | Active | 4 - Quad | Transimpedance | Differential | 3000V/µs | 600 MHz | 64.5 mA | 34 mA | - | LTC6563 | Board(s) |
|

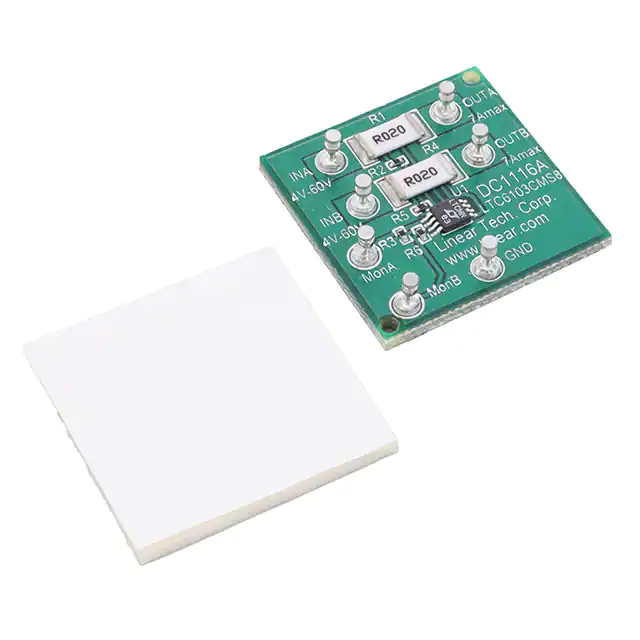

DC1116AEVAL BOARD FOR LTC6103 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Current Sense | Open Drain | - | - | 1 mA | 390 µA | 4V ~ 60V, ±2V ~ 30V | LTC6103 | Board(s) |
|

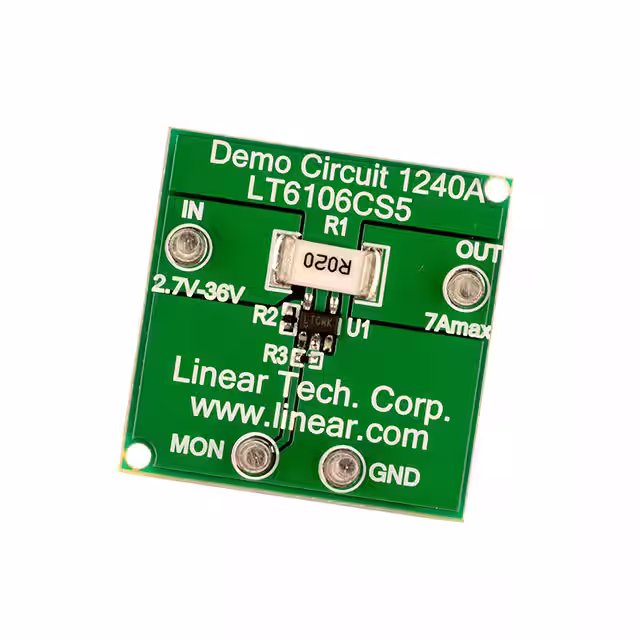

DC1240AEVAL BOARD FOR LT6106 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | - | 200 kHz | 1 mA | 70 µA | 2.7V ~ 36V | LT6106 | Board(s) |
|
DC1536AEVAL BOARD FOR LTC6102-1 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Open Drain | - | - | 1 mA | 420 µA | 4V ~ 60V | LTC6102-1 | Board(s) |
|

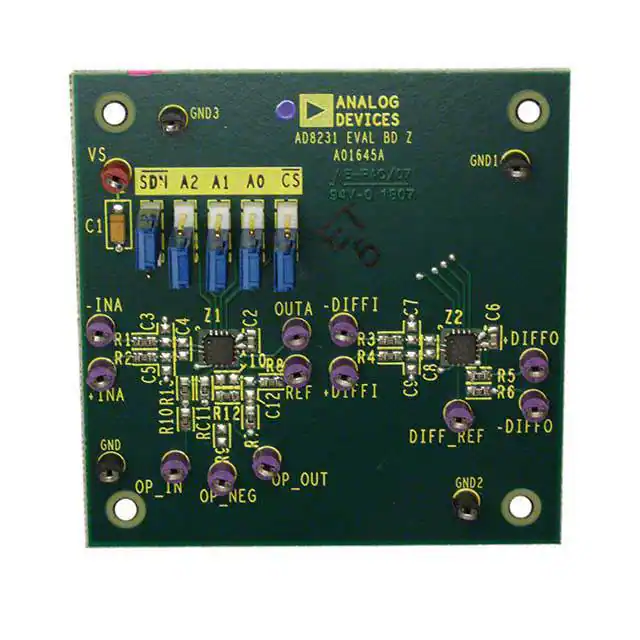

AD8231-EVALZEVAL BOARD FOR AD8231 |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | Instrumentation | Differential, Single-Ended, Rail-to-Rail | 1.1V/µs | 2.7 MHz | 70 mA | 4 mA | 3V ~ 5V, ±1.5V ~ 2.5V | AD8231 | Board(s) |
|

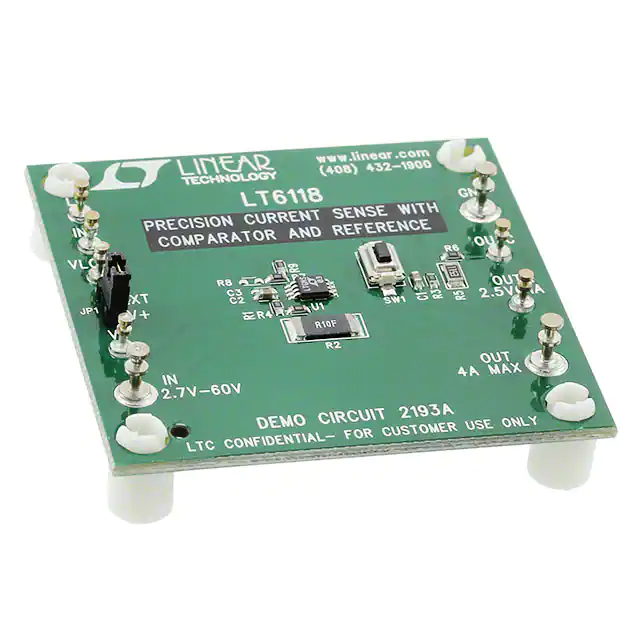

DC2193ADEMO BOARD LT6118 POR APABILITY |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Open Drain | - | - | 100 mA | 800 µA | 2.7V ~ 60V | LT6118 | Board(s) |
|

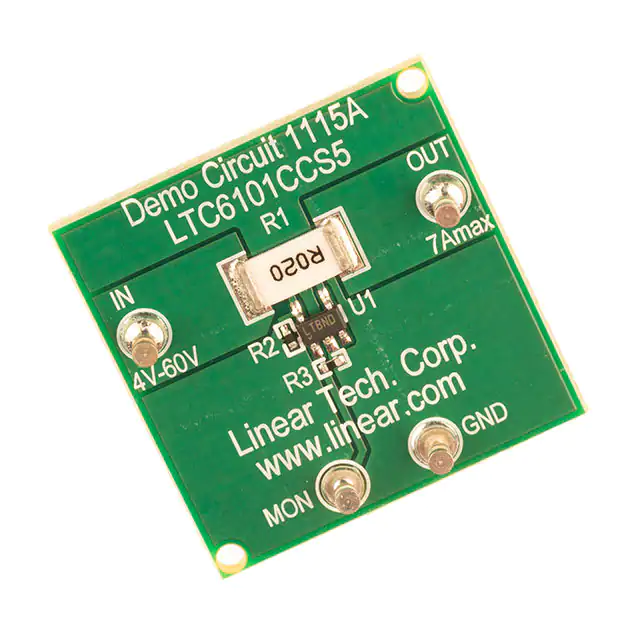

DC1115AEVAL BOARD FOR LTC6101 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Open Drain | - | - | 1 mA | 375 µA | 4V ~ 60V | LTC6101 | Board(s) |
|

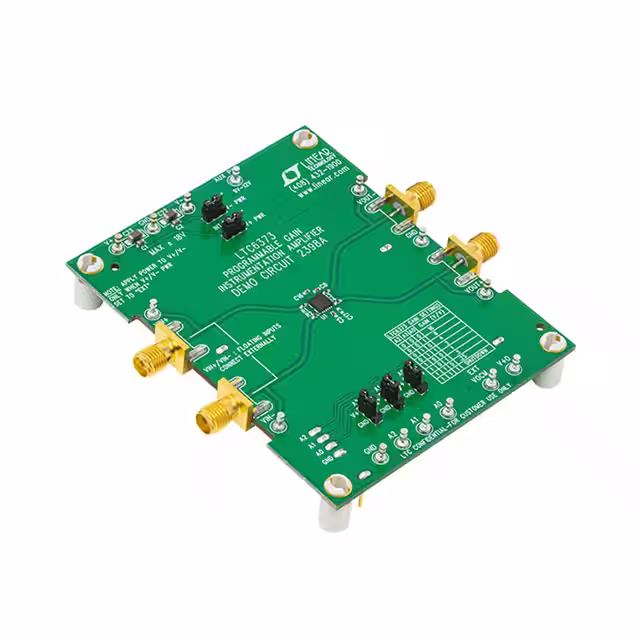

DC2398ALTC6373 DEMO BOARD |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Instrumentation | Differential | 12V/µs | 7.5 MHz | 47 mA | 4.4 mA | ±4.5V ~ 18V | LTC6373 | Board(s) |
|
ISL28127MSOPEVAL1ZEVAL BOARD FOR ISL28127 MSOP |
5 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 3.6V/µs | - | - | 2.2 mA | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28127 | Board(s) |
|

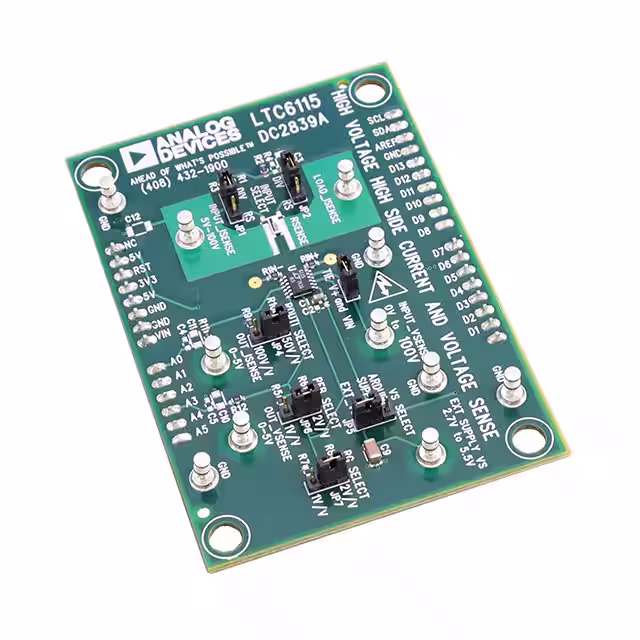

DC2839ALTC6115 DEMO BOARD |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | 1 mA | 400 µA | 5V ~ 100V | LTC6115 | Board(s) |
|

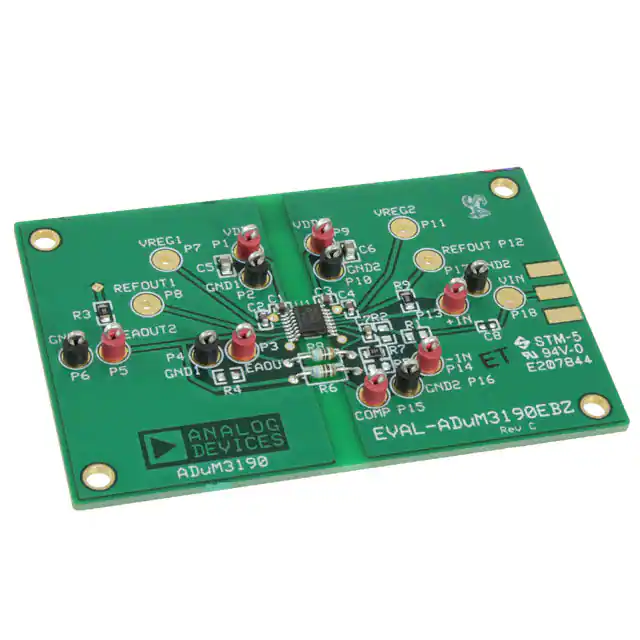

EVAL-ADUM3190EBZBOARD EVAL FOR ADUM3190 |
2 |
|
Datasheet | iCoupler® | Box | Active | 1 - Single | Isolation | Single-Ended | - | - | - | 3 mA | 3V ~ 20V | ADuM3190 | Board(s) |
|

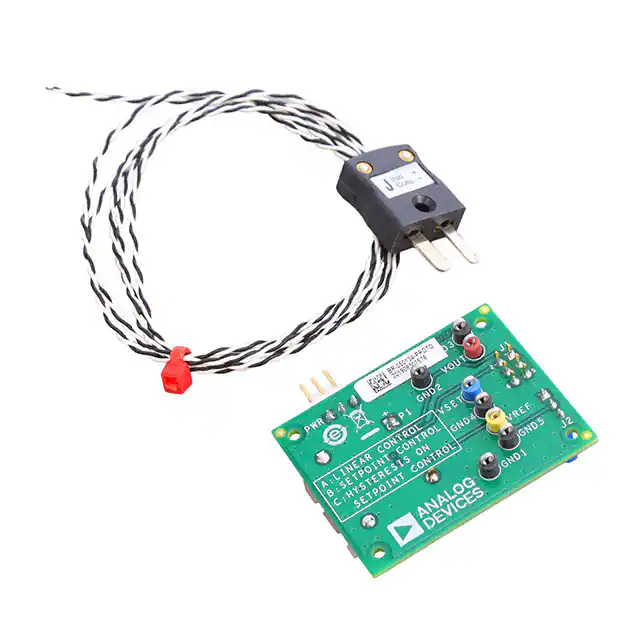

AD8496-EVALZEVAL BOARD FOR AD8496 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Thermocouple | Single-Ended | - | 31 kHz | 7 mA | 180 µA | 2.7V ~ 36V, ±2.7V ~ 18V | AD8496 | Board(s) |
|

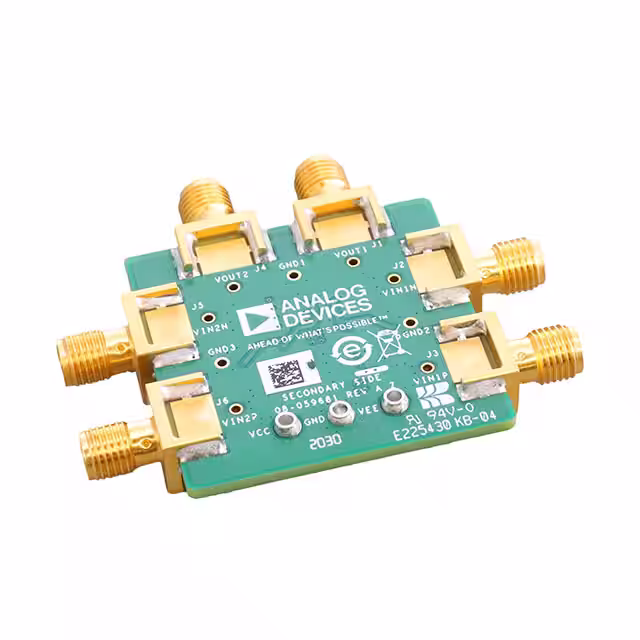

EVAL-LTC6229MS8EEVAL BOARD FOR LTC6229 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 500V/µs | 730 MHz | 140 mA | 16 mA | 2.8V ~ 11.75V, ±1.4V ~ 5.875V | LTC6229 | Board(s) |
|

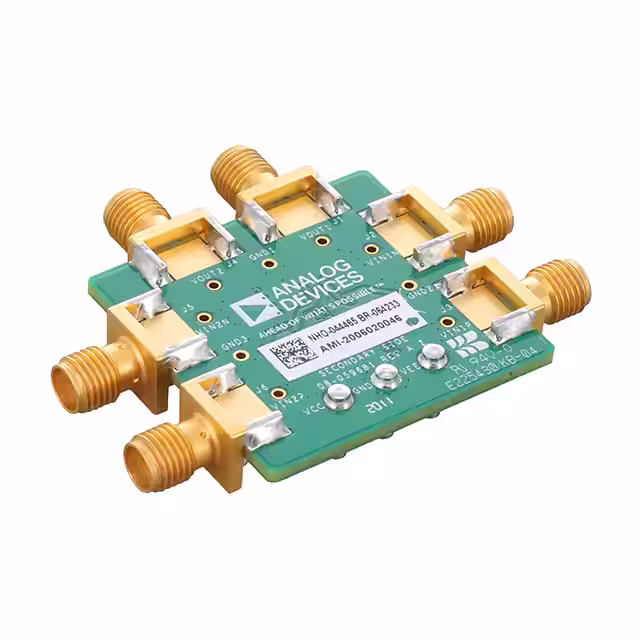

EVAL-LTC6227MS8EEVAL BOARD FOR LTC6227 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 180V/µs | 330 MHz | 64 mA | 5.5 mA | 2.8V ~ 11.75V, ±1.4V ~ 5.875V | LTC6227 | Board(s) |
|

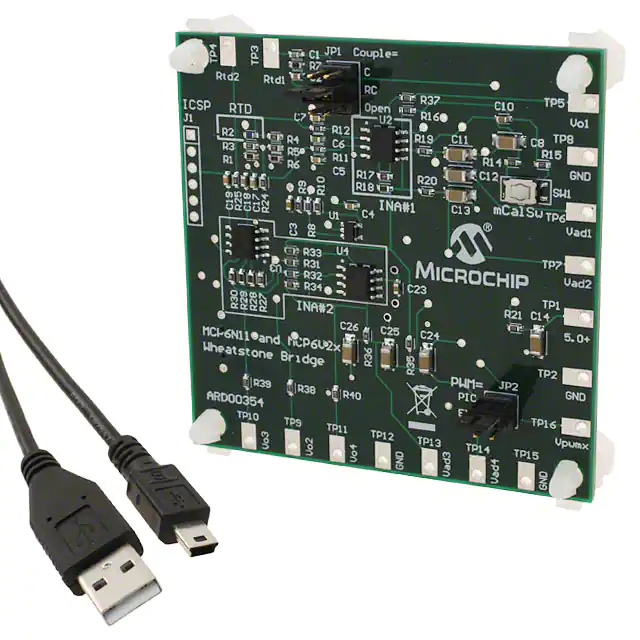

ARD00354BOARD REF DESIGN MCP6N11/MCP6V2X |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Rail-to-Rail | - | - | 30 mA | 800 µA | - | MCP6N11, MCP6001, MCP6V26, MCP6V27, PIC18F2553 | Board(s), Cable(s) |
|

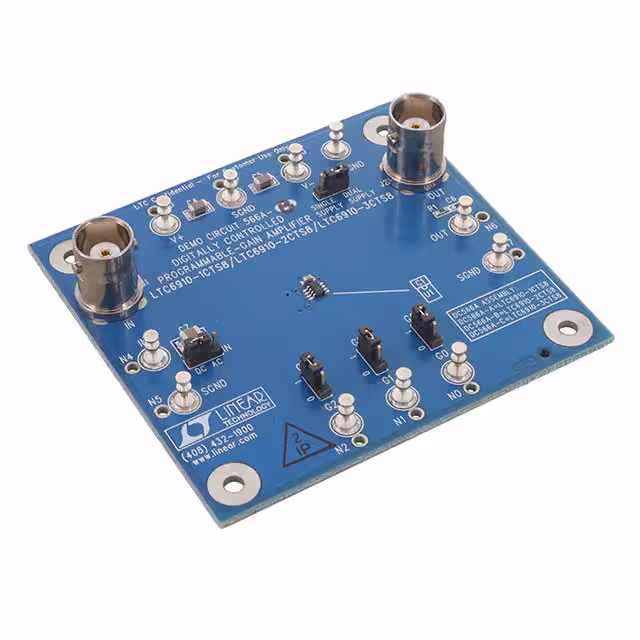

DC566A-BLTC6910-2CTS8 - DIGITALLY CONTRO |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Programmable Gain | Rail-to-Rail | 16V/µs | - | 35 mA | 3.5 mA | 2.7V ~ 10.5V, ±2.7V ~ 5.25V | LTC6910-2 | Board(s) |
.jpg)
|

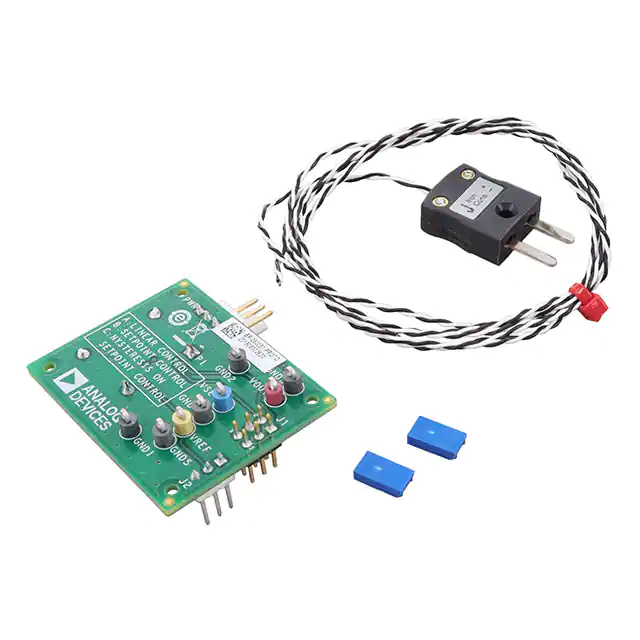

AD8494-EVALZEVAL BOARD FOR AD8494 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Thermocouple | Single-Ended | - | 30 kHz | 7 mA | 180 µA | 2.7V ~ 36V, ±2.7V ~ 18V | AD8494 | Board(s) |
|

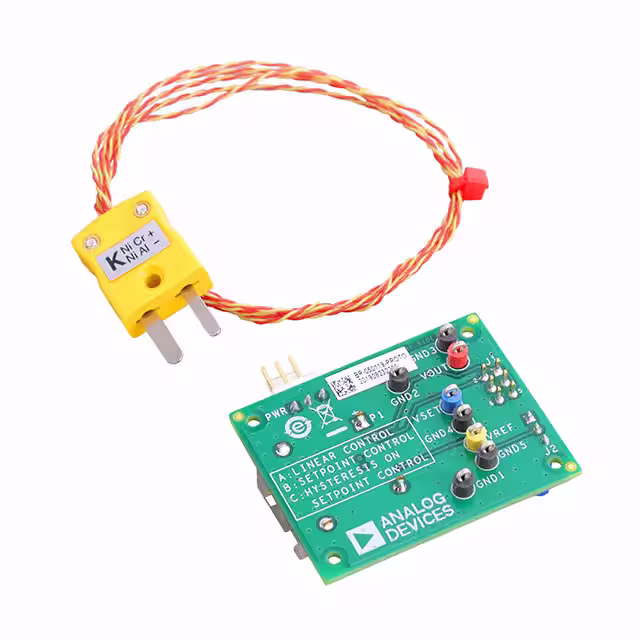

AD8497-EVALZEVAL BOARD FOR AD8497 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Thermocouple | Single-Ended | - | 25 kHz | 7 mA | 180 µA | 2.7V ~ 36V, ±2.7V ~ 18V | AD8497 | Board(s) |
|

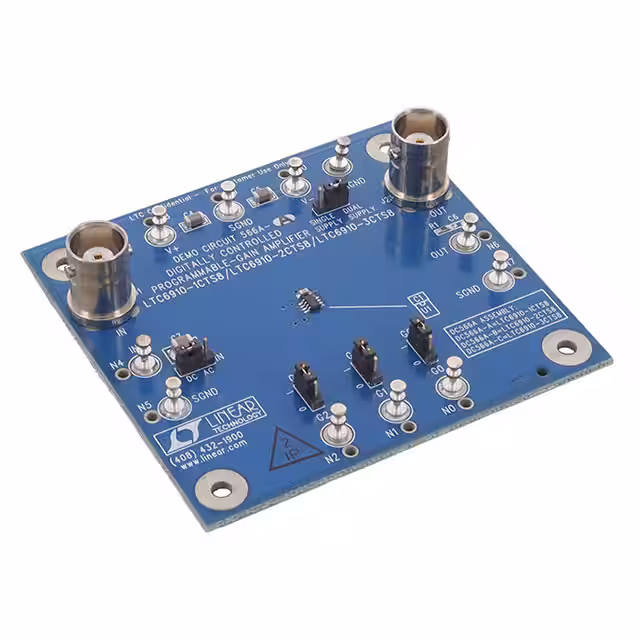

DC566A-ALTC6910-1CTS8 - DIGITALLY CONTRO |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Programmable Gain | Rail-to-Rail | 16V/µs | - | 35 mA | 3.5 mA | 2.7V ~ 10.5V, ±2.7V ~ 5.25V | LTC6910-1 | Board(s) |
|

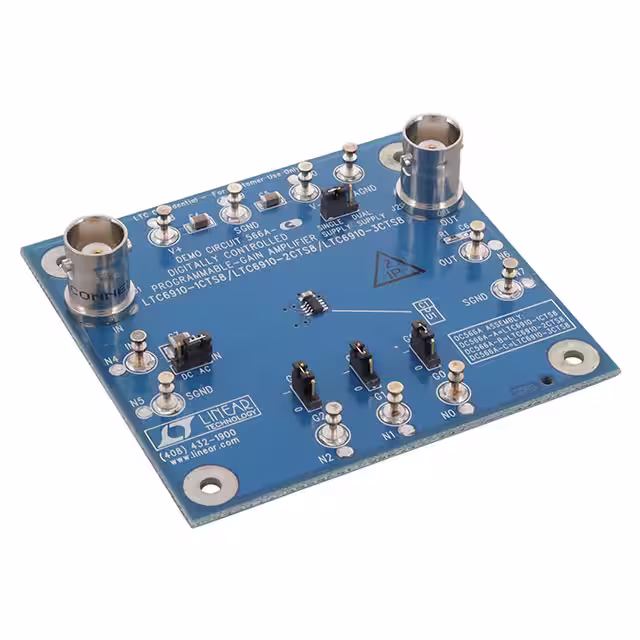

DC566A-CLTC6910-3CTS8 - DIGITALLY CONTRO |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Programmable Gain | Rail-to-Rail | 16V/µs | - | 35 mA | 3.5 mA | 2.7V ~ 10.5V, ±2.7V ~ 5.25V | LTC6910-3 | Board(s) |
