Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD8244-EVALZEVAL BOARD FOR AD8244 |
2 |
|
Datasheet | - | Box | Active | 4 - Quad | J-FET | Single-Ended, Rail-to-Rail | 0.8V/µs | 3 MHz | 8 mA | 180 µA | 3V ~ 36V, ±1.5V ~ 18V | AD8244 | Board(s) |
|
EVAL-LTC6228IS8EVAL BOARD FOR LTC6228 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 500V/µs | 730 MHz | 140 mA | 16 mA | 2.8V ~ 11.75V, ±1.4V ~ 5.875V | LTC6228 | Board(s) |
|

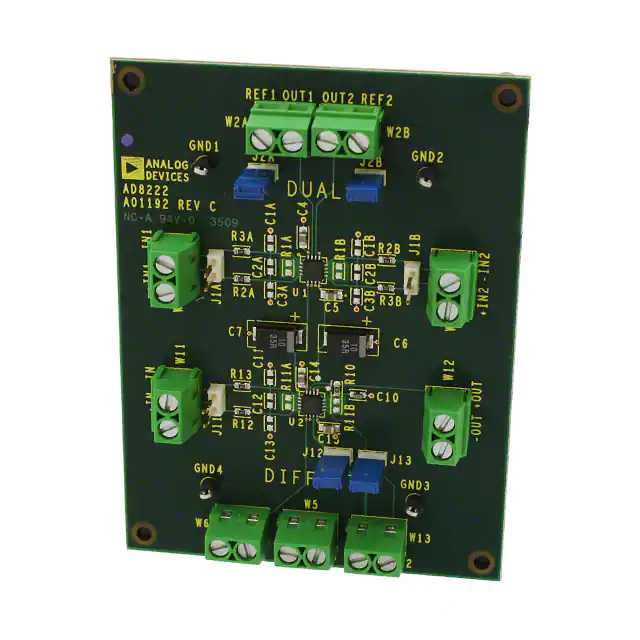

AD8222-EVALZEVAL BOARD FOR AD8222 |
7 |
|
Datasheet | - | Box | Active | 2 - Dual | Instrumentation | Differential, Single-Ended | 2V/µs | 1.2 MHz | 18 mA | 900 µA | 4.6V ~ 36V, ±2.3V ~ 18V | AD8222 | Board(s) |
|
EVAL-CN0273-EB1ZEVAL BOARD FOR ADV7391 |
1 |
|
Datasheet | Circuits from the Lab™ | Box | Active | 1 - Single | Instrumentation | Single-Ended | - | 35 MHz | - | - | ±5V | ADA4817-2, ADA4830-1 | Board(s) |
|
PGA112EVM-BEVAL BOARD FOR PGA112 |
4 |
|
Datasheet | - | Box | Active | 1 - Single | Programmable Gain | Single-Ended, Rail-to-Rail | 8V/µs | 10 MHz | 60 mA | 330 µA | 2.2V ~ 5.5V | PGA112 | Board(s), Cable(s) |
|
PGA113EVM-BEVAL MODULE FOR PGA113-B |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Programmable Gain | Single-Ended, Rail-to-Rail | 8V/µs | 10 MHz | 60 mA | 330 µA | 2.2V ~ 5.5V | PGA113 | Board(s), Cable(s) |
|
LMH6553SDEVAL/NOPBEVAL BOARD FOR LMH6553 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Feedback | Differential | 2300V/µs | 900 MHz | 120 mA | 29.1 mA | 4.5V ~ 12V, ±2.25V ~ 6V | LMH6553 | Board(s) |
|
ALM2402FQ1EVMEVAL BOARD FOR ALM2402F-Q1 |
7 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 3.4V/µs | - | 750 mA | 4 mA | 4.5V ~ 16V | ALM2402F-Q1 | Board(s) |
|
ALM2402Q1EVMEVAL BOARD FOR ALM2402-Q1 |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | 0.17V/µs | - | 400 mA | 5 mA | 4.5V ~ 16V | ALM2402-Q1 | Board(s) |
|
DC1833ALTC6362 - PRECISION LOW POWER DI |
10 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 45V/µs | 34 MHz | - | 1 mA | 2.8V ~ 5.25V, ±1.4V ~ 2.625V | LTC6362 | Board(s) |
|

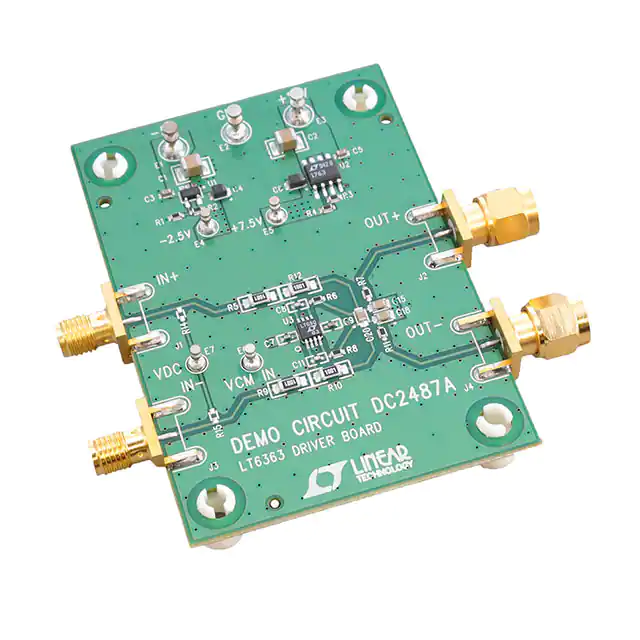

DC2487ADEMO BOARD FOR LTC6363 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 75V/µs | 35 MHz | 55 mA | 1.9 mA | 2.8V ~ 11V, ±1.4V ~ 5.5V | LTC6363 | Board(s) |
|
DC2655A-BLTC6363-1/LTC6363-2/LTC6363-0.5 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 75V/µs | - | - | - | 2.8V ~ 11V, ±1.4V ~ 5.5V | LTC6363-2 | Board(s) |
|
DC2655A-CLTC6363-1/LTC6363-2/LTC6363-0.5 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 75V/µs | - | - | - | 2.8V ~ 11V, ±1.4V ~ 5.5V | LTC6363-0.5 | Board(s) |
|

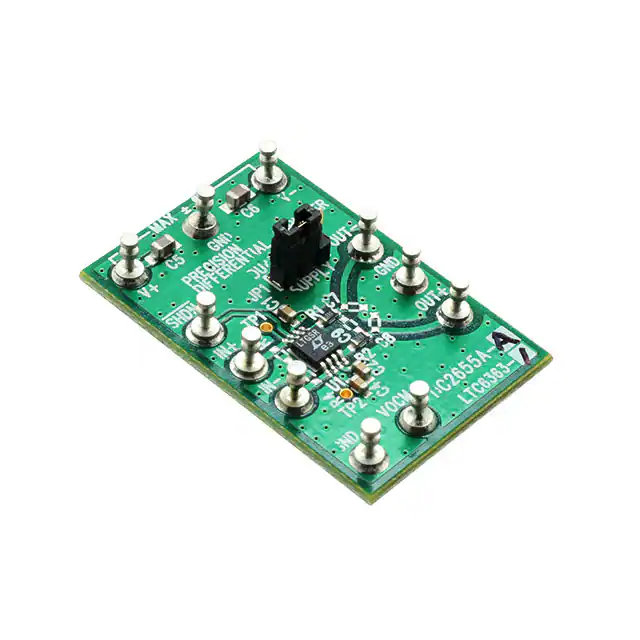

DC2655A-ALTC6363-1/LTC6363-2/LTC6363-0.5 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 75V/µs | - | - | - | 2.8V ~ 11V, ±1.4V ~ 5.5V | LTC6363-1 | Board(s) |
|
|
ADA4255CP-EBZEVAL BOARD FOR ADA4255 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Instrumentation | Differential | 1.9V/µs | 2.3 MHz | 1.5 mA | 15.6 mA | 2.7V ~ 5V | ADA4255 | Board(s) |
|
DC1416BEVAL BOARD FOR LT1222 |
0 |
|
Datasheet | C-Load™ | Box | Active | 1 - Single | General Purpose | Single-Ended | 200V/µs | 2 MHz | 26 mA | 17 mA | ±5V ~ 15V | LT1222 | Board(s) |
|
DC987B-CLTC6400-20 3GHZ FULLY DIFFERENTI |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | - | 0.0045V/µs | 1.8 GHz | 20 mA | 90 mA | 2.85V ~ 3.5V | LTC6400-20 | Board(s) |
|
DC987B-BLTC6400-14 3GHZ FULLY DIFFERENTI |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | - | 6000V/µs | 2.4 GHz | 20 mA | 85 mA | 2.85V ~ 3.5V | LTC6400-14 | Board(s) |
|

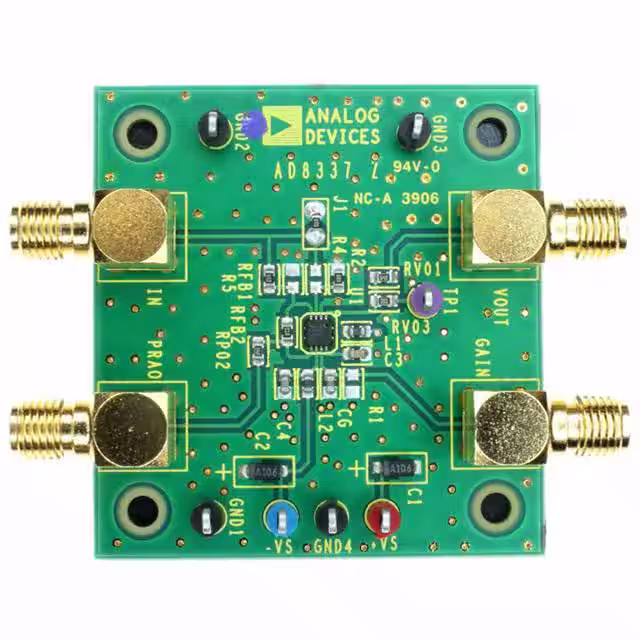

AD8337-EVALZEVAL BOARD FOR AD8337 |
1 |
|
Datasheet | X-AMP® | Box | Active | 1 - Single | Voltage Feedback | Single-Ended | 625V/µs | 280 MHz | - | 18.5 mA | ±2.5V ~ 5V | AD8337 | Board(s) |
.jpg)
|
EVAL-LT5401_32FDAZEVAL BRD - FULLY DIFFERENTIAL AM |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 2800V/µs | 560 MHz | 80 mA | 9.6 mA | 3V ~ 11V, ±1.5V ~ 5.5V | ADA4932-1, LT5401 | Board(s) |
