Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMH6555EVAL/NOPBEVAL BOARD FOR LMH6555 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 1300V/µs | 1.2 GHz | - | 120 mA | 2.97V ~ 3.63V | LMH6555 | Board(s) |
|
OPA1S2385EVMEVAL BOARD FOR OPA1S2385 |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | Transimpedance | Single-Ended, Rail-to-Rail | 150V/µs | 250 MHz | 100 mA | 9.2 mA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | OPA1S2385 | Board(s) |
|
LMP8481MMEVM-SEVAL BOARD FOR LMP8481 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 1V/µs | 270 kHz | - | 88 µA | 4.5V ~ 75V | LMP8481 | Board(s) |
|
OPA1S2384EVMEVAL BOARD FOR OPA1S2384 |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | Transimpedance | Single-Ended, Rail-to-Rail | 150V/µs | 250 MHz | 100 mA | 9.2 mA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | OPA1S2384 | Board(s) |
|
OPA521EVMEVAL BOARD FOR OPA521 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 75V/µs | - | 1.9 A | 78 mA | 7V ~ 18V | OPA521 | Board(s) |
|
DC1698A-AEVAL BOARD FOR LT1999-10 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 3V/µs | 2 MHz | - | 5.8 mA | 4.5V ~ 5.5V | LT1999 | Board(s) |
|
AMC1200EVMEVAL BOARD FOR AMC1200 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Isolation | Differential | - | 100 kHz | 20 mA | 5.4 mA | 2.7V ~ 5.5V | AMC1200 | Board(s) |
|

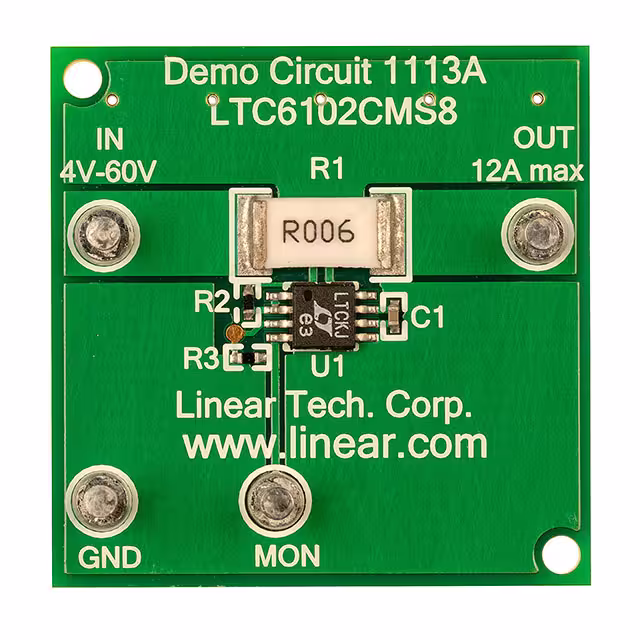

DC1113AEVAL BOARD FOR LTC6102 |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Open Drain | - | - | 1 mA | 420 µA | 4V ~ 60V | LTC6102 | Board(s) |
|

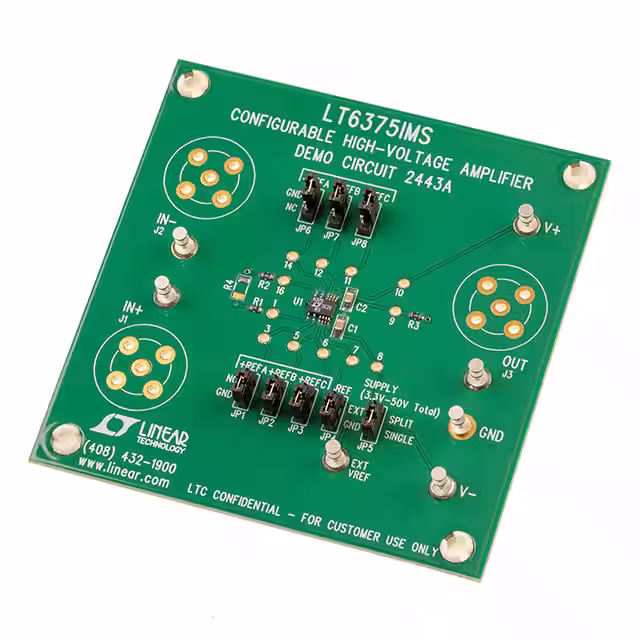

DC2443ADEMO BOARD FOR LT6375 HIGH VCM D |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Difference | Single-Ended, Rail-to-Rail | 2.4V/µs | 300 kHz | 25 mA | 350 µA | 3.3V ~ 50V, ±1.65V ~ 25V | LT6375 | Board(s) |
|
DC1698A-BEVAL BOARD FOR LT1999-20 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 3V/µs | 2 MHz | - | 5.8 mA | 4.5V ~ 5.5V | LT1999 | Board(s) |
|

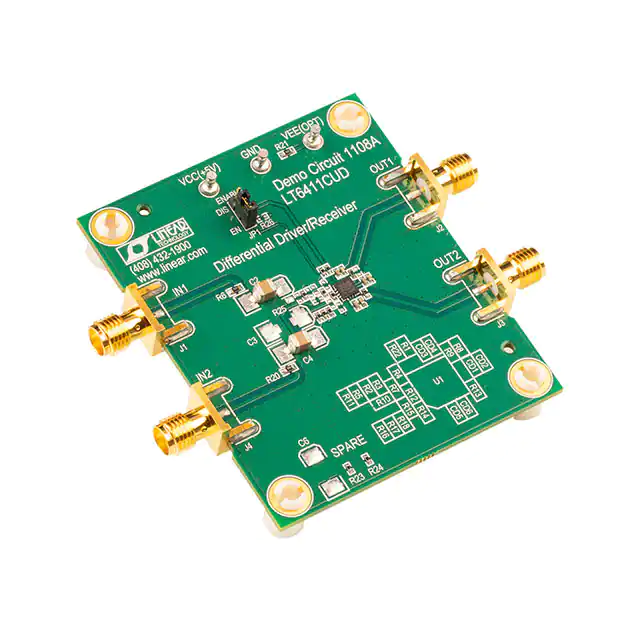

DC1108AEVAL BOARD FOR LT6411 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Differential | 3300V/µs | 650 MHz | 105 mA | 8 mA | 4.5V ~ 12V, ±2.25V ~ 6V | LT6411 | Board(s) |
|

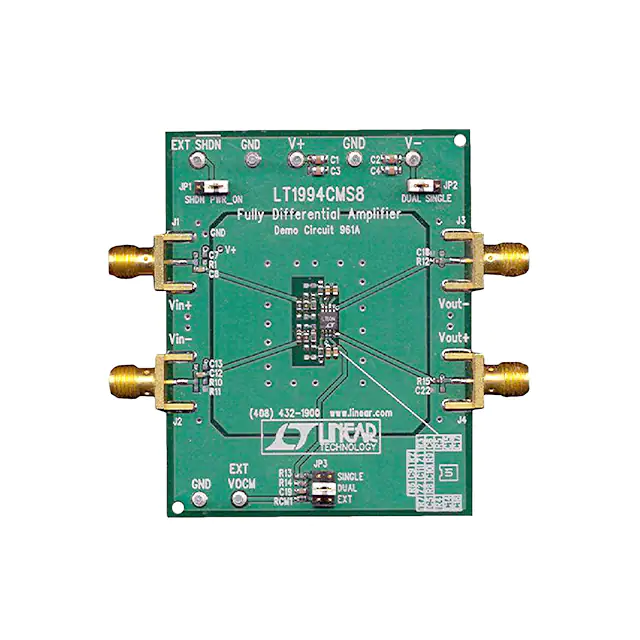

DC961BDEMO BOARD FOR LT1994 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 65V/µs | - | 85 mA | 14.8 mA | 2.375V ~ 12.6V, ±1.188V ~ 6.3V | LT1994 | Board(s) |
|

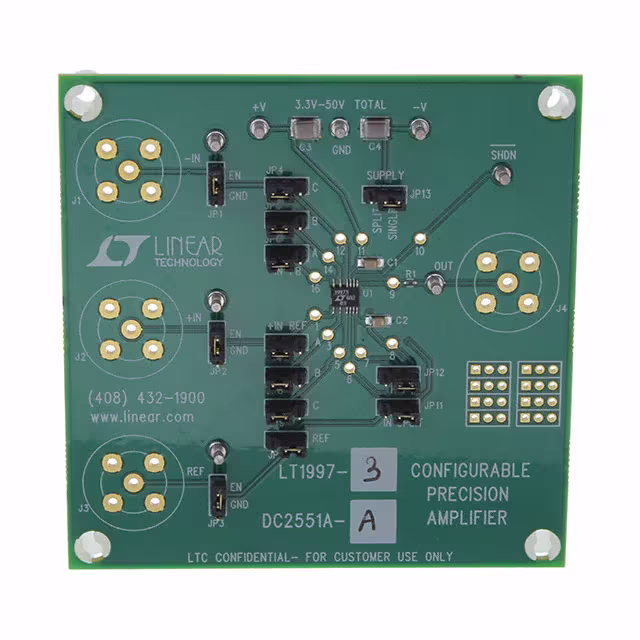

DC2551A-ADEMO BOARD FOR LT1997 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 0.75V/µs | 1.1 MHz | 30 mA | 350 µA | 3V ~ 50V, ±1.5V ~ 25V | LT1997-3 | Board(s) |
|

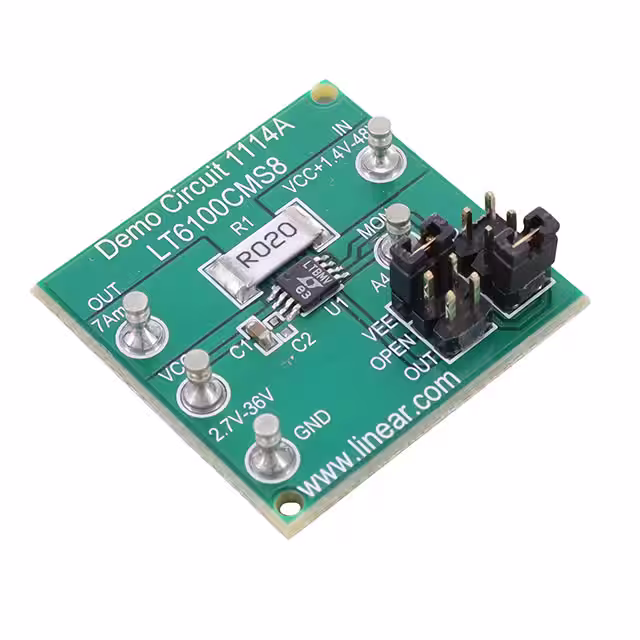

DC1114AEVAL BOARD FOR LT6100 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 0.05V/µs | - | 15 mA | 60 µA | 2.7V ~ 36V, ±1.35V ~ 18V | LT6100 | Board(s) |
|

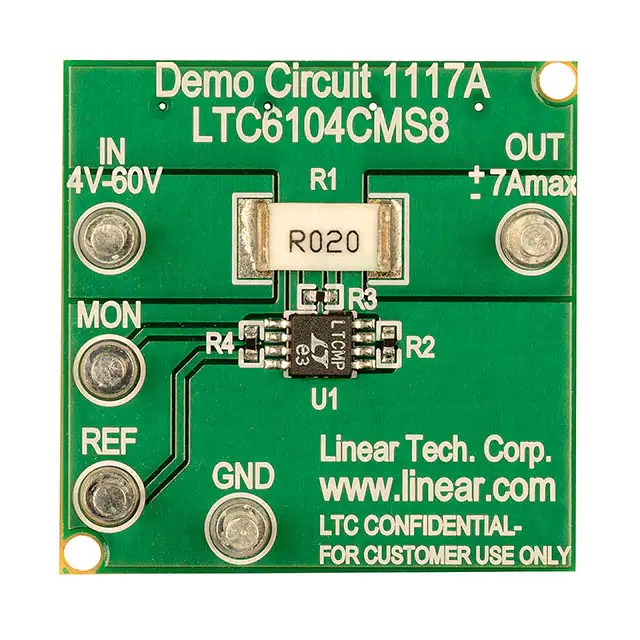

DC1117AEVAL BOARD FOR LTC6104 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Open Drain | - | - | 1 mA | 640 µA | 4V ~ 60V, ±2V ~ 30V | LTC6104 | Board(s) |
|

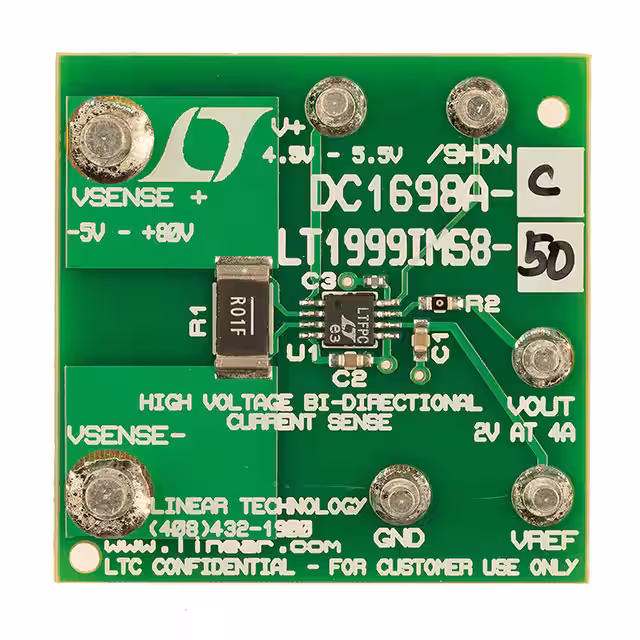

DC1698A-CEVAL BOARD FOR LT1999-50 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 3V/µs | 2 MHz | - | 5.8 mA | 4.5V ~ 5.5V | LT1999 | Board(s) |
|
INA2290EVMEVAL BOARD FOR INA2290 |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | Current Sense | Single-Ended | 2V/µs | 1.1 MHz | - | 680 µA | 2.7V ~ 20V | INA2290 | Board(s) |
|
ISL28634EV2ZEVAL BOARD FOR ISL28634 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Zero-Drift | Differential, Rail-to-Rail | 0.8V/µs | - | 45 mA | 2.9 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28634 | Board(s) |
|

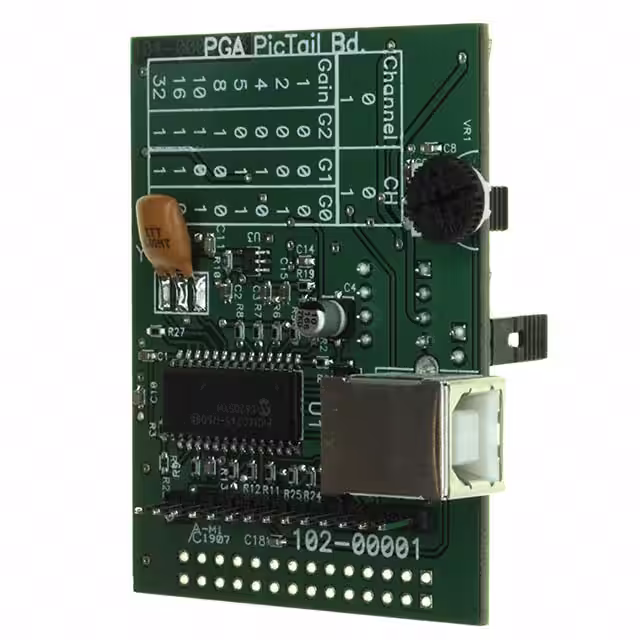

MCP6S22DM-PICTLBOARD DEMO FOR MCP6S22 |
2 |
|
Datasheet | PICtail™ | Bulk | Active | 2 - Dual | Programmable Gain | Single-Ended, Rail-to-Rail | 22V/µs | 12 MHz | 30 mA | 1 mA | 2.5V ~ 5.5V | MCP6S22 | Board(s), Cable(s) |
|
ISL28633EV2ZEVAL BOARD FOR ISL28633 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Zero-Drift | Differential, Rail-to-Rail | 0.8V/µs | - | 45 mA | 2.9 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28633 | Board(s) |
