DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS629210EVMEVAL BOARD FOR TPS629210 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629210 |
|
SCP-LT8362-B-EVALZEVAL BOARD FOR LT8362 |
4 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2.8V ~ 60V | Boost | 2MHz | Board(s) | LT8362 |
|
ADP5301-EVALZEVAL BOARD FOR ADP5301 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | - | 2.15V ~ 6.5V | Buck | - | Board(s) | ADP5301 |
|
ADP5050-EVALZEVAL BOARD FOR ADP5050 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V, 5V | 4A, 4A, 1.2A, 1.2A, 200mA | 4.5V ~ 15V | Buck | 650kHz | Board(s) | ADP5050 |
|
ADP5052-EVALZEVAL BOARD FOR ADP5052 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V, 5V | 4A, 4A, 1.2A, 1.2A, 200mA | 4.5V ~ 15V | Buck | 650kHz | Board(s) | ADP5052 |
|
ADP5071CP-EVALZEVAL BOARD FOR ADP5071 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5071 |
|
ADP5300-EVALZEVAL BOARD FOR ADP5300 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | - | 2.15V ~ 6.5V | Buck | - | Board(s) | ADP5300 |
|
ADP5302-EVALZEVAL BOARD FOR ADP5302 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | - | 2.15V ~ 6.5V | Buck | 2MHz | Board(s) | ADP5302 |
|
ADP5070CP-EVALZEVAL BOARD FOR ADP5070 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5070 |
|
ADP5070RE-EVALZEVAL BOARD FOR ADP5070 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5070 |
|
|
ADP5071RE-EVALZEVAL BOARD FOR ADP5071 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5071 |
|

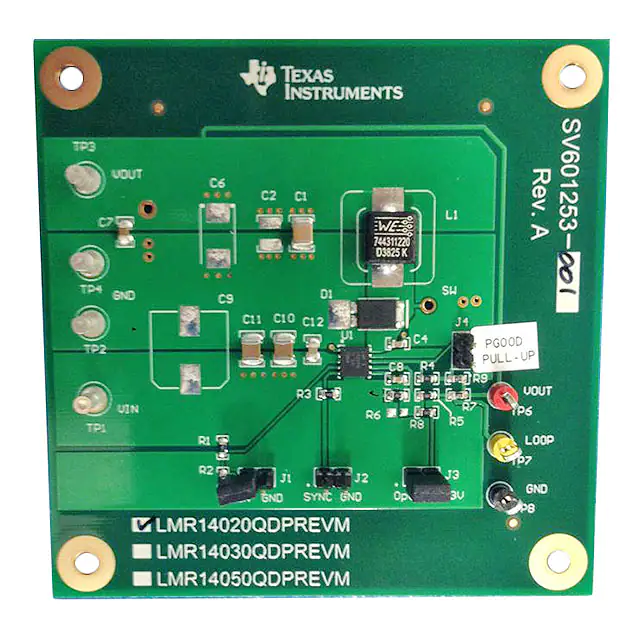

LMR14020QDPREVMEVAL BOARD FOR LMR14020Q1 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LMR14020-Q1 |
|
ADM00399EVAL BOARD FOR MCP16301 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | - | 5V ~ 30V | Buck-Boost | 500kHz | Board(s) | MCP16301 |
|
STEVAL-ISA171V1EVAL BOARD FOR VIPER35HD |
4 |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 12V | 1.25A | 90 ~ 264 VAC | Resonant | 225kHz | Board(s) | VIPER35HD |
|
SCP-LT3470A-BEVALZEVAL BOARD FOR LT3470A |
3 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 250mA | 4V ~ 36V | Buck | - | Board(s) | LT3470A |
|
SCP-LT1956-BEVALZEVAL BOARD FOR LT1956 |
2 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 1A | 48V | Buck | 500kHz | Board(s) | LT1956 |
|
SCP-LT8362-S-EVALZEVAL BOARD FOR LT8362 |
2 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2.8V ~ 60V | SEPIC | 2MHz | Board(s) | LT8362 |
|
SCP-LT8330-EVALZEVAL BOARD FOR LT8330 |
1 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 135mA | 10V ~ 36V | Boost, Inverting | 2MHz | Board(s) | LT8330 |
|
SCP-LT8618-IEVALZEVAL BOARD FOR LT8618 |
0 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 100mA | 3.4V ~ 60V | Buck, Inverting | 2MHz | Board(s) | LT8618 |
|
TPS54314EVMEVAL BOARD FOR TPS54314 |
15 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 700kHz | Board(s) | TPS54314 |
