DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS82085EVM-672EVAL BOARD FOR TPS82085 |
2 |
|

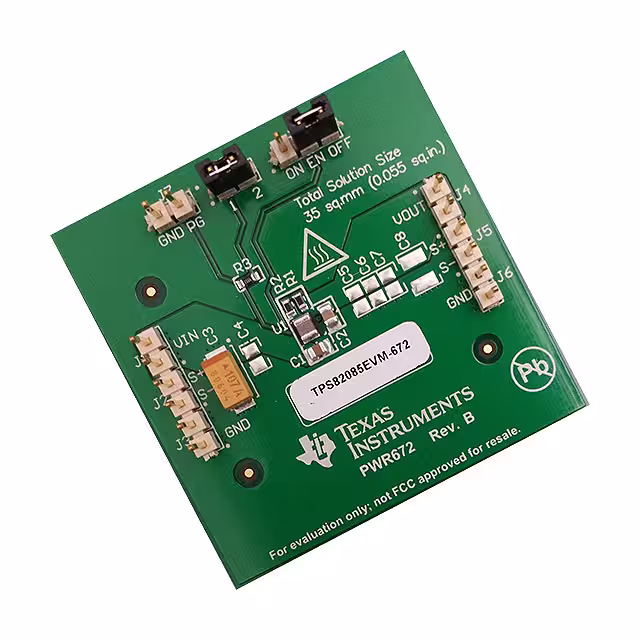

Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 6V | Buck | 2.4MHz | Board(s) | TPS82085 |
|
TPS544B25EVM-681EVAL BOARD FOR TPS544B25 |
2 |
|

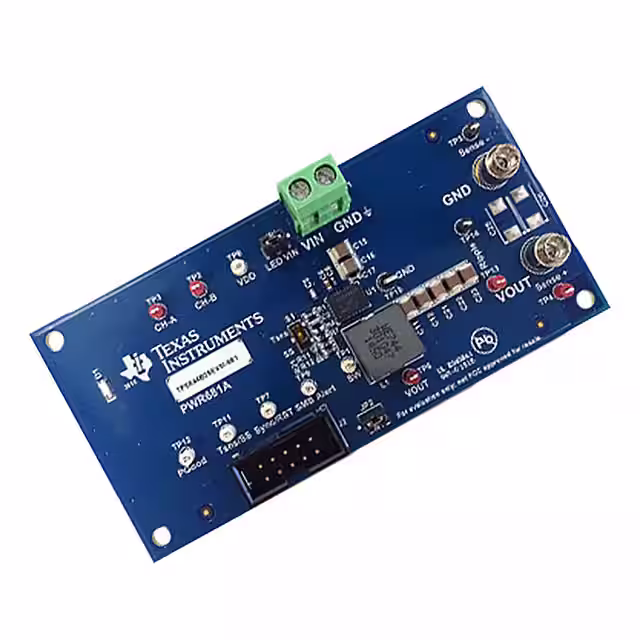

Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.95V | 20A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS544B25 |
|

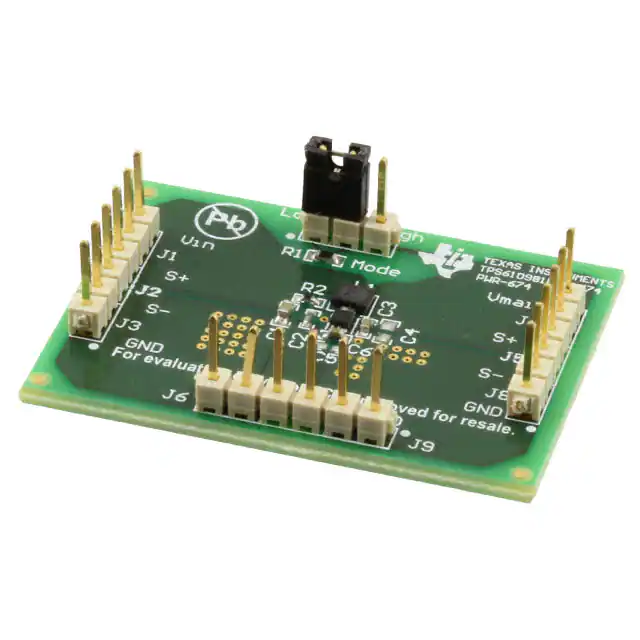

TPS610981EVM-674EVAL BOARD FOR TPS610981 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3V, 3.3V | 200mA, 200mA | 0.7V ~ 4.5V | Boost | - | Board(s) | TPS610981 |
|
TPS62746EVM-706EVAL BOARD FOR TPS62746 |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V or 1.8V | 300mA | 2.15V ~ 5.5V | Buck | 1.2MHz | Board(s) | TPS62746 |
|
TPS63050EVM-679EVAL BOARD FOR TPS63050 |
2 |
|

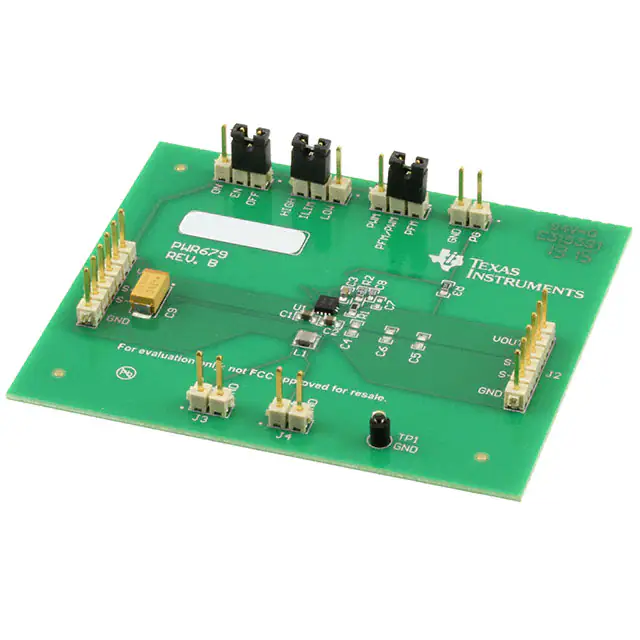

Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63050 |
|
TPS548D22EVM-784EVAL BOARD FOR TPS548D22 |
2 |
|

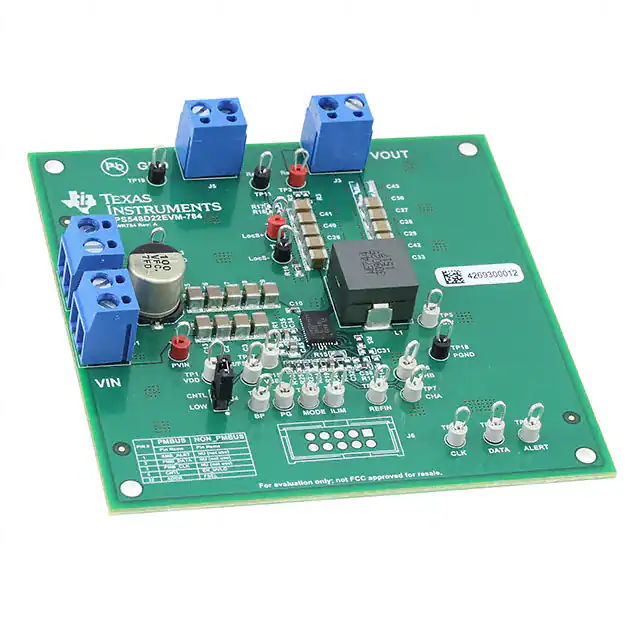

Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 5V ~ 16V | Buck | 650kHz | Board(s) | TPS548D22 |
|
LMZ34202EVMEVAL BOARD FOR LMZ34202 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 6V or 7.5V | 2A | 4.5V ~ 42V | Buck | - | Board(s) | LMZ34202 |
|

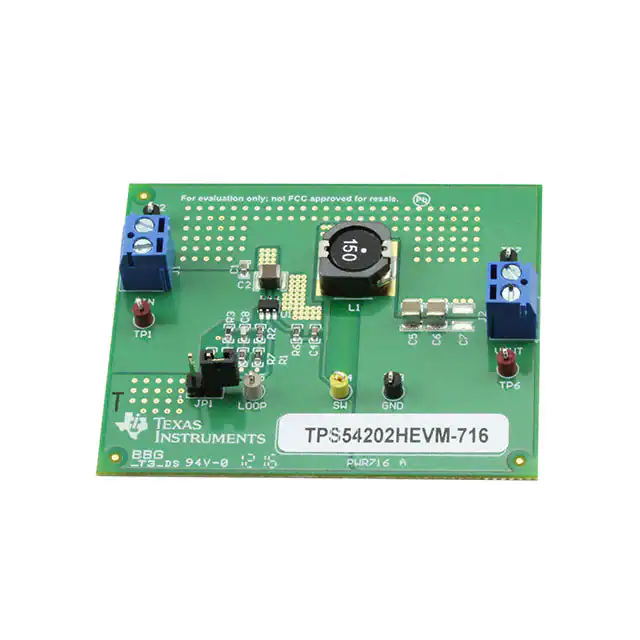

TPS54202HEVM-716EVAL BOARD FOR TPS54202H |
2 |
|
Datasheet | SWIFT™, Eco-Mode™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.2V ~ 28V | Buck | 500kHz | Board(s) | TPS54202H |
|

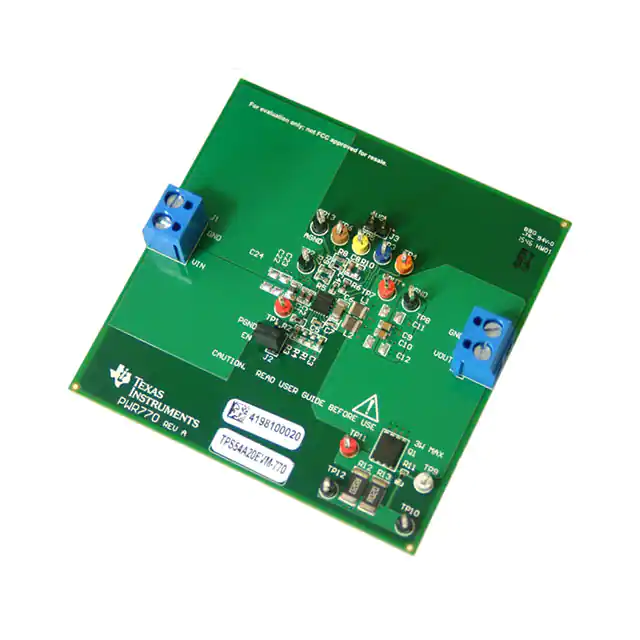

TPS54A20EVM-770EVAL BOARD FOR TPS54A20 |
2 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 9.2V ~ 14V | Buck | 2MHz | Board(s) | TPS54A20 |
|

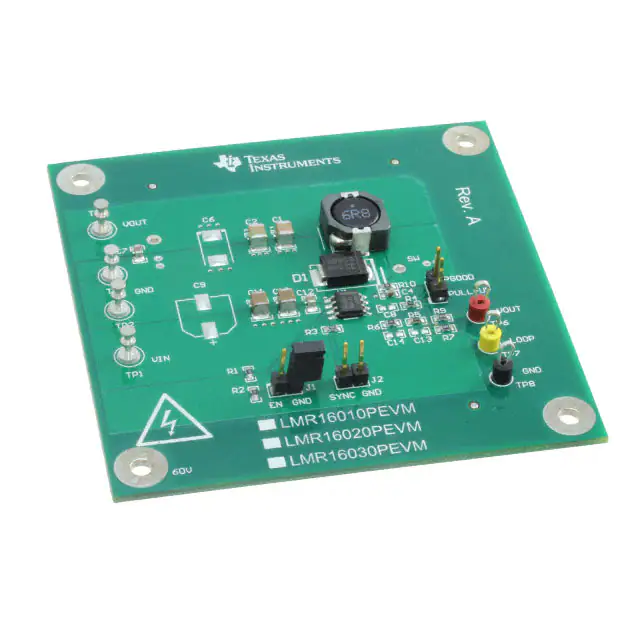

LMR16030PEVMEVAL BOARD FOR LMR16030 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 60V | Buck | 500kHz | Board(s) | LMR16030 |
|
LMR23610AEVMEVAL BOARD FOR LMR23610 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4.5V ~ 36V | Buck | 400kHz | Board(s) | LMR23610 |
|

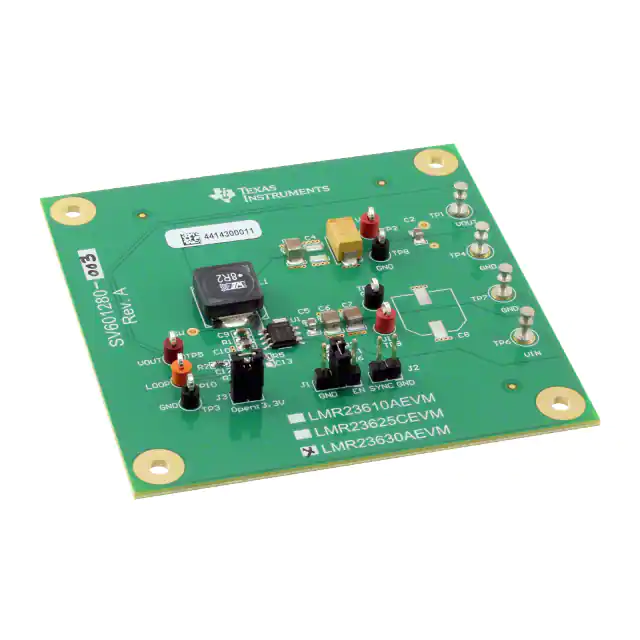

LMR23630AEVMEVAL BOARD FOR LMR23630 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 4.5V ~ 36V | Buck | 400kHz | Board(s) | LMR23630 |
|

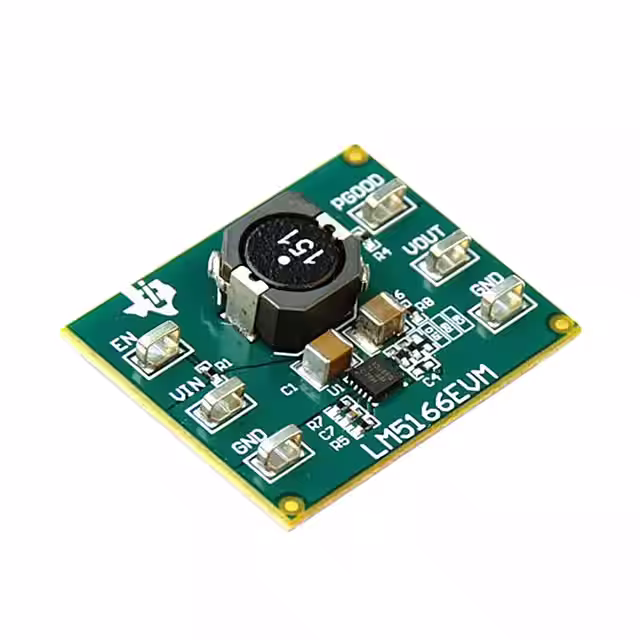

LM5166EVM-C33AEVAL BOARD FOR LM5166 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 65V | Buck | 200kHz | Board(s) | LM5166 |
|
|
LM5166EVM-C50AEVAL BOARD FOR LM5166 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 65V | Buck | 100kHz | Board(s) | LM5166 |
|
TPS543C20EVM-869EVAL BOARD FOR TPS543C20 |
2 |
|

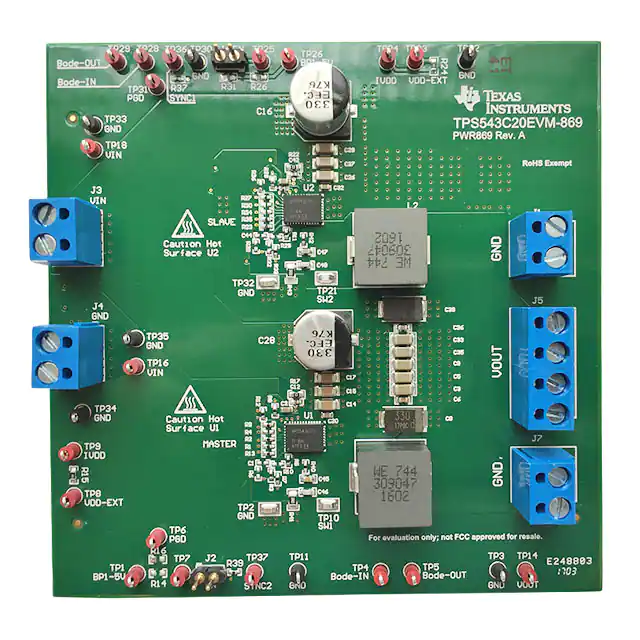

Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 80A | 5V ~ 16V | Buck | 500kHz | Board(s) | TPS543C20 |
|
LM2596S-ADJEVMEVAL BOARD FOR LM2596 |
2 |
|

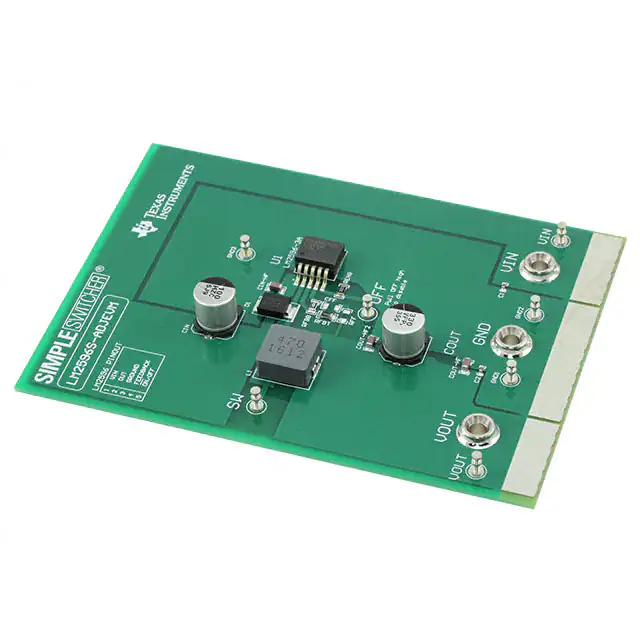

Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 40V | Buck | 150kHz | Board(s) | LM2596 |
|

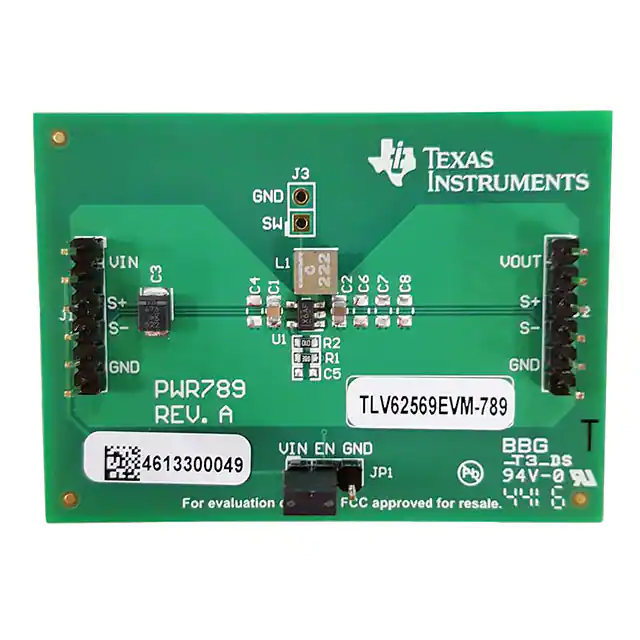

TLV62569EVM-789EVAL BOARD FOR TLV62569 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62569 |
|
TPS54824EVM-779EVAL BOARD FOR TPS54824 |
2 |
|

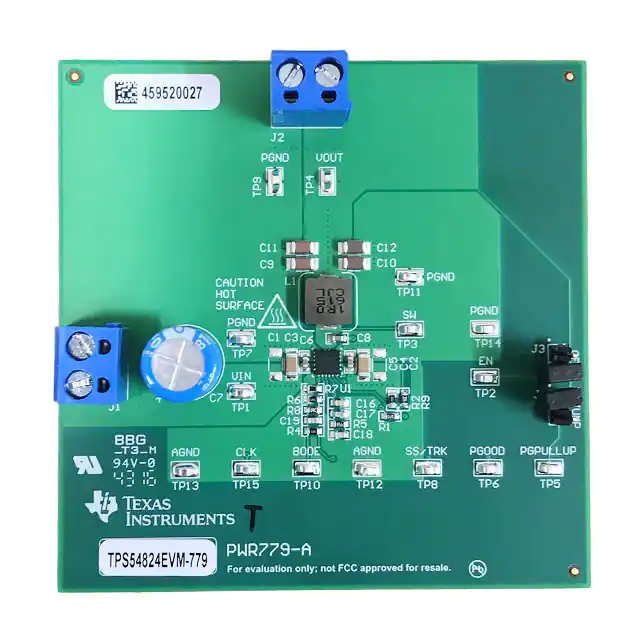

Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 8A | 4.5V ~ 17V | Buck | 700kHz | Board(s) | TPS54824 |
|

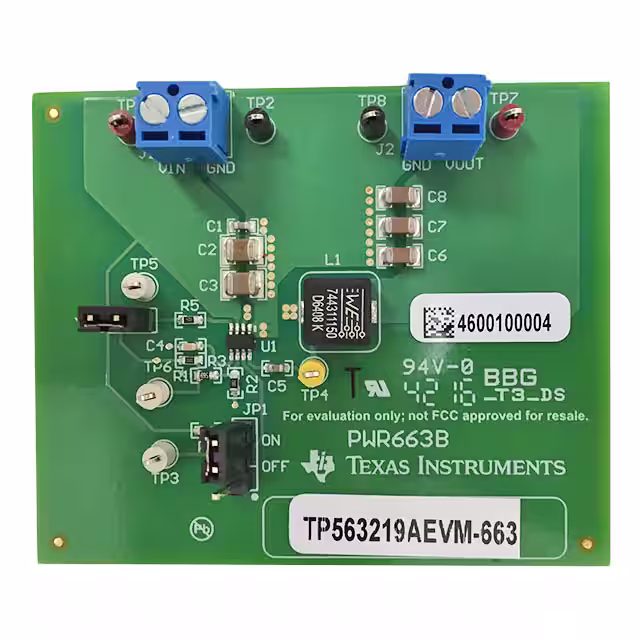

TPS563219AEVM-663EVAL BOARD FOR TPS563219A |
2 |
|
Datasheet | D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563219A |
|
TPS564208EVM-801EVAL BOARD FOR TPS564208 |
2 |
|

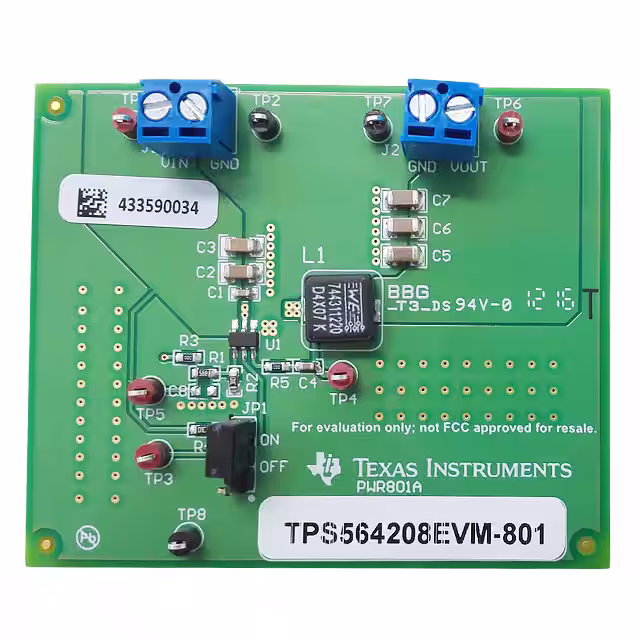

Datasheet | D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 17V | Buck | 560kHz | Board(s) | TPS564208 |
