DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

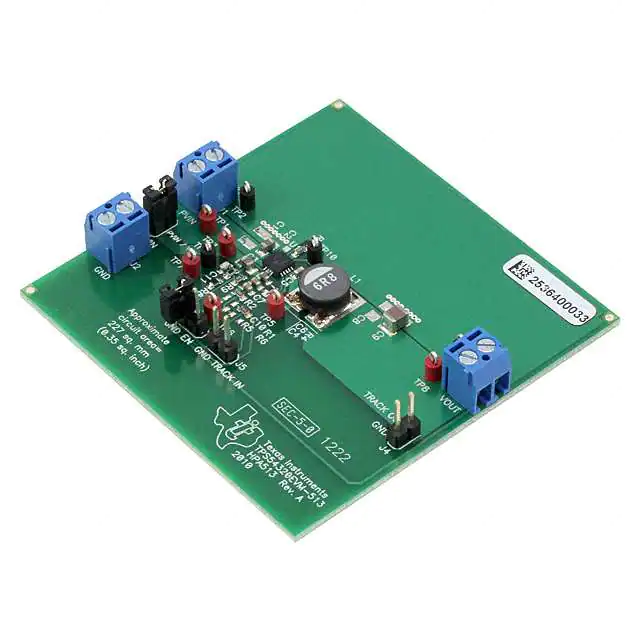

TPS54320EVM-513EVAL BOARD FOR TPS54320 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 8V ~ 17V | Buck | 480kHz | Board(s) | TPS54320 |
|
TPS62120EVM-640EVAL BOARD FOR TPS62120 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 75mA | 2V ~ 15V | Buck | 800kHz | Board(s) | TPS62120 |
|
TPS62230EVM-574EVAL BOARD FOR TPS62230 TPS62231 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 3MHz | Board(s) | TPS62230, TPS62231, TPS62232 |
|

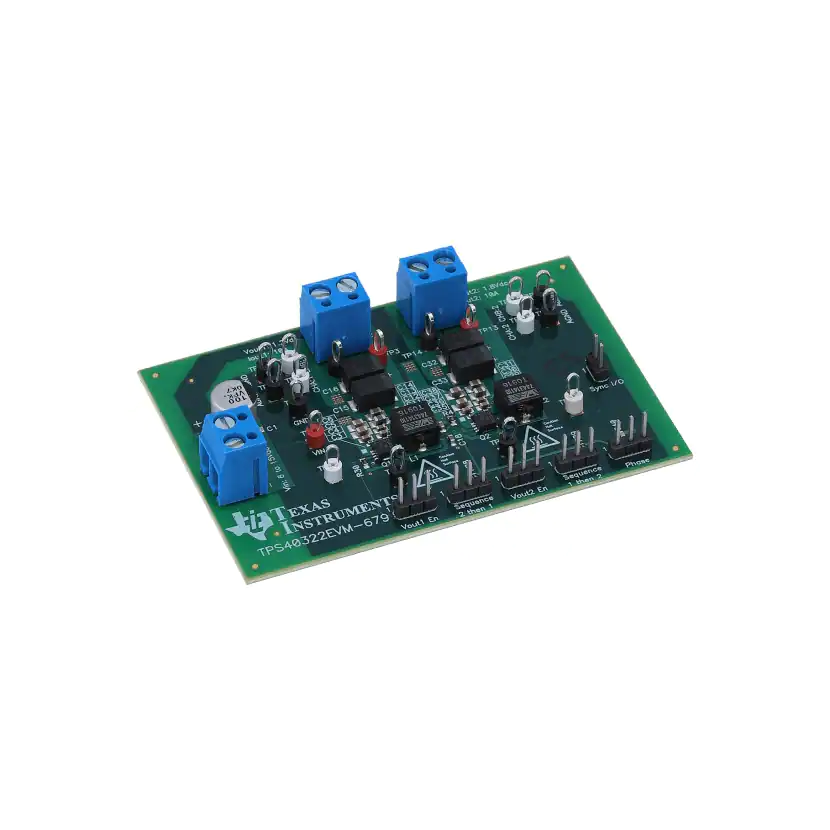

TPS40322EVM-679EVAL BOARD FOR TPS40322 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 10A, 10A | 8V ~ 15V | Buck | 500kHz | Board(s) | TPS40322 |
|

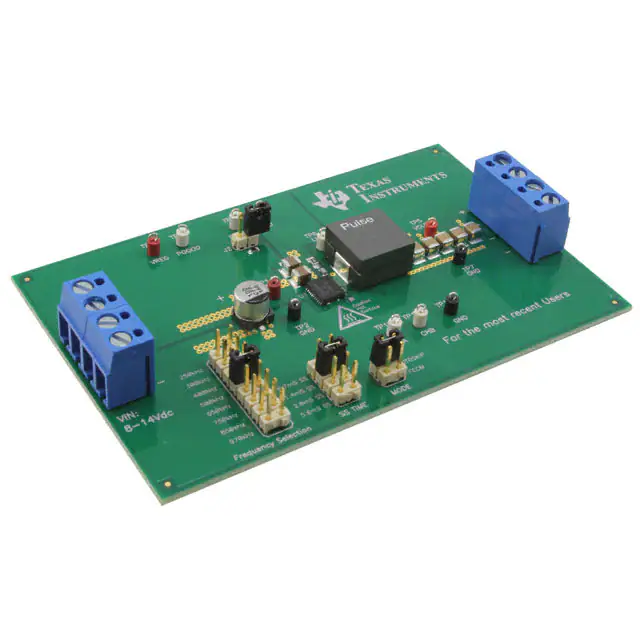

TPS53355EVM-743EVAL BOARD FOR TPS53355 |
2 |
|
Datasheet | D-CAP™, Eco-Mode™, SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS53355 |
|

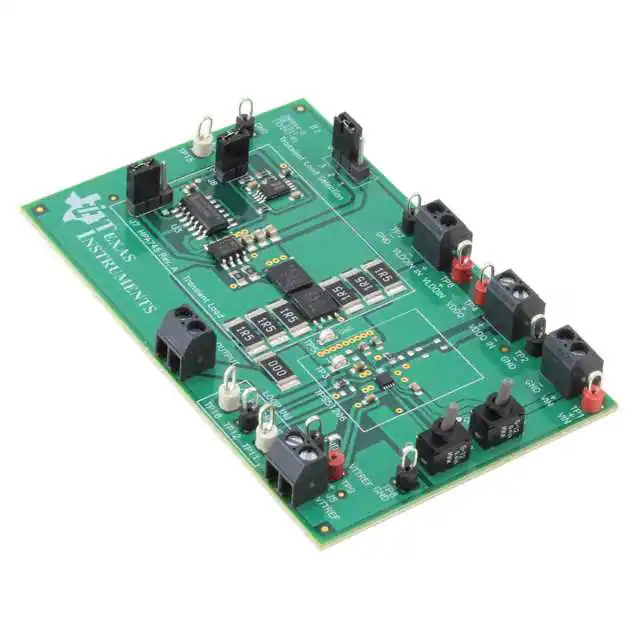

TPS51206EVM-745EVAL BOARD FOR TPS51206 |
2 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 2A, 10mA | 3.1V ~ 6.5V | Buck | - | Board(s) | TPS51206 |
|

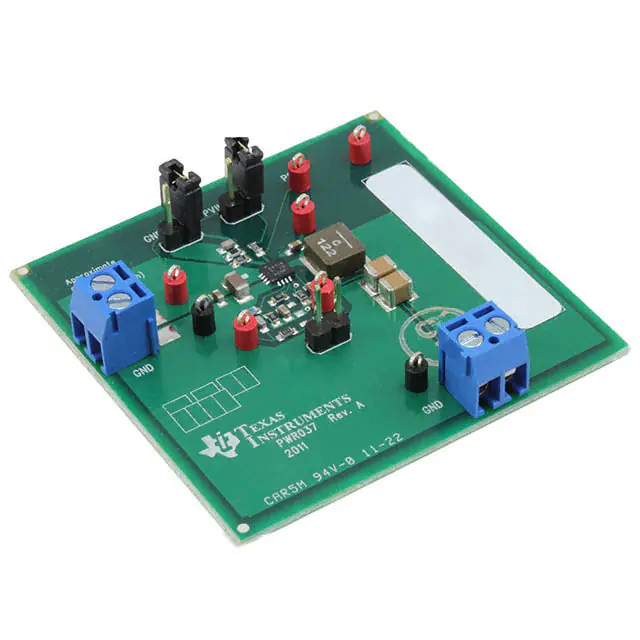

TPS54519EVM-037EVAL BOARD FOR TPS54519 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.95V ~ 6V | Buck | 490kHz | Board(s) | TPS54519 |
|

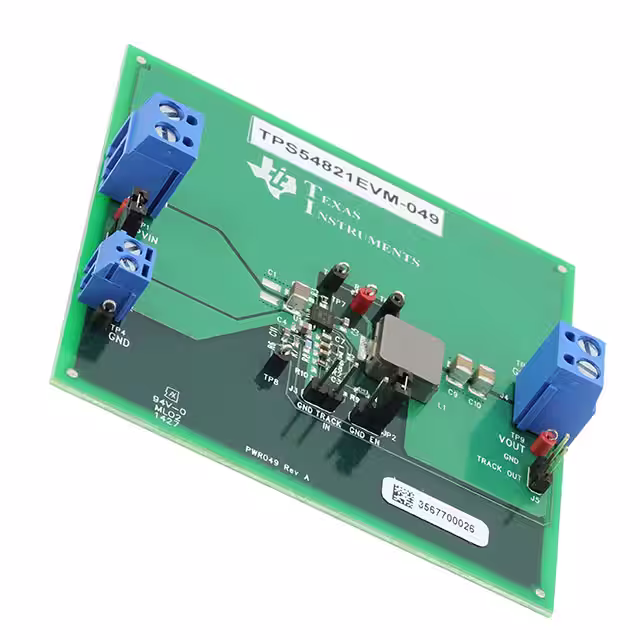

TPS54821EVM-049EVAL BOARD FOR TPS54821 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 8A | 8V ~ 17V | Buck | 480kHz | Board(s) | TPS54821 |
|

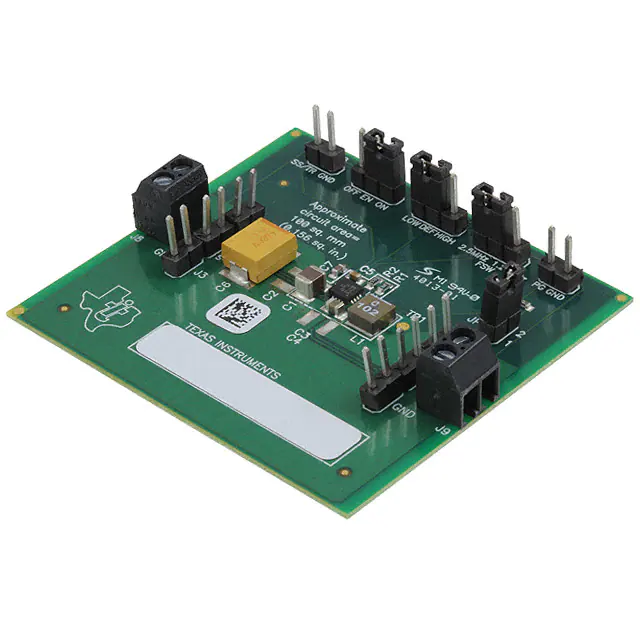

TPS62130EVM-505EVAL BOARD FOR TPS62130 |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3.7V ~ 17V | Buck | - | Board(s) | TPS62130 |
|
TPS65135EVM-265EVAL BOARD FOR TPS65135 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±5V | 80mA, 80mA | 2.5V ~ 5.5V | Buck-Boost | - | Board(s) | TPS65135 |
|
LM5008EVAL/NOPBEVAL BOARD FOR LM5008 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 300mA | 12V ~ 95V | Buck | - | Board(s) | LM5008 |
|

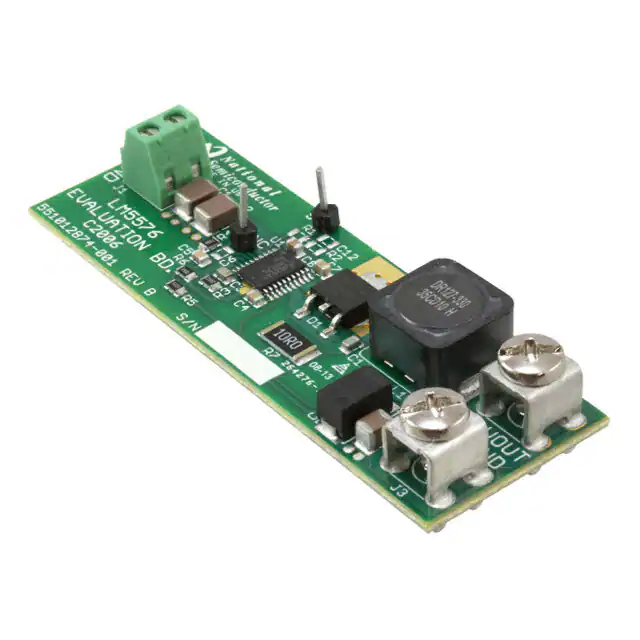

LM5576EVAL/NOPBEVAL BOARD FOR LM5576 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5576 |
|

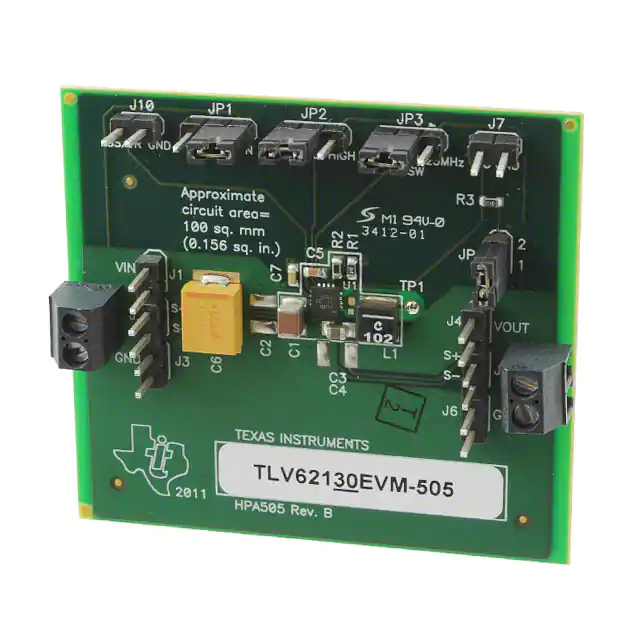

TLV62130EVM-505EVAL BOARD FOR TLV62130 |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 17V | Buck | 1.25MHz, 2.5MHz | Board(s) | TLV62130 |
|

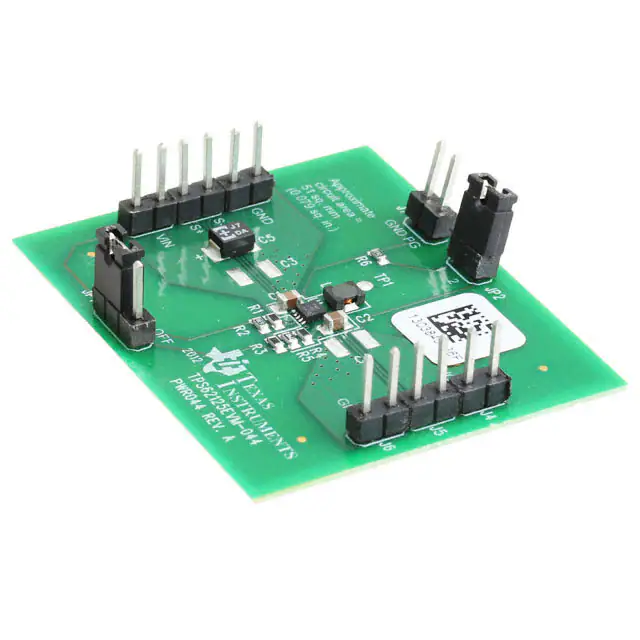

TPS62125EVM-044EVAL BOARD FOR TPS62125 |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4V ~ 17V | Buck | - | Board(s) | TPS62125 |
|

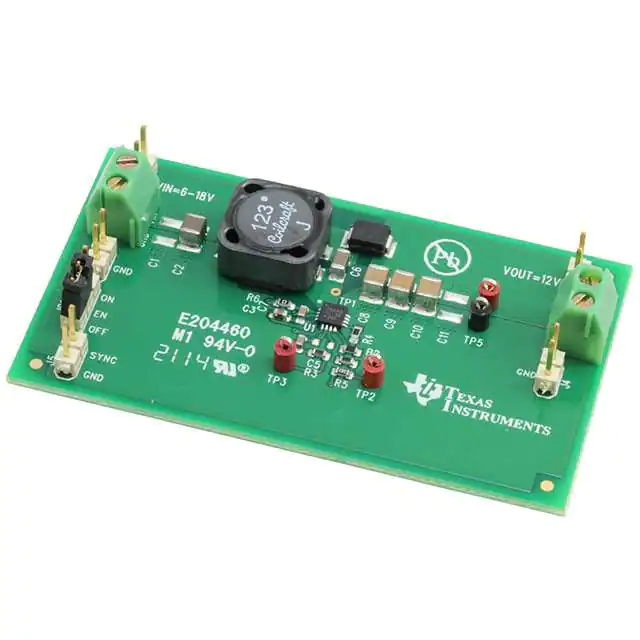

TPS55340EVM-147EVAL BOARD FOR TPS55340 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 6V ~ 18V | - | 500kHz | Board(s) | TPS55340 |
|

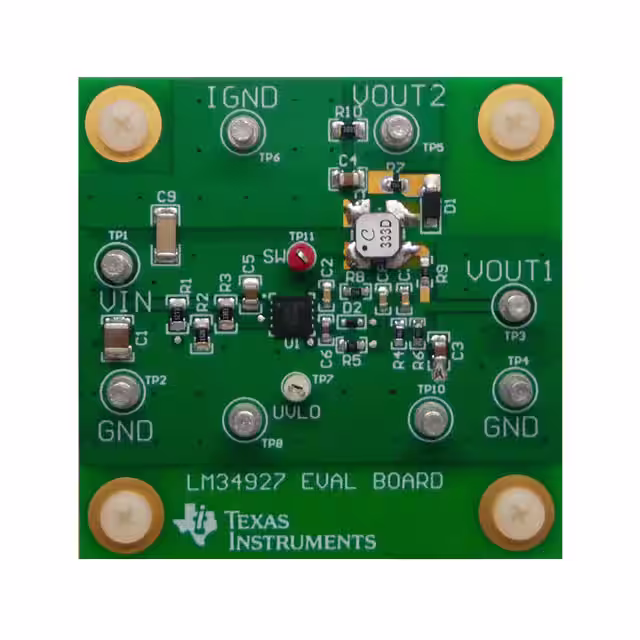

LM34927EVAL/NOPBEVAL BOARD FOR LM34927 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 300mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM34927 |
|

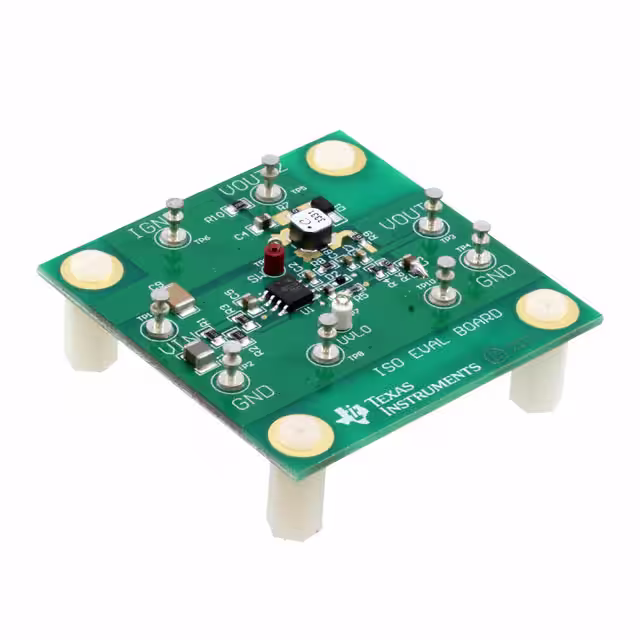

LM5017ISOEVAL/NOPBEVAL BOARD FOR LM5017 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 300mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM5017 |
|
TPS542941EVM-057EVAL BOARD FOR TPS542941 |
2 |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS542941 |
|
TPS542951EVM-057EVAL BOARD FOR TPS542951 |
2 |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS542951 |
|
TPS55340EVM-148EVAL BOARD FOR TPS55340 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2.5A | 8V ~ 24V | Flyback | 350kHz | Board(s) | TPS55340 |
