DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

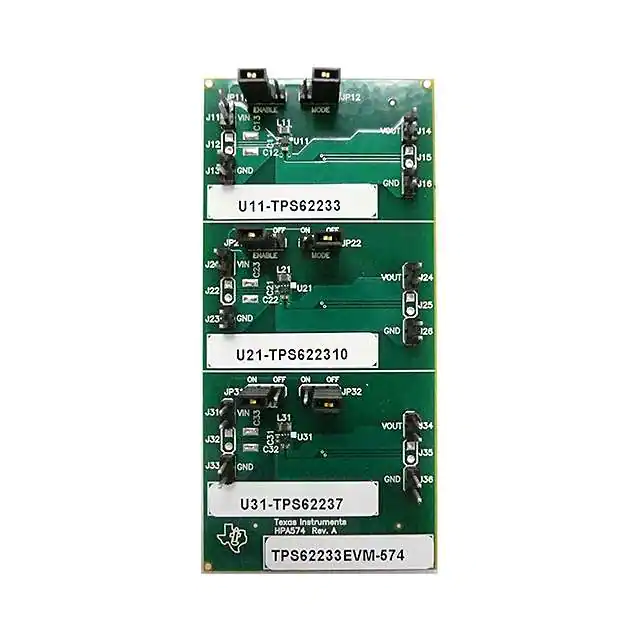

TPS62233EVM-574EVAL BOARD TPS62233 TPS622310 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 2.3V, 3V, 3.3V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 2MHz, 3MHz | Board(s) | TPS62233, TPS622310, TPS62237 |
|
LM5008AEVAL/NOPBEVAL BOARD FOR LM5008A |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8V ~ 75V | Buck | 130kHz | Board(s) | LM5008A |
|

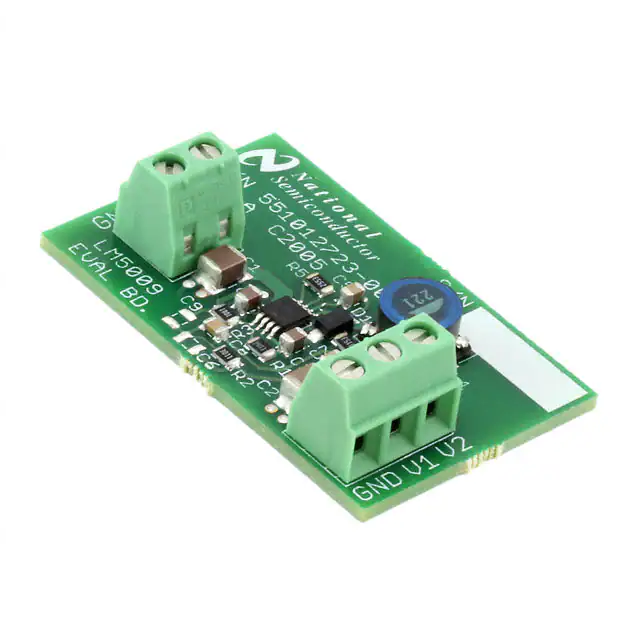

LM5009EVAL/NOPBEVAL BOARD FOR LM5009 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 150mA | 12V ~ 95V | Buck | 240kHz | Board(s) | LM5009 |
|
LM5088MH-1EVAL/NOPBEVAL BOARD FOR LM5088 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 5.5V ~ 55V | Buck | 250kHz | Board(s) | LM5088 |
|
TPS40170EVM-578EVAL BOARD FOR TPS40170 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 10V ~ 60V | Buck | 100kHz ~ 600kHz | Board(s) | TPS40170 |
|
TPS61251EVM-517EVAL BOARD FOR TPS61251 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.5V | 300mA | 2.3V ~ 6V | Boost | 3.25MHz | Board(s) | TPS61251 |
|
TPS54623EVM-012EVAL BOARD FOR TPS54623 |
3 |
|

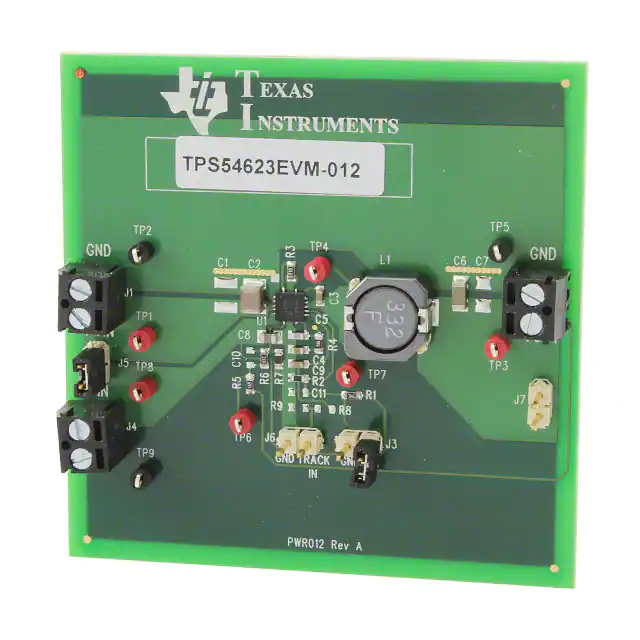

Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 8V ~ 17V | Buck | 200kHz ~ 1.6MHz | Board(s) | TPS54623 |
|

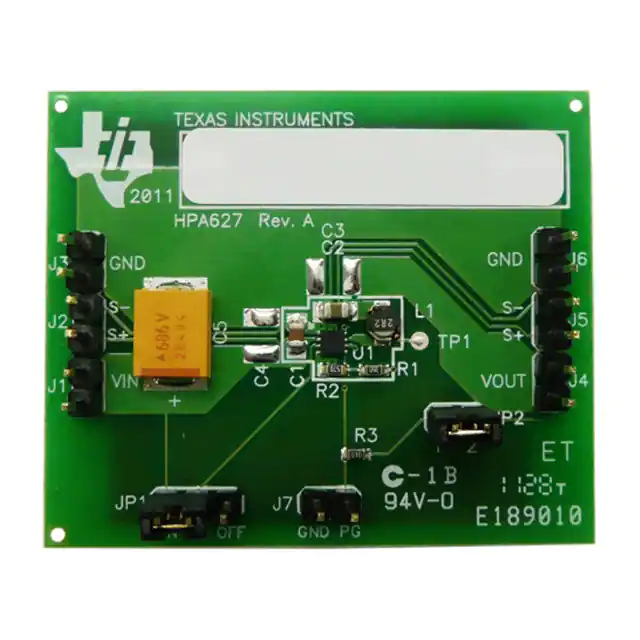

TPS62170EVM-627EVAL BOARD FOR TPS62170 |
3 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3.7V ~ 17V | Buck | - | Board(s) | TPS62170 |
|
TPS53313EVM-078EVAL BOARD FOR TPS53313 |
3 |
|
Datasheet | SmoothPWM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 8V ~ 14V | Buck | 600kHz, 1MHz | Board(s) | TPS53313 |
|
TPS54120EVM-103EVAL BOARD FOR TPS54120 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 4.1V | 1A, 1A | 7V ~ 17V | Buck | 480kHz | Board(s) | TPS54120 |
|
TPS54494EVM-057EVAL BOARD FOR TPS54494 |
3 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 4A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS54494 |
|

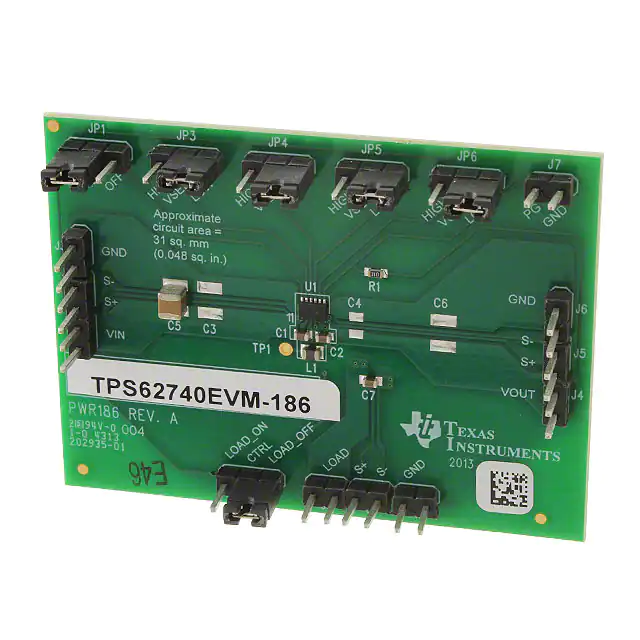

TPS62740EVM-186EVAL BOARD FOR TPS62740 |
3 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 3.3V | 300mA | 2.2V ~ 5.5V | Buck | - | Board(s) | TPS62740 |
|

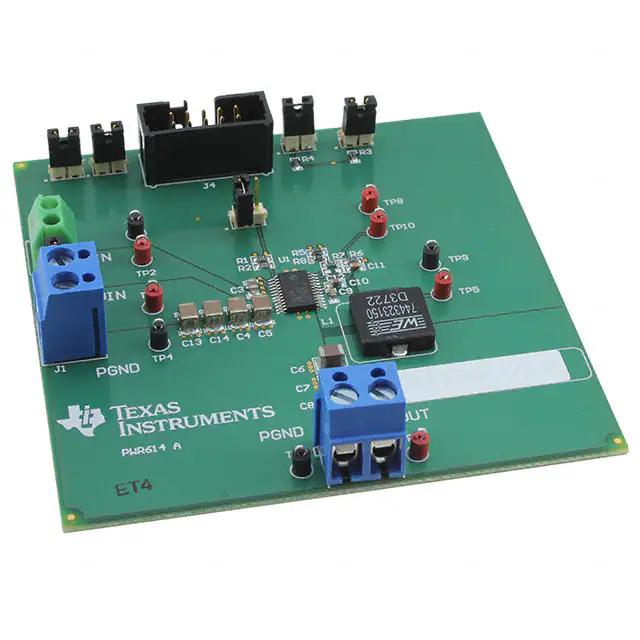

TPS56C20EVM-614EVAL BOARD FOR TPS56C20 |
3 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 12A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | TPS56C20 |
|

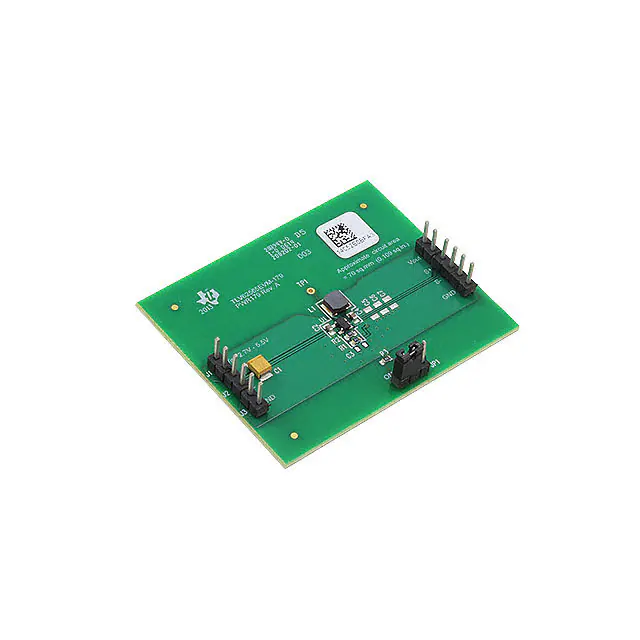

TLV62565EVM-179EVAL BOARD FOR TLV62565 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | - | Board(s) | TLV62565 |
|

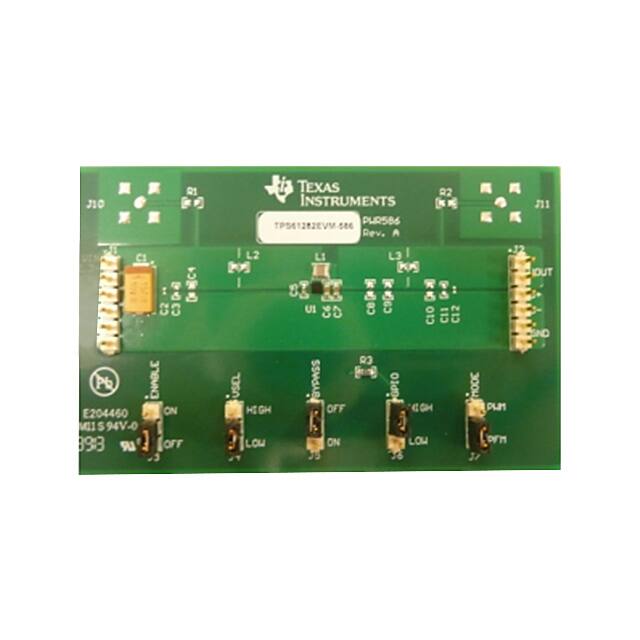

TPS61282EVM-586EVAL BOARD FOR TPS61282 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 3.5V | 4A | 2.3V ~ 4.8V | Buck | 2.3MHz | Board(s) | TPS61282 |
|
TPS65233EVMEVAL BOARD FOR TPS65233 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 4.5V ~ 16V | Boost | 500kHz | Board(s) | TPS65233 |
|
LM536035EVMEVAL BOARD FOR LM53635A |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.9V ~ 36V | Buck | 2.1MHz | Board(s) | LM53635A |
|
TPS61236EVM-676EVAL BOARD FOR TPS61236 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 3A | 2.3V ~ 4.4V | Boost | 1MHz | Board(s) | TPS61236 |
|

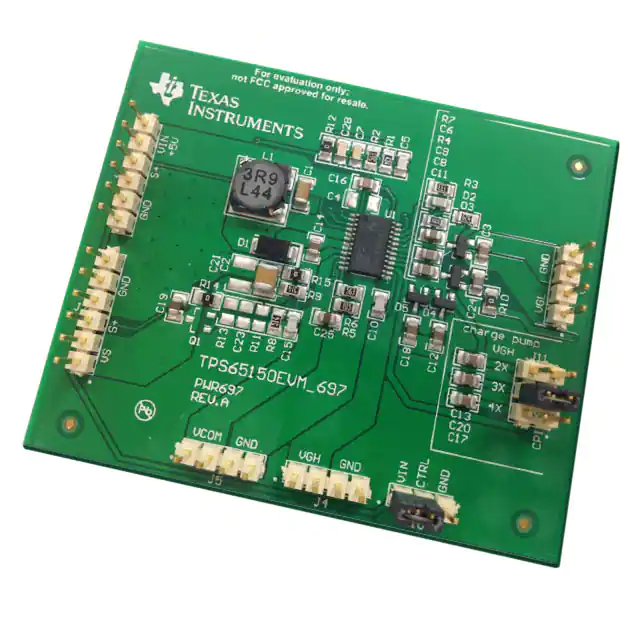

TPS65150EVM-697EVAL BOARD FOR TPS65150 |
3 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 15V, 30V, -2V | - | 1.8V ~ 6V | Boost | 1.2MHz | Board(s) | TPS65150 |
|
TPS65235EVM-694EVAL BOARD FOR TPS65235 |
3 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 11V ~ 20V | 1A | 4.5V ~ 16V | Boost | - | Board(s) | TPS65235 |
