DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS564201EVM-801EVAL BOARD FOR TPS564201 |
3 |
|
Datasheet | D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 17V | Buck | 560kHz | Board(s) | TPS564201 |
|

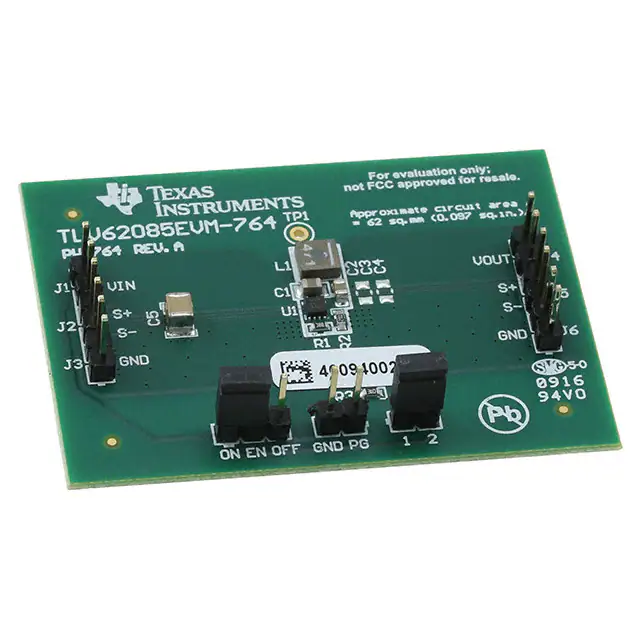

TLV62085EVM-764EVAL BOARD FOR TLV62085 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 6V | Buck | - | Board(s) | TLV62085 |
|
TLV62568EVM-789EVAL BOARD FOR TLV62568 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62568 |
|

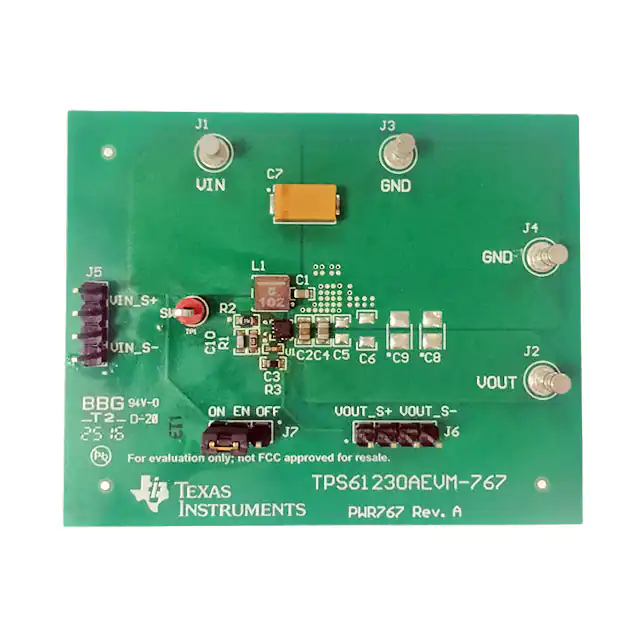

TPS61230AEVM-767EVAL BOARD FOR TPS61230A |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2.4A | 2.5V ~ 4.5V | Boost | 1.15MHz | Board(s) | TPS61230A |
|
TPS65320C-EVMEVAL BOARD FOR TPS65320CQ1 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.2A, 280mA | 3.6V ~ 40V | Buck | 110kHz, 400kHz, 2.1MHz | Board(s) | TPS65320C-Q1 |
|

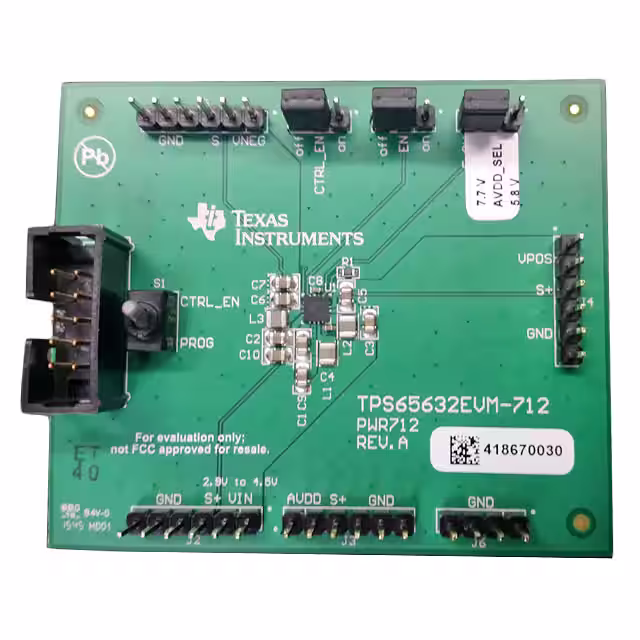

TPS65632EVM-712EVAL BOARD FOR TPS65632 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | - | - | 2.9V ~ 4.5V | Buck-Boost | - | Board(s) | TPS65632 |
|
TPS62136EVM-698EVAL BOARD FOR TPS62136 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 3V ~ 17V | Buck | 1MHz | Board(s) | TPS62136 |
|
DCPA10515DEVM-868EVAL BOARD FOR DCPA10505 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 2 Isolated Outputs | 1 W | ±15V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|

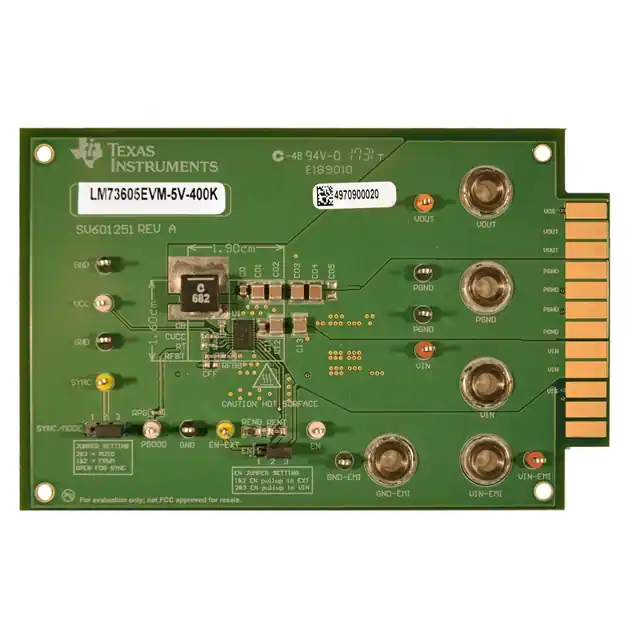

LM73605EVM-5V-400KEVAL BOARD FOR LM73605 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 6V ~ 36V | Buck | 400kHz | Board(s) | LM73605 |
|
TPS63710EVM-811EVAL BOARD FOR TPS63710 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -1.8V | 1A | 3.1V ~ 14V | Inverting | 1.5MHz | Board(s) | TPS63710 |
|
TPSM84424EVM-013EVAL BOARD FOR TPSM84424 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 10V | 4A | 4.5V ~ 17V | Buck | - | Board(s) | TPSM84424 |
|

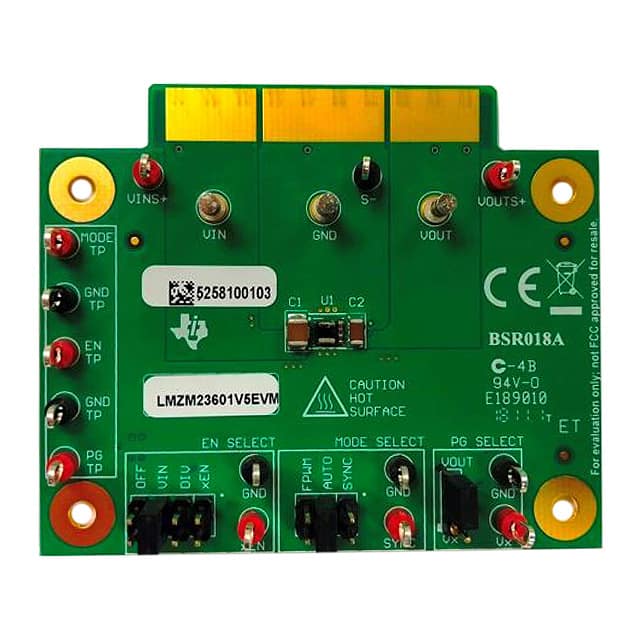

LMZM23601V5EVMEVAL BOARD FOR LMZM23601 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 4V ~ 36V | Buck | 750kHz | Board(s) | LMZM23601 |
|

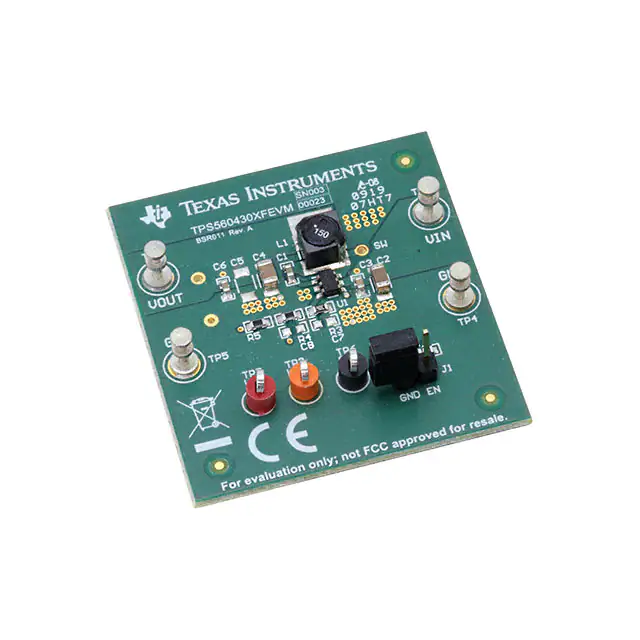

TPS560430XFEVMEVAL BOARD FOR TPS560430 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 4V ~ 36V | Buck | 1.1MHz | Board(s) | TPS560430 |
|

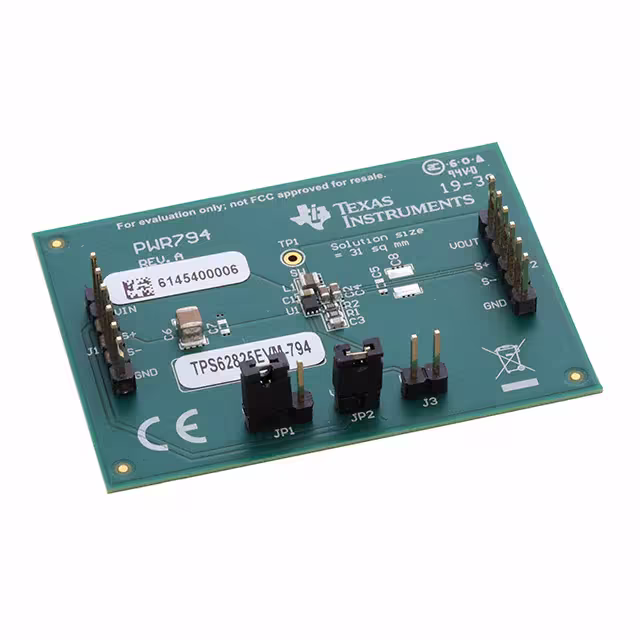

TPS62825EVM-794EVAL BOARD FOR TPS62825 |
3 |
|
Datasheet | DCS-Control™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | TPS62825 |
|
TPS62826EVM-794EVAL BOARD FOR TPS62826 |
3 |
|
Datasheet | DCS-Control™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62826 |
|
TPSM84624EVM-013EVAL BOARD FOR TPSM84624 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 10V | 6A | 4.5V ~ 17V | Buck | - | Board(s) | TPSM84624 |
|
TPS62810EVM-015EVAL BOARD FOR TPS6281X |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 6V | Buck | - | Board(s) | TPS6281x |
|
TPS62827EVM-063EVAL BOARD FOR TPS62827 |
3 |
|
Datasheet | DCS-Control™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.5V ~ 5.5V | Buck | - | Board(s) | TPS62827 |
|

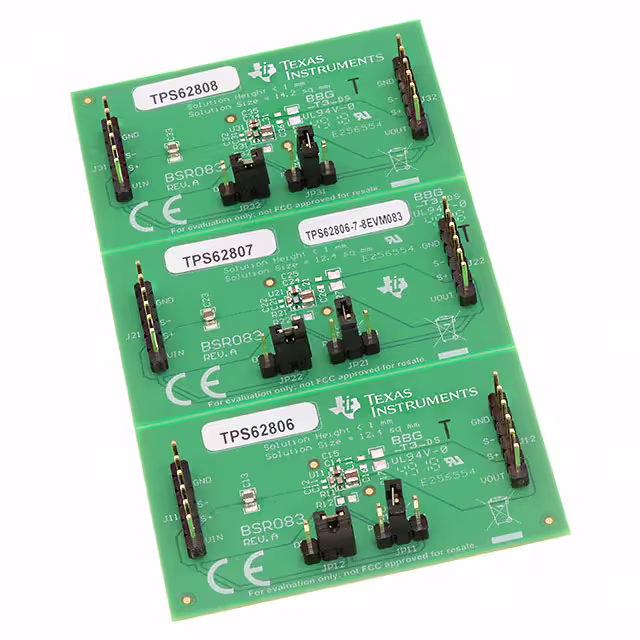

TPS62806-7-8EVM083EVAL BOARD FOR TPS6280X |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 600mA | 1.8V ~ 5.5V | Buck | - | Board(s) | TPS6280x |
|
TPS628502EVM-092EVAL BOARD FOR TPS628502 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 7V | Buck | - | Board(s) | TPS628502 |
