DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

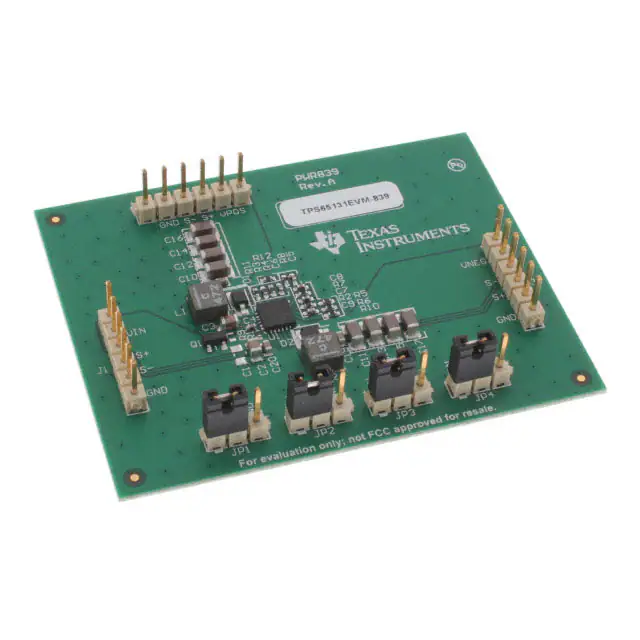

TPS65131EVM-839EVAL BOARD FOR TPS65131 |
5 |
|
Datasheet | - | Bulk | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 12V, -12V | 400mA, 200mA | 3V ~ 3.6V | Boost | - | Board(s) | TPS65131 |
|

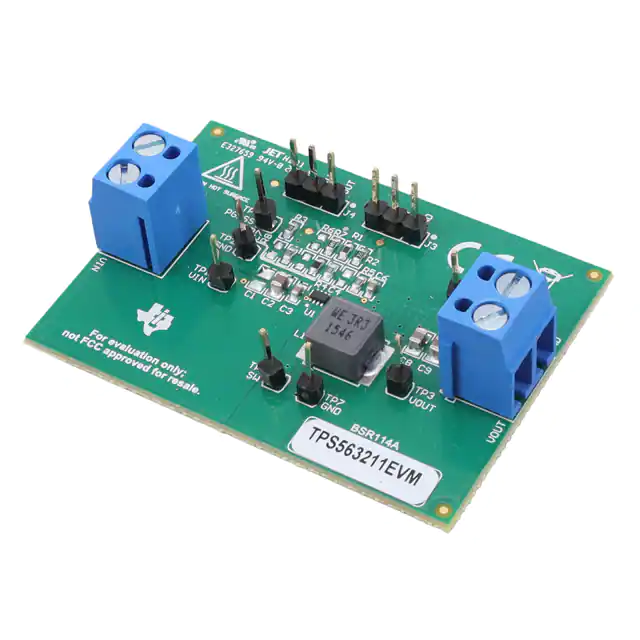

TPS563211EVMEVAL BOARD FOR TPS563211 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.2V ~ 18V | Buck | 600kHz | Board(s) | TPS563211 |
|

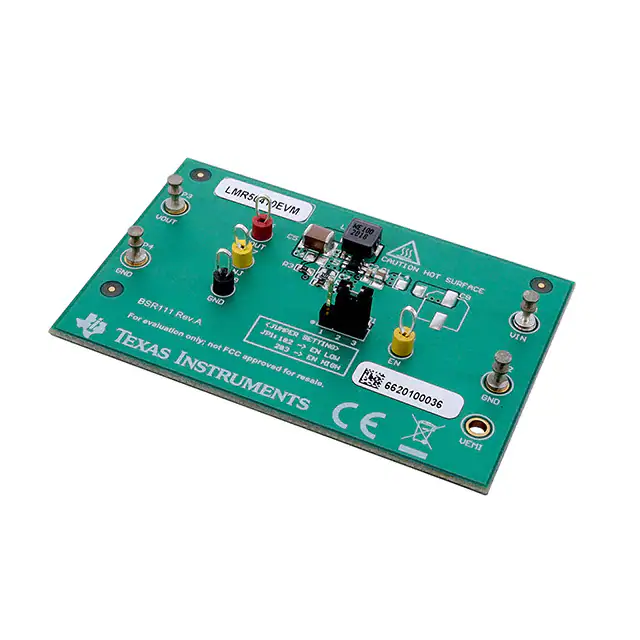

LMR50410EVMEVAL BOARD LMR50410 PLMR50410 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 4V ~ 36V | Buck | 700kHz | Board(s) | LMR50410, PLMR50410 |
|

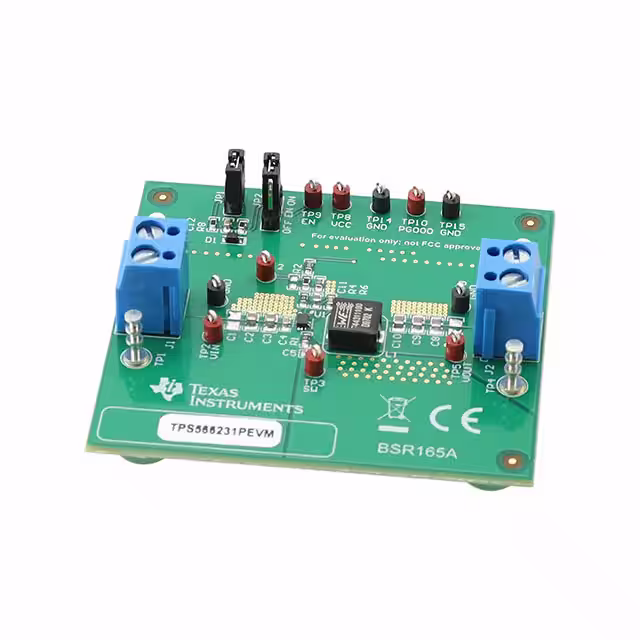

TPS566231PEVMEVAL BOARD FOR TPS566231P |
5 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 3V ~ 18V | Buck | 600kHz | Board(s) | TPS566231P |
|

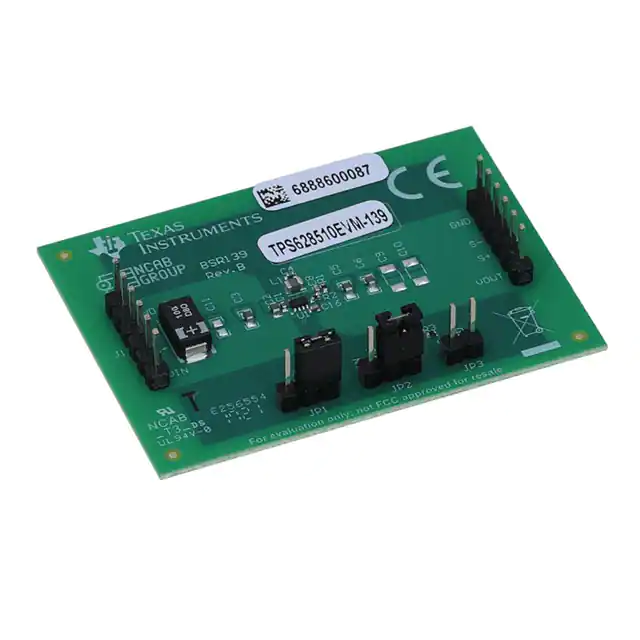

TPS628510EVM-139EVAL BOARD FOR TPS628510 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS628510 |
|
TPSM82823EVM-080EVAL BOARD FOR TPSM82823 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82823 |
|
LM61430EVM-AS-2MHZEVAL BOARD FOR LM61430Q1 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 600 mW | 5V | 3A | 3V ~ 36V | Buck | 2MHz | Board(s) | LM61430-Q1 |
|
TPS62A01EVM-190EVAL BOARD FOR TPS62A01 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPS62A01 |
|
TPS62088AEVM-187EVAL BOARD FOR TPS62088A |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPS62088A |
|

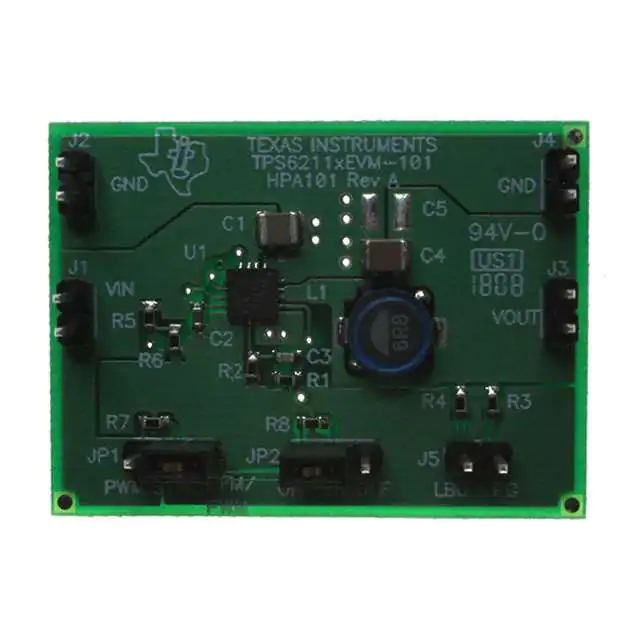

TPS62110EVM-101EVAL BOARD FOR TPS62110 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3.6V ~ 17V | Buck | - | Board(s) | TPS62110 |
|

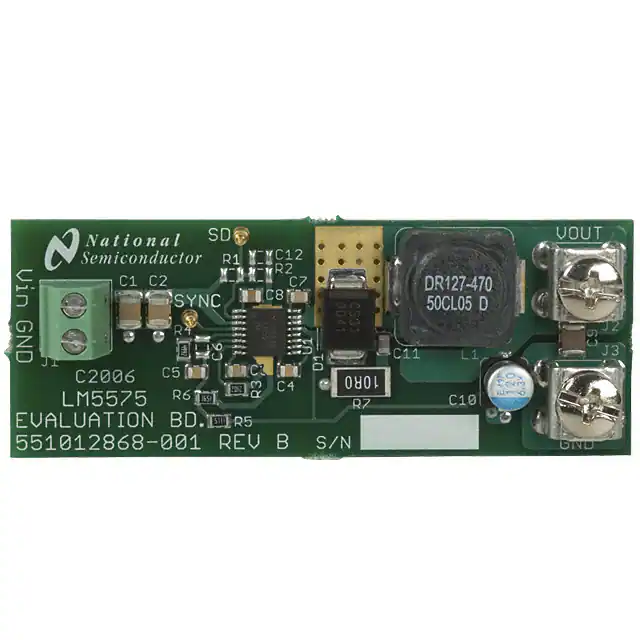

LM5575EVALEVAL BOARD FOR LM5575 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5575 |
|

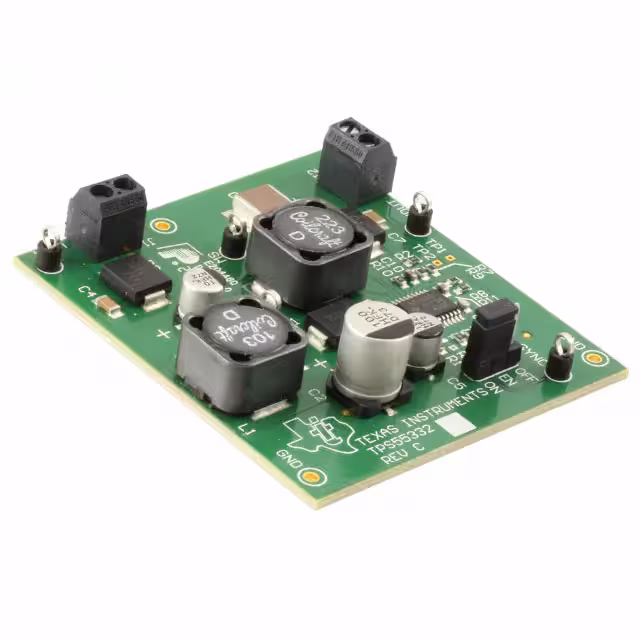

TPS55332EVMEVAL BOARD FOR TPS55332 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 500mA | 1.5V ~ 40V | Boost | - | Board(s) | TPS55332 |
|

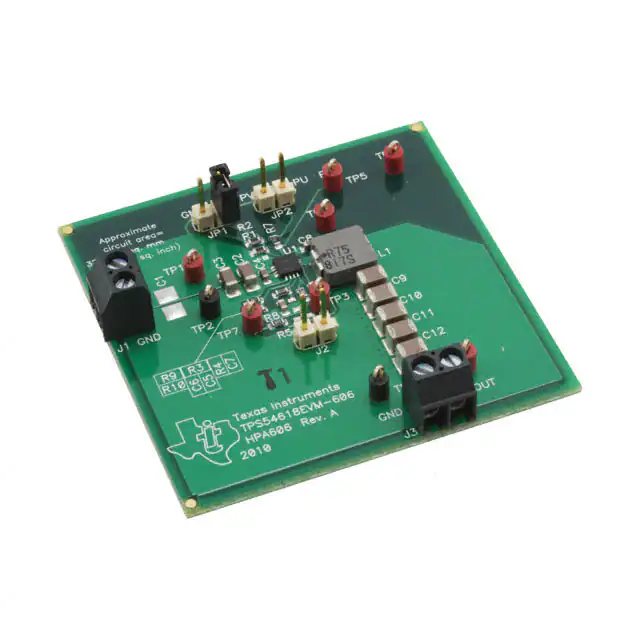

TPS54618EVM-606EVAL BOARD FOR TPS54618 |
4 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 3V ~ 6V | Buck | 1MHz | Board(s) | TPS54618 |
|

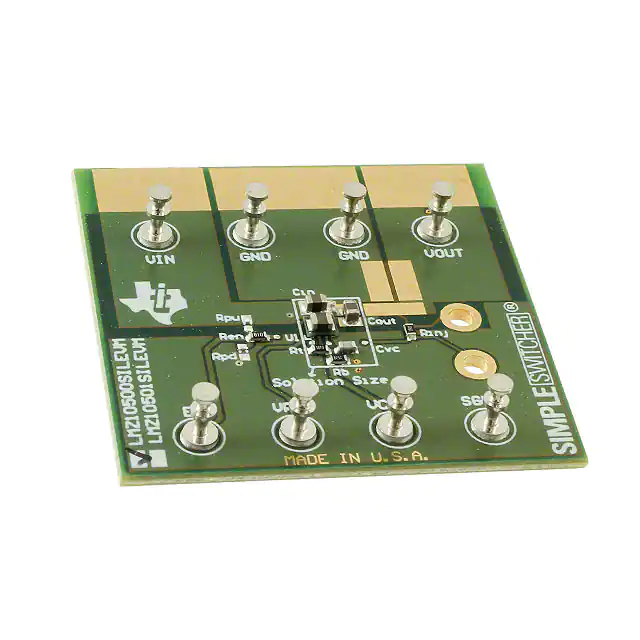

LMZ10500SILEVMEVAL BOARD FOR LMZ10500 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10500 |
|
TPS563209EVM-652EVAL BOARD FOR TPS563209 |
4 |
|
Datasheet | D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563209 |
|
TPS65132WEVM-669EVAL BOARD FOR TPS65132 |
4 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA, 40mA | 2.5V ~ 5.5V | Buck | 1.6MHz | Board(s) | TPS65132 |
|
LMZ36002EVMEVAL BOARD FOR LMZ36002 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 6V or 7.5V | 2A | 4.5V ~ 60V | Buck | - | Board(s) | LMZ36002 |
|

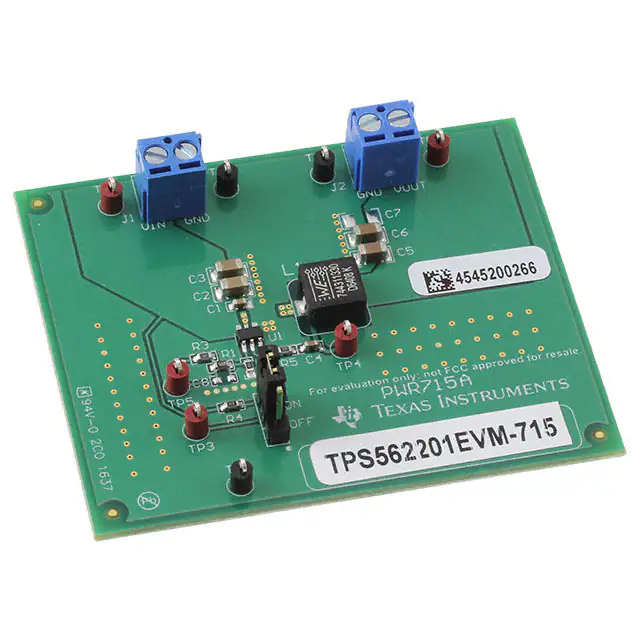

TPS562201EVM-715EVAL BOARD FOR TPS562201 |
4 |
|
Datasheet | D-CAP2™, SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 580kHz | Board(s) | TPS562201 |
|

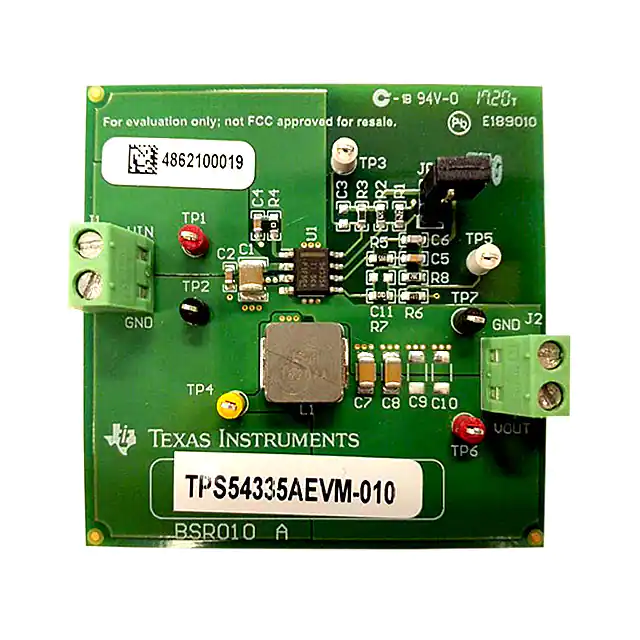

TPS54335AEVM-010EVAL BOARD FOR TPS54335A |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 28V | Buck | 340kHz | Board(s) | TPS54335A |
|

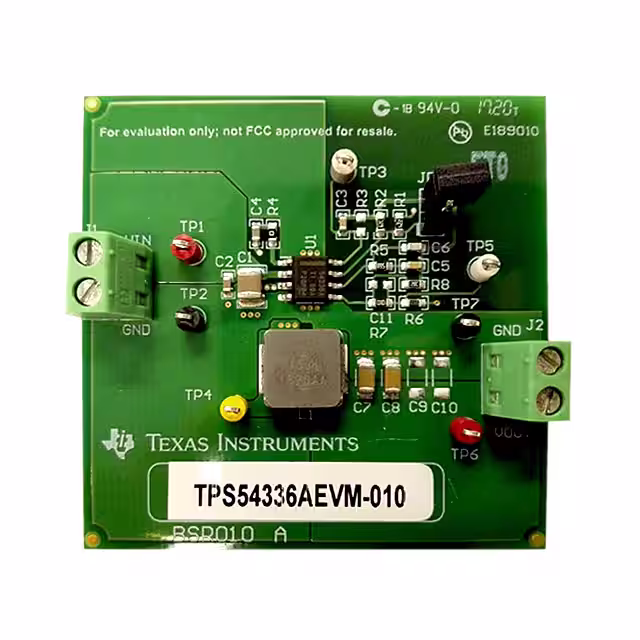

TPS54336AEVM-010EVAL BOARD FOR TPS54336A |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 28V | Buck | 340kHz | Board(s) | TPS54336A |
