DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

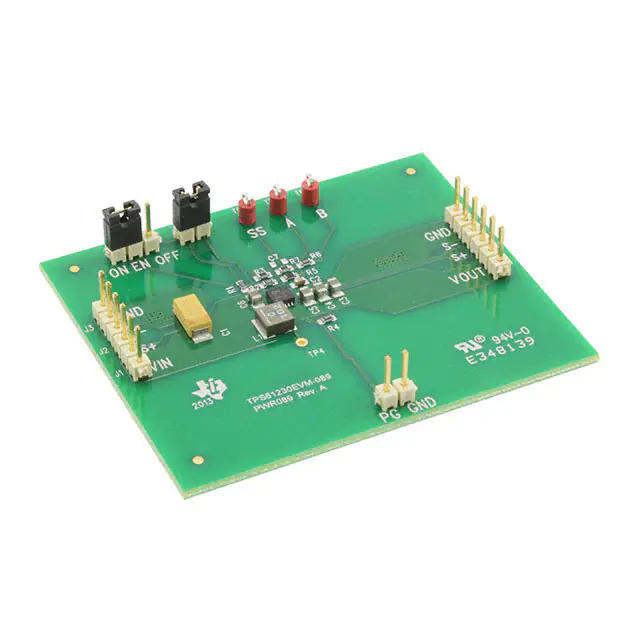

TPS61230EVM-089EVAL BOARD FOR TPS61230 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2.1A | 2.3V ~ 5.5V | Boost | - | Board(s) | TPS61230 |
|
LMR33630ARNXEVMEVAL BOARD FOR LMR33630 |
9 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 5V ~ 36V | Buck | 400kHz | Board(s) | LMR33630 |
|
LMZ10503EXTEVAL/NOPBEVAL BOARD FOR LMZ10503EXT |
8 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 3A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10503EXT |
|
TPS542A50EVM-059EVAL BOARD FOR TPS542A50 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.5V | 15A | 4V ~ 18V | Buck | 1MHz | Board(s) | TPS542A50 |
|
TPSM5601R5HSEVMEVAL BOARD FOR TPSM5601R5HS |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 18 W | 1V ~ 16V | 1.5A | 4.2V ~ 60V | Buck | 1MHz | Board(s) | TPSM5601R5HS |
|

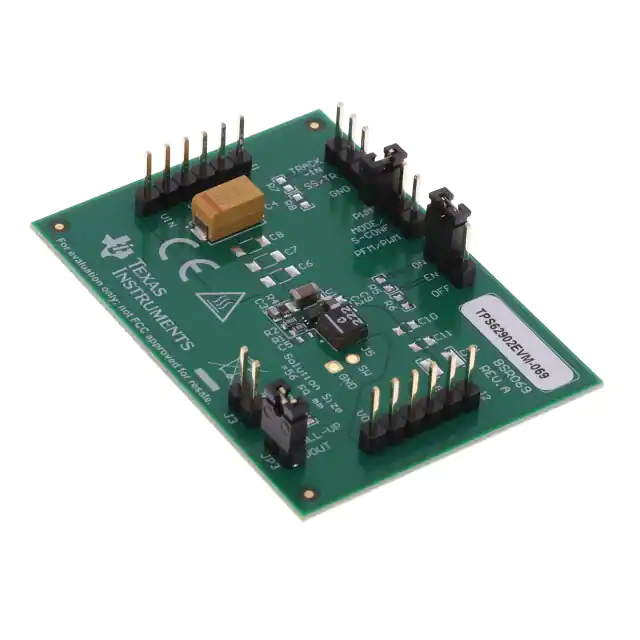

TPS62902EVM-069EVAL BOARD FOR TPS62902 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 3V ~ 17V | Buck | - | Board(s) | TPS62902 |
|
TPS62933PEVMEVAL BOARD FOR TPS62933P |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 5.1V ~ 30V | Buck | 500kHz | Board(s) | TPS62933P |
|

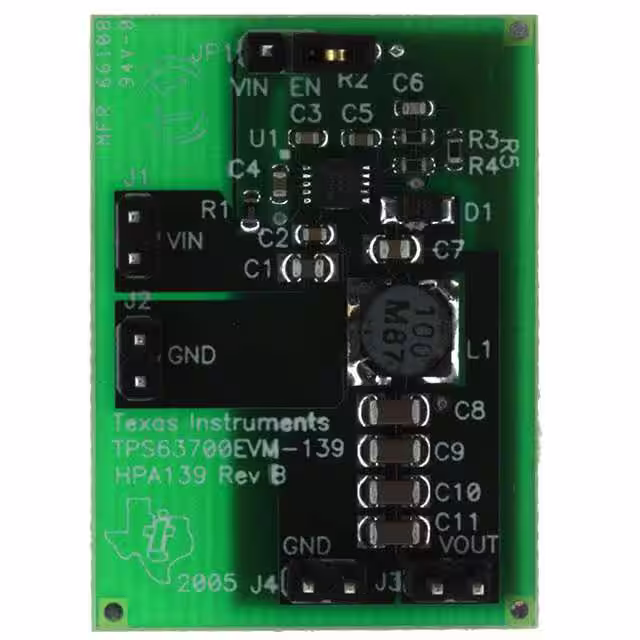

TPS63700EVM-139EVAL BOARD FOR TPS63700 |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 200mA | 2.7V ~ 5.5V | Inverting | 1.4MHz | Board(s) | TPS63700 |
|

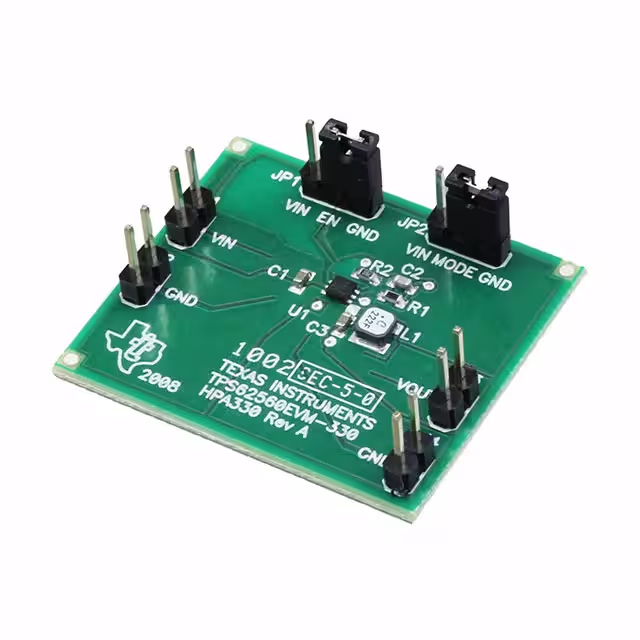

TPS62560EVM-330EVAL BOARD FOR TPS62560 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS62560 |
|
TPSM53602EVMEVAL BOARD FOR TPSM53602 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 2A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53602 |
|

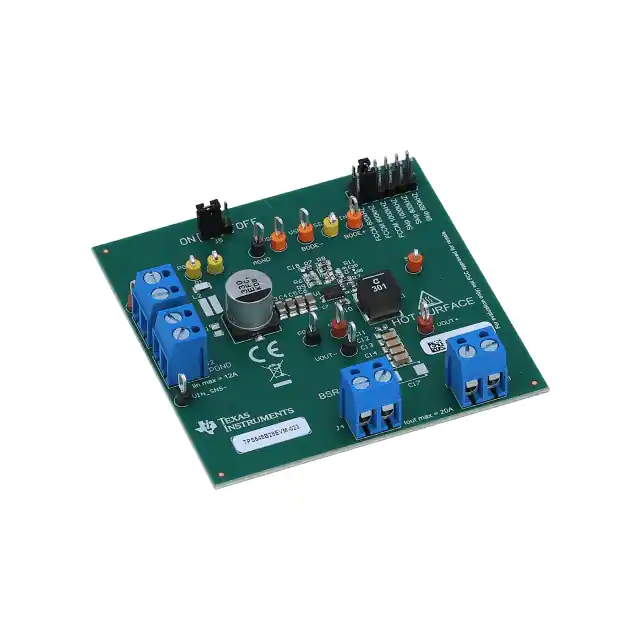

TPS548B28EVM-023EVAL BOARD FOR TPS548B28 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 14V | Buck | - | Board(s) | TPS548B28 |
|

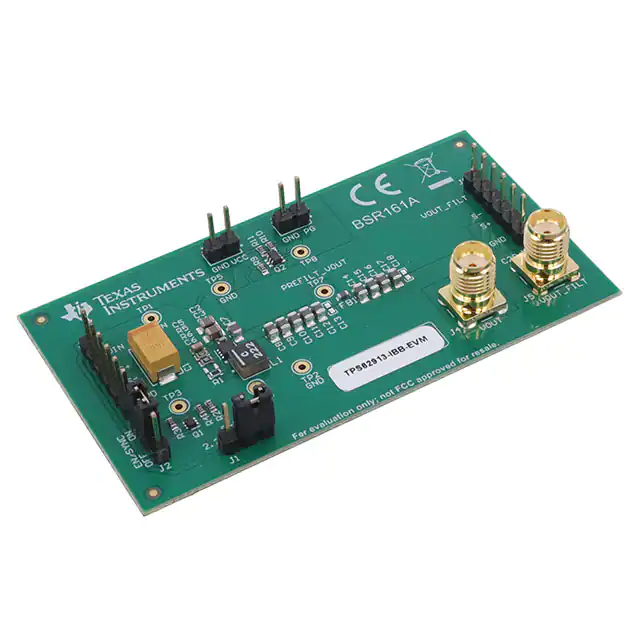

TPS62913-IBB-EVMEVAL BOARD FOR TPS62913 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -5V | 800mA | 3V ~ 12V | Inverting | 1MHz | Board(s) | TPS62913 |
|
|
TPS62089AEVM-187EVAL BOARD FOR TPS62089A |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPS62089A |
|
|
TPS56C231LEVMEVAL BOARD FOR TPS56C231L |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 17V | Buck | 800kHz | Board(s) | TPS56C231L |
|

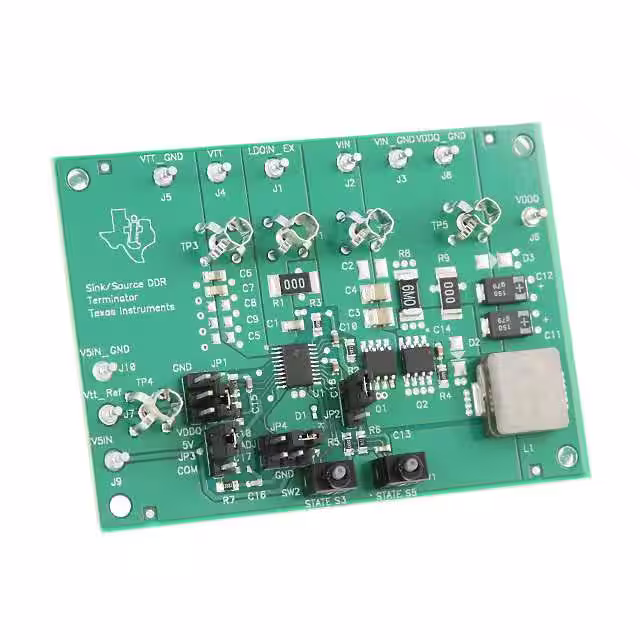

TPS51116EVM-001EVAL BOARD FOR TPS51116 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V, 1.8V or 2.5V | 10A | 4.5V ~ 28V | Buck | 400kHz | Board(s) | TPS51116 |
|

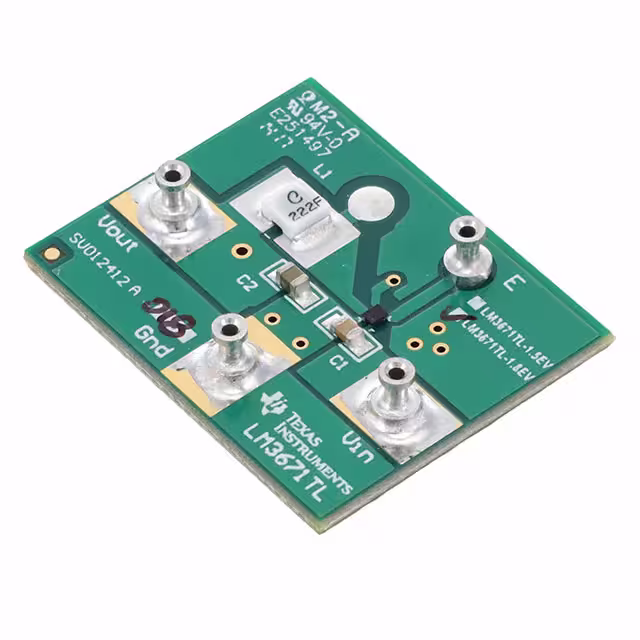

LM3671TL-1.8EVEVAL BOARD FOR LM3671 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LM3671 |
|

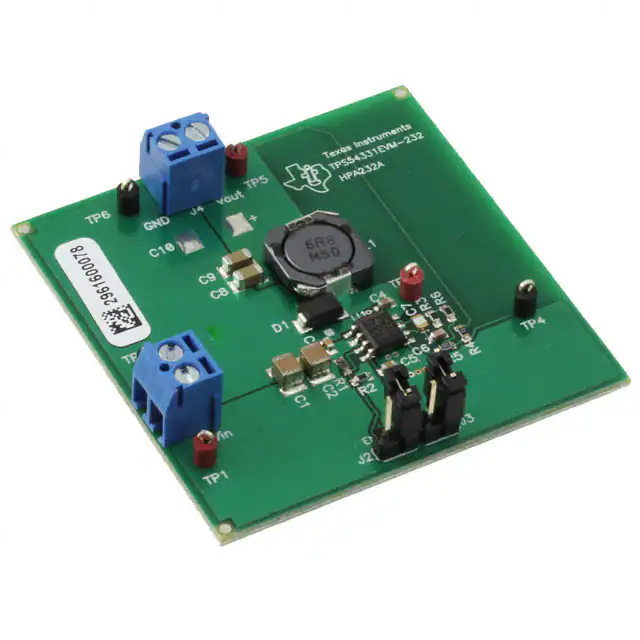

TPS54331EVM-232EVAL BOARD FOR TPS54331 |
6 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 7V ~ 28V | Buck | 570kHz | Board(s) | TPS54331 |
|

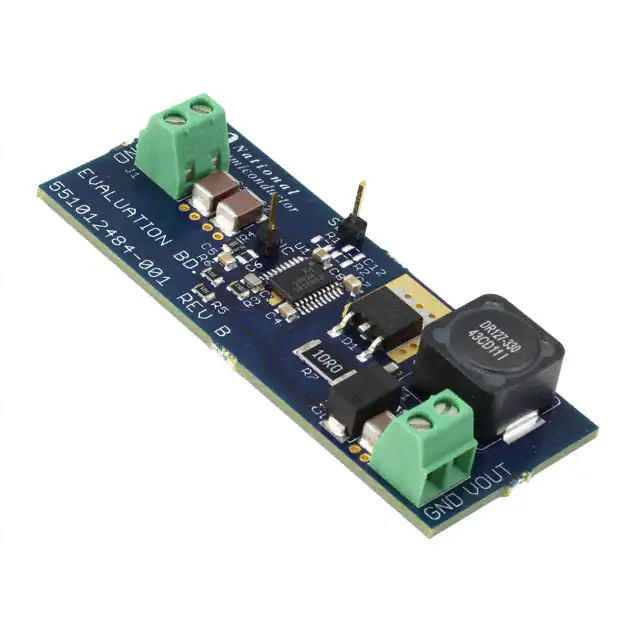

LM5005EVAL/NOPBEVAL BOARD FOR LM5005 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5005 |
|

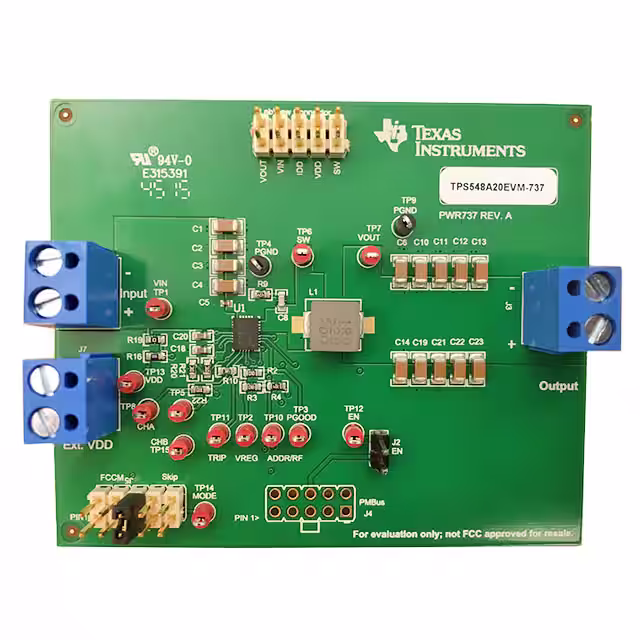

TPS548A20EVM-737EVAL BOARD FOR TPS548A20 |
6 |
|
Datasheet | D-CAP3™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 5V ~ 18V | Buck | 1MHz | Board(s) | TPS548A20 |
|

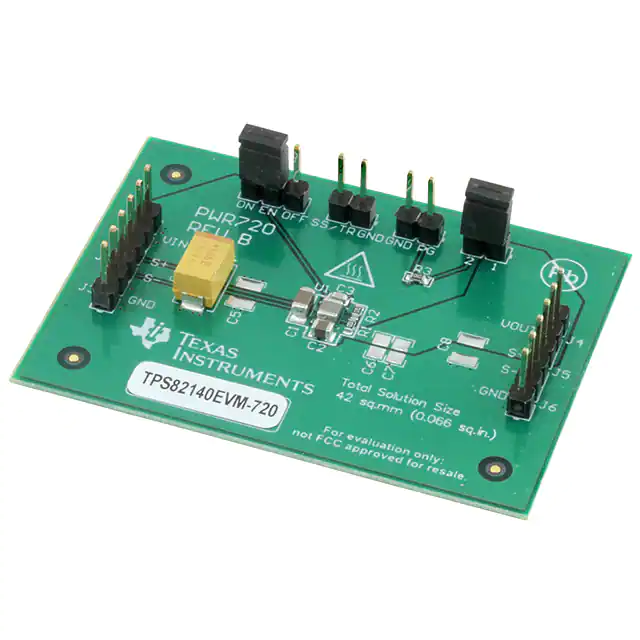

TPS82140EVM-720EVAL BOARD FOR TPS82140 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 3V ~ 17V | Buck | 2MHz | Board(s) | TPS82140 |
