DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

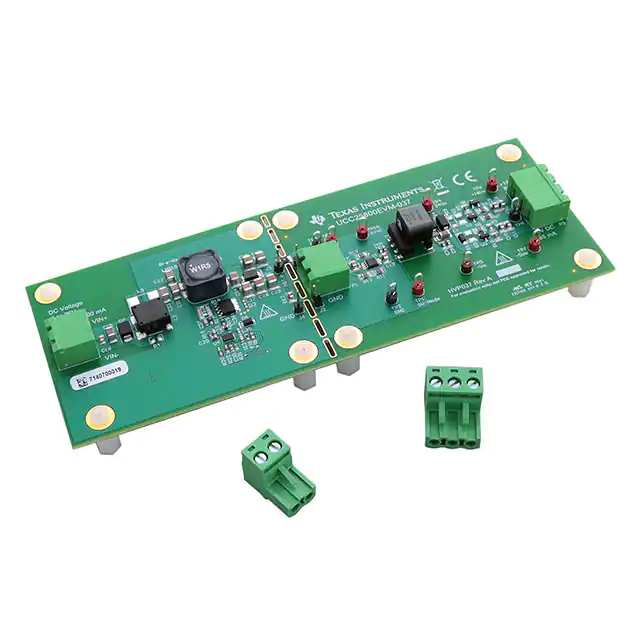

UCC25800EVM-037EVAL BOARD FOR UCC25800 |
7 |
|
Datasheet | - | Box | Active | DC/DC Converter | 2 Isolated Outputs | 2 W | -5V, 18V | - | 6V ~ 26V | - | 500kHz | Board(s) | UCC25800 |
|
UCC25660EVM-064EVAL BOARD FOR UCC25660X |
3 |
|
Datasheet | - | Box | Active | Power Supply with PFC | 1 Non-Isolated Output | - | 12V | 15A | 85 ~ 265 VAC, 365V ~ 410V | Half-Bridge | 100kHz | Board(s) | UCC25660x |
|
DC2317AEVAL BOARD FOR LTC7103 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.3A | 5V ~ 100V | Buck | 400kHz | Board(s) | LTC7103 |
|
DC2543BEVAL BOARD FOR LTC7820 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 36V ~ 60V | Buck | 200kHz | Board(s) | LTC7820 |
|

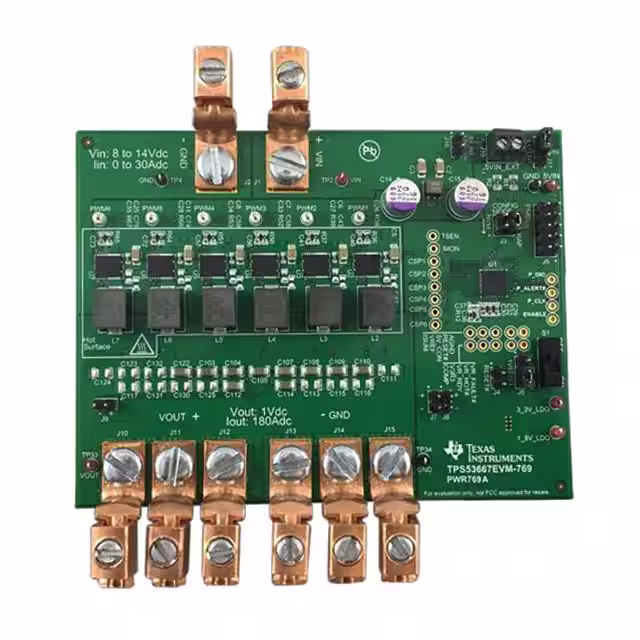

TPS53667EVM-769EVAL BOARD FOR TPS53667 |
3 |
|
Datasheet | D-CAP+™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 180A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS53667 |
|
LM5175EVM-HPEVAL BOARD FOR LM5175 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 120 W | 12V | 10A | 6V ~ 36V | Buck-Boost | 260kHz | Board(s) | LM5175 |
|
DC2519AEVAL BOARD FOR LTC3777 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 10A | 16V ~ 120V | Buck-Boost | 200kHz | Board(s) | LTC3777 |
|
|
EVL400W-80PLEVAL BOARD L4985A L6699 SRK2001 |
4 |
|
Datasheet | - | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 400 W | 12V | 33A | 90 ~ 264 VAC | Half-Bridge | - | Board(s) | L4985A, L6699, SRK2001 |
|

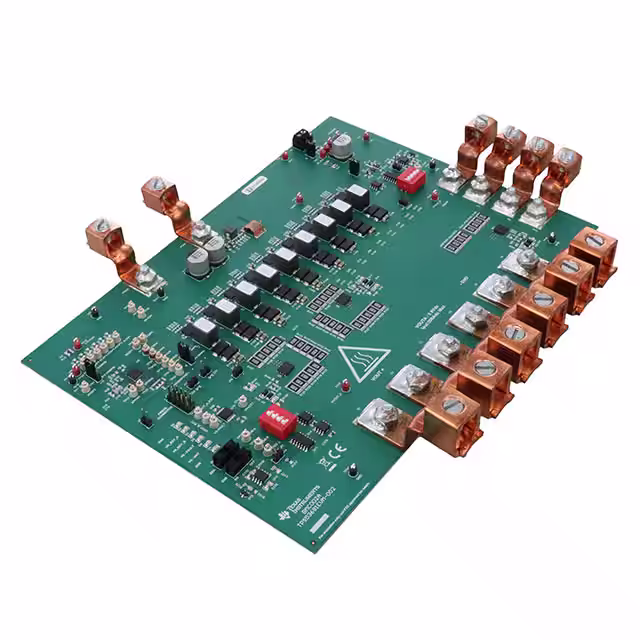

TPS53681EVM-002EVAL BOARD FOR TPS53681 |
6 |
|
Datasheet | D-CAP+™ | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V | 294A | 10V ~ 14V | Buck | 500kHz | Board(s) | TPS53681 |
|

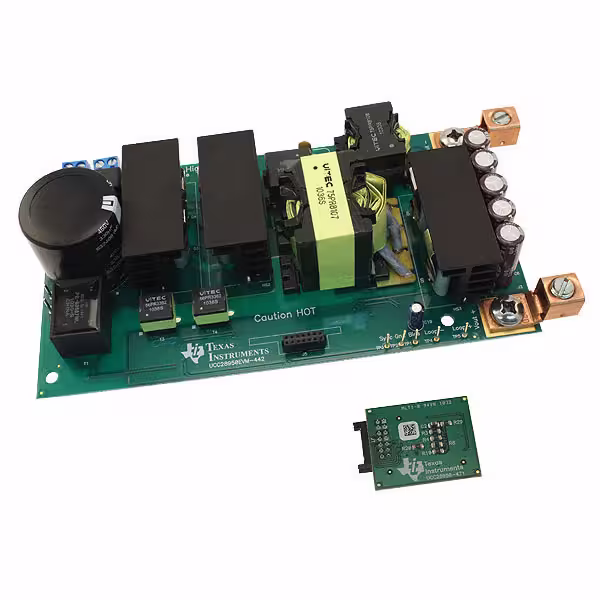

UCC28950EVM-442EVAL BOARD FOR UCC28950442 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 370V ~ 410V | Full-Bridge | - | Board(s) | UCC28950-442 |
|
EVAL3KW50VPSUTOBO1EVAL BOARD ICE2QR2280G XMC1404 |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 3 kW | 50V | 60A | 180 ~ 275 VAC | Flyback | - | Board(s) | ICE2QR2280G, XMC1404, XMC4200 |
|
STEVAL-L7983V33EVAL BOARD FOR L7983PU33R |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 60V | Buck | 1MHz | Board(s) | L7983PU33R |
|
STEVAL-ISA188V1EVAL BOARD FOR A6986F3V3 |
55 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F3V3 |
|
STEVAL-ISA198V1EVAL BOARD FOR L7987L |
20 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | L7987L |
|
LMR24220RB/NOPBEVAL BOARD FOR LMR24220 LMZ10501 |
14 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A | 5V ~ 32V | Buck | - | Board(s) | LMR24220, LMZ10501 |
|
BU90006GWZ-E2-EVK-101EVAL BOARD FOR BU90006 |
16 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 1A | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | BU90006 |
|
BD9G500EFJ-EVK-001EVAL BOARD FOR BD9G500 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 48V | Buck | 200kHz | Board(s) | BD9G500 |
|
ADM00467EVAL BOARD FOR MCP16311 MCP16312 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1A, 1A | 4V ~ 30V | Buck | 500kHz | Board(s) | MCP16311, MCP16312 |
|
SI3404B3V2KITEVAL BOARD FOR SI3404 |
7 |
|
- |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 7 W | 3.3V | 2.1A | 37V ~ 57V | Buck | 220kHz | Board(s) | Si3404 |
|
STEVAL-VP26K01BEVAL BOARD FOR VIPER26K |
6 |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 1.5 W | 15V | 100mA | 90 ~ 600 VAC, 60V ~ 870V | Buck | 60kHz | Board(s) | VIPer26K |
