DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1256/7/8/9EVEVAL BOARD FOR MCP1256 MCP1257 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 1.6V ~ 3.6V | Buck-Boost | 650kHz | Board(s) | MCP1256, MCP1257, MCP1258, MCP1259 |
|
ADM00519EVAL BOARD FOR MCP16331 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 6V ~ 50V | Buck | 500kHz | Board(s) | MCP16331 |
|
ADM00867EVAL BOARD FOR MCP1641X |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 0.8V ~ 5.25V | Boost | 500kHz | Board(s) | MCP1641x |
|
TPS65136EVM-265EVAL BOARD FOR TPS65136 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 4.6V, -5V | 80mA, 80mA | 2.3V ~ 5.5V | Buck-Boost | - | Board(s) | TPS65136 |
|

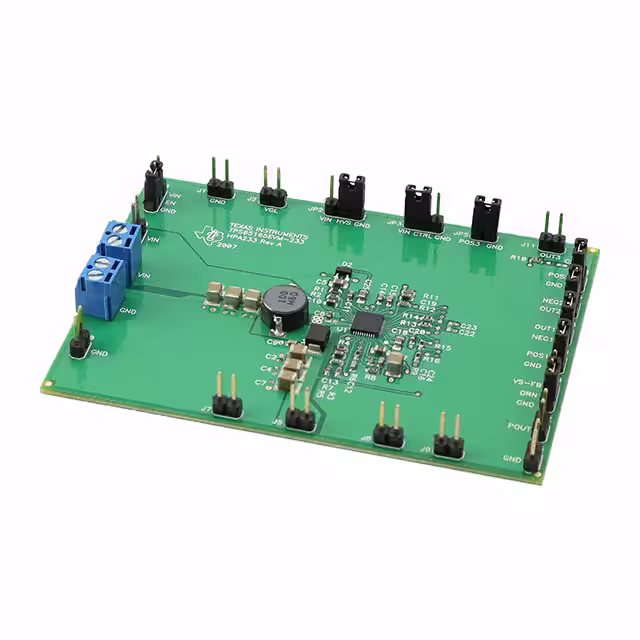

TPS65165EVM-233EVAL BOARD FOR TPS65165 |
2 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | 16.4 W | 15V, 23.8V, -5V | 1A, 50mA, 50mA | 4.5V ~ 5.5V | Boost | 600kHz | Board(s) | TPS65165 |
|
DC3006AEVAL BOARD FOR LT3001 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 300mA | 4V ~ 32V | Flyback | - | Board(s) | LT3001 |
|
ADM00891EVAL BOARD FOR MIC2253 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 3.5A | 2.5V ~ 10V | Boost | 1MHz | Board(s) | MIC2253 |
|
TPSM53603EVMEVAL BOARD FOR TPSM53603 |
23 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 3A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53603 |
|

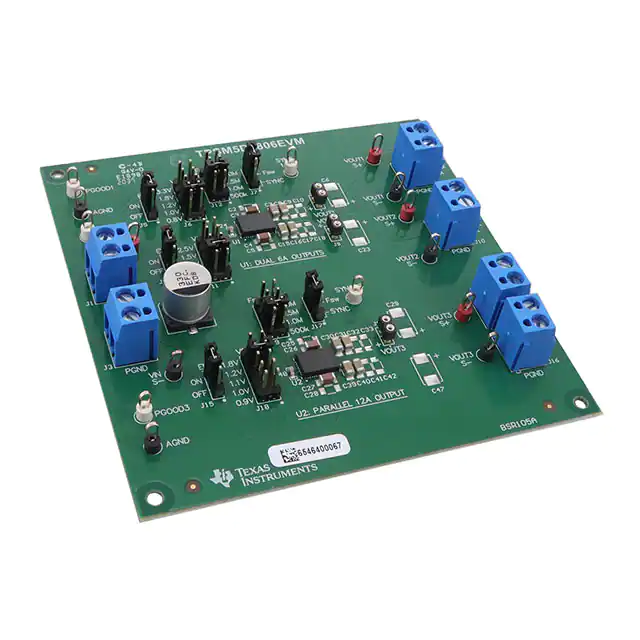

TPSM5D1806EVMEVAL BOARD FOR TPSM5D1806 |
19 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.5V ~ 5.5V | 12A, 6A | 4.5V ~ 16V | Buck | - | Board(s) | TPSM5D1806 |
|
TPSM13604HEVMEVAL BOARD FOR TPSM13604H |
19 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 16V | 4A | 5V ~ 36V | Buck | 300kHz | Board(s) | TPSM13604H |
|

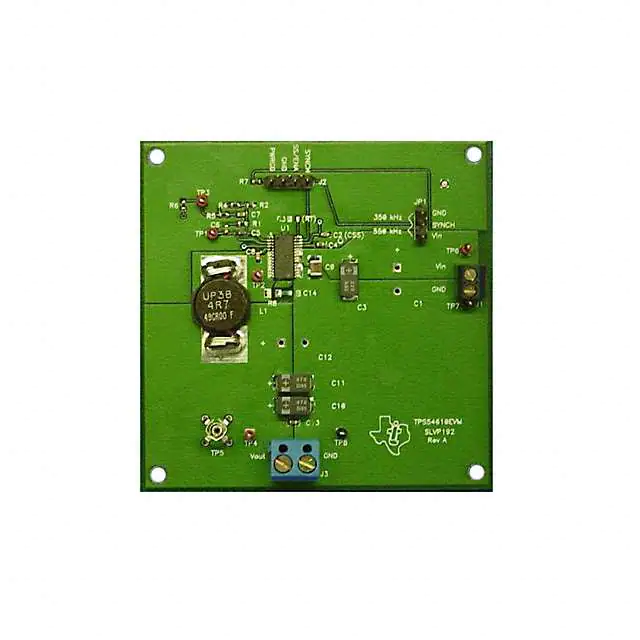

TPS54610EVM-192EVAL BOARD FOR TPS54610 |
17 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4V ~ 6V | Buck | 350kHz | Board(s) | TPS54610 |
|

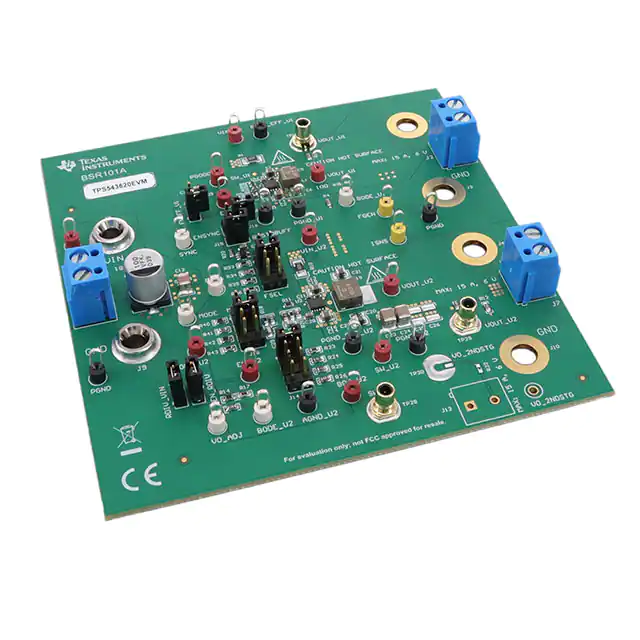

TPS543620EVMEVAL BOARD FOR TPS543620 |
17 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 4V ~ 18V | Buck | 1MHz | Board(s) | TPS543620 |
|

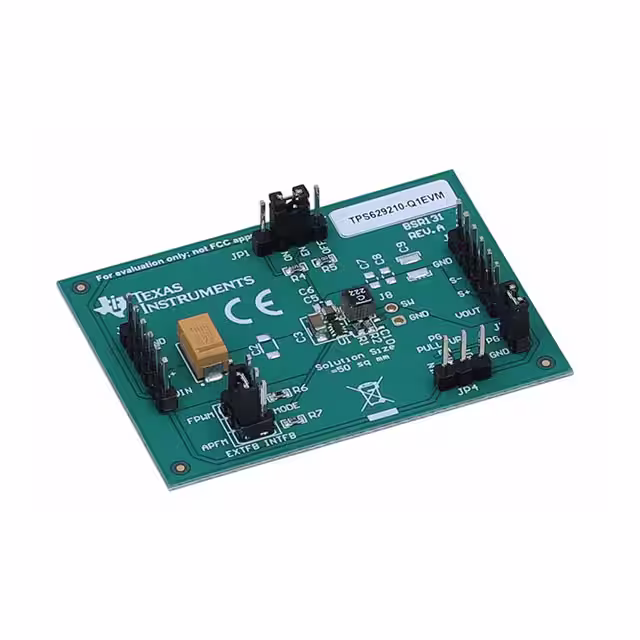

TPS629210-Q1EVMEVAL BOARD FOR TPS629210Q1 |
17 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3V ~ 17V | Buck | - | Board(s) | TPS629210-Q1 |
|
TPS564247EVMEVAL BOARD FOR TPS564247 |
17 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7V | 4A | 3V ~ 16V | Buck | 1.2MHz | Board(s) | TPS564247 |
|
|
TPSM82864AA0HEVMEVAL BOARD FOR TPSM82864AA0H |
17 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPSM82864AA0H |
|

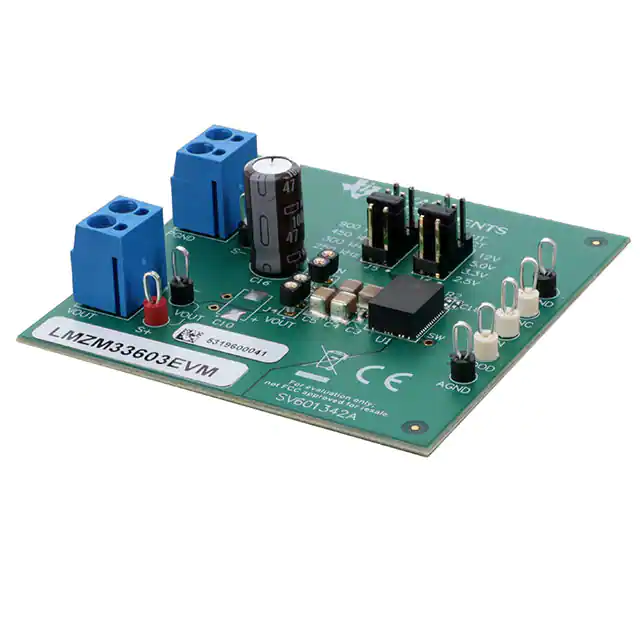

LMZM33603EVMEVAL BOARD FOR LMZM33603 |
16 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V or 12V | 3A | 4V ~ 36V | Buck | - | Board(s) | LMZM33603 |
|
TPSM5601R5EVMEVAL BOARD FOR TPSM5601R5 |
16 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 1.5A | 4.2V ~ 60V | Buck | 1MHz | Board(s) | TPSM5601R5 |
|
TPSM5601R5H-IBBEVMEVAL BOARD FOR TPSM5601R5H |
16 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1V ~ 16V | 1.5A | 4.2V ~ 60V | Buck-Boost | 1MHz | Board(s) | TPSM5601R5H |
|
TPS629211-Q1EVMEVAL BOARD FOR TPS629211Q1 |
12 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 10V | Buck | 2.5MHz | Board(s) | TPS629211-Q1 |
|
|
TPS548C26EVMEVAL BOARD FOR TPS548C26 |
11 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 35A | 8V ~ 16V | Buck | 800kHz | Board(s) | TPS548C26 |
