DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2834AEVAL BOARD FOR LTC7803EMSE |
10 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 5V ~ 38V | Buck | 500kHz | Board(s) | LTC7803EMSE |
|
EVAL-ADPD4100Z-PPGEVAL BOARD FOR ADPD4100 ADPD4101 |
6 |
|
Datasheet | - | Bulk | Active | DC/AC Converter | 1 Non-Isolated Output | - | - | - | 1.8V ~ 3.3V | - | - | Board(s) | ADPD4100, ADPD4101 |
|
DC2846AEVAL BOARD FOR LTC7804 |
18 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 4.5V ~ 40V | Boost | - | Board(s) | LTC7804 |
|
DC2660AEVAL BOARD FOR LT8646S |
10 |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 5.6V ~ 65V | Buck | 2MHz | Board(s) | LT8646S |
|
DC2737AEVAL BOARD FOR LT8301 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | 1A | 10V ~ 32V | Flyback | 190kHz | Board(s) | LT8301 |
|

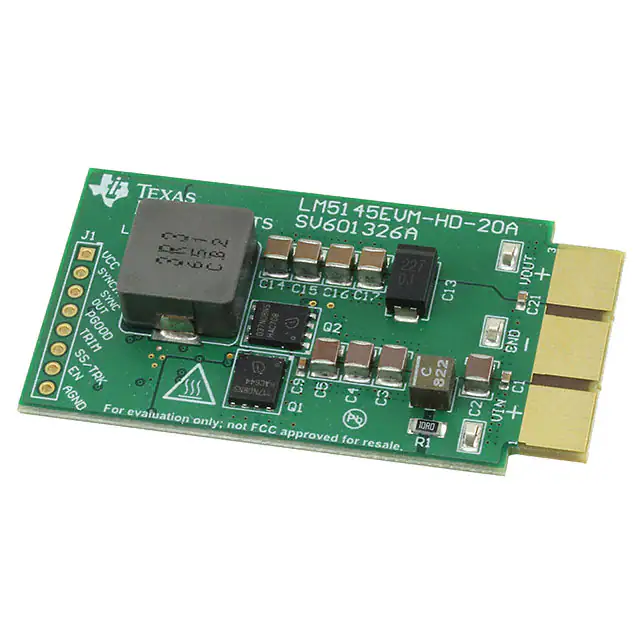

LM5145EVM-HD-20AEVAL BOARD FOR LM5145 |
25 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 20A | 24V ~ 72V | Buck | 220kHz | Board(s) | LM5145 |
|

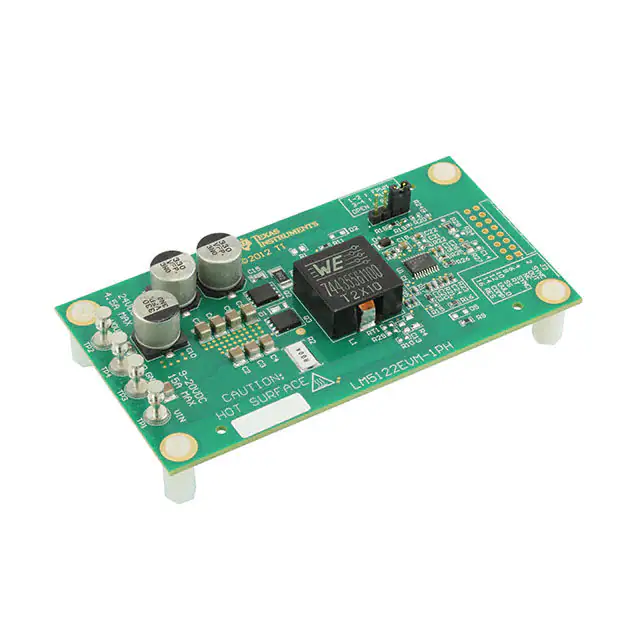

LM5122EVM-1PHEVAL BOARD FOR LM5122 |
15 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 4.5A | 9V ~ 20V | Boost | 250kHz | Board(s) | LM5122 |
|

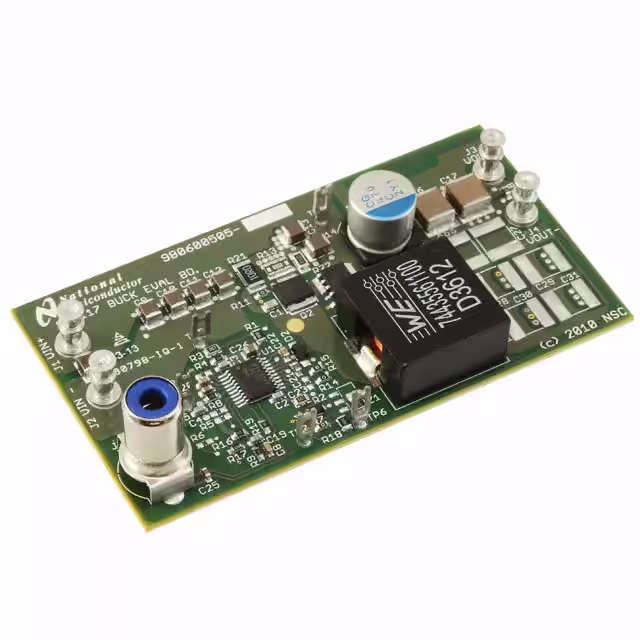

LM5117EVAL/NOPBEVAL BOARD FOR LM5117 |
13 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 9A | 15V ~ 55V | Buck | 50kHz ~ 750kHz | Board(s) | LM5117 |
|
LM5185EVM-SIOEVAL BOARD FOR LM5185Q1 |
13 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 16.4V | 1.8A, 1.5A, 1A | 20V ~ 60V | Flyback | 350kHz | Board(s) | LM5185-Q1 |
|
TPS552882EVM-400KEVAL BOARD FOR TPS552882 |
12 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS552882 |
|

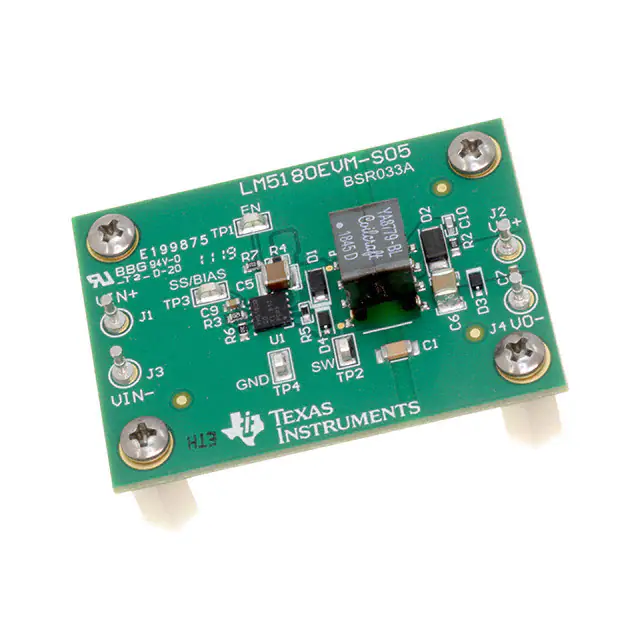

LM5180EVM-S05EVAL BOARD FOR LM5180Q1 |
11 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 1A | 10V ~ 65V | Flyback | 350kHz | Board(s) | LM5180-Q1 |
|
LM25184EVM-S12EVAL BOARD FOR LM25184Q1 |
10 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 1A | 6V ~ 42V | Flyback | 350kHz | Board(s) | LM25184-Q1 |
|
|
TPS62876EVM-198EVAL BOARD FOR TPS62876Q1 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V | 25A | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62876-Q1 |
|

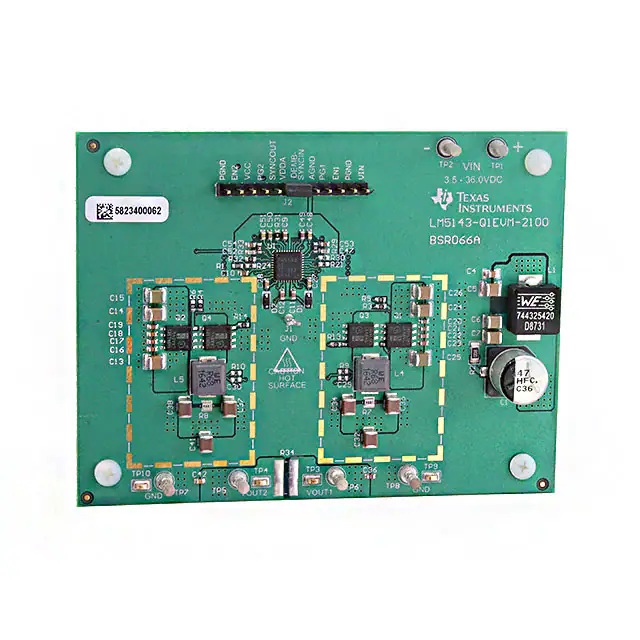

LM5143-Q1EVM-2100EVAL BOARD FOR LM5143Q1 |
9 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 7A, 7A | 5.5V ~ 36V | Buck | 2.1MHz | Board(s) | LM5143-Q1 |
|
TPS552882EVM-2MHZEVAL BOARD FOR TPS552882 |
9 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 21.26V | 16A | 2.7V ~ 36V | Buck-Boost | 2MHz | Board(s) | TPS552882 |
|

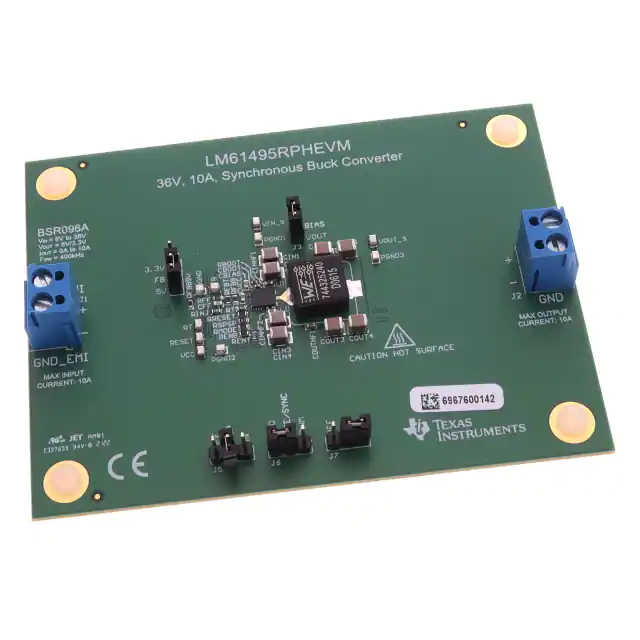

LM61495RPHEVMEVAL BOARD FOR LM61495Q1 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 3V ~ 36V | Buck | 400kHz | Board(s) | LM61495-Q1 |
|

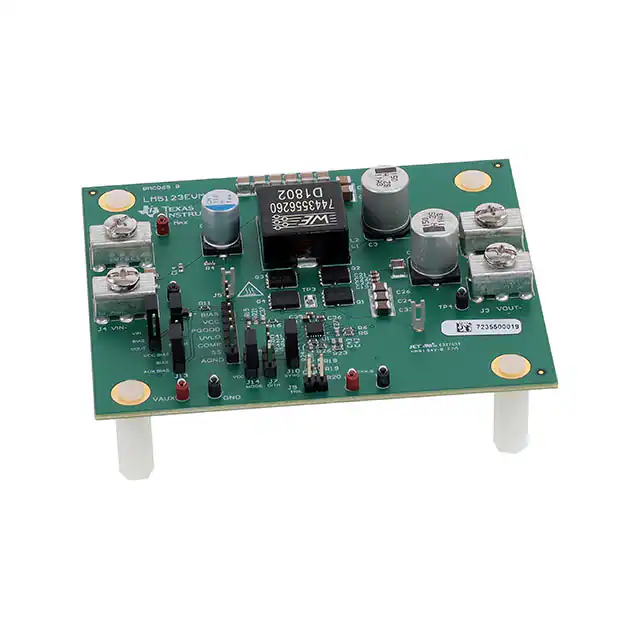

LM5123EVM-BSTEVAL BOARD FOR LM5123Q1 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 100 W | 24V | - | 9V ~ 18V | Boost | 440kHz | Board(s) | LM5123-Q1 |
|

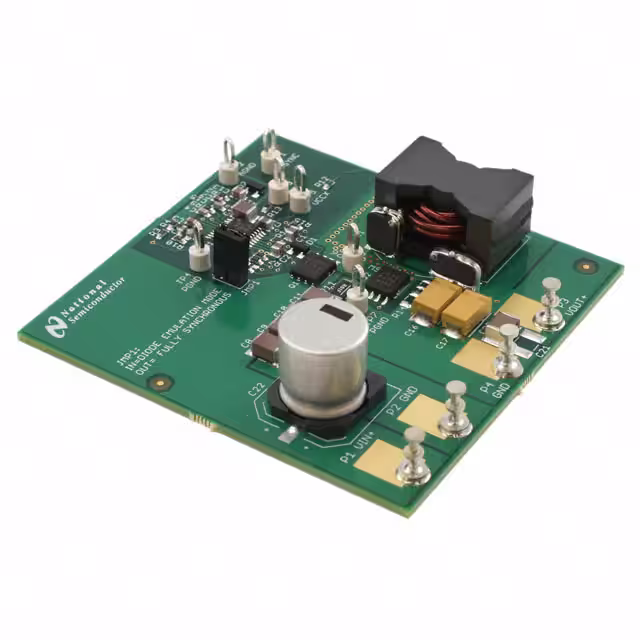

LM5116-12EVAL/NOPBEVAL BOARD FOR LM5116 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 15V ~ 80V | Buck | 250kHz | Board(s) | LM5116 |
|
TPS65400EVM-678EVAL BOARD FOR TPS65400 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 4A, 4A, 2A, 2A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65400 |
|
LM5180EVM-DUALEVAL BOARD FOR LM5180Q1 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Positive and Negative | 2 Isolated Outputs | - | 15V, -7.7V | 200mA, 200mA | 10V ~ 65V | Flyback | - | Board(s) | LM5180-Q1 |
