DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS562242EVMEVAL BOARD FOR TPS562242 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 3V ~ 17V | Buck | 1.4MHz | Board(s) | TPS562242 |
|
|
DC3189AEVAL BOARD FOR LTM4712 |
6 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 12A | 5V ~ 36V | Buck-Boost | 400kHz | Board(s) | LTM4712 |
|
|
STEVAL-L3751V12EVAL BOARD FOR L3751 |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 15A, 15A | 6V ~ 75V | Buck | 230kHz | Board(s) | L3751 |
|

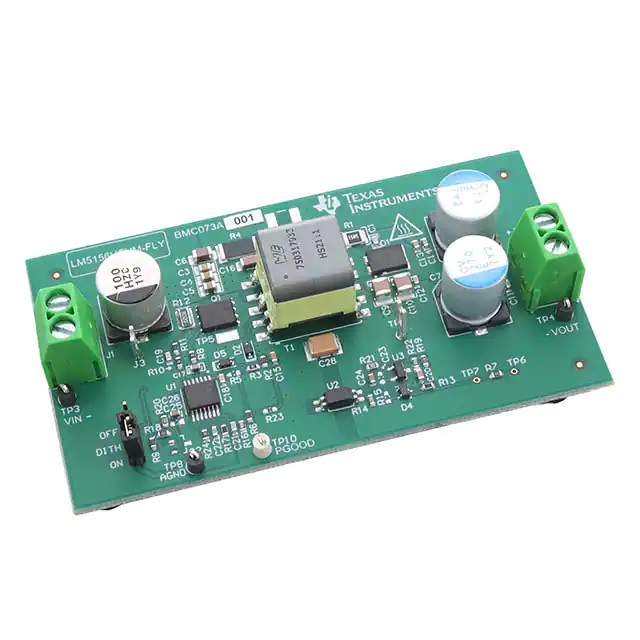

LM5156HEVM-FLYEVAL BOARD FOR LM5156H |
23 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 4A | 18V ~ 36V | Boost | 250kHz | Board(s) | LM5156H |
|
|
TPS61033EVM-105EVAL BOARD FOR TPS61033 |
14 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A, 1A | 3.6V | Boost | - | Board(s) | TPS61033 |
|
|
TPS61376EVM-NSYNCEVAL BOARD FOR TPS61376 |
13 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 3A | 2.9V ~ 25V | Boost | - | Board(s) | TPS61376 |
|
|
TPS631010EVM-109EVAL BOARD FOR TPS631010 |
11 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.6V ~ 5.5V | Buck-Boost | - | Board(s) | TPS631010 |
|
|
TLV61070AEVM-095EVAL BOARD FOR TLV61070A |
11 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 3.6V | Boost | - | Board(s), Cable(s) | TLV61070A |
|

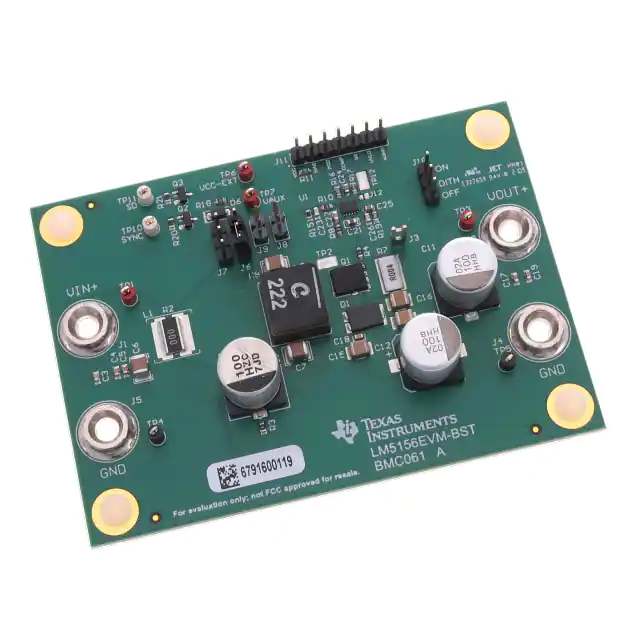

LM5156EVM-BSTEVAL BOARD FOR LM5156 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 3A | 3V ~ 12V | Boost | 440kHz | Board(s) | LM5156 |
|

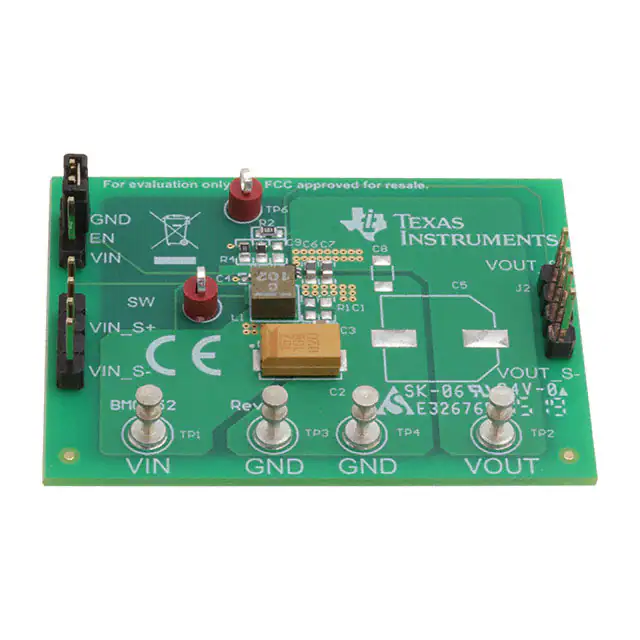

TPS61023EVM-052EVAL BOARD FOR TPS61023 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.5A, 1A | 0.5V ~ 5.5V | Boost | 1MHz | Board(s) | TPS61023 |
|
EVALPS5401INTTOBO1EVAL BOARD FOR IRPS5401 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 5 Non-Isolated Outputs | - | 0.25V ~ 5.1V | 4A, 4A, 2A, 2A, 500mA | 6V ~ 12V | Buck | - | Board(s) | IRPS5401 |
|
|
TPSM83100EVM-114EVAL BOARD FOR TPSM83100 |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.6V ~ 5.5V | Buck-Boost | - | Board(s) | TPSM83100 |
|
DC2154AEVAL BOARD FOR LTM8056 |
11 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 3A | 7V ~ 58V | Buck-Boost | 525kHz | Board(s) | LTM8056 |
|
DC2244AEVAL BOARD FOR LTM8049 |
10 |
|
Datasheet | µModule® | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | ±12V | 1A, 1A | 2.8V ~ 18V | SEPIC, Inverting | 1MHz | Board(s) | LTM8049 |
|
DC1900AEVAL BOARD FOR LTM4644 |
9 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 4A, 4A, 4A, 4A | 4V ~ 14V | Buck | 1MHz | Board(s) | LTM4644 |
|
DC2859AEVAL BOARD FOR LTM8083 |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1.5A | 3V ~ 36V | Buck-Boost | 1MHz | Board(s) | LTM8083 |
|
DC1743AEVAL BOARD FOR LTM4613 |
8 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 5V ~ 36V | Buck | 250kHz | Board(s) | LTM4613 |
|
DC2237AEVAL BOARD FOR LTM8064 |
6 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 7.5V ~ 58V | Buck | 325kHz | Board(s) | LTM8064 |
|
DC2594AEVAL BOARD FOR LTM4655 |
5 |
|
Datasheet | µModule® | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±12V | 4A, 2.5A | 13V ~ 28V | - | 1.2MHz | Board(s) | LTM4655 |
|
|
DC3071AEVAL BOARD FOR LTM8080 |
5 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 500mA, 500mA | 4V ~ 40V | Buck | - | Board(s) | LTM8080 |
