DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ILL069V1EVAL BOARD FOR HVLED001 |
30 |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001 |
|
EVB-EM2030L01QIEVAL BOARD FOR EM2030L01QI |
46 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | - | - | 0.5V ~ 1.325V | 30A | 4.5V ~ 16V | Buck | 800kHz | Board(s) | EM2030L01QI |
|
TPS61022EVM-034EVAL BOARD FOR TPS61022 |
23 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.1V | 3A | 0.5V ~ 5.5V | Boost | - | Board(s) | TPS61022 |
|
DC2017AEVAL BOARD FOR LTM8055 |
4 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 5V ~ 36V | Buck-Boost | 600kHz | Board(s) | LTM8055 |
|
PMLKBOOSTEVMEVAL BOARD FOR LM5122 TPS55340 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 24V | 2A, 1.9A | 5V ~ 12V, 9V ~ 20V | Boost | - | Board(s) | LM5122, TPS55340 |
|
DC2407AEVAL BOARD FOR LT8650S |
23 |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.4V ~ 42V | Buck | 2MHz | Board(s) | LT8650S |
|
LM5146-Q1-EVM12VEVAL BOARD FOR LM5146Q1 |
18 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 15V ~ 85V | Buck | 400kHz | Board(s) | LM5146-Q1 |
|
LM5164-Q1EVM-041EVAL BOARD FOR LM5164Q1 |
16 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 15V ~ 100V | Buck | 300kHz | Board(s) | LM5164-Q1 |
|
TPS61094EVM-066EVAL BOARD FOR TPS61094 |
16 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 2.7V ~ 5.4V | 500mA, 250mA | 0.7V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | TPS61094 |
|
|
UCC14240EVM-052EVAL BOARD FOR UCC14240Q1 |
14 |
|
Datasheet | - | Box | Active | DC/DC Converter | 2 Isolated Outputs | 1.5 W | - | - | 21V ~ 27V | - | - | Board(s) | UCC14240-Q1 |
|
TPS55288EVM-045EVAL BOARD FOR TPS55288 |
11 |
|

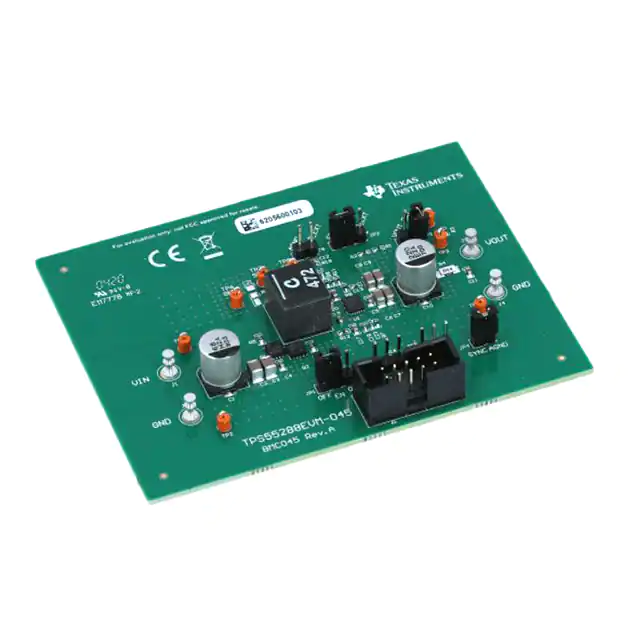

Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55288 |
|
EVALHBPARALLELGANTOBO1EVAL_HB_PARALLELGAN |
2 |
|
Datasheet | CoolGaN™, EiceDRIVER™ | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | - | 24A | - | Buck-Boost | - | Board(s) | - |
|
DC2718AEVAL BOARD FOR LT8316 |
15 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 3A | 100V ~ 600V | Flyback | - | Board(s) | LT8316 |
|
|
UCC28C56EVM-066EVAL BOARD FOR UCC28C56HQ1 |
20 |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 40 W | 15V | 2.7A | 40V ~ 1000V | Flyback | 42.5kHz | Board(s) | UCC28C56H-Q1 |
|
LM5170EVM-BIDIREVAL BOARD FOR LM5170Q1 |
17 |
|

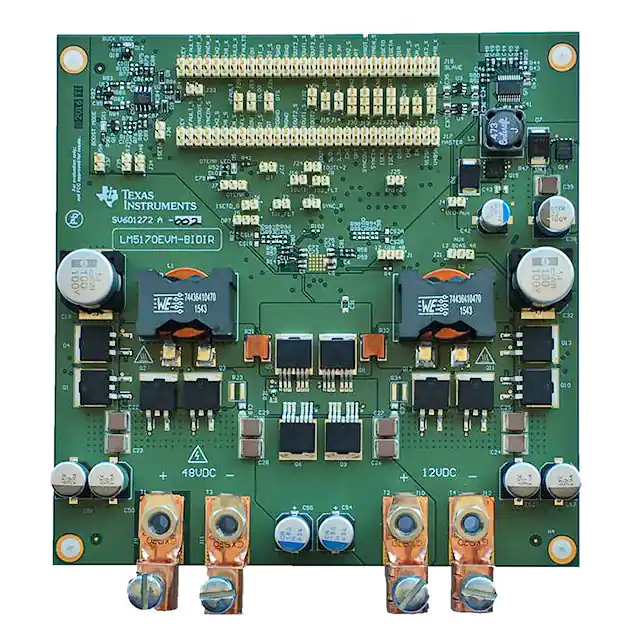

Datasheet | - | Bulk | Active | DC/DC, Bidirectional | 2 Non-Isolated Outputs | - | 12V or 48V | 60A | 3V ~ 48V or 6V ~ 70V | Boost, Buck | 100kHz | Board(s) | LM5170-Q1 |
|
TPS7H4010EVMEVAL BOARD FOR TPS7H4010SEP |
15 |
|

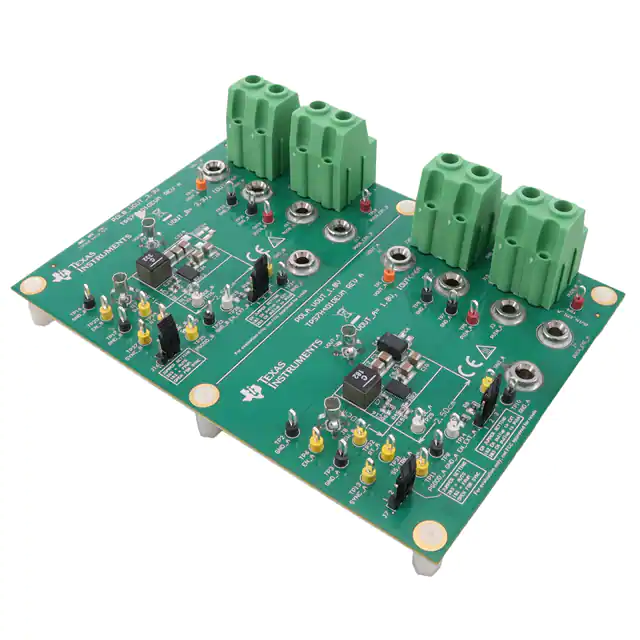

Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 6A, 6A | 5V ~ 30V | Buck | 500kHz | Board(s) | TPS7H4010-SEP |
|
UCC27714EVM-551EVAL BOARD UCC27524A UCC27714 |
9 |
|

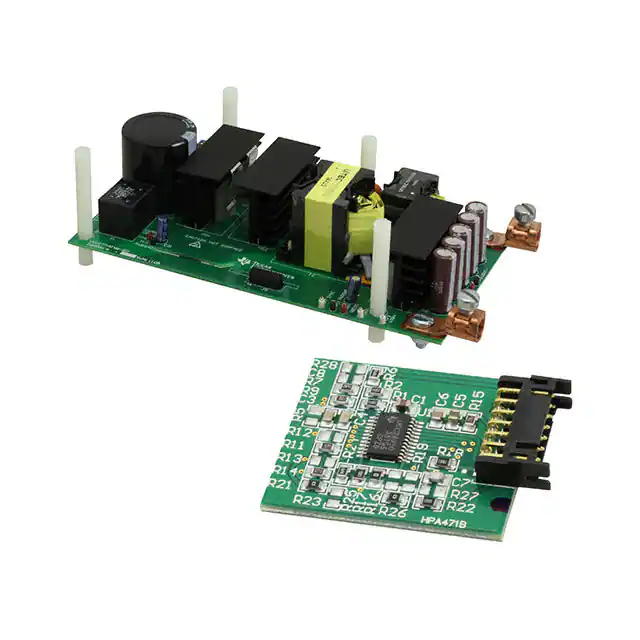

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 370V ~ 410V | Full-Bridge | - | Board(s) | UCC27524A, UCC27714, UCC28950 |
|
|
BQ25756EEVMEVAL BOARD FOR BQ25756E |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.2V ~ 36V | 15A | 12V ~ 36V | Buck-Boost | 250kHz | Board(s) | BQ25756E |
|
DC2456AEVAL BOARD FOR LTC3779 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 10A | 16V ~ 120V | Buck-Boost | 200kHz | Board(s) | LTC3779 |
|
DM330017-3EVAL BOARD FOR DSPIC33CK256MP505 |
5 |
|
Datasheet | MPLAB® | Bulk | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 1A, 200mA | 6V ~ 13.8V | Boost, Buck | 500kHz | Board(s), Cable(s), Power Supply | dsPIC33CK256MP505 |
