DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2351AEVAL BOARD FOR LT8228 |
17 |
|
Datasheet | - | Bulk | Active | DC/DC, Bidirectional | 2 Non-Isolated Outputs | - | 12V or 48V | 35A or 7A | 8V ~ 14V or 36V ~ 56V | Buck-Boost | 150kHz | Board(s) | LT8228 |
|
STEVAL-DPSLLCK1EVAL BOARD FOR VIPER27 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 3 kW | 48V | 62.5A | 375V ~ 425V | - | - | Board(s) | VIPer27 |
|
TIEVM-HV-1PH-DCACTIEVM-HV-1PH-DCAC |
3 |
|

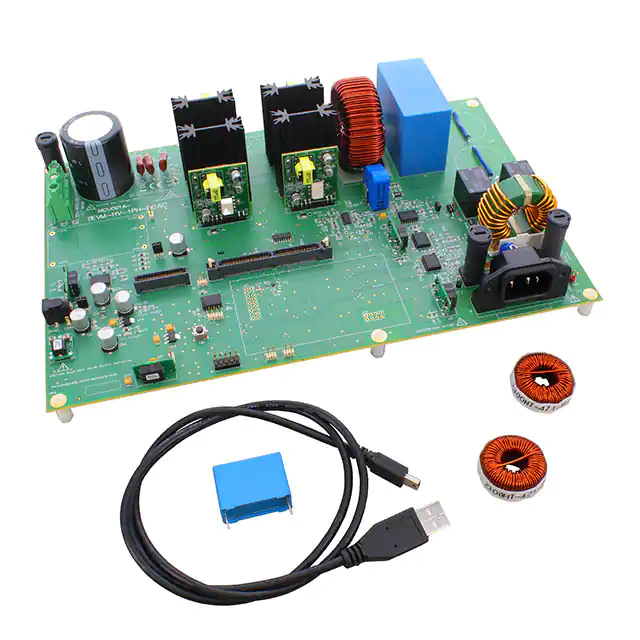

Datasheet | - | Bulk | Active | DC/AC Converter | 1 Non-Isolated Output | - | 110VAC | 4.5A | 380V | - | 20kHz | Board(s), Cable(s) | - |
|
REFDAB11KIZSICSYSTOBO1EVAL BOARD FOR IMBF170R1K0M1 |
17 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | 11 kW | - | - | 750V | Flyback | - | Board(s) | IMBF170R1K0M1, IMZ120R030M1H, XMC4400 |
|
LM2611EVALEVAL BOARD FOR LM2611 |
9 |
|

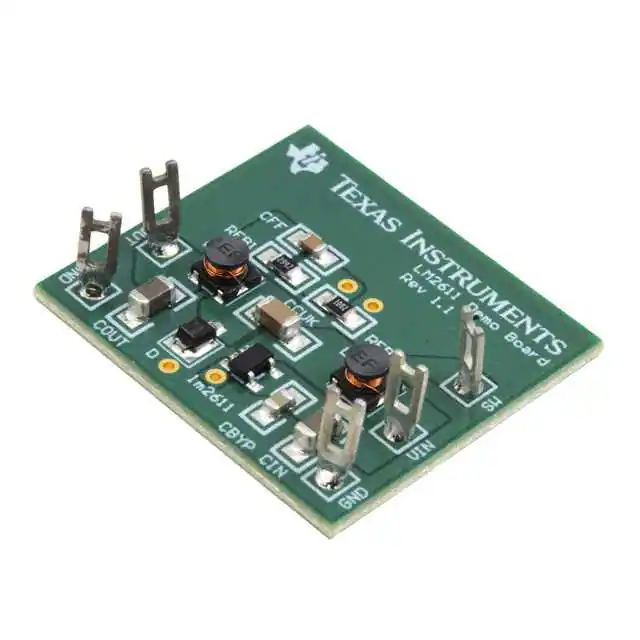

Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 300mA | 4.5V ~ 5.5V | Inverting | 1.4MHz | Board(s) | LM2611 |
|
LM76005QEVMEVAL BOARD FOR LM76005Q1 |
24 |
|

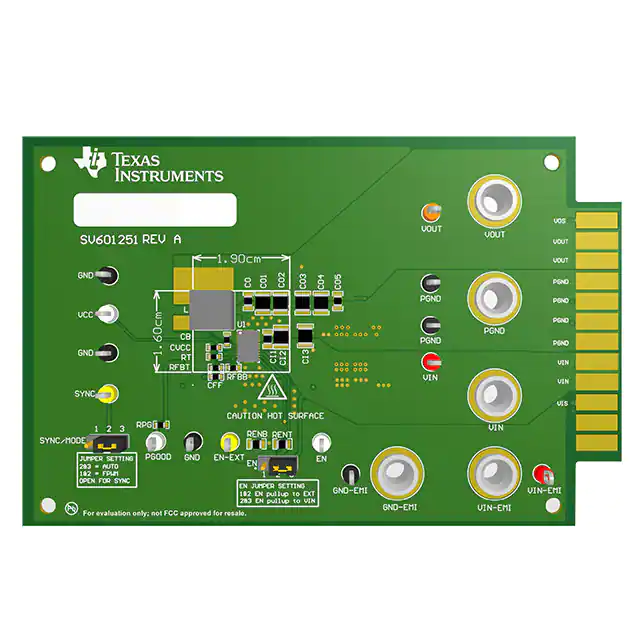

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 5A | 3.5V ~ 60V | Buck | - | Board(s) | LM76005-Q1 |
|
LMR51450EVMEVAL BOARD FOR LMR51450 |
23 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V | 5A | 4V ~ 36V | Buck | - | Board(s) | LMR51450 |
|
|
TPS563300EVMEVAL BOARD FOR TPS563300 |
22 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 5.1V ~ 28V | Buck | 500kHz | Board(s) | TPS563300 |
|
LM27761EVMEVAL BOARD FOR LM27761 |
18 |
|

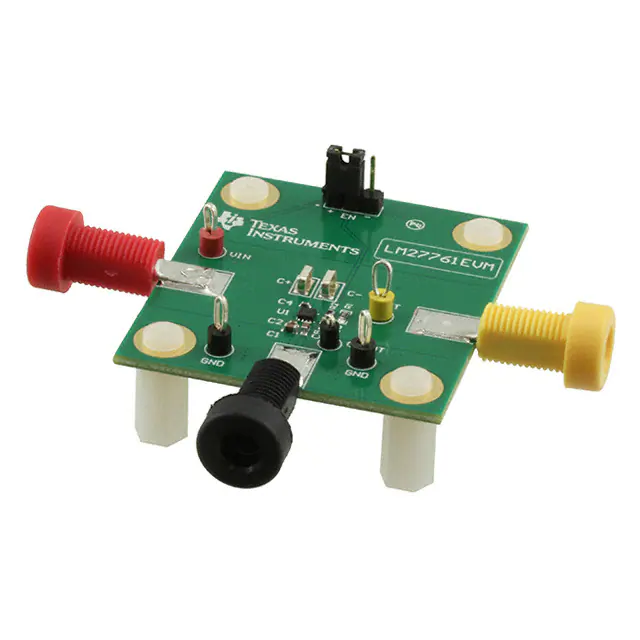

Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 250mA | 2.7V ~ 5.5V | Inverting | 2MHz | Board(s) | LM27761 |
|
TPSM63606EVMEVAL BOARD FOR TPSM63606 |
18 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 16V | 6A | 3V ~ 36V | Buck | 1MHz | Board(s) | TPSM63606 |
|
|
TPS61299EVM-016EVAL BOARD FOR TPS61299 |
17 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5.5V | 1.2A | 0.7V ~ 5.5V | Boost | - | Board(s) | TPS61299 |
|
LM5013-Q1EVMEVAL BOARD FOR LM5013Q1 |
15 |
|

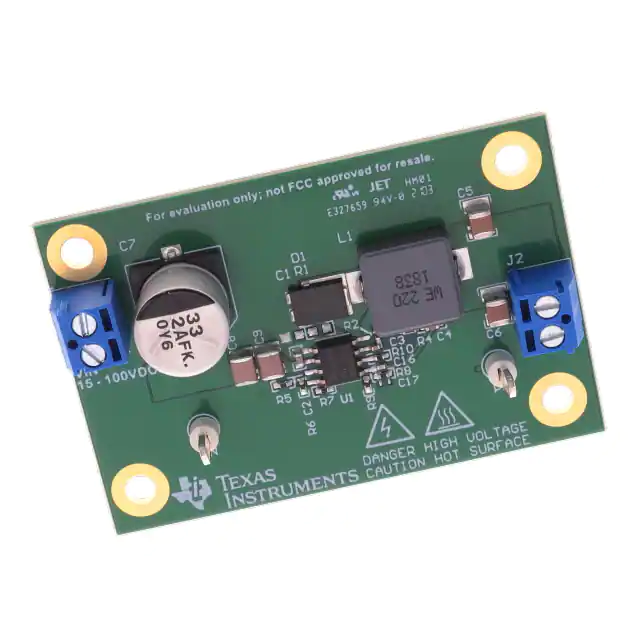

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3.5A | 15V ~ 100V | Buck | 300kHz | Board(s) | LM5013-Q1 |
|
LM27762EVMEVAL BOARD FOR LM27762 |
14 |
|

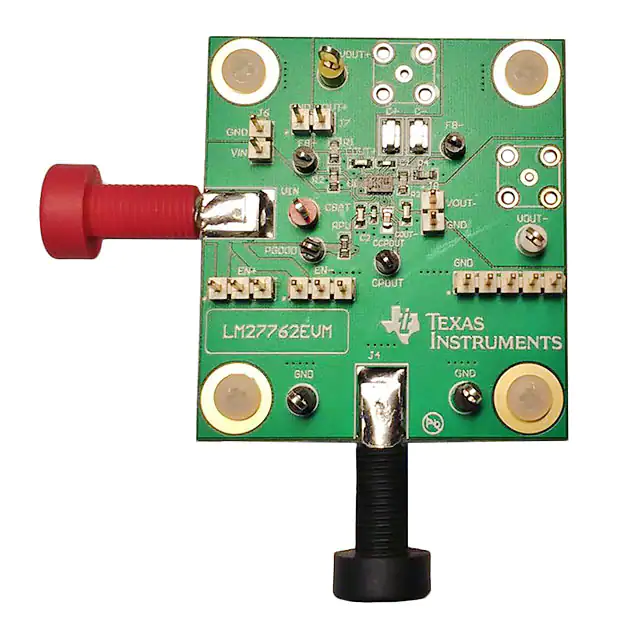

Datasheet | - | Bulk | Active | DC/DC, Step Up or Down with LDO | 2 Non-Isolated Outputs | - | ±1.8V ~ ±5.2V | 250mA, 250mA | 2.7V ~ 5.5V | Inverting | 2MHz | Board(s) | LM27762 |
|
|
LMR51430EVMEVAL BOARD FOR LMR51430 |
12 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 800 mW | 5V | 3A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LMR51430 |
|
|
TPS56A37EVMEVAL BOARD FOR TPS56A37 |
12 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 4.5V ~ 28V | Buck | - | Board(s) | TPS56A37 |
|
TPS55340EVM-017EVAL BOARD FOR TPS55340 |
11 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 800mA | 5V ~ 12V | Boost | 600kHz | Board(s) | TPS55340 |
|
LM5157EVM-BSTEVAL BOARD FOR LM5157 |
11 |
|

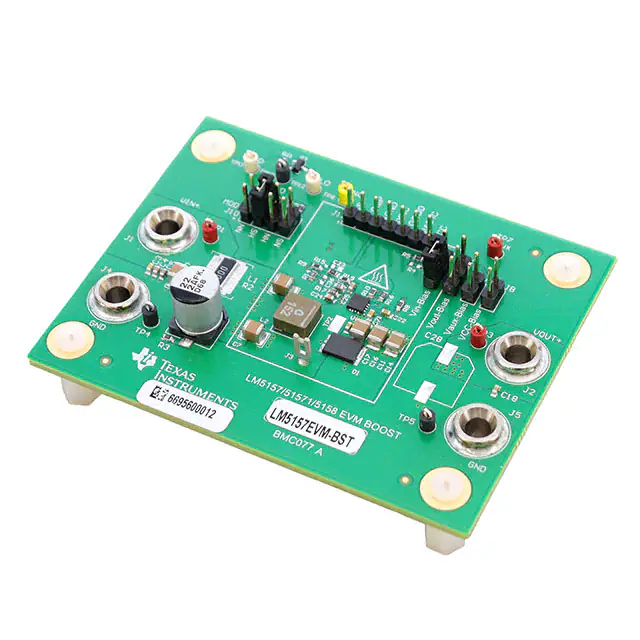

Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.6A | 3V ~ 9V | Boost | 2.1MHz | Board(s) | LM5157 |
|
LM73606EVM-5V-400KEVAL BOARD FOR LM73606 |
10 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 6V ~ 36V | Buck | 400kHz | Board(s) | LM73606 |
|
LMR54410EVMEVAL BOARD FOR LMR54410 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 36V | Buck | 1.1MHz | Board(s) | LMR54410 |
|
|
TPS62932EVMEVAL BOARD FOR TPS62932 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.1V ~ 30V | Buck | 500kHz | Board(s) | TPS62932 |
