DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

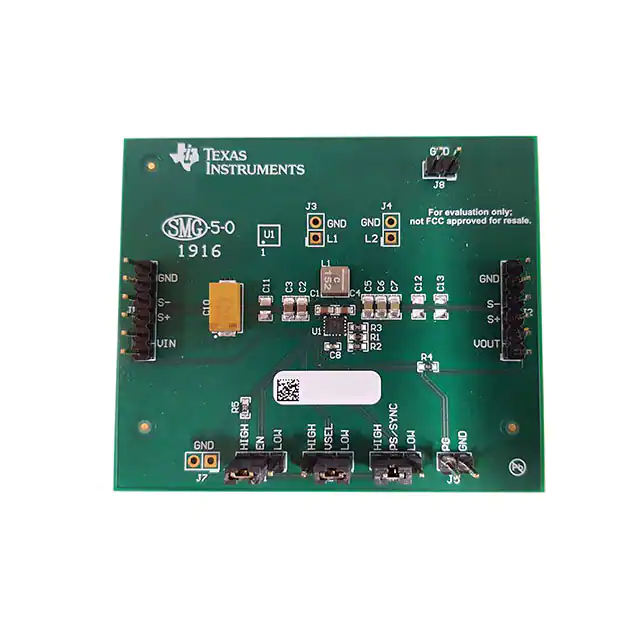

TPS63070EVM-693EVAL BOARD FOR TPS63070 |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2V ~ 16V | Buck-Boost | 2.4MHz | Board(s) | TPS63070 |
|

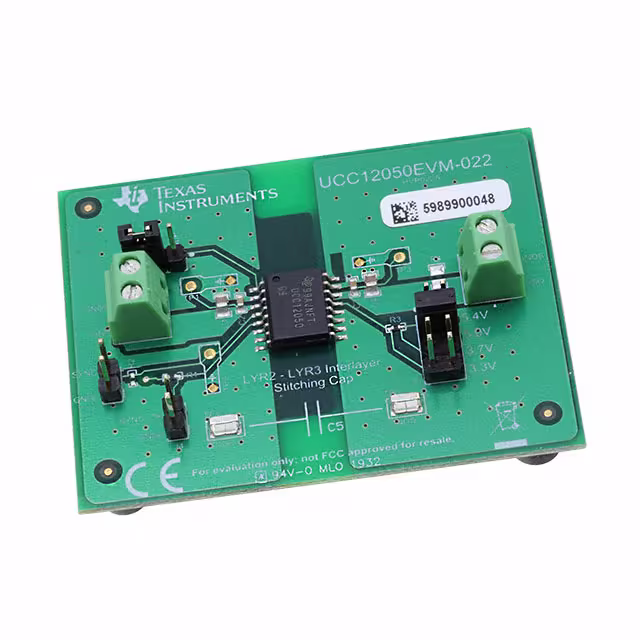

UCC12050EVM-022EVAL BOARD FOR UCC12050 |
9 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 500 mW | 3.3V, 3.7V, 5V or 5.4V | - | 4.5V ~ 5.5V | - | - | Board(s) | UCC12050 |
|
LMR51420EVMEVAL BOARD FOR LMR51420 |
9 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LMR51420 |
|

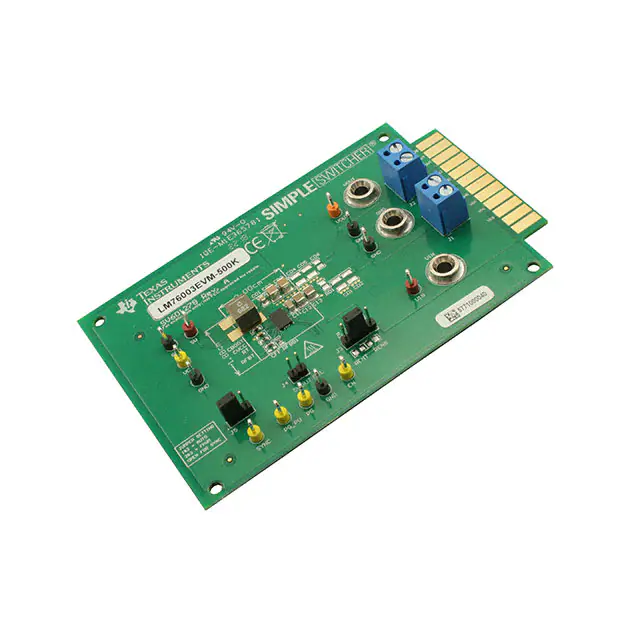

LM76003EVM-500KEVAL BOARD FOR LM76003 |
8 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM76003 |
|
LMR38020EVMEVAL BOARD FOR LMR38020 |
8 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.5V ~ 80V | Buck | 400kHz | Board(s) | LMR38020 |
|

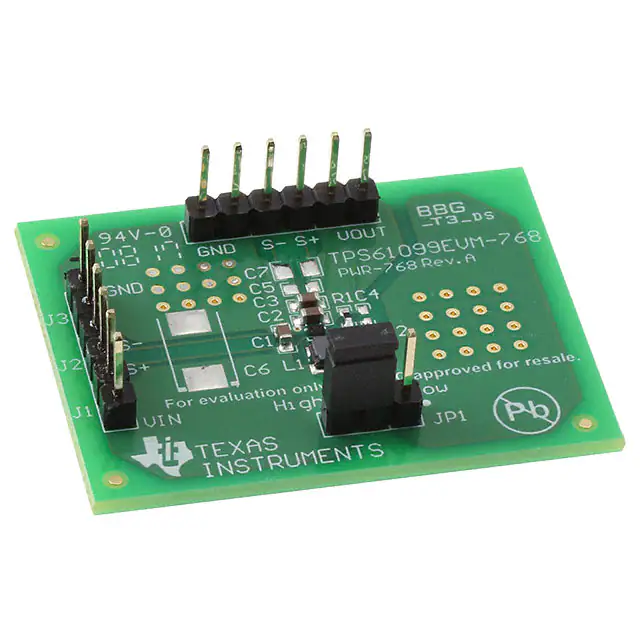

TPS61099EVM-768EVAL BOARD FOR TPS61099 |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | - | 0.7V ~ 5.5V | Boost | - | Board(s) | TPS61099 |
|

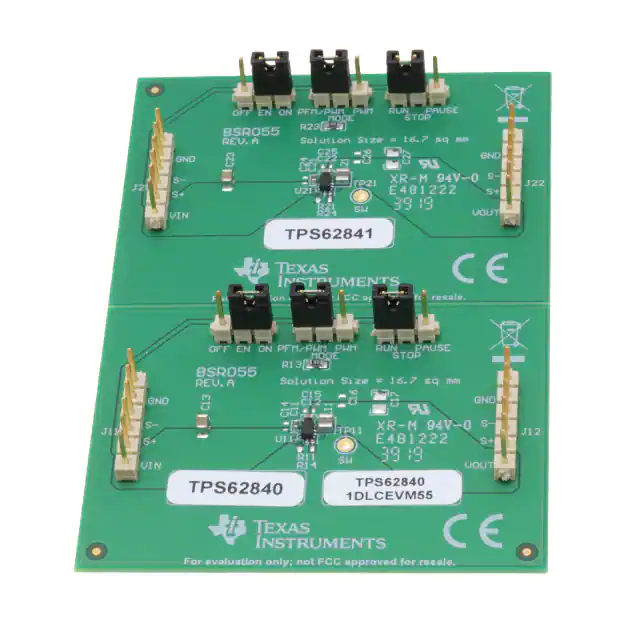

TPS62840-1DLCEVM55EVAL BOARD FOR TPS6284X |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 750mA | 1.8V ~ 6.5V | Buck | - | Board(s) | TPS6284x |
|
LMR43620MQ3EVM-2MEVAL BOARD FOR LMR43620Q1 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 36V | Buck | 2.2MHz | Board(s) | LMR43620-Q1 |
|
|
LM5168PEVMEVAL BOARD FOR LM5168P |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 20V ~ 115V | Buck | 500kHz | Board(s), Cable(s) | LM5168P |
|

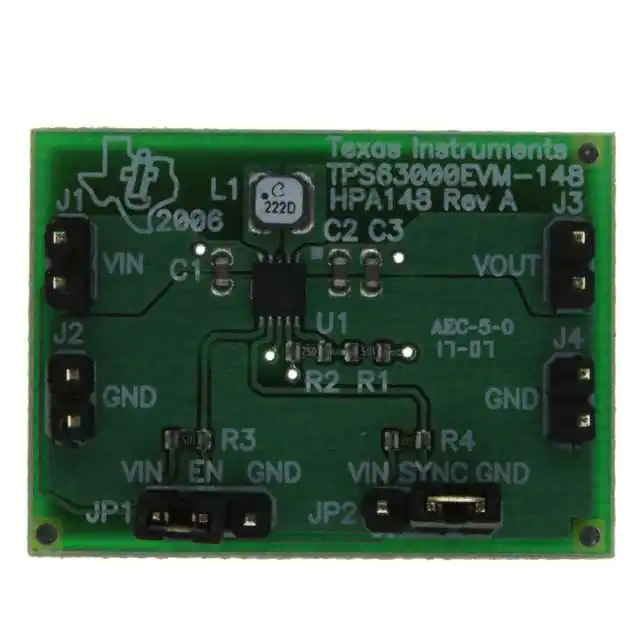

TPS63000EVM-148EVAL BOARD FOR TPS63000 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | TPS63000 |
|

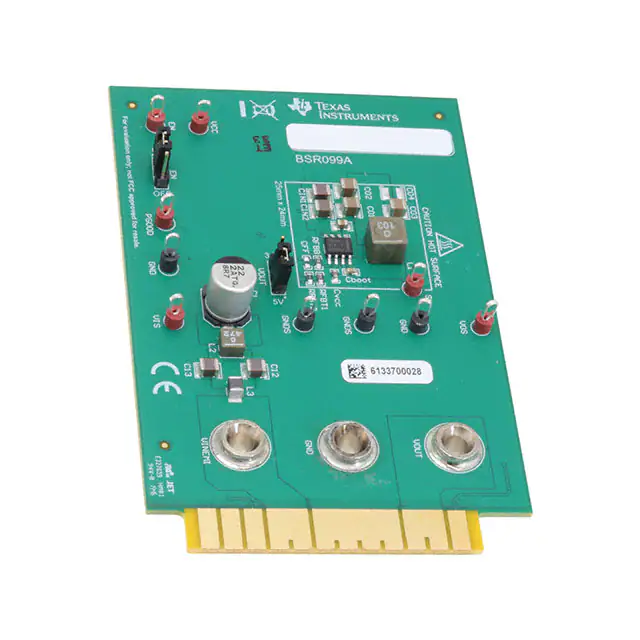

LMR36520AEVMEVAL BOARD FOR LMR36520A |
6 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 4.2V ~ 65V | Buck | 400kHz | Board(s) | LMR36520A |
|

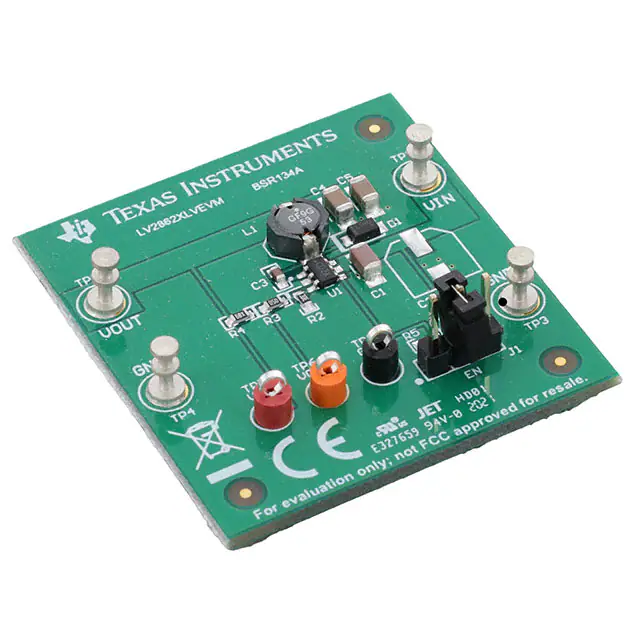

LV2862XLVEVMEVAL BOARD FOR LV2862 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 4V ~ 60V | Buck | - | Board(s) | LV2862 |
|

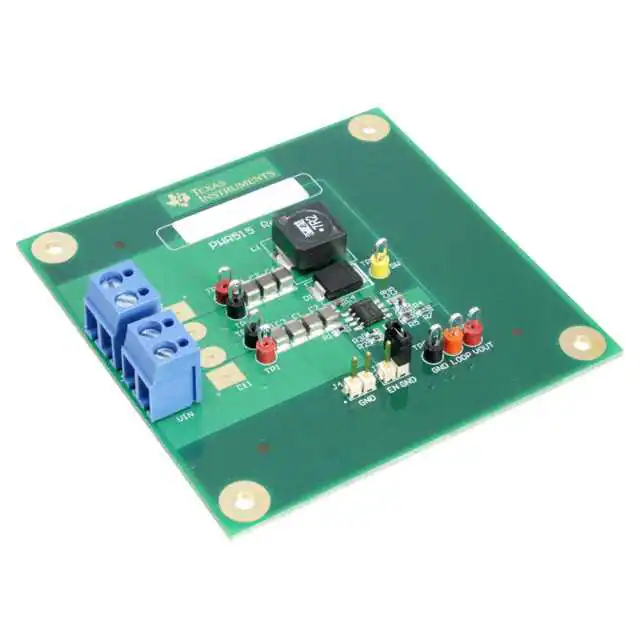

TPS54560EVM-515EVAL BOARD FOR TPS54560 |
5 |
|
Datasheet | Eco-Mode™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 60V | Buck | 400kHz | Board(s) | TPS54560 |
|
TPSM63603EVMEVAL BOARD FOR TPSM63603 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 16V | 3A | 3V ~ 36V | Buck | - | Board(s) | TPSM63603 |
|
TLVM13660EVMEVAL BOARD FOR TLVM13660 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 1MHz | Board(s) | TLVM13660 |
|
TPS61178EVM-792EVAL BOARD FOR TPS61178 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 2.2A | 5.4V ~ 12V | Boost | 500kHz | Board(s) | TPS61178 |
|

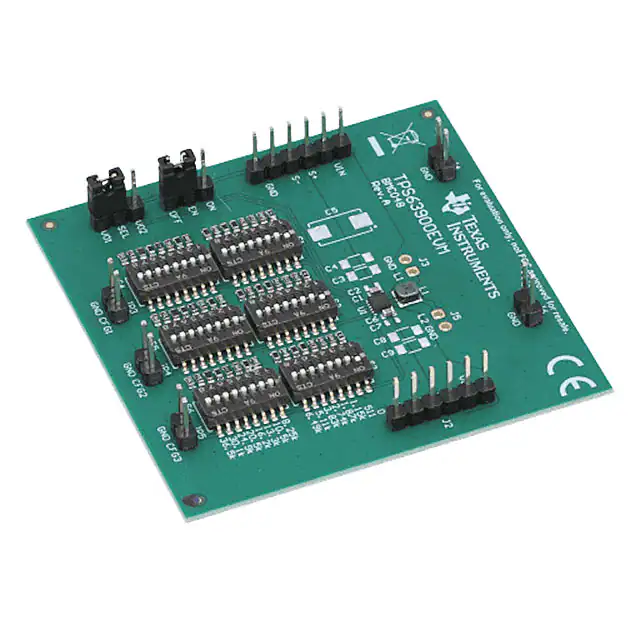

TPS63900EVMEVAL BOARD FOR TPS63900 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5V | 330mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63900 |
|
|
TPSM843620EVMEVAL BOARD FOR TPSM843620 |
3 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 4V ~ 18V | Buck | - | Board(s) | TPSM843620 |
|

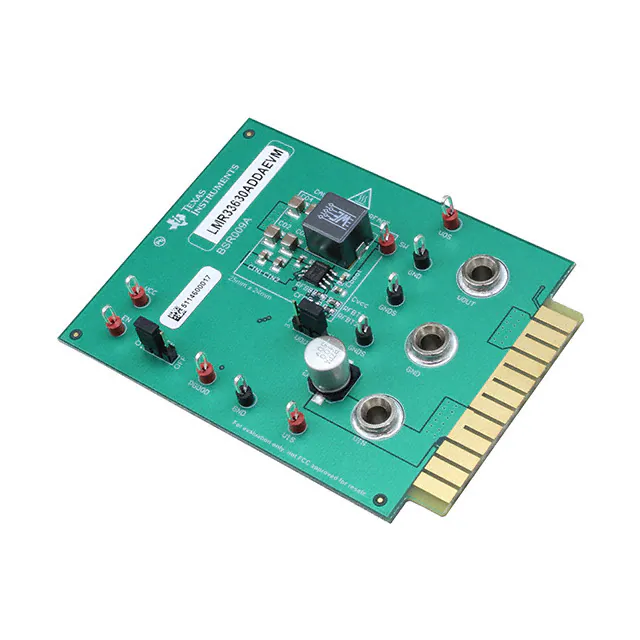

LMR33630ADDAEVMEVAL BOARD FOR LMR33630 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 5V ~ 36V | Buck | 400kHz | Board(s) | LMR33630 |
|
|
TPSM365R6FEVMEVAL BOARD FOR TPSM365R6 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 3V ~ 65V | Buck | - | Board(s) | TPSM365R6 |
