DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

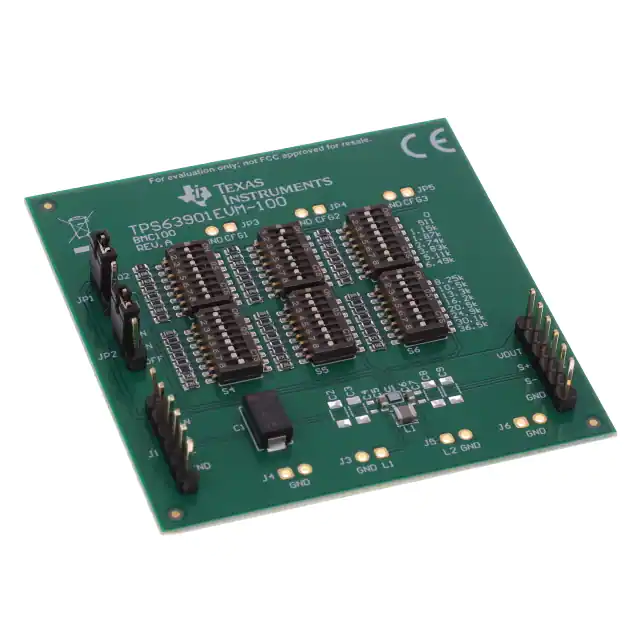

TPS63901EVM-100EVAL BOARD FOR TPS63901 |
13 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5V | 330mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63901 |
|

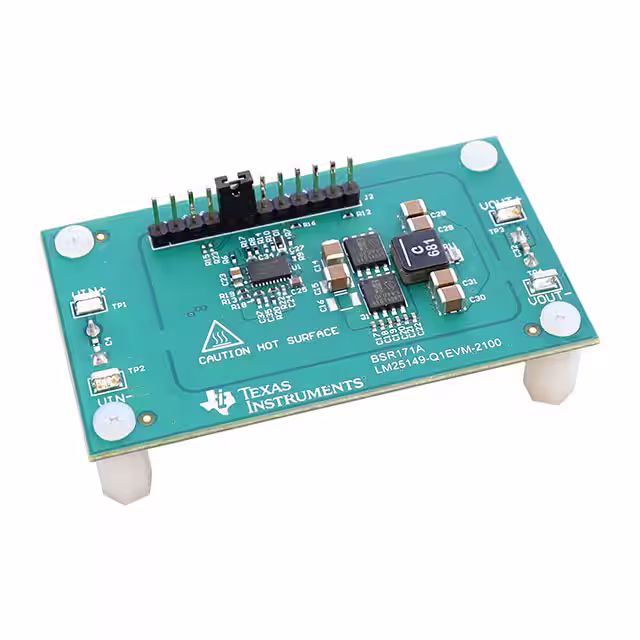

LM25149-Q1EVM-2100EVAL BOARD FOR LM25149Q1 |
22 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 42V | Buck | 2.1MHz | Board(s) | LM25149-Q1 |
|

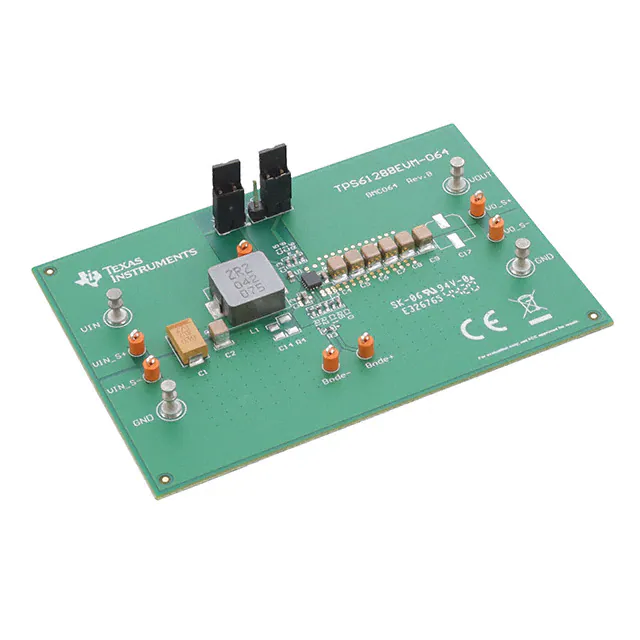

TPS61288EVM-064EVAL BOARD FOR TPS61288 |
13 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 13V | 15A | 2.7V ~ 8.8V | Boost | 500kHz | Board(s) | TPS61288 |
|

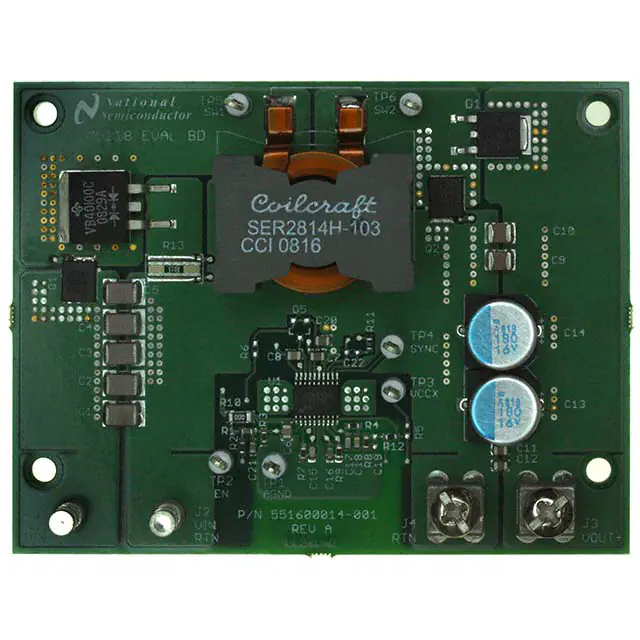

LM5118EVAL/NOPBEVAL BOARD FOR LM5118 |
8 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 5V ~ 75V | Buck-Boost | 300kHz | Board(s) | LM5118 |
|
TPS61299EVM-103EVAL BOARD FOR TPS61299 |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.2A | 0.7V ~ 5.5V | Boost | - | Board(s) | TPS61299 |
|

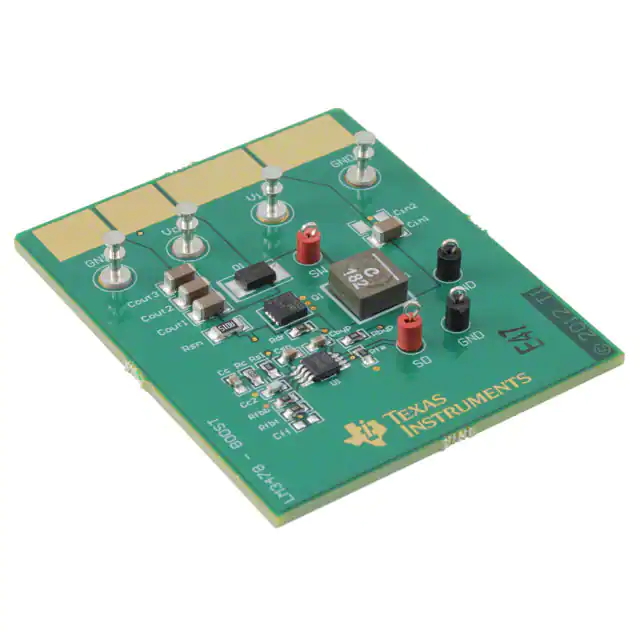

LM3478EVAL/NOPBEVAL BOARD FOR LM3478 |
14 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | LM3478 |
|
|
ISL9122AIRN-EVZEVAL BOARD FOR ISL9122A |
8 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL9122A |
|
ISL9122AIIN-EVZEVAL BOARD FOR ISL9122A |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL9122A |
|
|
TPSM33625EVMEVAL BOARD FOR TPSM33625 |
15 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 1.8V ~ 12V | Buck | 2.2MHz | Board(s) | TPSM33625 |
|
|
TLVM23625EVMEVAL BOARD FOR TLVM23625 |
11 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 3V ~ 36V | Buck | 2.2MHz | Board(s) | TLVM23625 |
|
|
TPSM33625FEVMEVAL BOARD FOR TPSM33625 |
10 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 3V ~ 36V | Buck | 1MHz | Board(s) | TPSM33625 |
|
|
EVAL-LT8641A-AZEVAL BOARD FOR LT8641A |
16 |
|
Datasheet | Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 5.5V ~ 65V | Buck | 2MHz | Board(s) | LT8641A |
|
DC2373AEVAL BOARD FOR LT8641 |
15 |
|
Datasheet | Silent Switcher® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 5.5V ~ 65V | Buck | 2MHz | Board(s) | LT8641 |
|
DC2202AEVAL BOARD FOR LT8640 |
9 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.7V ~ 42V | Buck | 2MHz | Board(s) | LT8640 |
|
DC1658A-BEVAL BOARD FOR LTC33883 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.8V, 3V, 3.3V or 5V | 50mA | 2.7V ~ 20V | Buck | - | Board(s) | LTC3388-3 |
|

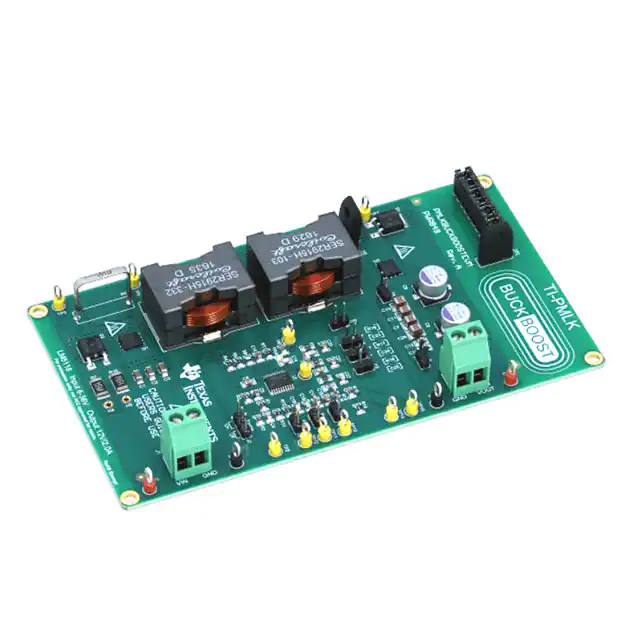

PMLKBUCKBOOSTEVMEVAL BOARD FOR LM5118 |
10 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | - | Buck-Boost | - | Board(s) | LM5118 |
|
DC2838AEVAL BOARD FOR LT8365 |
16 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 250V | 10mA | 9V ~ 30V | Boost | 400kHz | Board(s) | LT8365 |
|
DC2628AEVAL BOARD FOR LT8362 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 280mA | 10V ~ 36V | Boost | 2MHz | Board(s) | LT8362 |
|
DC2840AEVAL BOARD FOR LT8365 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | -250V | 10mA | 9V ~ 30V | Boost, Inverting | 400kHz | Board(s) | LT8365 |
|
DC2716AEVAL BOARD FOR LT8364 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 1.6A | 4.5V ~ 20V | Boost | 2MHz | Board(s) | LT8364 |
