DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

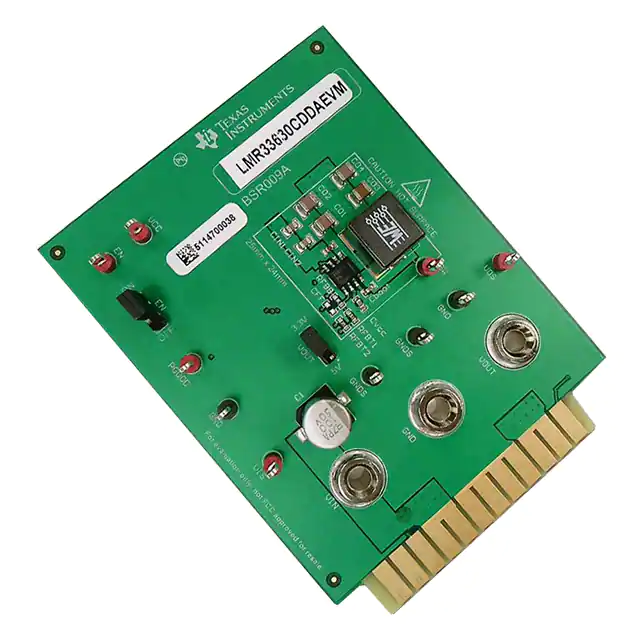

LMR33630CDDAEVMEVAL BOARD FOR LMR33630 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 5V ~ 36V | Buck | 2.1MHz | Board(s) | LMR33630 |
|

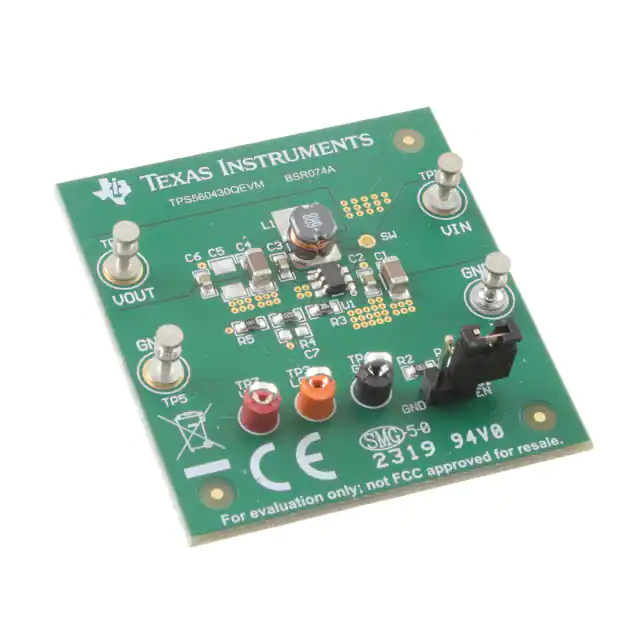

TPS560430QEVMEVAL BOARD FOR TPS560430Q1 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 7.5V ~ 36V | Buck | 2.1MHz | Board(s) | TPS560430-Q1 |
|

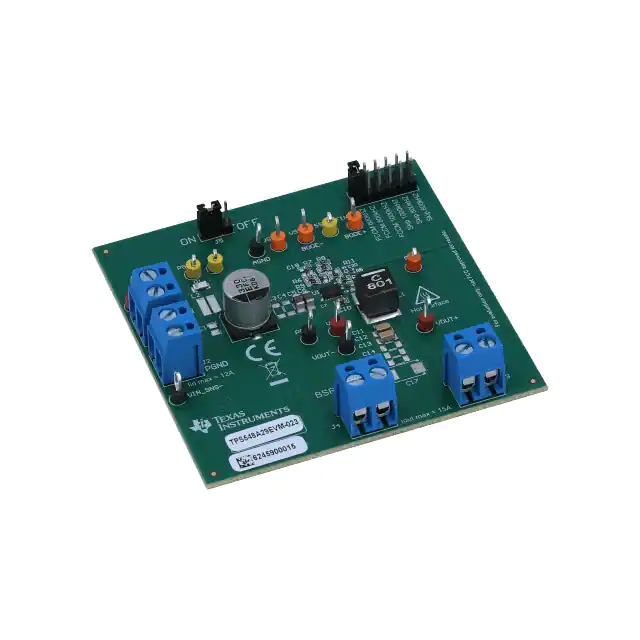

TPS548A29EVM-023EVAL BOARD FOR TPS548A29 |
4 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 1.5V ~ 20V | Buck | - | Board(s) | TPS548A29 |
|
TPS628512EVM-139EVAL BOARD FOR TPS62851X |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 2.7V ~ 6V | Buck | - | Board(s) | TPS62851x |
|

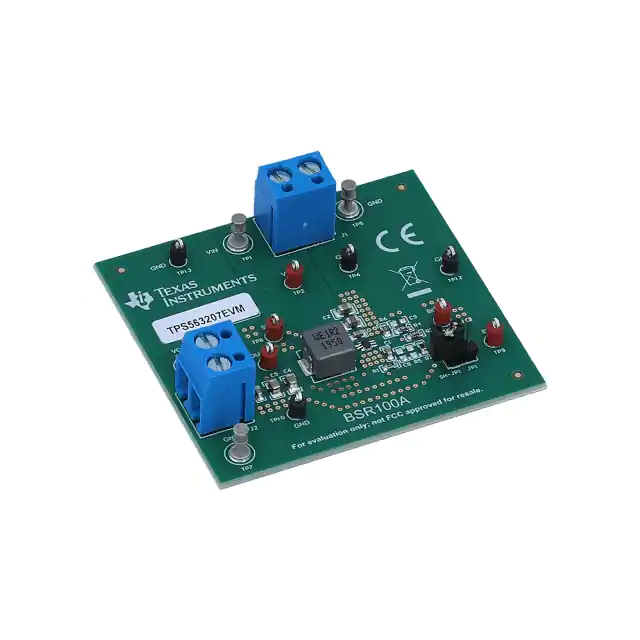

TPS563207EVMEVAL BOARD FOR TPS563207 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.3V ~ 17V | Buck | 580kHz | Board(s) | TPS563207 |
|
LMQ62440EVM-2MHZEVAL BOARD FOR LMQ62440Q1 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | LMQ62440-Q1 |
|

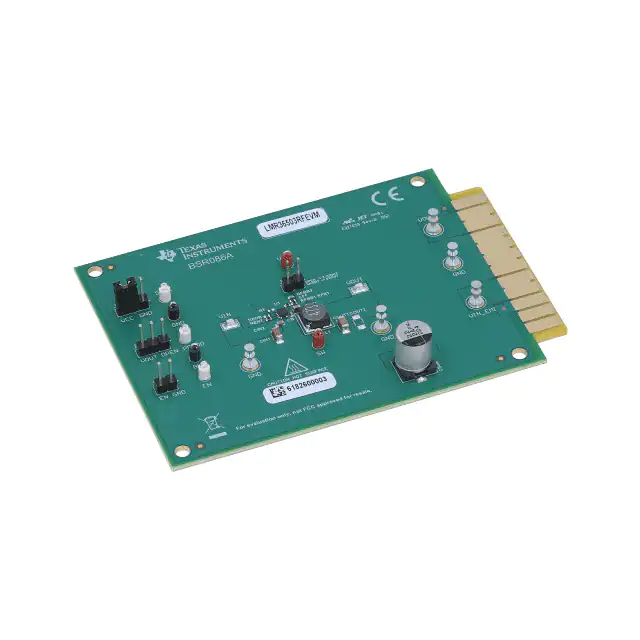

LMR36503RFEVMEVAL BOARD FOR LMR36503 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 65V | Buck | 1MHz | Board(s) | LMR36503 |
|
TPSM82866AA0SEVMEVAL BOARD FOR TPSM82866A |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPSM82866A |
|
LM5168FEVMEVAL BOARD FOR LM5168FQ1 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 10V, 10V | 250mA, 250mA | 20V ~ 115V | Buck, Flyback | 750kHz | Board(s) | LM5168F-Q1 |
|
TPS629210EEVMEVAL BOARD FOR TPS629210E |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629210E |
|

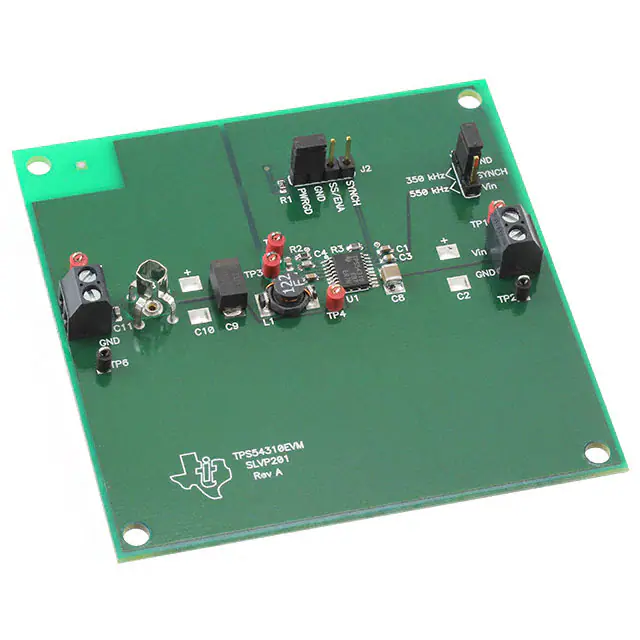

TPS54310EVMEVAL BOARD FOR TPS54310 |
3 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 6V | Buck | 700kHz | Board(s) | TPS54310 |
|

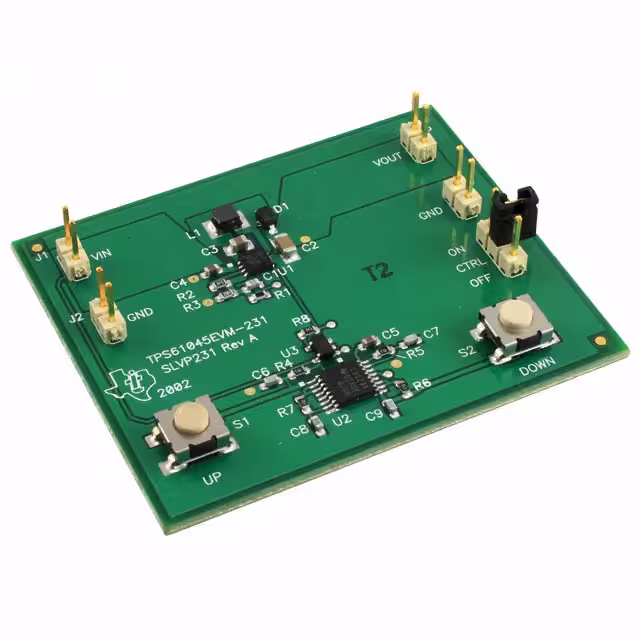

TPS61045EVM-231EVAL BOARD FOR TPS61045 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 17.54V | 10mA | 1.8V ~ 6V | Boost | - | Board(s) | TPS61045 |
|
TPS61090EVM-029EVAL BOARD FOR TPS61090 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | 1.8V ~ 5.5V | Boost | - | Board(s) | TPS61090 |
|

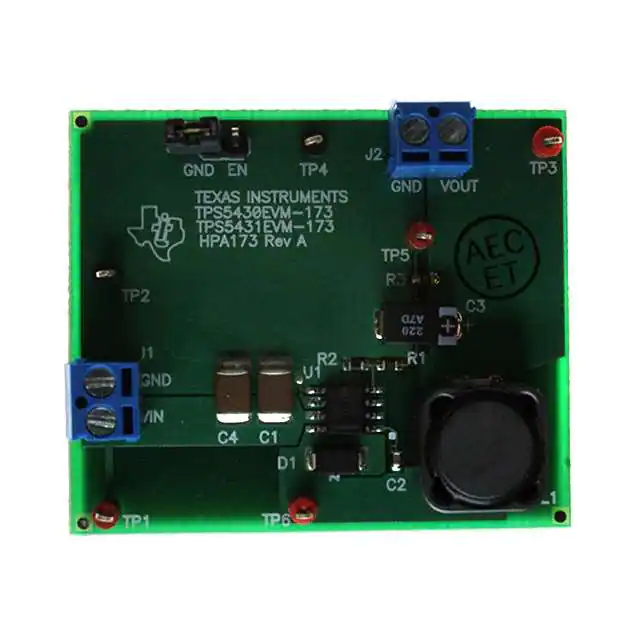

TPS5430EVM-173EVAL BOARD FOR TPS5430 |
3 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 10V ~ 35V | Buck | 500kHz | Board(s) | TPS5430 |
|

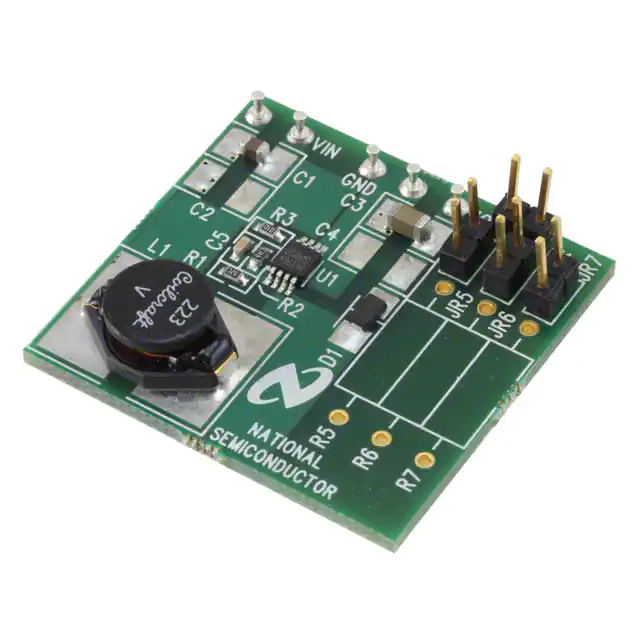

LM2735XMYEVALEVAL BOARD FOR LM2735 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|
TPS54231EVM-372EVAL BOARD FOR TPS54231 |
3 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 7V ~ 28V | Buck | 570kHz | Board(s) | TPS54231 |
|

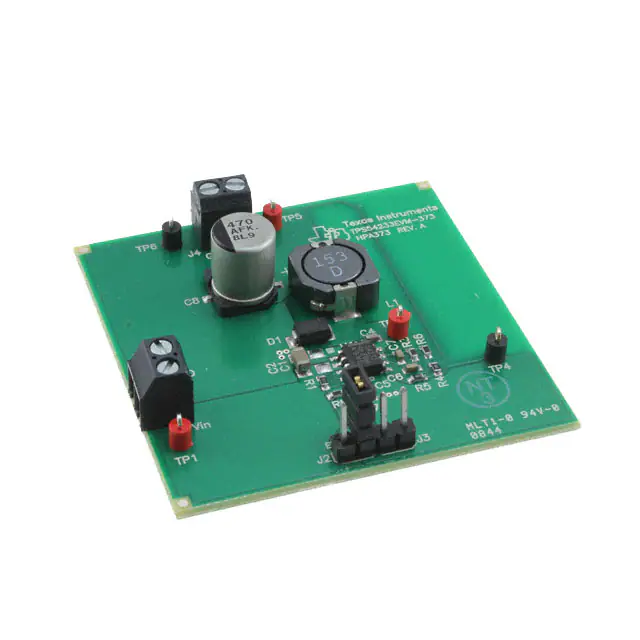

TPS54233EVM-373EVAL BOARD FOR TPS54233 |
3 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 7V ~ 18V | Buck | 300kHz | Board(s) | TPS54233 |
|

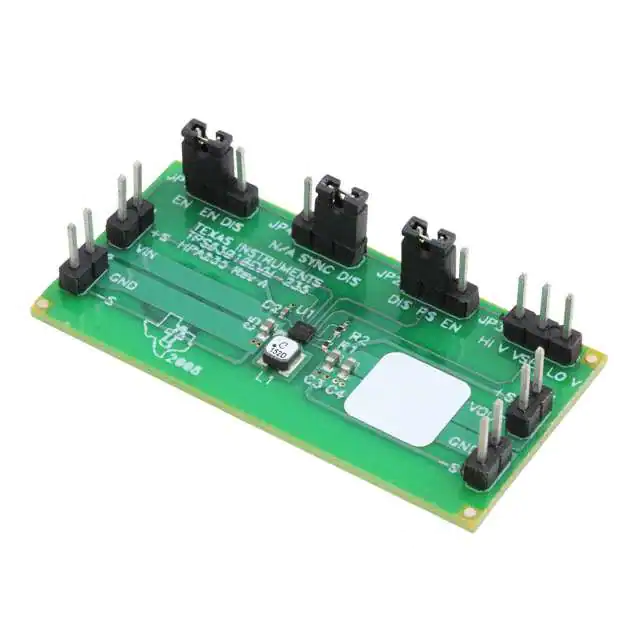

TPS63010EVM-235EVAL BOARD FOR TPS63010 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2V ~ 5.5V | Buck-Boost | 240Hz | Board(s) | TPS63010 |
|

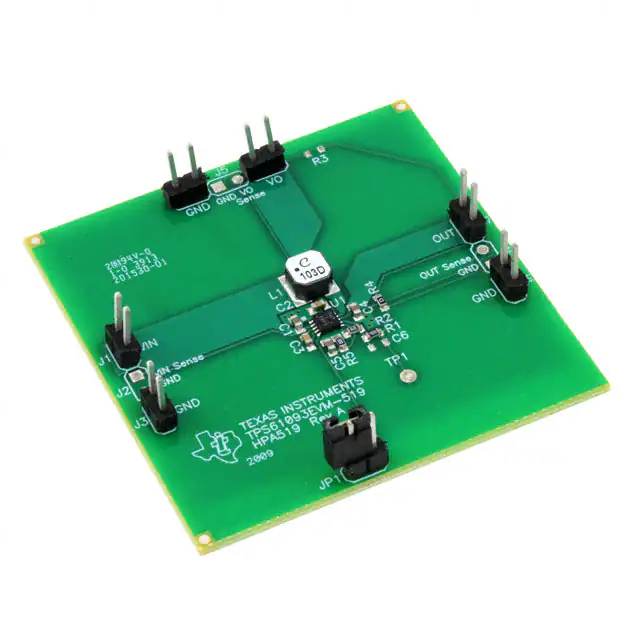

TPS61093EVM-519EVAL BOARD FOR TPS61093 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | 300mA | 1.6V ~ 6V | Boost | 1.2MHz | Board(s) | TPS61093 |
|

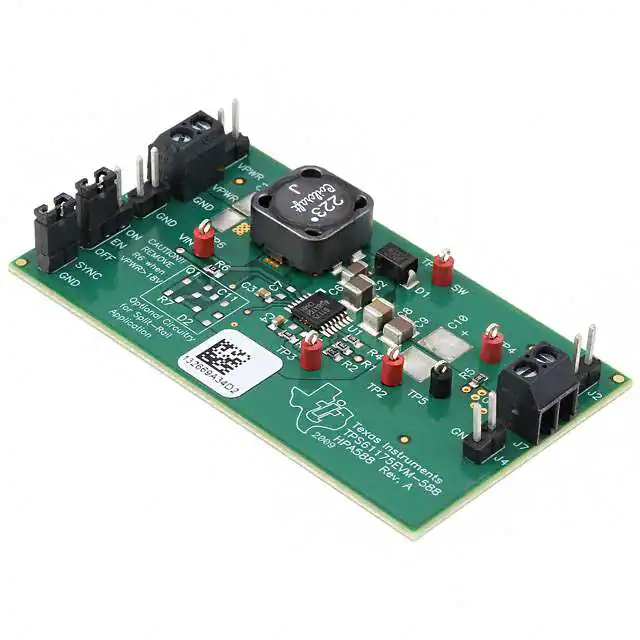

TPS61175EVM-588EVAL BOARD FOR TPS61175 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 750mA | 5V ~ 18V | Buck-Boost | 750kHz | Board(s) | TPS61175 |
