DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

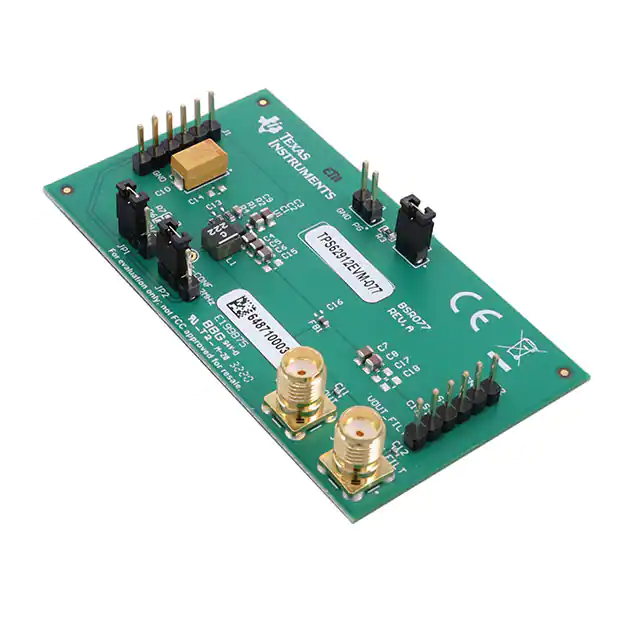

TPS62912EVM-077EVAL BOARD FOR TPS6291 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 17V | Buck | 2.2MHz | Board(s) | TPS6291 |
|

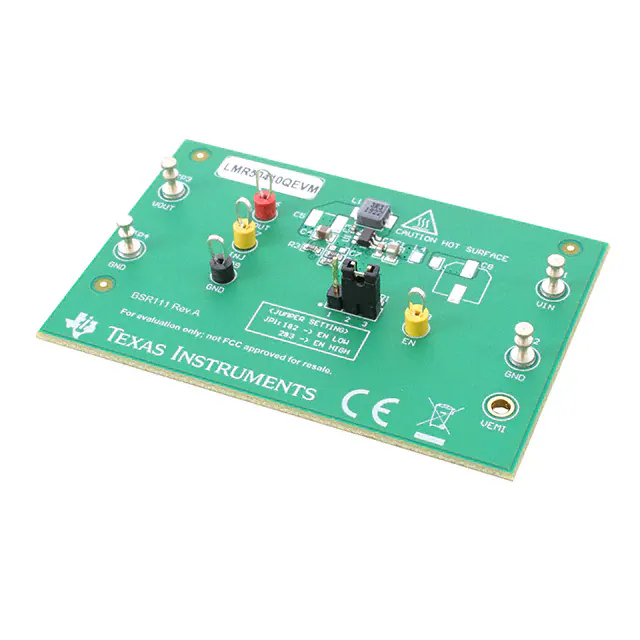

LMR50410QEVMEVAL BOARD FOR LMR50410Q1 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 36V | Buck | 2.1MHz | Board(s) | LMR50410-Q1 |
|
TPS62826AEVM-126EVAL BOARD FOR TPS62826A |
3 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | TPS62826A |
|
TPS62901EVM-069EVAL BOARD FOR TPS62901 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 17V | Buck | - | Board(s) | TPS62901 |
|
TPS566231EVMEVAL BOARD FOR TPS566231 |
3 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 3V ~ 18V | Buck | 600kHz | Board(s) | TPS566231 |
|
TPS54JB20EVM-023EVAL BOARD FOR TPS54JB20 |
3 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 3.3V | 20A | 4V ~ 16V | Buck | 600kHz | Board(s) | TPS54JB20 |
|
TPS51396AEVMEVAL BOARD FOR TPS51396A |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7V | 8A | 4.5V ~ 24V | Buck | 600kHz | Board(s) | TPS51396A |
|

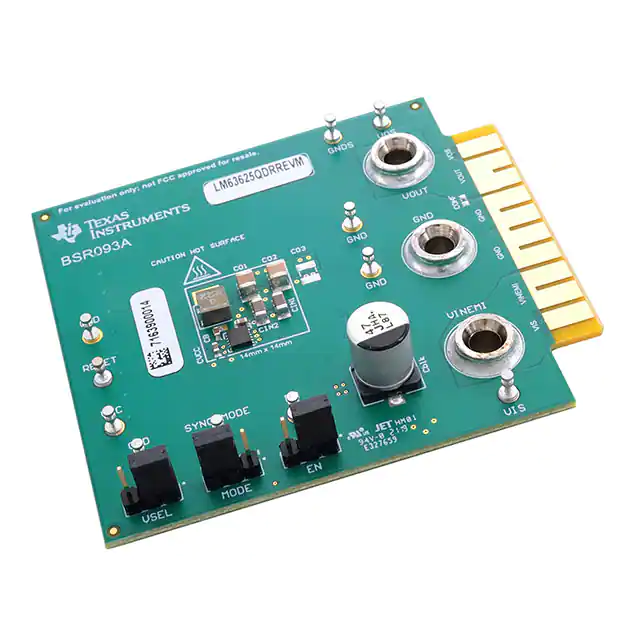

LM63625QDRREVMEVAL BOARD FOR LM63625Q1 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V | 2.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | LM63625-Q1 |
|
TPS628690EVM-135EVAL BOARD FOR TPS62869 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.2V ~ 0.84V | 6A | 2.4V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPS62869 |
|

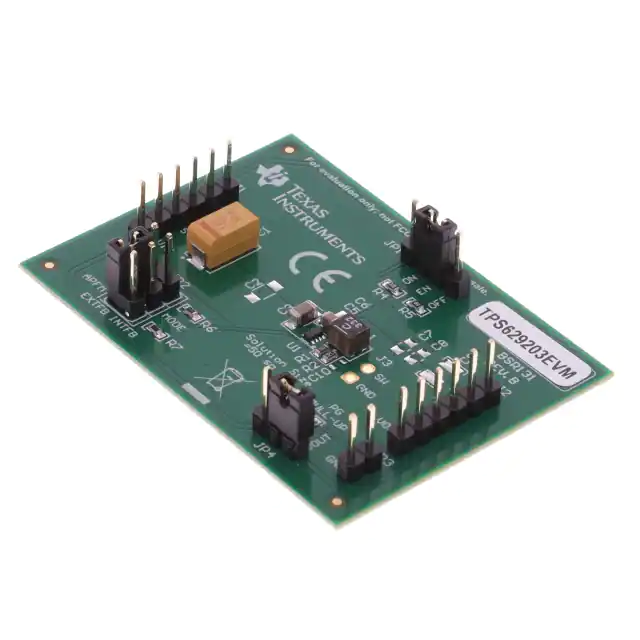

TPS629203EVMEVAL BOARD FOR TPS629203 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629203 |
|
|
TPS62903-Q1EVMEVAL BOARD FOR TPS62903Q1 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 17V | Buck | - | Board(s) | TPS62903-Q1 |
|
|
TPS564242EVMEVAL BOARD FOR TPS564242 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 3V ~ 16V | Buck | 1.2MHz | Board(s) | TPS564242 |
|
|
TPS568231EVMEVAL BOARD FOR TPS568231 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 8A | 4.5V ~ 17V | Buck | 800kHz | Board(s) | TPS568231 |
|

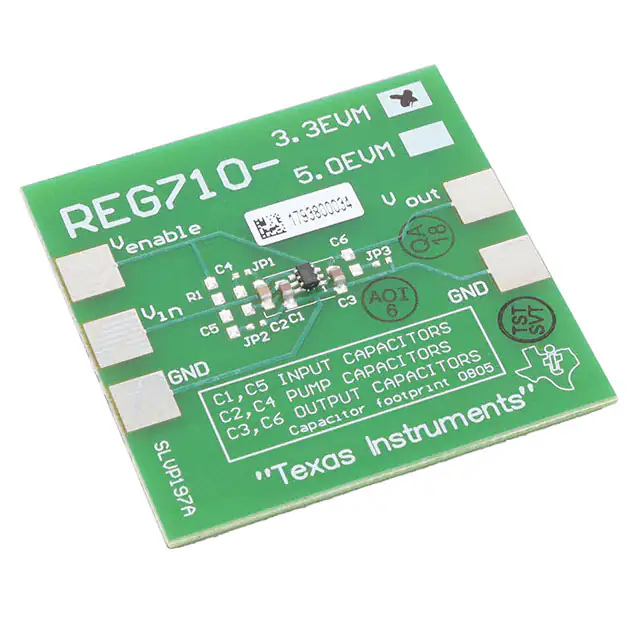

REG710EVM-33EVAL BOARD FOR REG710 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 30mA | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | REG710 |
|
TPS61030EVM-208EVAL BOARD FOR TPS61030 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 5V | Boost | 600kHz | Board(s) | TPS61030 |
|
TPS61030EVM-029EVAL BOARD FOR TPS61030 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 5V | Boost | 600kHz | Board(s) | TPS61030 |
|

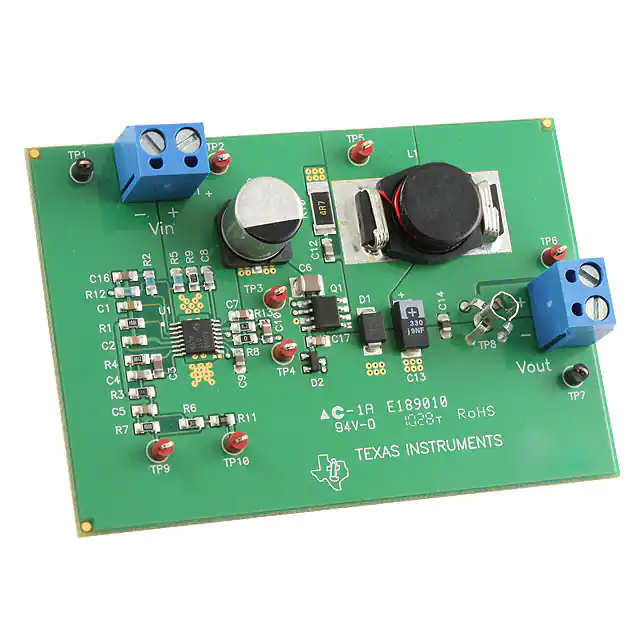

TPS40055EVM-002EVAL BOARD FOR TPS40055 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 10V ~ 40V | Buck | 300kHz | Board(s) | TPS40055 |
|

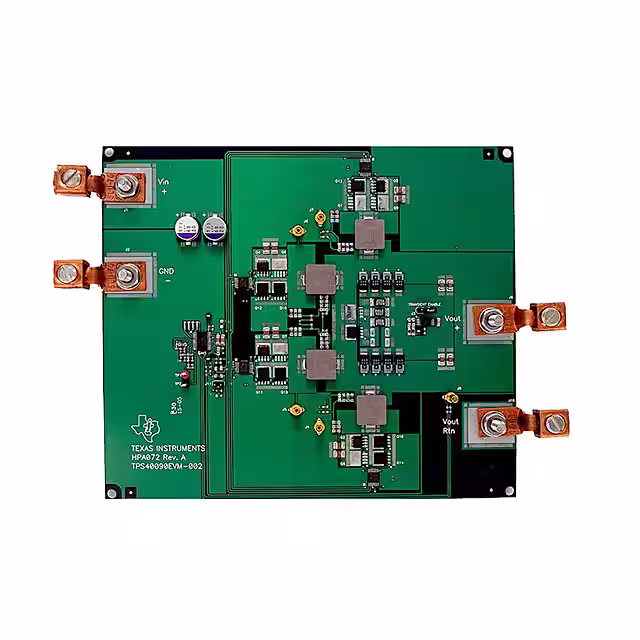

TPS40090EVM-002EVAL BOARD FOR TPS40090 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 100A | 10.5V ~ 14V | Buck | 420kHz | Board(s) | TPS40090 |
|

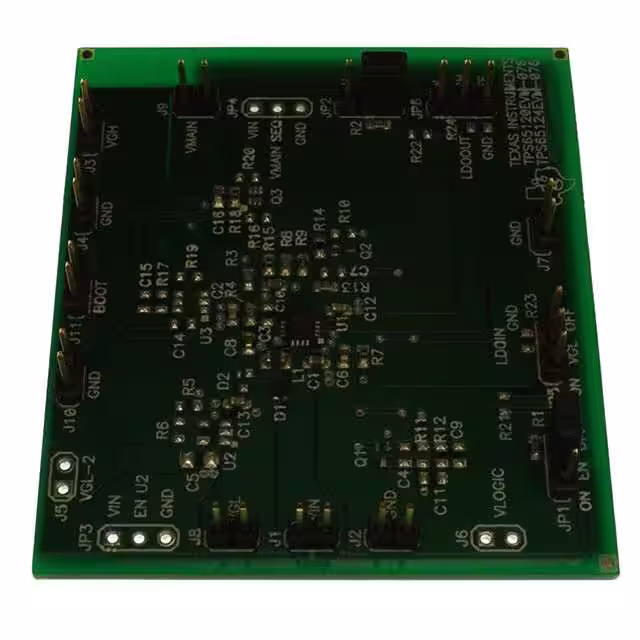

TPS65120EVM-076EVAL BOARD FOR TPS65120 |
2 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 287 mW | 3.3V, 5V, 12V, -12V | 25mA, 20mA, 4mA, 4mA | 2.5V ~ 5.5V | Boost | - | Board(s) | TPS65120 |
|

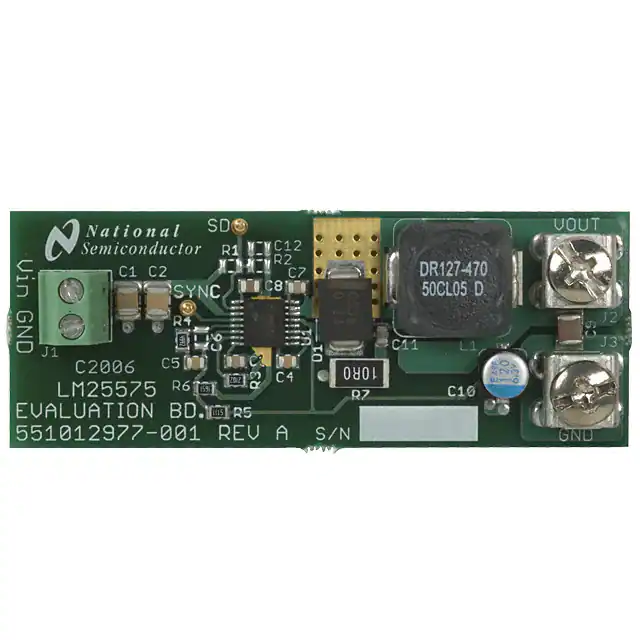

LM25575EVALEVAL BOARD FOR LM25575 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 42V | Buck | 300kHz | Board(s) | LM25575 |
