DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

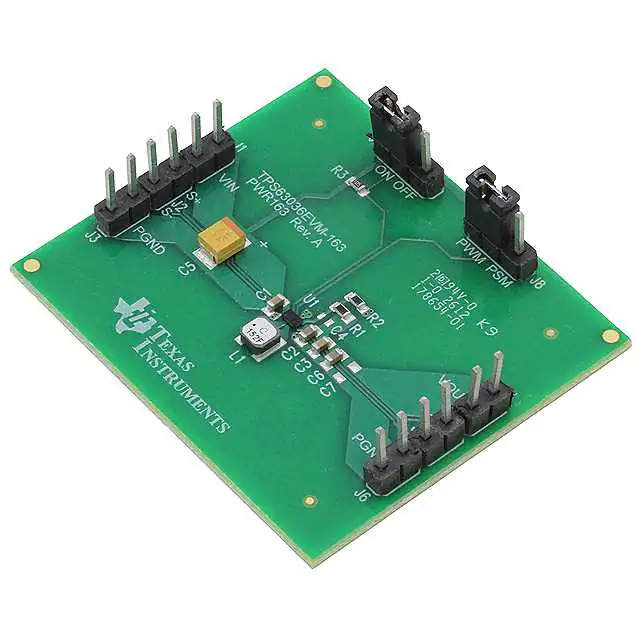

TPS63036EVM-163EVAL BOARD FOR TPS63036 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | TPS63036 |
|
LM5010 EVAL/NOPBEVAL BOARD FOR LM5010 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 1A | 12V ~ 75V | Buck | 480kHz | Board(s) | LM5010 |
|
TPS43061EVM-198EVAL BOARD FOR TPS43061 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | 2A | 6V ~ 12.6V | Boost | 750kHz | Board(s) | TPS43061 |
|

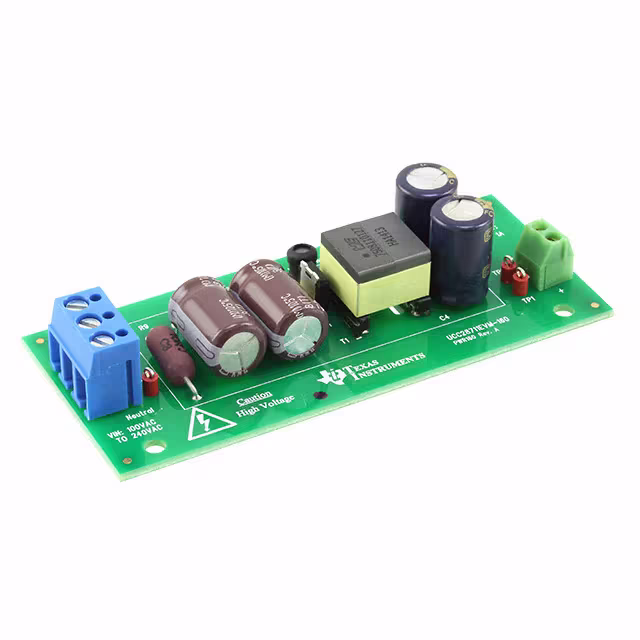

UCC28711EVM-160EVAL BOARD FOR UCC28711 |
2 |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 100 ~ 240 VAC | Flyback | 100kHz | Board(s) | UCC28711 |
|

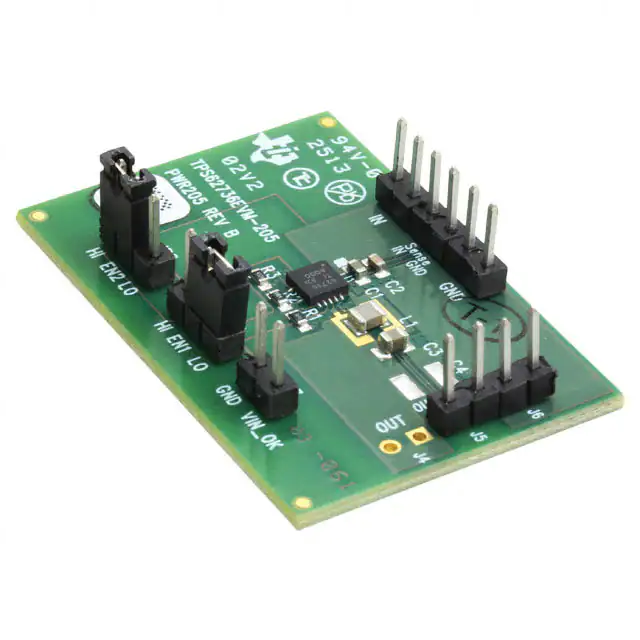

TPS62736EVM-205EVAL BOARD FOR TPS62736 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 50mA | 2V ~ 5.5V | Buck | 2MHz | Board(s) | TPS62736 |
|

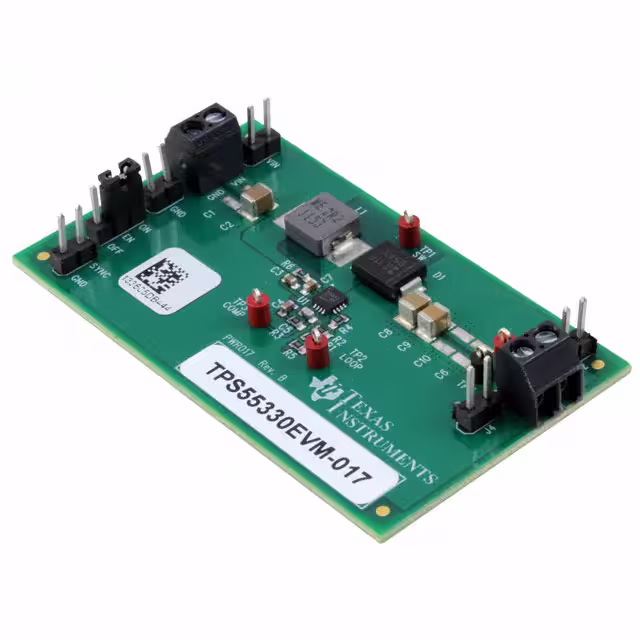

TPS55330EVM-017EVAL BOARD FOR TPS55330 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2.1A | 2.9V ~ 4.2V | Boost | 600kHz | Board(s) | TPS55330 |
|

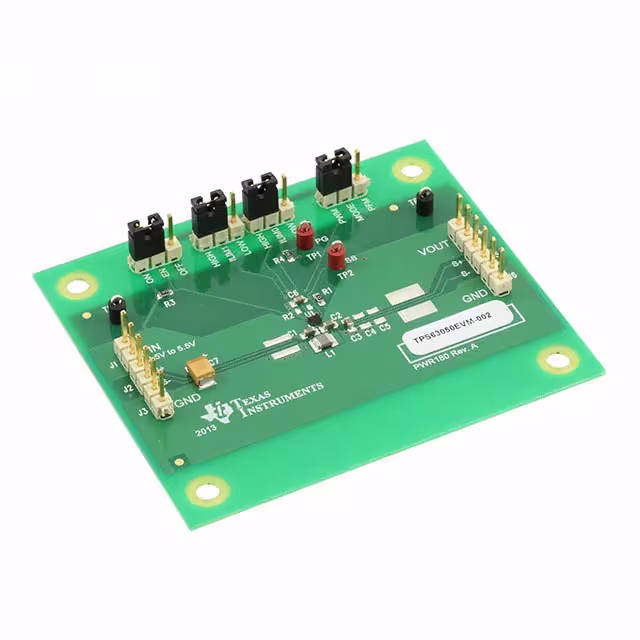

TPS63051EVM-180EVAL BOARD FOR TPS63051 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63051 |
|

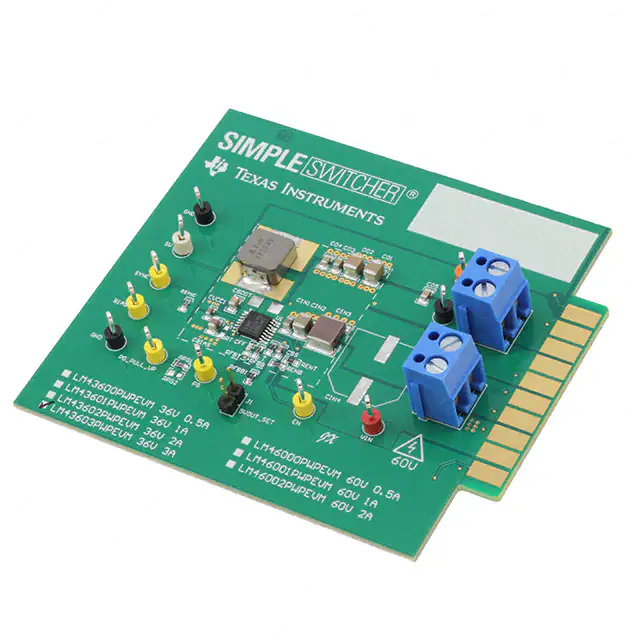

LM43603PWPEVMEVAL BOARD FOR LM43603 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3.5V ~ 36V | Buck | 500kHz | Board(s) | LM43603 |
|

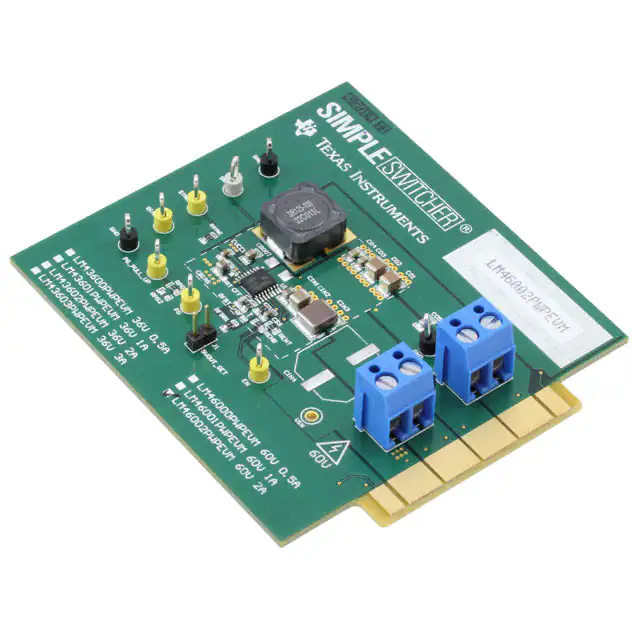

LM46002PWPEVMEVAL BOARD FOR LM46002 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM46002 |
|

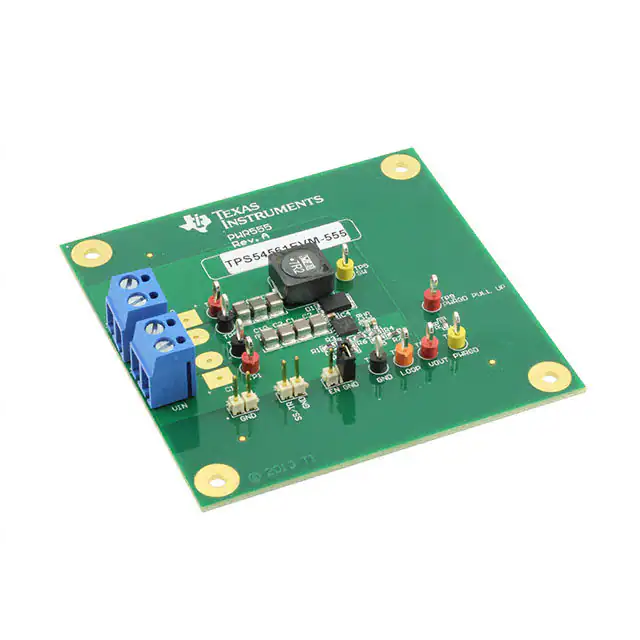

TPS54561EVM-555EVAL BOARD FOR TPS54561 |
2 |
|
Datasheet | Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 60V | Buck | 400kHz | Board(s) | TPS54561 |
|
TPS630250EVM-553EVAL BOARD FOR TPS630250 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS630250 |
|
TPS54625EVM-608EVAL BOARD FOR TPS54625 |
2 |
|
Datasheet | D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 6.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54625 |
|
TPS54340-Q1EVM-593EVAL BOARD FOR TPS54340Q1 |
2 |
|
Datasheet | Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 7V ~ 42V | Buck | 400kHz | Board(s) | TPS54340-Q1 |
|

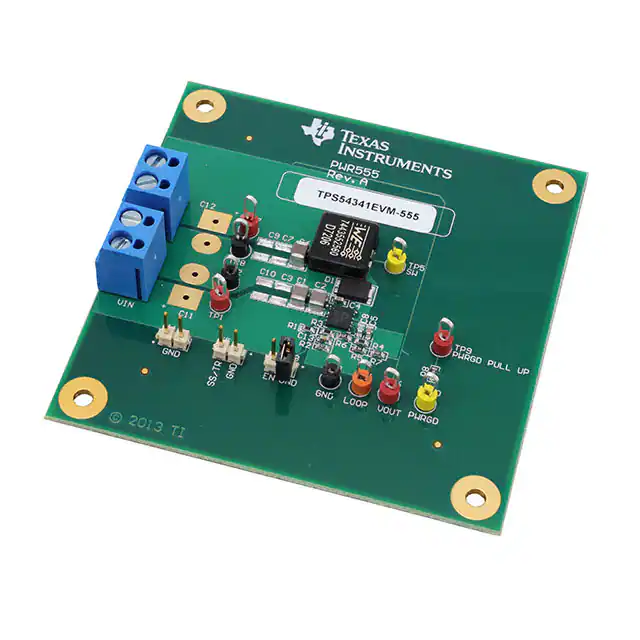

TPS54341EVM-555EVAL BOARD FOR TPS54341 |
2 |
|
Datasheet | Eco-Mode™ | Box | Active | DC/DC, Step Down | - | - | 3.3V | 3.5A | 6V ~ 42V | Buck | 600kHz | Board(s) | TPS54341 |
|
TPS54361EVM-555EVAL BOARD FOR TPS54361 |
2 |
|
Datasheet | Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 7V ~ 60V | Buck | - | Board(s) | TPS54361 |
|

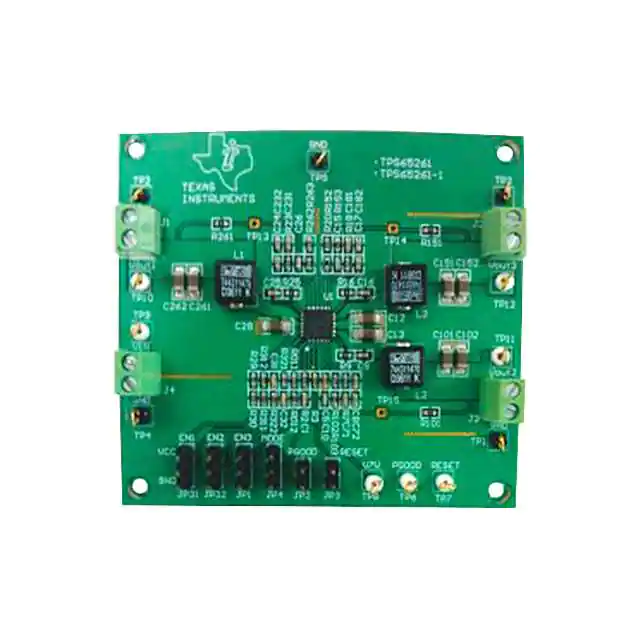

TPS65261-1EVMEVAL BOARD FOR TPS652611 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 3A, 2A, 2A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS65261-1 |
|

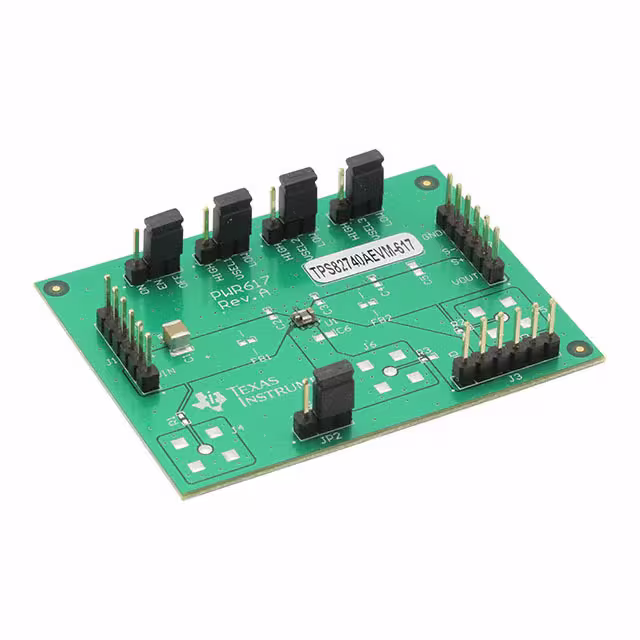

TPS82740AEVM-617EVAL BOARD FOR TPS82740A |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 2.5V | 300mA | 2.2V ~ 5.5V | Buck | - | Board(s) | TPS82740A |
|
LM5160DNTBKEVMEVAL BOARD FOR LM5160 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 10V ~ 60V | Buck | 300kHz | Board(s) | LM5160 |
|
TPS61097AEVM-073EVAL BOARD FOR TPS61097A33 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 0.9V ~ 5.5V | Boost | - | Board(s) | TPS61097A-33 |
|

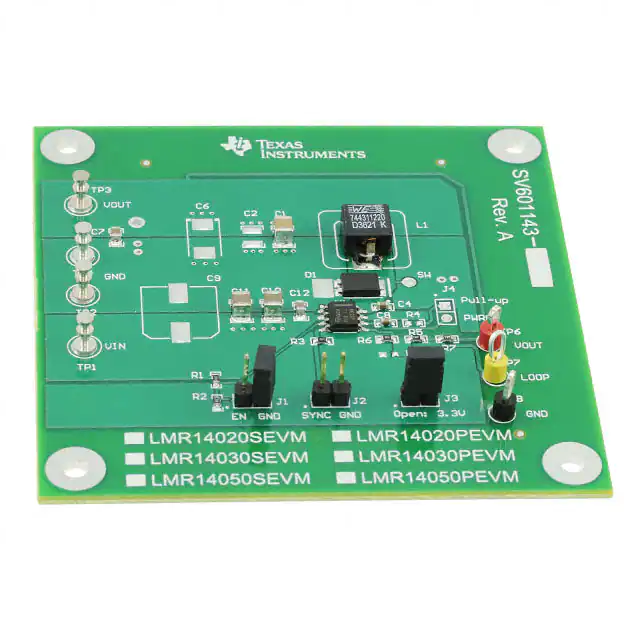

LMR14030SEVMEVAL BOARD FOR LMR14030S |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3.5A | 7V ~ 40V | Buck | 600kHz | Board(s) | LMR14030S |
