DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

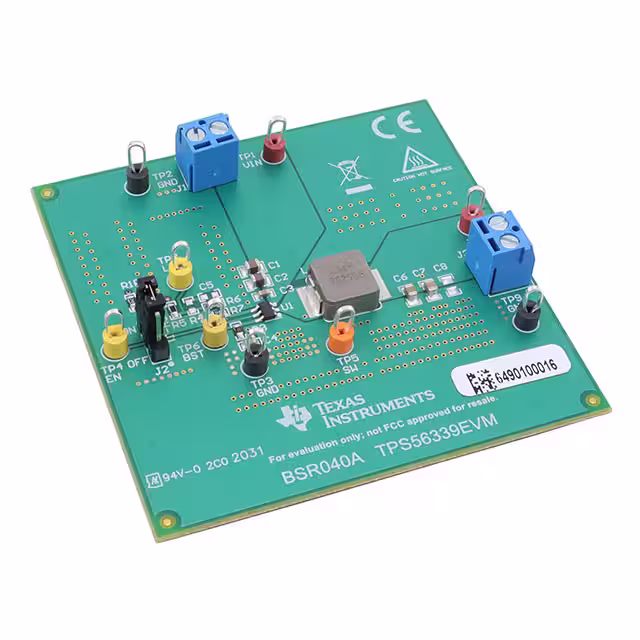

TPS56339EVMEVAL BOARD FOR TPS56339 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 5.5V ~ 24V | Buck | 500kHz | Board(s) | TPS56339 |
|
TPS62088YWCEVM-084EVAL BOARD FOR TPS62088YWC |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62088YWC |
|

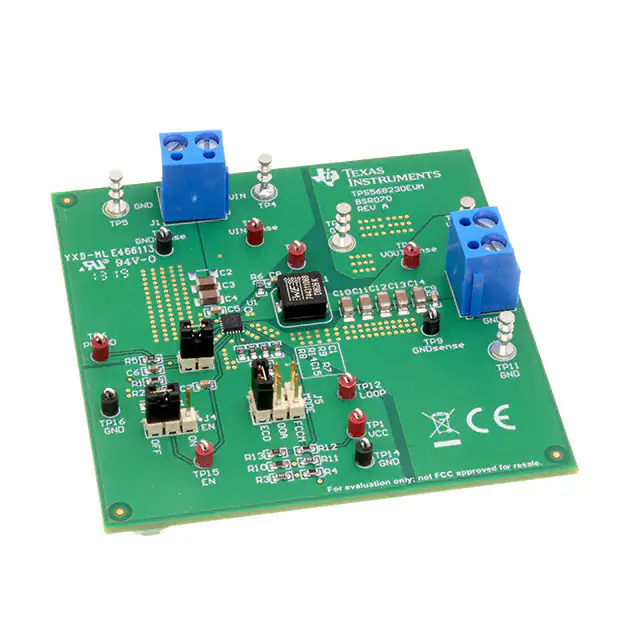

TPS568230EVMEVAL BOARD FOR TPS568230 |
2 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 8A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS568230 |
|

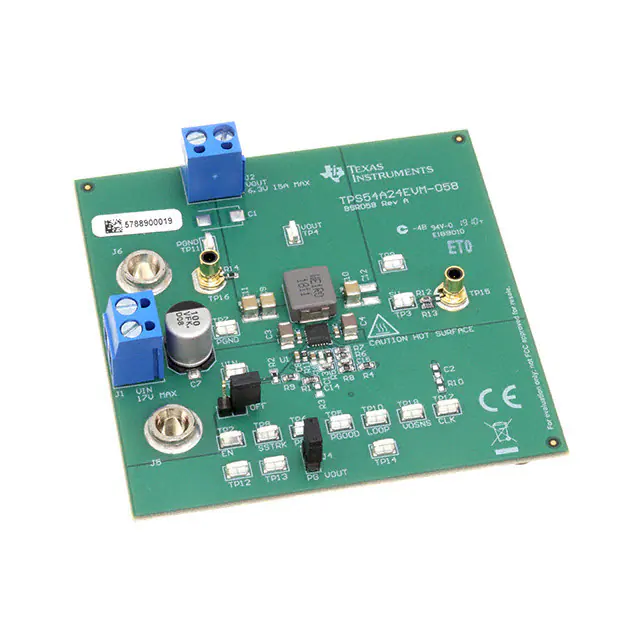

TPS54A24EVM-058EVAL BOARD FOR TPS54A24 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | TPS54A24 |
|

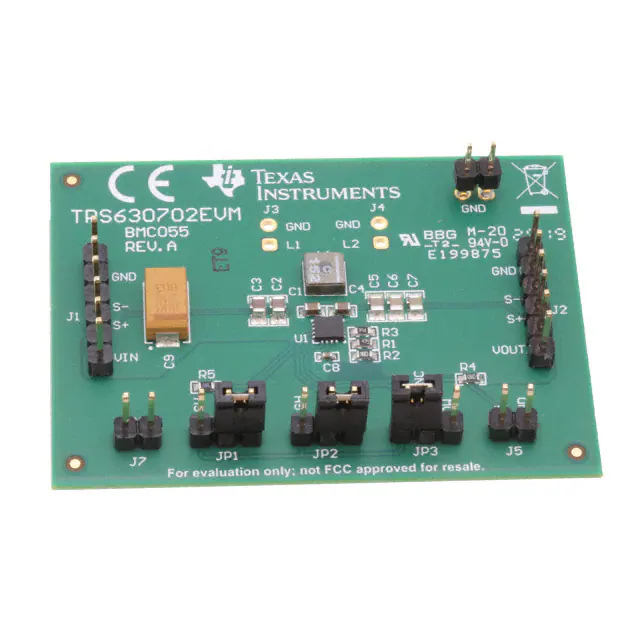

TPS630702EVMEVAL BOARD FOR TPS630702 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2V ~ 16V | Buck-Boost | 2.4MHz | Board(s) | TPS630702 |
|

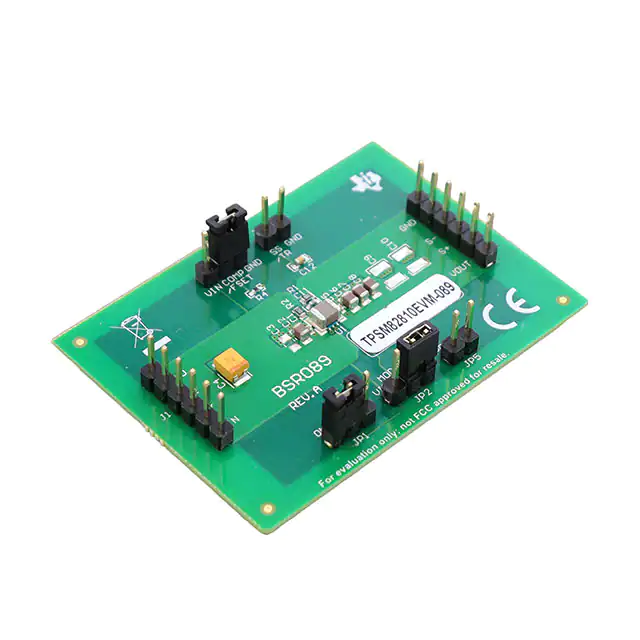

TPSM82810EVM-089EVAL BOARD FOR TPSM82810 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.75V ~ 6V | Buck | 2.25MHz | Board(s) | TPSM82810 |
|
LMR34215FSC5EVMEVAL BOARD FOR LMR34215Q1 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 4.2V ~ 42V | Buck | 2.1MHz | Board(s) | LMR34215-Q1 |
|

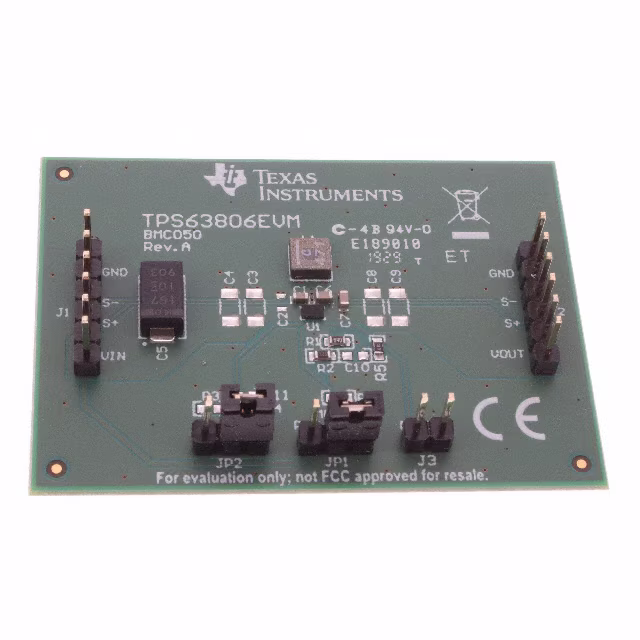

TPS63806EVMEVAL BOARD FOR TPS63806 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 1.3V ~ 5.5V | Buck-Boost | 2.1MHz | Board(s) | TPS63806 |
|

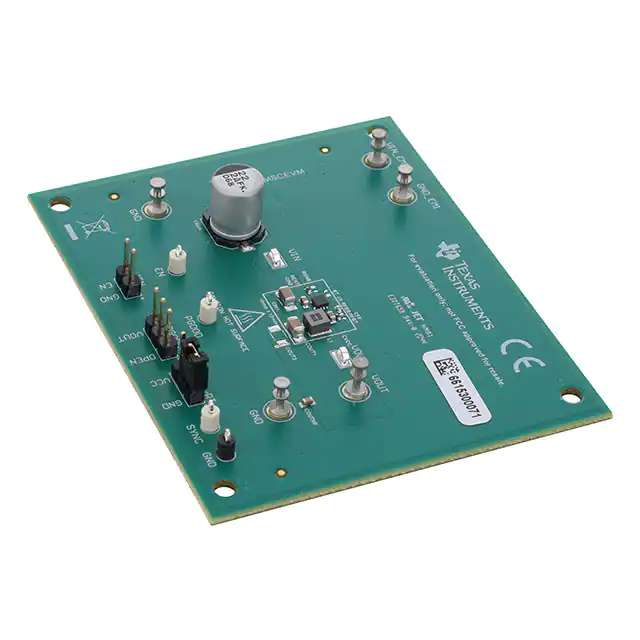

LMR36506MSCEVMEVAL BOARD FOR LMR36506Q1 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 5.5V ~ 65V | Buck | 2.2MHz | Board(s) | LMR36506-Q1 |
|

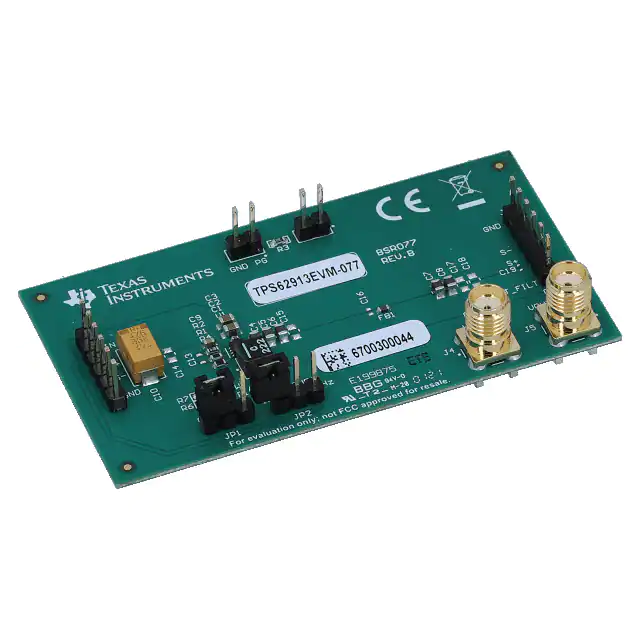

TPS62913EVM-077EVAL BOARD FOR TPS62913 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 17V | Buck | 1MHz | Board(s) | TPS62913 |
|

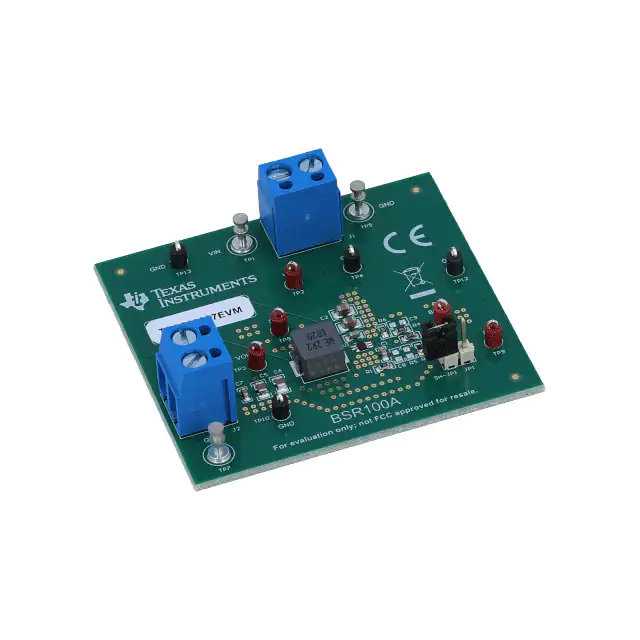

TPS562207EVMEVAL BOARD FOR TPS562207 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.3V ~ 17V | Buck | 590kHz | Board(s) | TPS562207 |
|

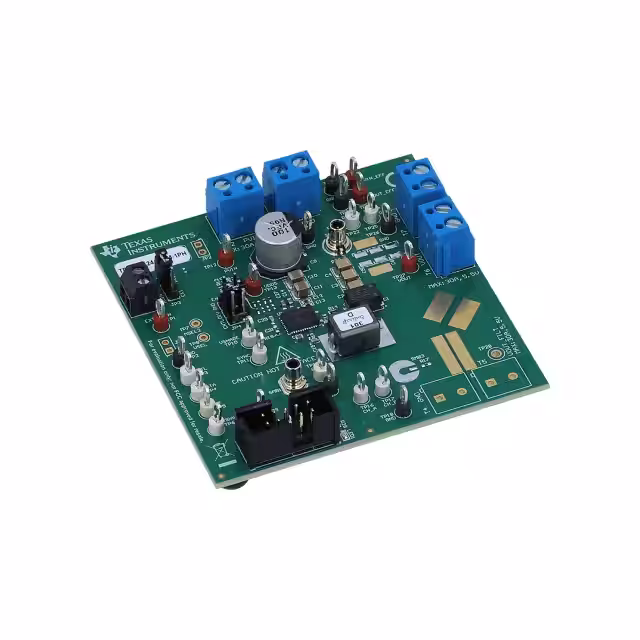

TPS546B24AEVM-1PHEVAL BOARD FOR TPS546B24A |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 2.95V ~ 18V | Buck | 650kHz | Board(s) | TPS546B24A |
|
TPSM41625EVMEVAL BOARD FOR TPSM41625 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7V | 15A | 4V ~ 16V | Buck | - | Board(s) | TPSM41625 |
|

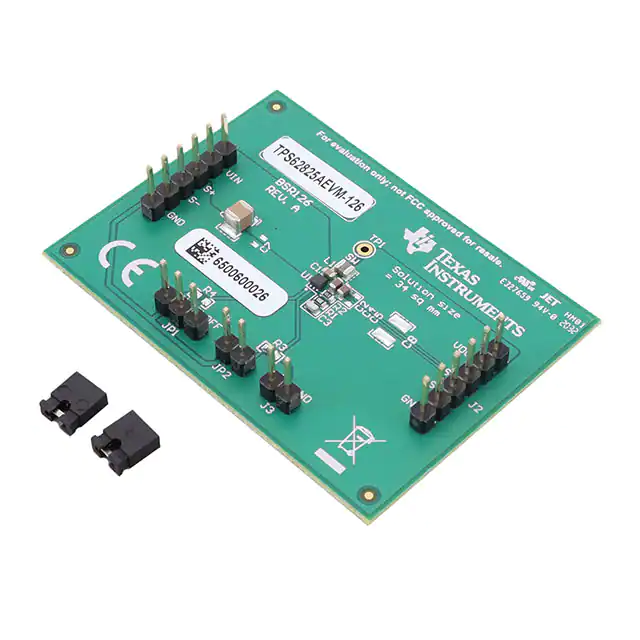

TPS62825AEVM-126EVAL BOARD FOR TPS62825A |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | TPS62825A |
|
TLV62595EVM-130EVAL BOARD FOR TLV62595 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.5V ~ 5.5V | Buck | 2.2MHz | Board(s) | TLV62595 |
|

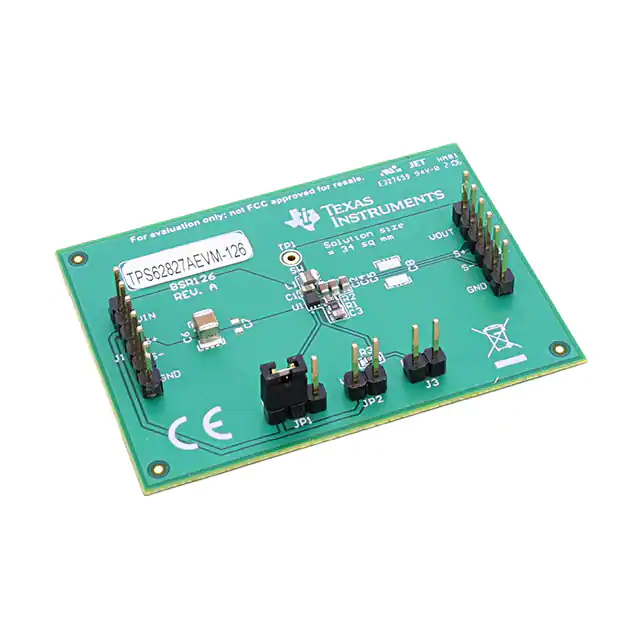

TPS62827AEVM-126EVAL BOARD FOR TPS62827A |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.5V ~ 5.5V | Buck | 2.2MHz | Board(s) | TPS62827A |
|

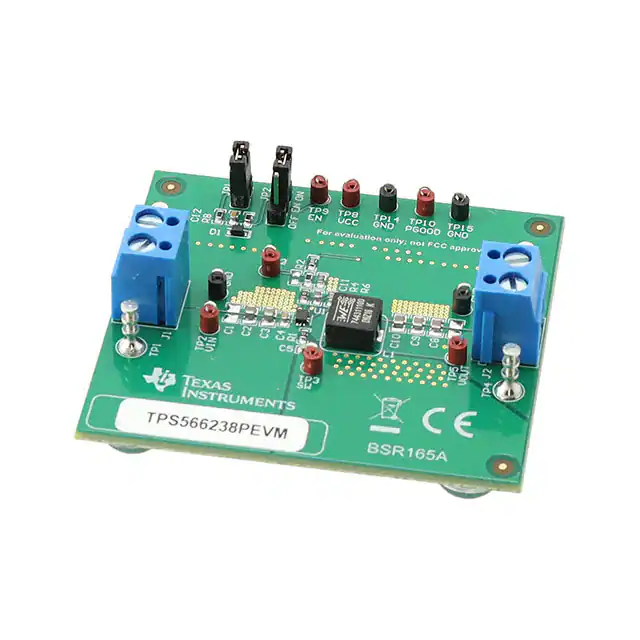

TPS566238PEVMEVAL BOARD FOR TPS566238P |
2 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 3V ~ 18V | Buck | 600kHz | Board(s) | TPS566238P |
|
TPSM63603SEVMEVAL BOARD FOR TPSM63603S |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 16V | 3A | 3V ~ 36V | Buck | - | Board(s) | TPSM63603S |
|
TPSM63606SEVMEVAL BOARD FOR TPSM63606S |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 4V ~ 36V | Buck | 1MHz | Board(s) | TPSM63606S |
|
LM62460RPHEVMEVAL BOARD FOR LM62460Q1 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | LM62460-Q1 |
