DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSM82866AA0HEVMEVAL BOARD FOR TPSM82866AA0H |
15 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPSM82866AA0H |
|
TPSM560R6EVMEVAL BOARD FOR TPSM560R6 |
11 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 mW | 1V ~ 6V | 600mA | 4.2V ~ 60V | Buck | - | Board(s) | TPSM560R6 |
|
TPS54JA20EVM-023EVAL BOARD FOR TPS54JA20 |
9 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 12A | 4V ~ 16V | Buck | 800kHz | Board(s) | TPS54JA20 |
|
TPS23752EVM-145EVAL BOARD FOR TPS23752 |
7 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 21.6V ~ 57V | Flyback | 250kHz | Board(s) | TPS23752 |
|
LM5010AEVAL/NOPBEVAL BOARD FOR LM5010A |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5010A |
|
TPS62841-2EVM123EVAL BOARD FOR TPS62841 |
6 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.55V | 750mA | 1.8V ~ 6.5V | Buck | 1.8MHz | Board(s) | TPS62841 |
|
TPS629203-Q1EVMEVAL BOARD FOR TPS629203Q1 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629203-Q1 |
|
LMR14203XMKDEMO/NOPBEVAL BOARD FOR LMR14203 |
5 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 300mA | 4.5V ~ 42V | Buck | 1.25MHz | Board(s) | LMR14203 |
|

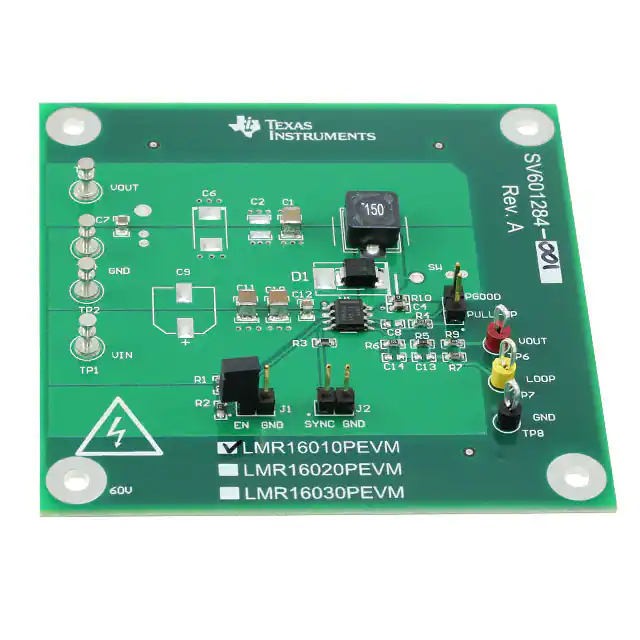

LMR16010PEVMEVAL BOARD FOR LMR16010 |
5 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7V ~ 60V | Buck | 700kHz | Board(s) | LMR16010 |
|
TPS64202EVM-023EVAL BOARD FOR TPS64202 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.3V ~ 6V | Buck | - | Board(s) | TPS64202 |
|
TPS40055EVM-001EVAL BOARD FOR TPS40055 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 15A | 10V ~ 14V | Buck | 300kHz | Board(s) | TPS40055 |
|
TPS62080EVM-641EVAL BOARD FOR TPS62080 |
4 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1.2A | 2.3V ~ 6V | Buck | - | Board(s) | TPS62080 |
|

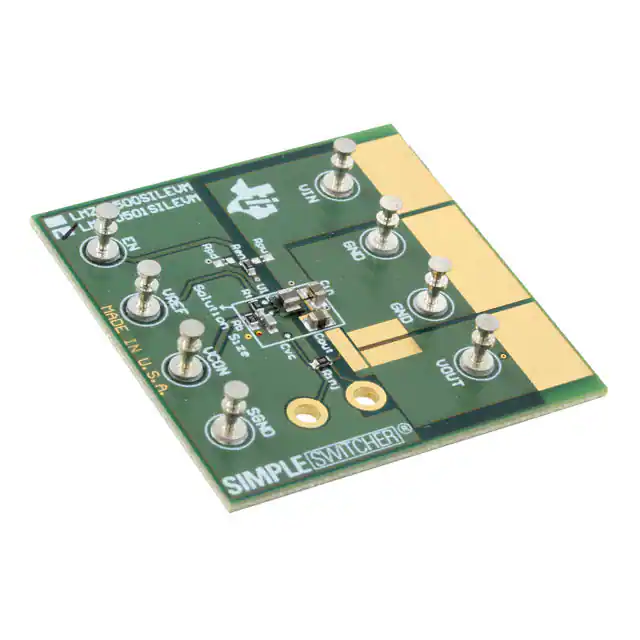

LMZ10501SILEVMEVAL BOARD FOR LMZ10501 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10501 |
|
LMR14006YEVMEVAL BOARD FOR LMR14006 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 6V ~ 18V | Buck | 2.1MHz | Board(s) | LMR14006 |
|
TPS563201EVM-715EVAL BOARD FOR TPS563201 |
4 |
|
Datasheet | D-CAP2™, SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 580kHz | Board(s) | TPS563201 |
|
LMR23630EVMEVAL BOARD FOR LMR23630 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 4V ~ 36V | Buck | 400kHz | Board(s) | LMR23630 |
|

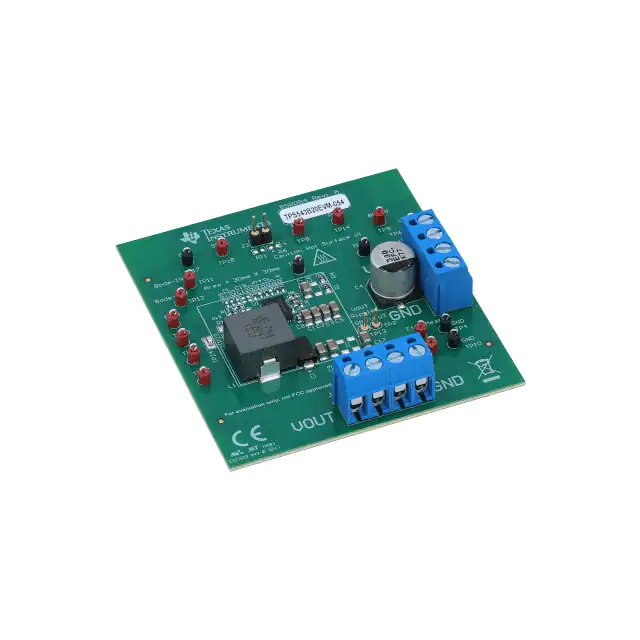

TPS543B20EVM-054EVAL BOARD FOR TPS543B20 |
4 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 25A | 5V ~ 19V | Buck | 500kHz | Board(s) | TPS543B20 |
|
TPS628601EVM-109EVAL BOARD FOR TPS628601 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 600mA | 1.8V ~ 5.5V | Buck | - | Board(s) | TPS628601 |
|

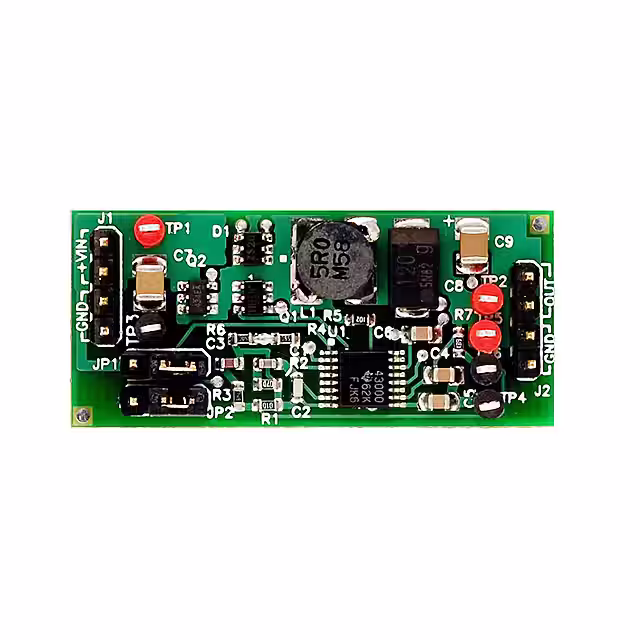

TPS43000EVM-001EVAL BOARD FOR TPS43000 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 8.5V | Buck | 1MHz | Board(s) | TPS43000 |
|

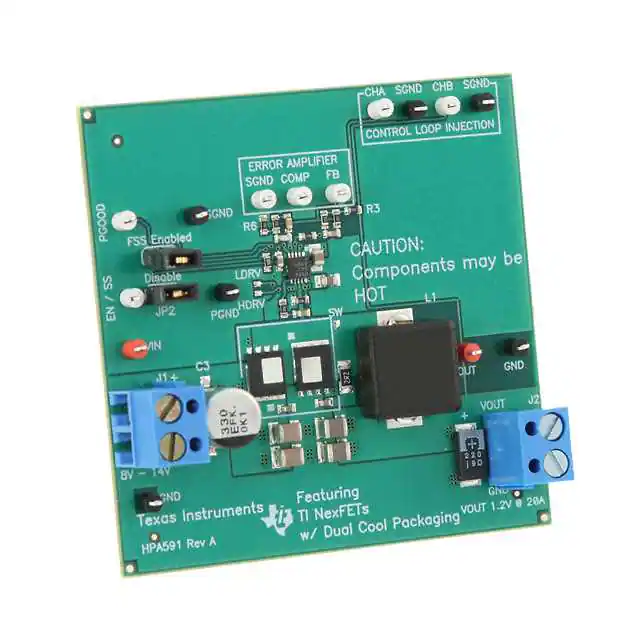

CSD163CEVM-591EVAL BOARD FOR TPS40304 |
3 |
|
Datasheet | NexFET™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 14V | Buck | 600kHz | Board(s) | TPS40304 |
