DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM00433EVAL BOARD FOR MCP16301 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 6V ~ 30V | Buck | - | Board(s) | MCP16301 |
|
SCP-LT3483-EVALZEVAL BOARD FOR LT3483 |
1 |
|
Datasheet | SCP | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | -15V | 40mA | 2.7V ~ 12V | Inverting | - | Board(s) | LT3483 |
|
EVAL-ADUM5020EBZEVAL BOARD FOR ADUM5020 |
1 |
|
Datasheet | IsoPower®, iCoupler® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V or 5V | 100mA | 5V | - | - | Board(s) | ADuM5020 |
|
EVAL-ADUM5028EBZEVAL BOARD FOR ADUM5028 |
1 |
|
Datasheet | IsoPower®, iCoupler® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V or 5V | 60mA | 5V | - | - | Board(s) | ADuM5028 |
|
SCP-LT8362-I-EVALZEVAL BOARD FOR LT8362 |
1 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | -15V | 1A | 4.5V ~ 42V | Inverting | 2MHz | Board(s) | LT8362 |
|
SCP-LT8410-EVALZEVAL BOARD FOR LT8410 |
1 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 1.6mA | 3V ~ 10V | Boost | - | Board(s) | LT8410 |
|
ADP2301-EVALZEVAL BOARD FOR ADP2301 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 20V | Buck | 1.4MHz | Board(s) | ADP2301 |
|
DC3051AEVAL BOARD FOR LTM4705 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 2.5V | 5A, 5A | 6V ~ 20V | Buck | 1MHz | Board(s) | LTM4705 |
|
TPS61391EVM-058EVAL BOARD FOR TPS61391 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 20V ~ 85V | - | 2.5V ~ 5.5V | Boost | 700kHz | Board(s) | TPS61391 |
|
TPS61378Q1EVM-060EVAL BOARD FOR TPS61378Q1 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 9V | 1.7A | 3.3V ~ 6.5V | Boost | 2.2MHz | Board(s) | TPS61378-Q1 |
|

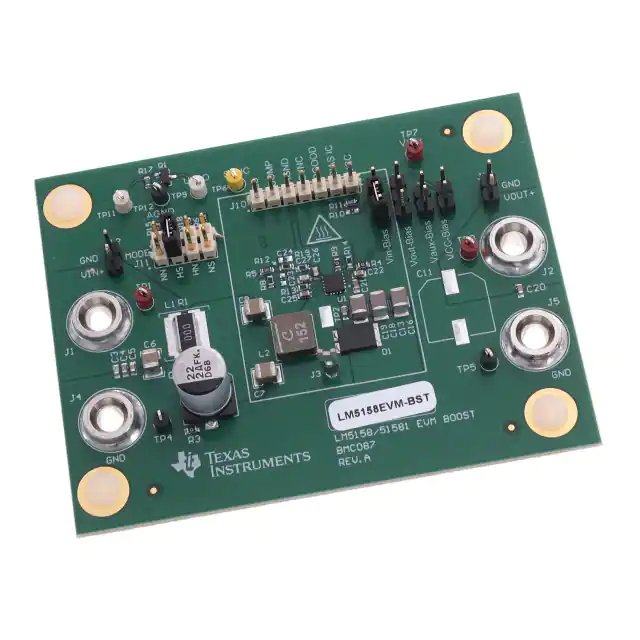

LM5158EVM-BSTEVAL BOARD FOR LM5158 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.2A | 3V ~ 9V | Boost | 2.1MHz | Board(s) | LM5158 |
|

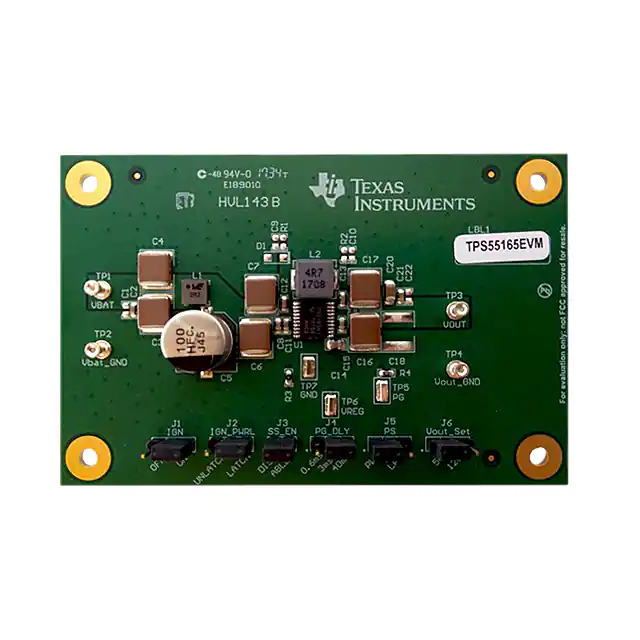

TPS55165Q1-EVMEVAL BOARD FOR TPS55165Q1 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | - | Buck-Boost | 2MHz | Board(s) | TPS55165-Q1 |
|

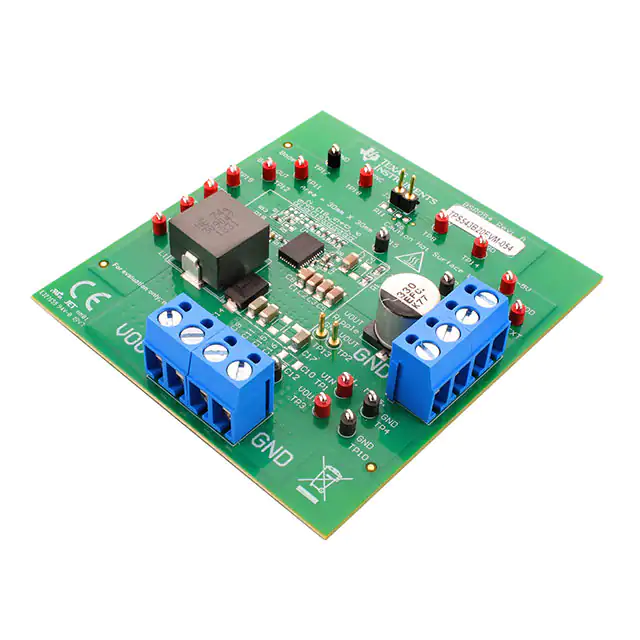

TPS61372EVM-033EVAL BOARD FOR TPS61372 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 600mA | 2.5V ~ 5V | Boost | - | Board(s) | TPS61372 |
|

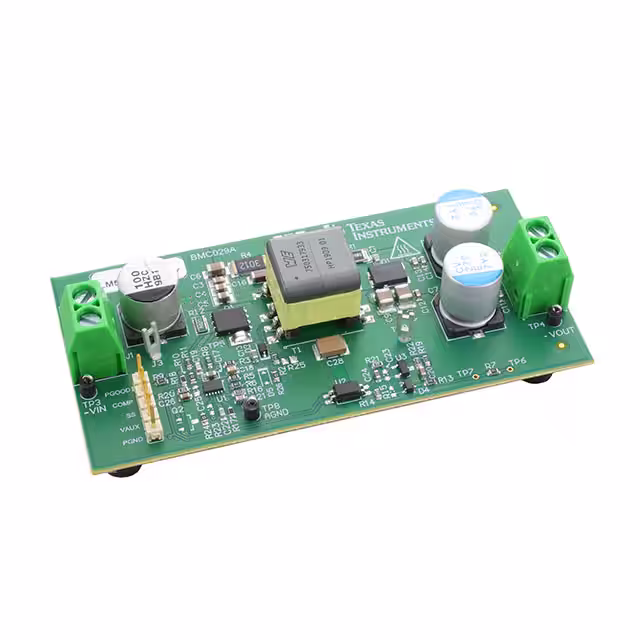

LM5155EVM-FLYEVAL BOARD FOR LM5155 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | LM5155 |
|
ADM00821EVAL BOARD FOR MIC4684 |
6 |
|
Datasheet | SuperSwitcher™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 3.3V or 5V | 2A | 4V ~ 30V | Buck | 200kHz | Board(s) | MIC4684 |
|
MCP1650EVEVAL BOARD FOR MCP1650 MCP1651 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 400mA | - | Boost | 750kHz | Board(s) | MCP1650, MCP1651, MCP1652, MCP1653 |
|
ADP2302-EVALZEVAL BOARD FOR ADP2302 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 20V | Buck | 700kHz | Board(s) | ADP2302 |
|
DC2458AEVAL BOARD FOR LT8608 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8608 |
|
ADP2441-EVALZEVAL BOARD FOR ADP2441 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 36V | Buck | 500kHz | Board(s) | ADP2441 |
|
ADP1614-650-EVALZEVAL BOARD FOR ADP1614 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 4A | 2.5V ~ 5.5V | Boost | 650kHz | Board(s) | ADP1614 |
