DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

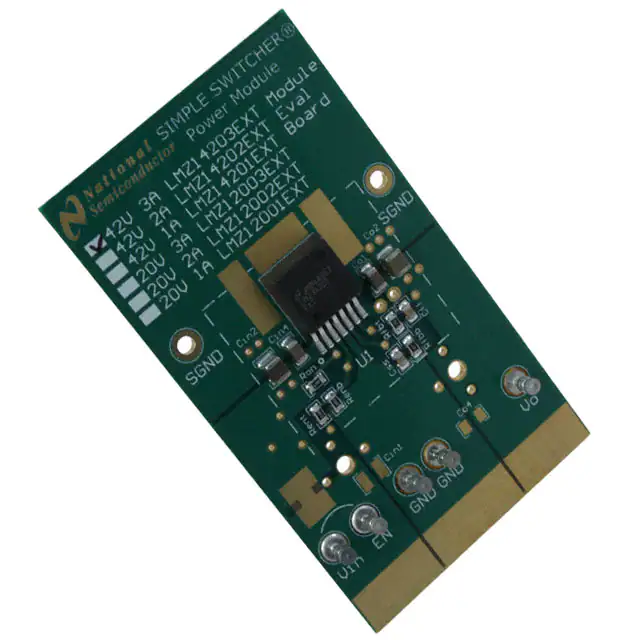

LMZ14203EXTEVAL/NOPBEVAL BOARD FOR LMZ14203EXT |
3 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 42V | Buck | - | Board(s) | LMZ14203EXT |
|

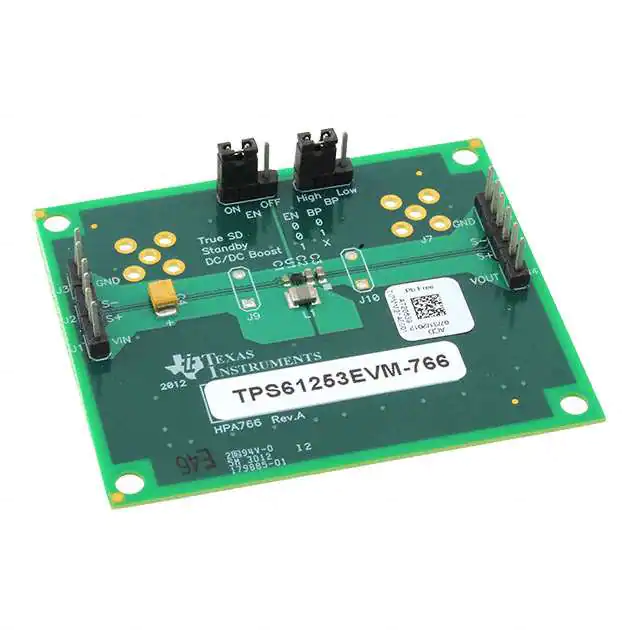

TPS61253EVM-766EVAL BOARD FOR TPS61253 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | - | 2.65V ~ 4.85V | Boost | 3.5MHz | Board(s) | TPS61253 |
|
TPS65273VEVMEVAL BOARD FOR TPS65273V |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.1V | 3.5A, 3.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65273V |
|

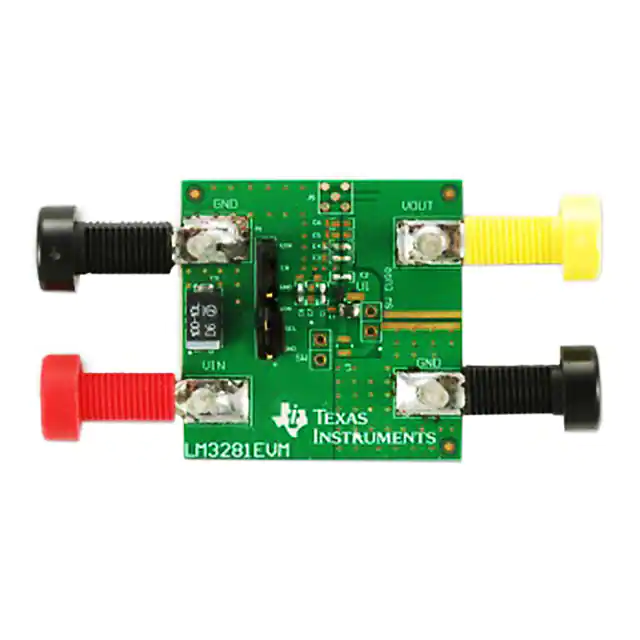

LM3281EVMEVAL BOARD FOR LM3281 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 5.5V | Buck | 6MHz | Board(s) | LM3281 |
|

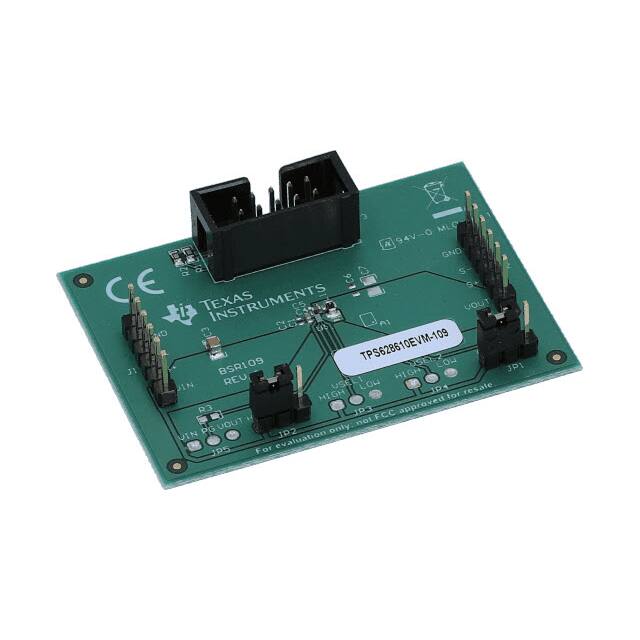

TPS628610EVM-109EVAL BOARD FOR TPS628610 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 1A | 1.8V ~ 5.5V | Buck | - | Board(s) | TPS628610 |
|
TPS62824AEVM-126EVAL BOARD FOR TPS62824A |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | TPS62824A |
|

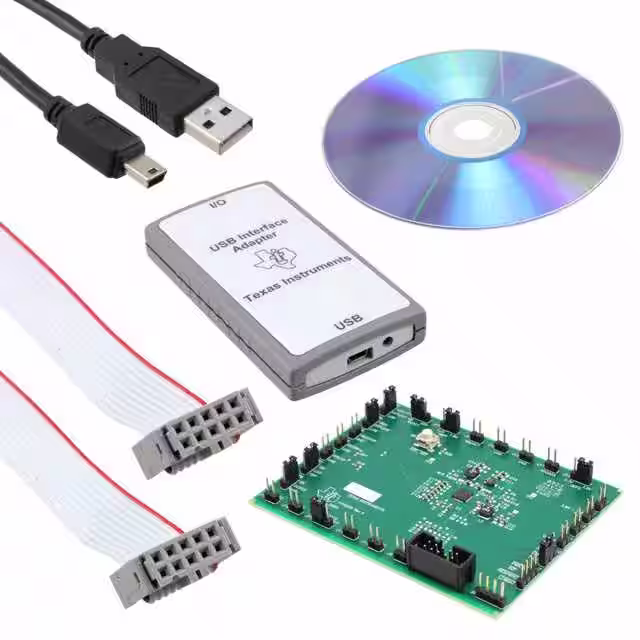

TPS65023EVM-205EVAL BOARD FOR TPS65023 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.1V, 1.3V, 1.55V, 2.5V, 3V, 3.3V | 1.5A, 1.2A, 800mA, 200mA, 200mA, 20mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS65023 |
|
LM21215EVM/NOPBEVAL BOARD FOR LM21215 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 1.2V | 15A | 2.95V ~ 5.5V | Buck | 500kHz | Board(s) | LM21215 |
|

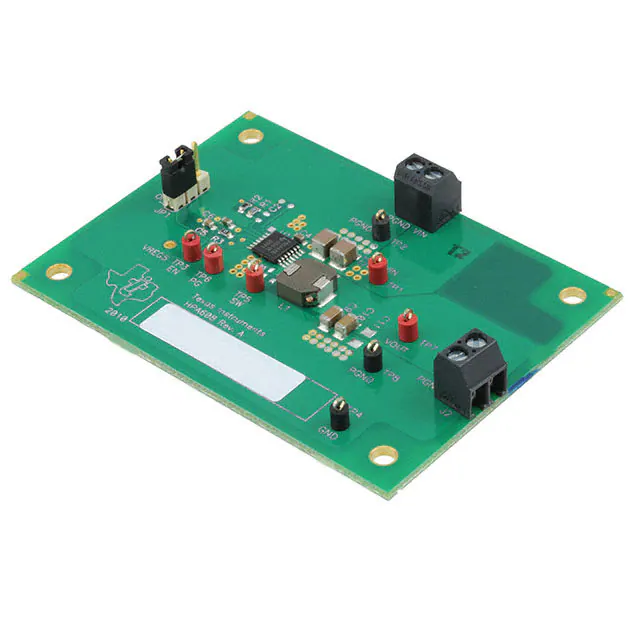

TPS54426EVM-608EVAL BOARD FOR TPS54426 |
2 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54426 |
|

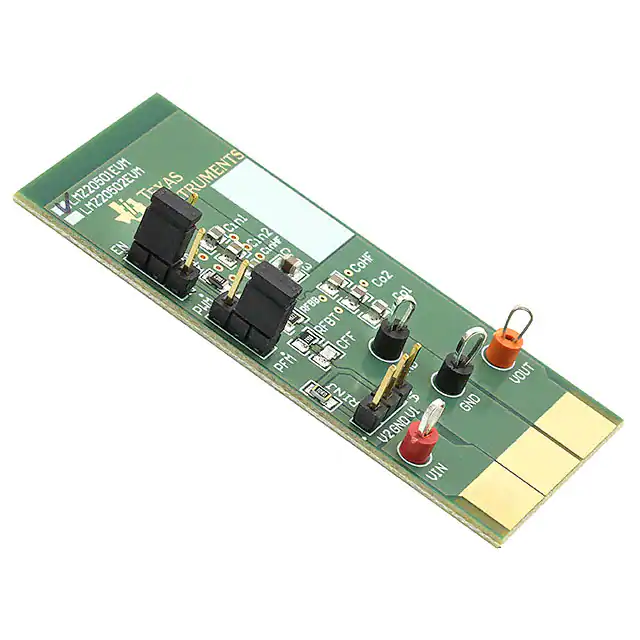

LMZ20501EVMEVAL BOARD FOR LMZ20501 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LMZ20501 |
|
LMR14050SEVMEVAL BOARD FOR LMR14050S |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 5A | 7V ~ 36V | Buck | 400kHz | Board(s) | LMR14050S |
|
LMZM23600V5EVMEVAL BOARD FOR LMZM23600 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4V ~ 36V | Buck | 750kHz | Board(s) | LMZM23600 |
|
ADP2504CPZ-REDYKITEVAL BOARD FOR ADP2504 |
1 |
|
Datasheet | RedyKit™ | Box | Active | DC/DC, Step Up or Down | - | - | - | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s), Accessories | ADP2504 |
|
ARD00698EVAL BOARD FOR MCP1663 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 32V | - | 2.4V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1663 |
|
STEVAL-ISA203V1EVAL BOARD FOR PM8804 SRK1000 |
17 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | 60 W | 12V | 5A | 42V ~ 56V | Flyback | 200kHz | Board(s) | PM8804, SRK1000 |
|
LM2594ASCBCKGEVBEVAL BOARD FOR LM2594 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2594 |
|
MC34063SMDBGEVBEVAL BOARD FOR MC34063 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 50mA | 3.3V | Boost | 100kHz | Board(s) | MC34063 |
|
STEVAL-VP318L2FEVAL BOARD FOR VIPer318L |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 18 W | 15V | 1.2A | 90 ~ 265VAC | Flyback | - | Board(s) | VIPer318L |
|
ADP5054-EVALZEVAL BOARD FOR ADP5054 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 3.3V | 6A, 6A, 2.5A, 2.5A | 4.5V ~ 15.5V | Buck | 600kHz | Board(s) | ADP5054 |
|
ADP5090-1-EVALZEVAL BOARD FOR ADP5090 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.5V | - | 0.38V ~ 3.3V | Boost | - | Board(s) | ADP5090 |
