DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM25010EVALEVAL BOARD FOR LM25010 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 42V | Buck | 200kHz | Board(s) | LM25010 |
|

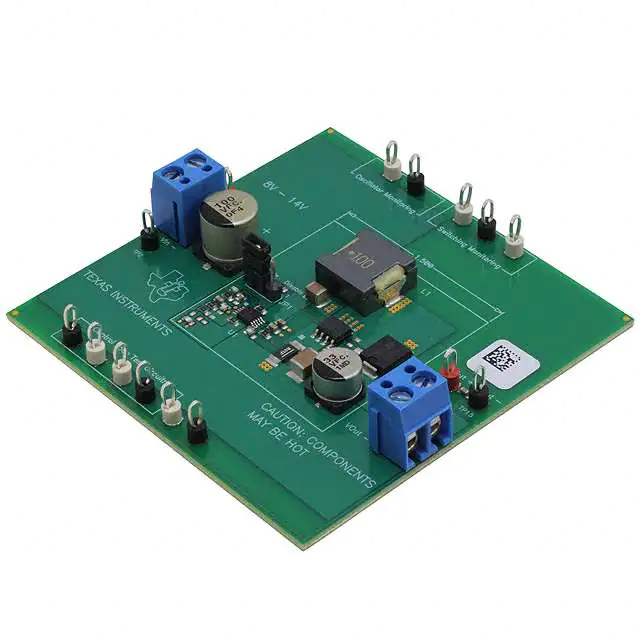

TPS40210EVMEVAL BOARD FOR TPS40210 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 2A | 8V ~ 14V | Boost | 600kHz | Board(s) | TPS40210 |
|

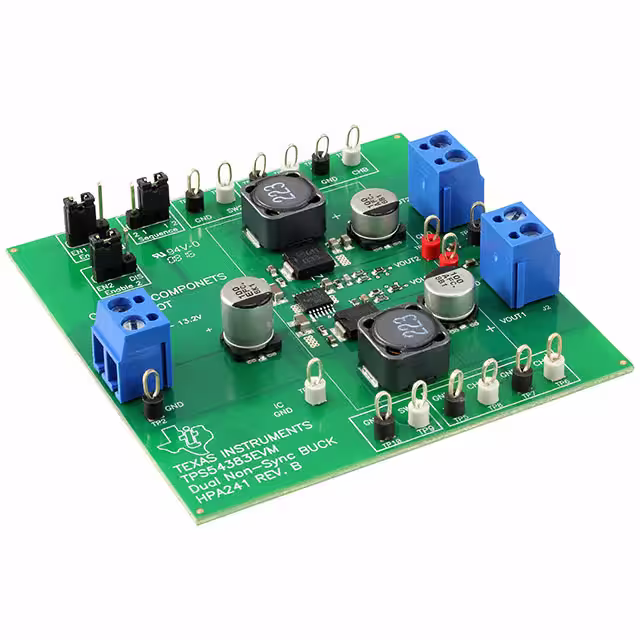

TPS54383EVMEVAL BOARD FOR TPS54383 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 9.6V ~ 13.2V | Buck | 310kHz | Board(s) | TPS54383 |
|
TPS61170EVM-280EVAL BOARD FOR TPS61170 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 550mA | 9V ~ 18V | Boost | 1.2MHz | Board(s) | TPS61170 |
|

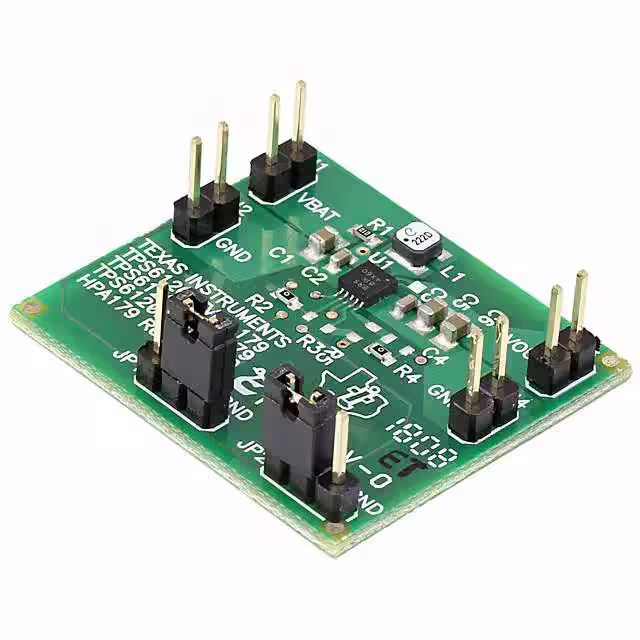

TPS61201EVM-179EVAL BOARD FOR TPS61201 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 0.3V ~ 5.5V | Boost | - | Board(s) | TPS61201 |
|
LM22677EVAL/NOPBEVAL BOARD FOR LM22677 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22677 |
|
LM2735YMFEVALEVAL BOARD FOR LM2735 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 520kHz | Board(s) | LM2735 |
|
TPS5430EVM-342EVAL BOARD FOR TPS5430 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 2.25A | 10.8V ~ 19.8V | Inverting | 500kHz | Board(s) | TPS5430 |
.JPG)
|
TPS23754EVM-383EVAL BOARD FOR TPS23754 |
2 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 12V | 2.5A | 30V ~ 57V | Buck | 250kHz | Board(s) | TPS23754 |
|
LM26420XMHEVAL/NOPBEVAL BOARD FOR LM26420 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | LM26420 |
|
TPS54140EVM-429EVAL BOARD FOR TPS54140 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 25V ~ 42V | Buck | 500kHz | Board(s) | TPS54140 |
|
TPS54060EVM-590EVAL BOARD FOR TPS54060 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±18V | 100mA | 18V ~ 30V | Buck | 300kHz | Board(s) | TPS54060 |
|
TPS54260EVM-597EVAL BOARD FOR TPS54260 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 10.8V ~ 13.2V | Buck | 300kHz | Board(s) | TPS54260 |
|

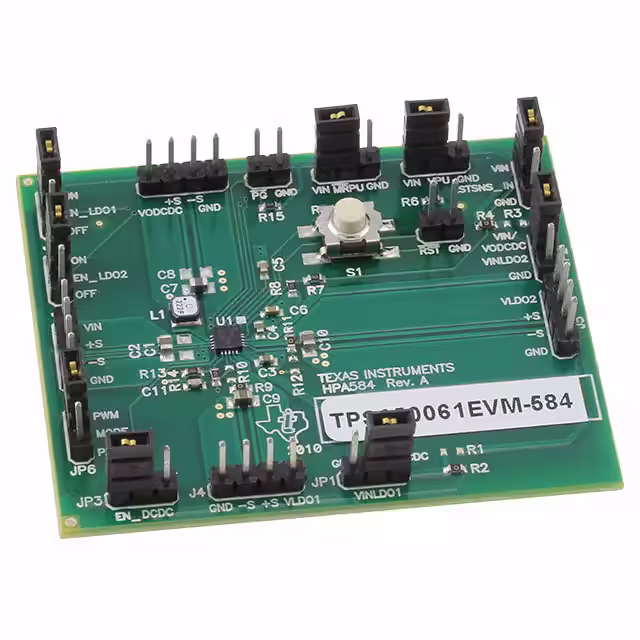

TPS650061EVM-584EVAL BOARD FOR TPS650061 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A, 300mA, 300mA | 1.6V ~ 6V | Buck | 2.25MHz | Board(s) | TPS650061 |
|
LM26480SQ-AAEV/NOPBEVAL BOARD FOR LM26480 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V, 3.3V | 1.5A, 1.5A, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LM26480 |
|
LM3102EVAL/NOPBEVAL BOARD FOR LM3102 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3102 |
|

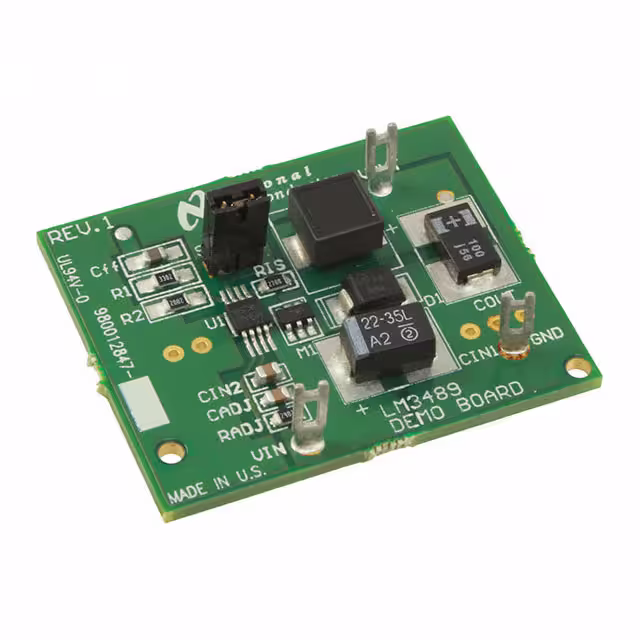

LM3489EVAL/NOPBEVAL BOARD FOR LM3489 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 7V ~ 28V | Buck | - | Board(s) | LM3489 |
|

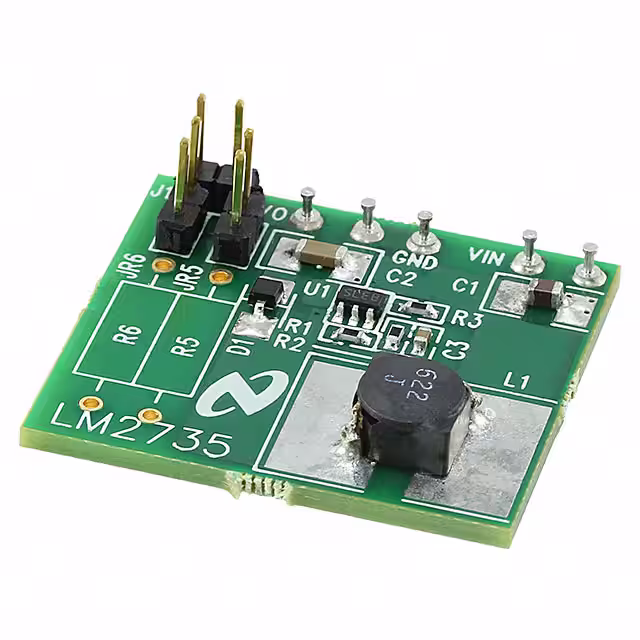

LM2735XMFEVAL/NOPBEVAL BOARD FOR LM2735 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|

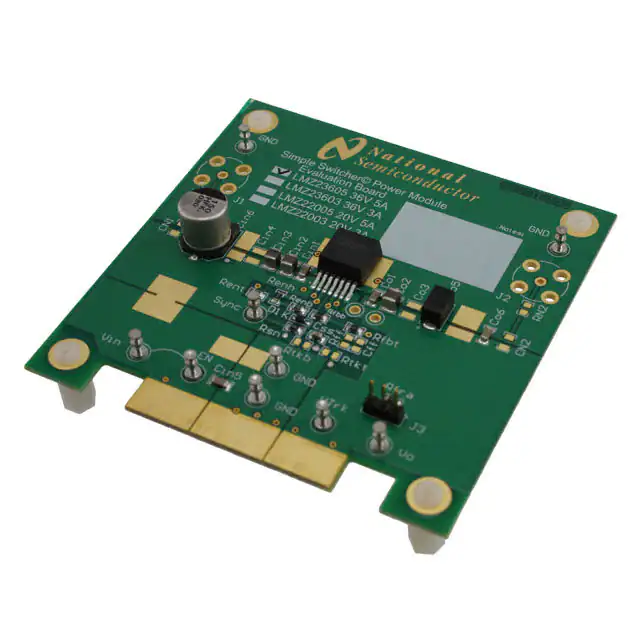

LMZ23605EVAL/NOPBEVAL BOARD FOR LMZ23605 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 36V | Buck | 812kHz | Board(s) | LMZ23605 |
|

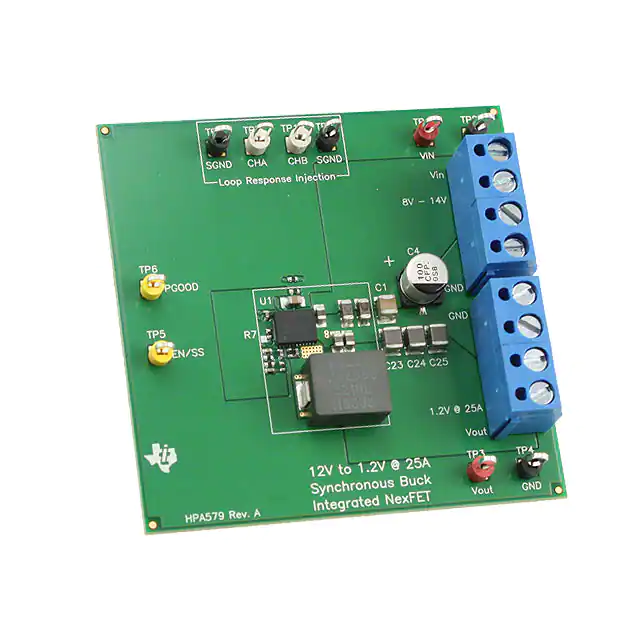

TPS56221EVM-579EVAL BOARD FOR TPS56221 |
2 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS56221 |
