Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DEMOTS4956JEVAL BOARD FOR TS4956 |
4 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) with Mono and Stereo Headphones | 1W x 1 @ 8Ohm; 43mW x 2 @ 32Ohm | 2.7V ~ 5.5V | TS4956 | Board(s) |
|
IRAUDAMP18EVAL BOARD FOR IR4312 |
2 |
|
Datasheet | PowIRaudio™ | Bulk | Not For New Designs | Class D | 2-Channel (Stereo) | 35W x 2 @ 4Ohm | 18V ~ 31V | IR4312 | Board(s) |
|
LM4995TMBDEVAL BOARD FOR LM4995 |
4 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.4V ~ 5.5V | LM4995 | Board(s) |
|

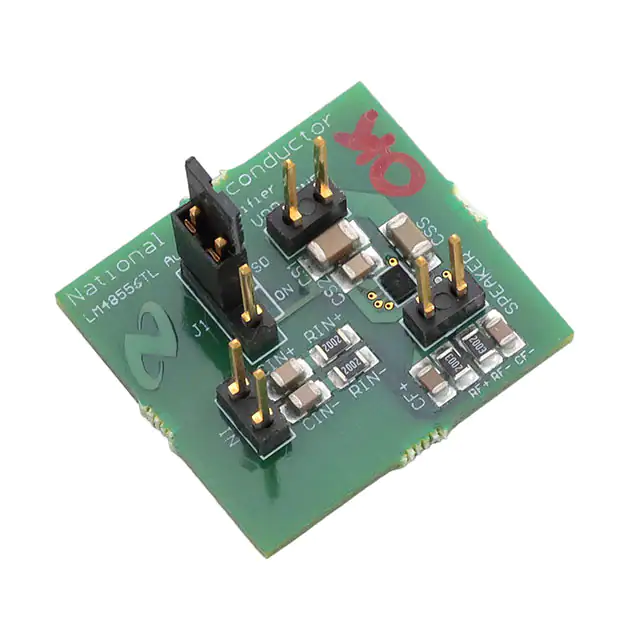

LM48556TLBDEVAL BOARD FOR LM48556 |
3 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | - | 2.7V ~ 4.5V | LM48556 | Board(s) |
|
IRAUDAMP17EVAL BOARD FOR IR4302 |
2 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 40V ~ 52V | IR4302 | Board(s) |
|
DEMOBASSAMP60W1270TOBO1EVAL BOARD FOR MA12070 |
2 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | - | 4V ~ 26V | MA12070 | Board(s) |
|
TPA3107D2EVMEVAL BOARD FOR TPA3107D2 |
5 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 15W x 2 @ 6Ohm | 10V ~ 26V | TPA3107D2 | Board(s) |
|
IRAUDAMP19EVAL BOARD FOR IR4301 |
3 |
|
Datasheet | PowIRaudio™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 41V ~ 52V | IR4301 | Board(s) |
|

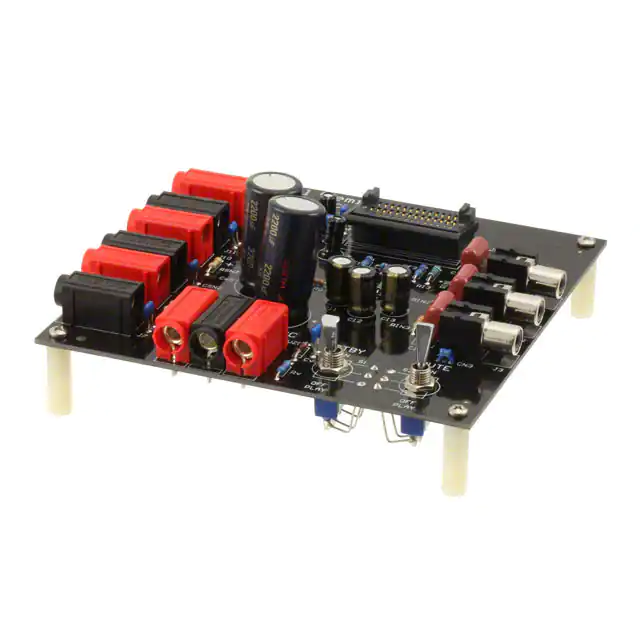

LM4734TABDEVAL BOARD FOR LM4734 |
2 |
|
Datasheet | - | Box | Obsolete | Class AB | 3-Channel | 20W x 3 @ 8Ohm | 20V ~ 60V, ±10V ~ 30V | LM4734 | Board(s) |
|
|
EVALAUDIOMA12070PBTOBO1EVAL BOARD FOR MA12070P |
2 |
|
Datasheet | MERUS™ | Bulk | Not For New Designs | Class D | 2-Channel (Stereo) | 80W x 2 @ 4Ohm | 5.5V ~ 26V | MA12070P | Board(s) |
|
LM4985TMEVALEVAL BOARD FOR LM4985 |
3 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 135mW x 2 @ 16Ohm | 2.3V ~ 5.5V | LM4985 | Board(s) |
|

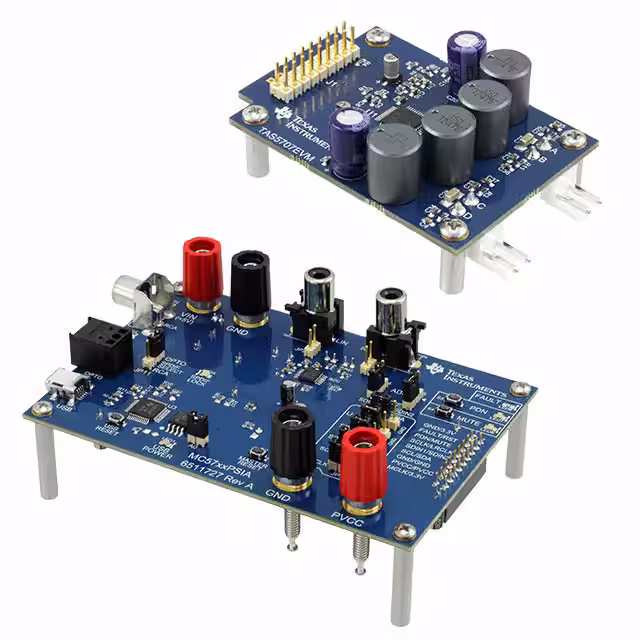

TAS5707EVMEVAL BOARD FOR TAS5707 |
2 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 20.6W x 2 @ 8Ohm | 8V ~ 24V | TAS5707 | Board(s) |
|
TPA2051D3YFFEVMEVAL BOARD FOR TPA2051D3 |
2 |
|
- |
DirectPath™, SpeakerGuard™ | Box | Obsolete | Class D | 1-Channel (Mono) with Stereo Headphones | 2.9W x 1 @ 4Ohm; 25mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA2051D3 | Board(s) |
|
REFMA5332BTLSPSTOBO1EVAL BOARD FOR MA5332M |
2 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 1-Channel (Mono) | 200W x 1 @ 4Ohm | 40V | MA5332M | Board(s) |
|

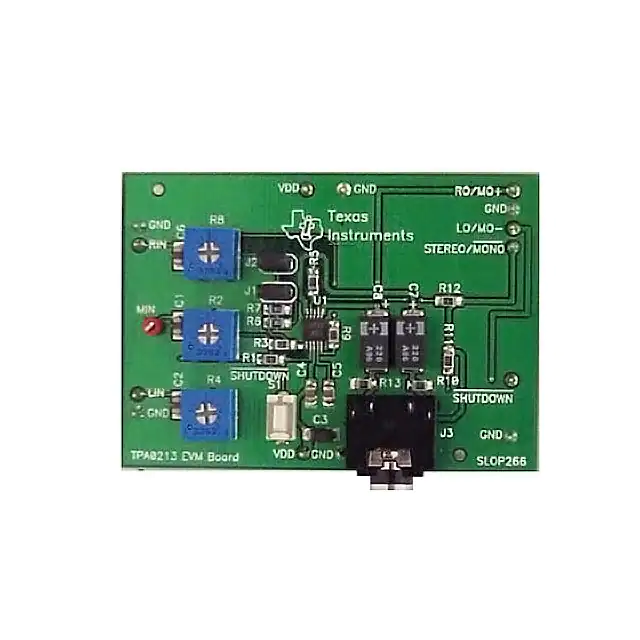

TPA0213EVMEVAL BOARD FOR TPA0213 |
2 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 2W x 1 @ 4Ohm; 90mW x 2 @ 32Ohm | 2.5V ~ 5.5V | TPA0213 | Board(s) |
|
IRAUDAMP23EVAL BOARD FOR IRS2452AM |
6 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 600W x 2 @ 20Ohm | ±80V ~ 160V | IRS2452AM | Board(s) |
|

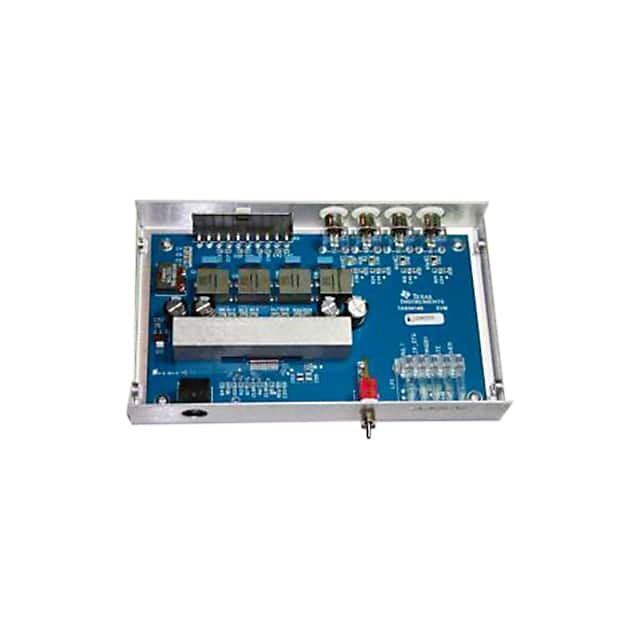

TAS5514BQ1DKDEVMEVAL BOARD FOR TAS5514B |
12 |
|
Datasheet | - | Box | Obsolete | Class D | 4-Channel (Quad) | 150W x 2 @ 2Ohm; 79W x 4 @ 4Ohm | 6V ~ 24V | TAS5514B | Board(s) |
|
IRAUDAMP16EVAL BOARD FOR IR4302 |
2 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 70W x 2 @ 4Ohm | ±13V ~ 23V | IR4302 | Board(s) |
|
|
EVALAUDIOMA2304PNSBTOBO1EVAL BOARD FOR MA2304PNS |
2 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 37W x 2 @ 4Ohm | 10V ~ 20V | MA2304PNS | Board(s) |
|

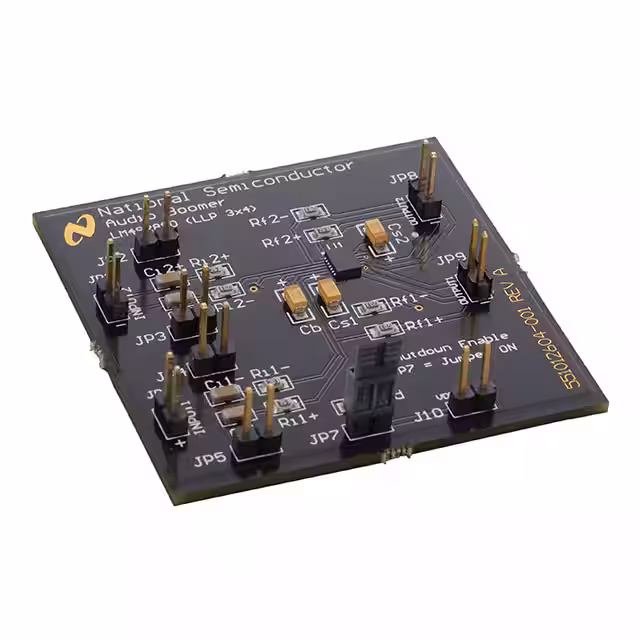

LM4928SDBDEVAL BOARD FOR LM4928 |
5 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 2.2W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4928 | Board(s) |
