Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

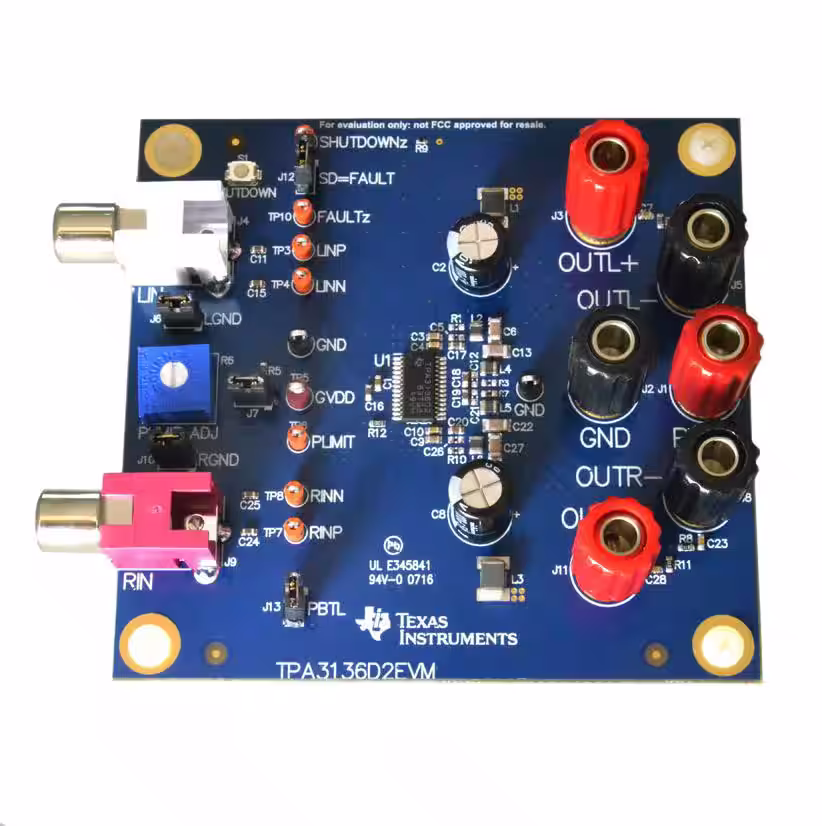

TPA3136D2EVMEVAL BOARD FOR TPA3136D2 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 4.5V ~ 14.4V | TPA3136D2 | Board(s) |
|

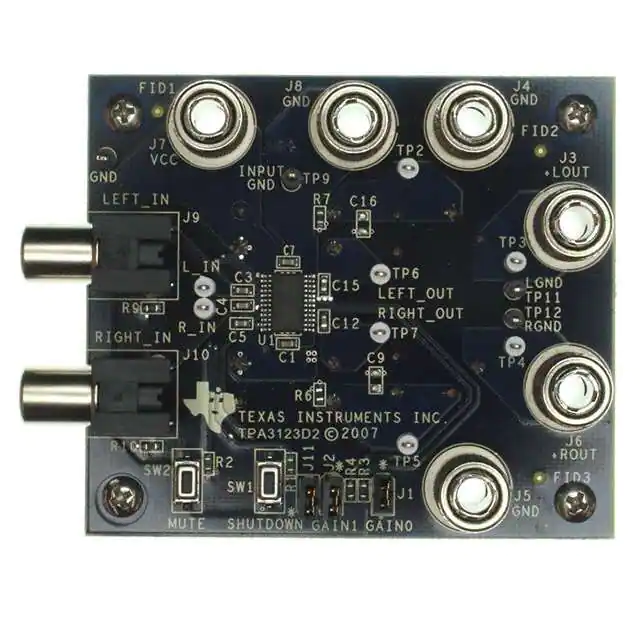

TPA3123D2EVMEVAL BOARD FOR TPA3123D2 |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 25W x 2 @ 4Ohm | 10V ~ 30V | TPA3123D2 | Board(s) |
|
EVAL-FDA903S-SAEVAL BOARD FOR FDA903S |
0 |
|
Datasheet | - | Bulk | Active | Class D | - | 10W x 2 @ 4Ohm | 3.3V ~ 18V | FDA903S | Board(s) |
|
PAM8965-EVMEVAL BOARD FOR PAM8965 |
0 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 12W x 2 @ 4Ohm | 2.8V ~ 8.5V | PAM8965 | Board(s) |
|
TPA3131D2EVMEVAL BOARD FOR TPA3131D2 |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 7.3W x 2 @ 4Ohm, 4W x 2 @ 8Ohm | 4.5V ~ 26V | TPA3131D2 | Board(s) |
|

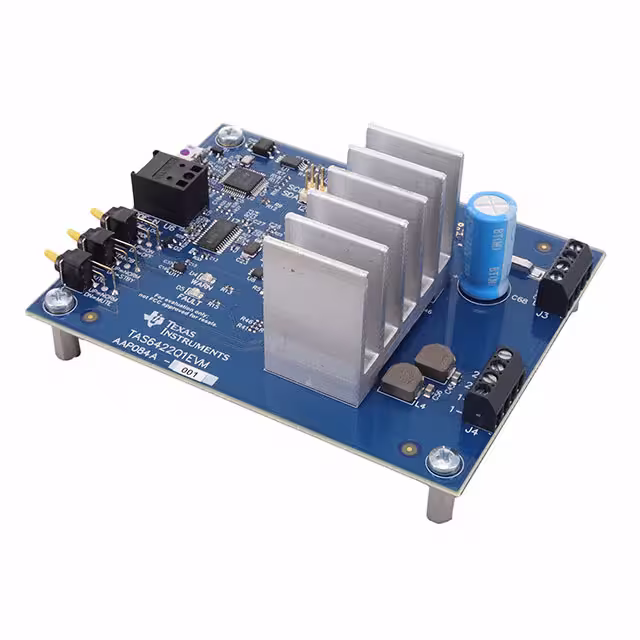

TAS6422Q1EVMEVAL BOARD FOR TAS6422-Q1 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 70W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS6422-Q1 | Board(s) |
|

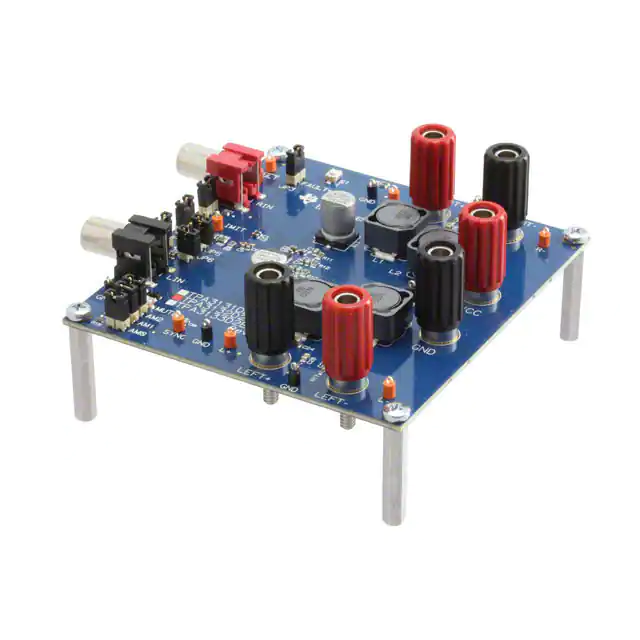

TPA3132D2EVMEVAL BOARD FOR TPA3132D2 |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 42W x 2 @ 4Ohm, 25W x 2 @ 8Ohm | 4.5V ~ 26V | TPA3132D2 | Board(s) |
|

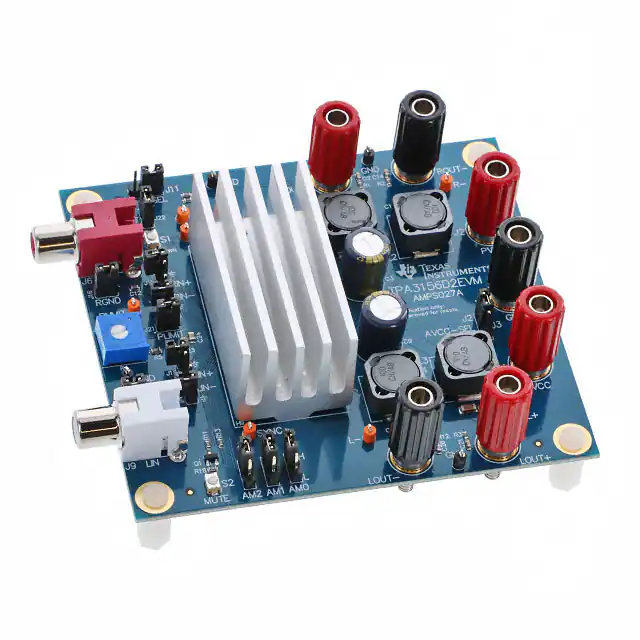

TPA3156D2EVMEVAL BOARD FOR TPA3156D2 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 70W x 2 @ 4Ohm | 4.5V ~ 26V | TPA3156D2 | Board(s) |
|

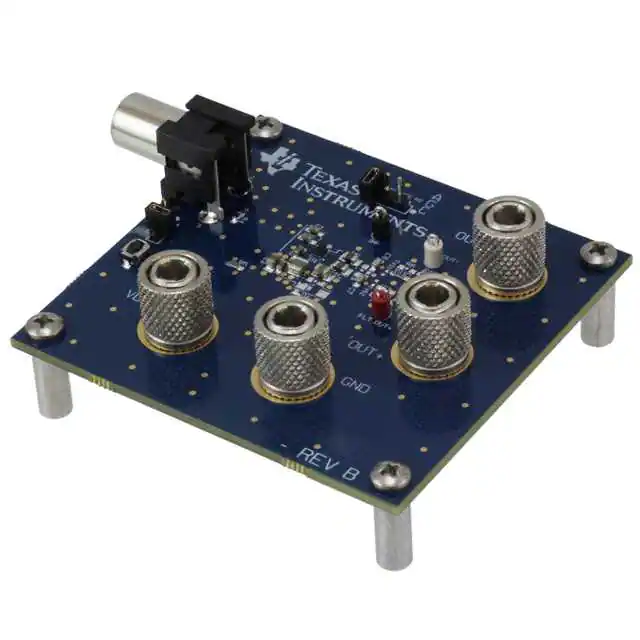

TPA2025D1EVMEVAL BOARD FOR TPA2025 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 2W x 1 @ 8Ohm | 2.3V ~ 5.2V | TPA2025 | Board(s) |
|

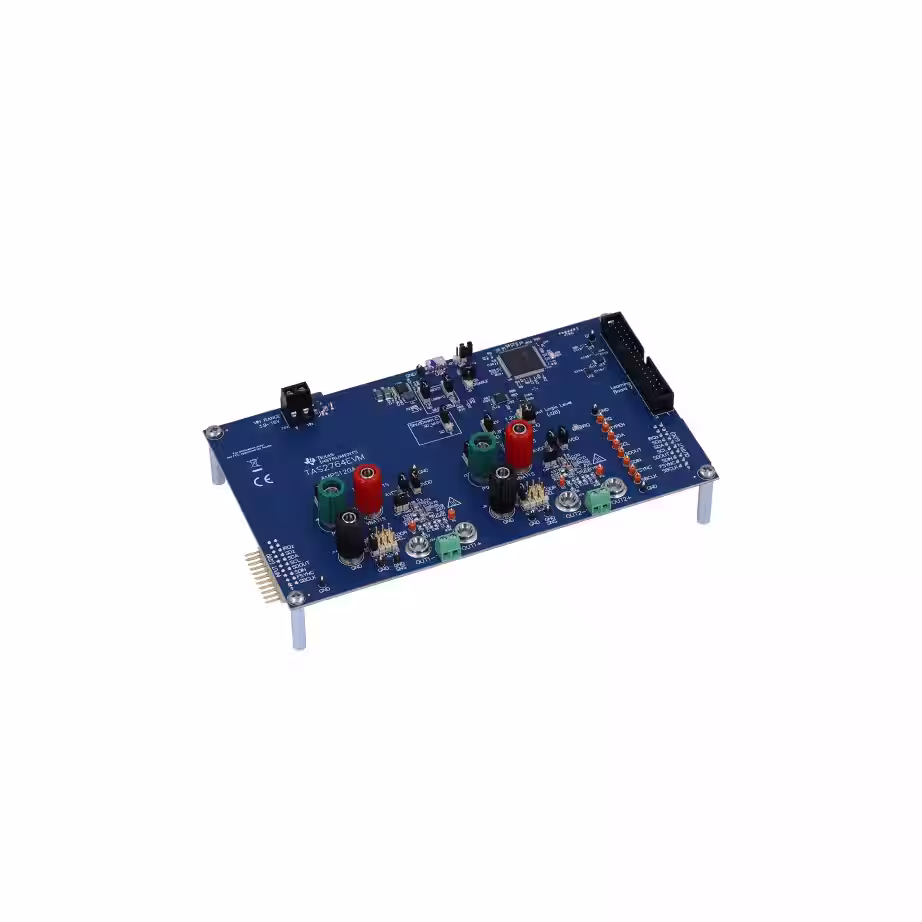

TAS2764EVMEVAL BOARD FOR TAS2764 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 13W x 2 @ 4Ohm | 1.65V ~ 1.95V | TAS2764 | Board(s) |
|

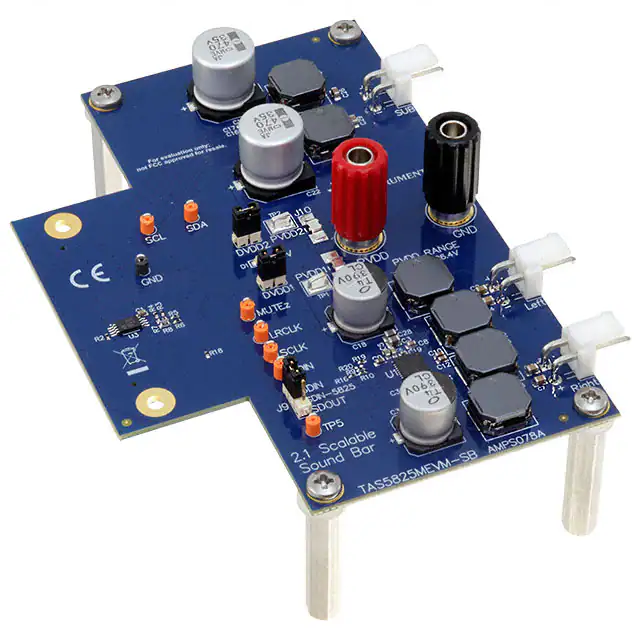

TAS5825MEVM-SBEVAL BOARD TAS5720M TAS5825M |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) with Subwoofer | - | 4.5V ~ 26.4V | TAS5720M, TAS5825M | Board(s) |
|

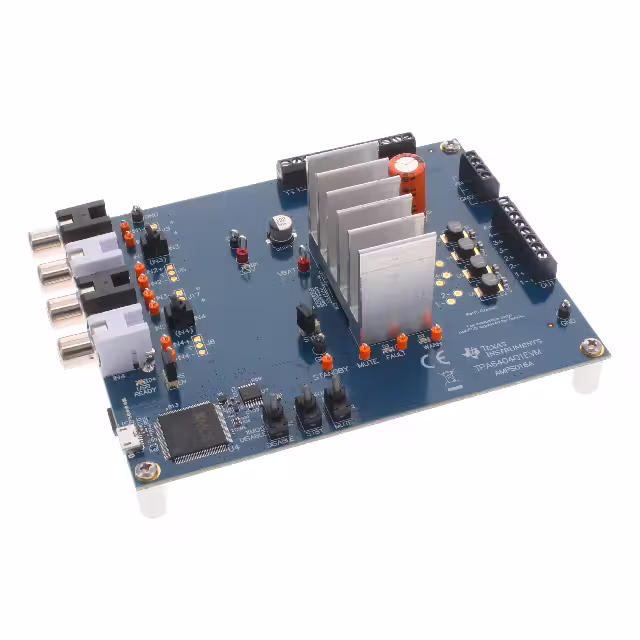

TPA6404Q1EVMEVAL BOARD FOR TPA6404Q1 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 4-Channel (Quad) | 50W x 2 @ 2Ohm | 4.5V ~ 18V | TPA6404Q1 | Board(s) |
|

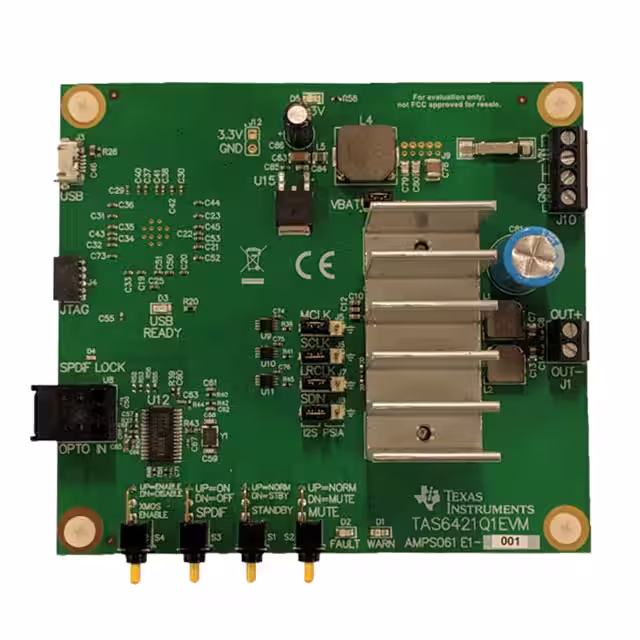

TAS6421Q1EVMEVAL BOARD FOR TAS6421-Q1 |
1 |
|
Datasheet | PurePath™ | Box | Active | Class D | 1-Channel (Mono) | 45W x 1 @ 2Ohm | 4.5V ~ 26.4V | TAS6421-Q1 | Board(s) |
|

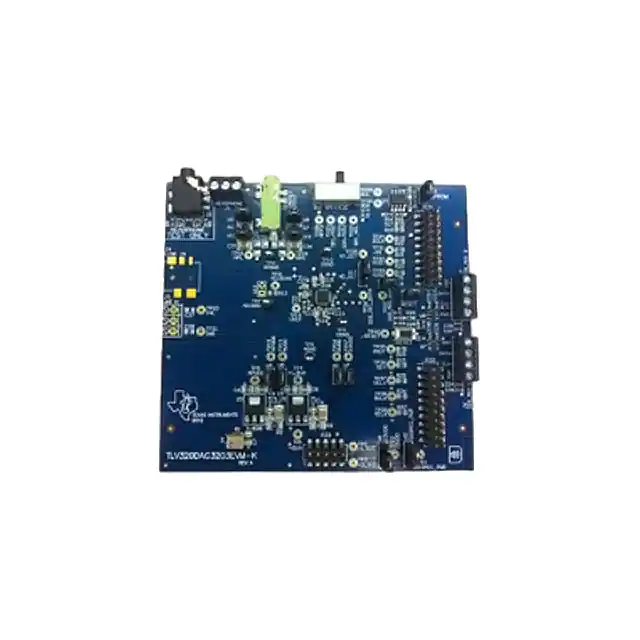

TLV320DAC3203EVM-KEVAL BOARD FOR TLV320DAC3203 |
1 |
|
Datasheet | PowerTune™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | - | - | TLV320DAC3203 | Board(s) |
|
TAS5424BQ1DKDEVMEVAL BOARD FOR TAS5424B |
1 |
|
Datasheet | - | Box | Active | Class D | 4-Channel (Quad) | 150W x 2 @ 2Ohm; 79W x 4 @ 4Ohm | 8V ~ 22V | TAS5424B | Board(s) |
|

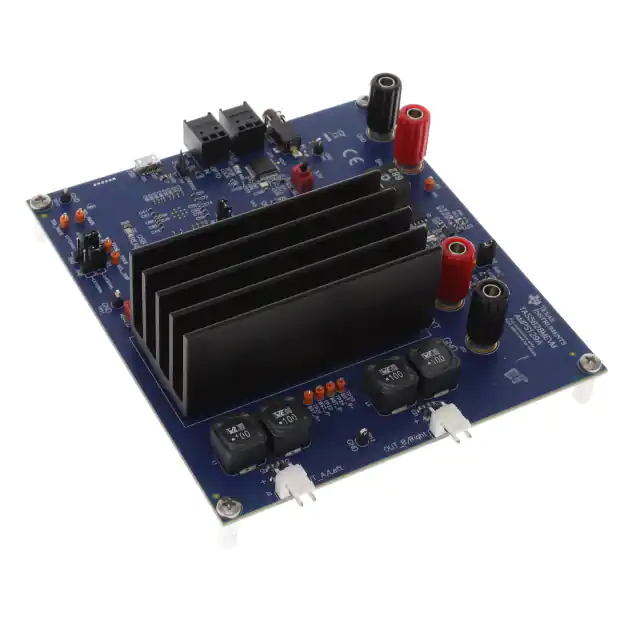

TAS5828MEVMEVAL BOARD FOR TAS5828M |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 8Ohm | 4.5V ~ 26.4V | TAS5828M | Board(s) |
|

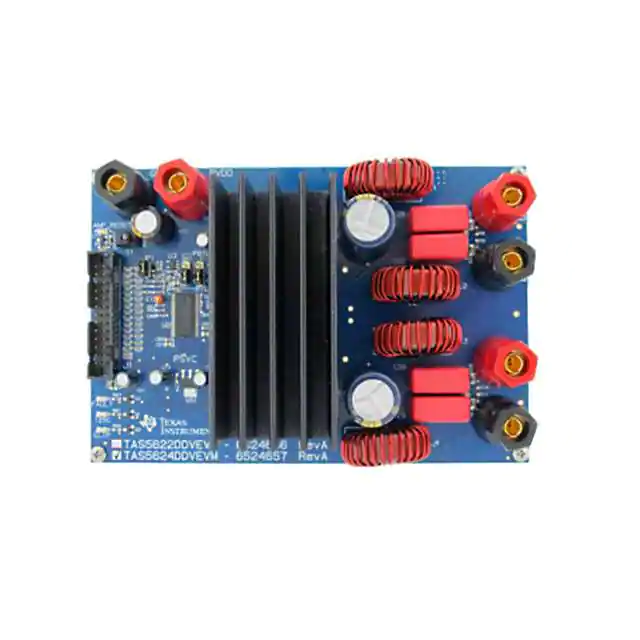

TAS5624ADDVEVMEVAL BOARD FOR TAS5624A |
0 |
|
Datasheet | PurePath™ HD | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 400W x 1 @ 1.5Ohm; 200W x 2 @ 3Ohm | 12V ~ 38V | TAS5624A | Board(s), Cable(s) |
|
TPA2014D1EVMEVAL BOARD FOR TPA2014D1 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 1.5W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA2014D1 | Board(s) |
|
NCP2823BGEVBEVAL BOARD FOR NCP2823B |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 3W x 1 @ 4Ohm | 2.5V ~ 5.5V | NCP2823B | Board(s) |
|
EVAL-CN0226-EB1ZEVAL BOARD FOR AD5116 AD815 |
1 |
|
- |
Circuits from the Lab™ | Bulk | Active | Class D | 1-Channel (Mono) | 3W x 1 @ 3Ohm | 5V | AD5116, AD8515, ADA4051-2, SSM2375 | Board(s) |
