Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

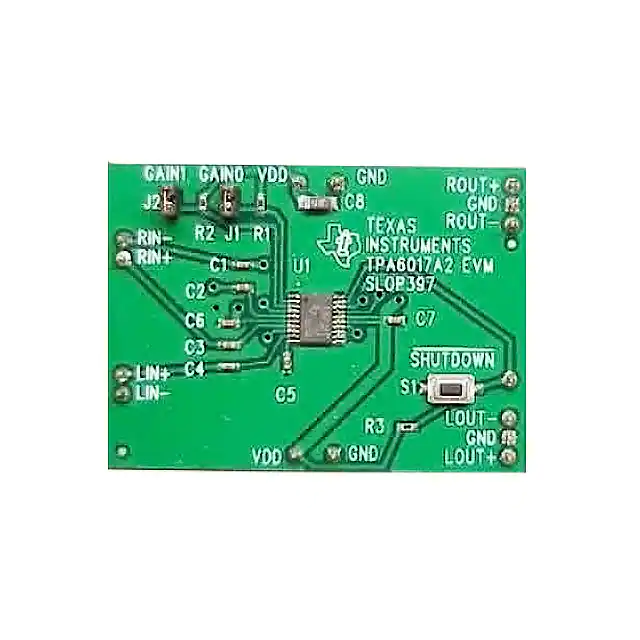

TPA6017A2EVMEVAL BOARD FOR TPA6017A2 |
1 |
|
Datasheet | - | Box | Active | Class AB | 2-Channel (Stereo) | 2W x 2 @ 3Ohm | 4.5V ~ 5.5V | TPA6017A2 | Board(s) |
|

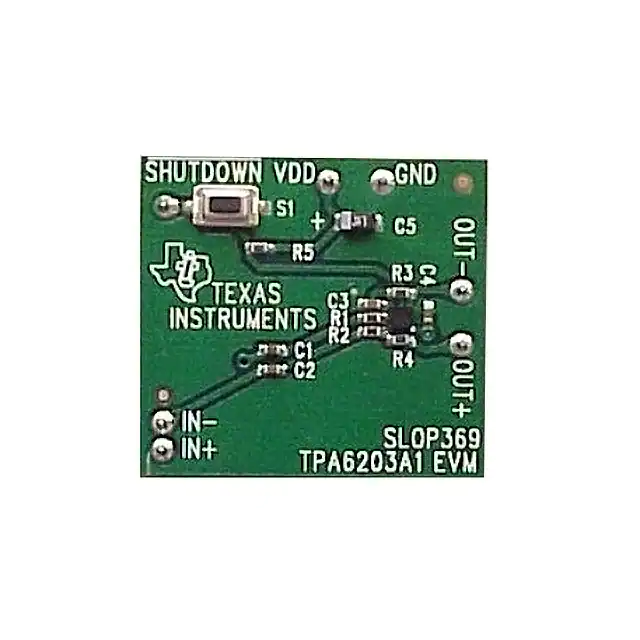

TPA6203A1EVMEVAL BOARD FOR TPA6203A1 |
1 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.25W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA6203A1 | Board(s) |
|

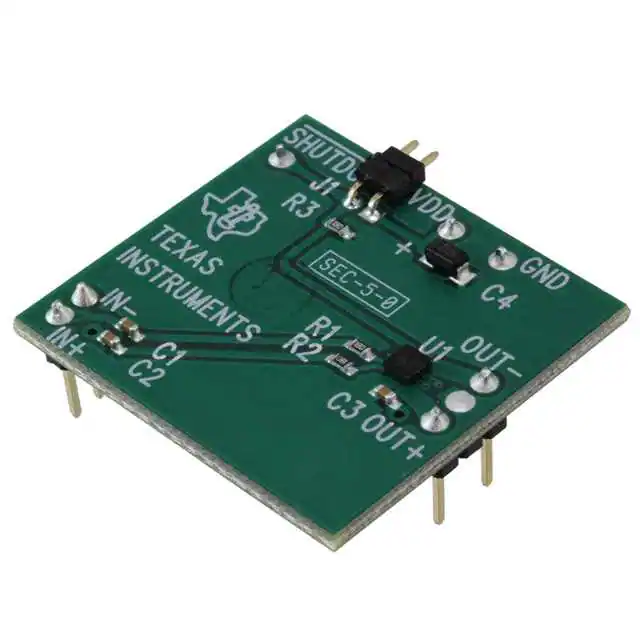

TPA2005D1EVMEVAL BOARD FOR TPA2005D1 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 1.45W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA2005D1 | Board(s) |
|

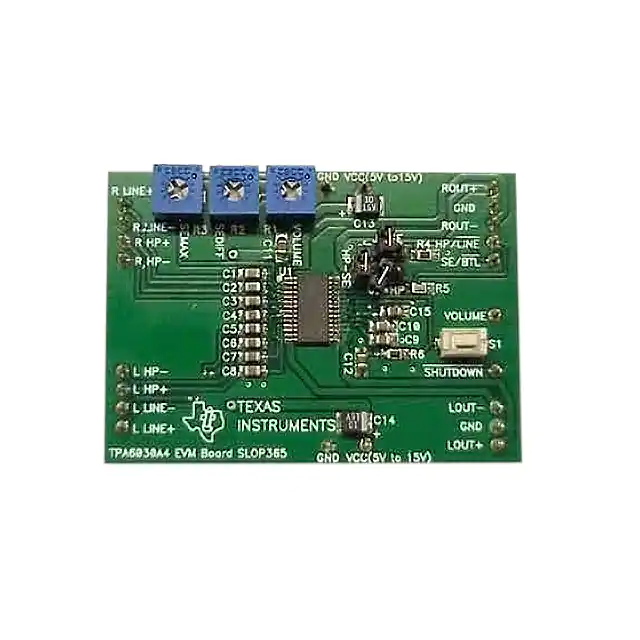

TPA6030A4EVMEVAL BOARD FOR TPA6030A4 |
1 |
|
Datasheet | - | Bulk | Active | Class AB | 2-Channel (Stereo) with Stereo Headphones | 5W x 2 @ 16Ohm | 7V ~ 15V | TPA6030A4 | Board(s) |
|

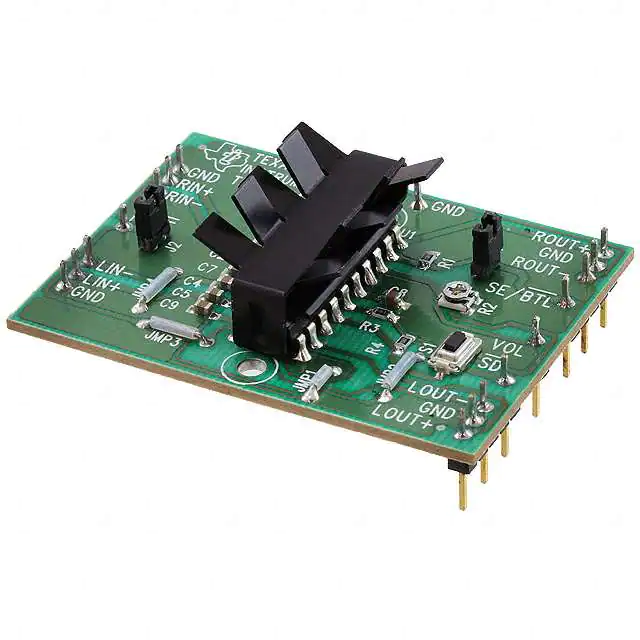

TPA6021A4EVMEVAL BOARD FOR TPA6021A4 |
1 |
|
Datasheet | - | Box | Active | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2W x 2 @ 4Ohm | 4V ~ 5.5V | TPA6021A4 | Board(s) |
|

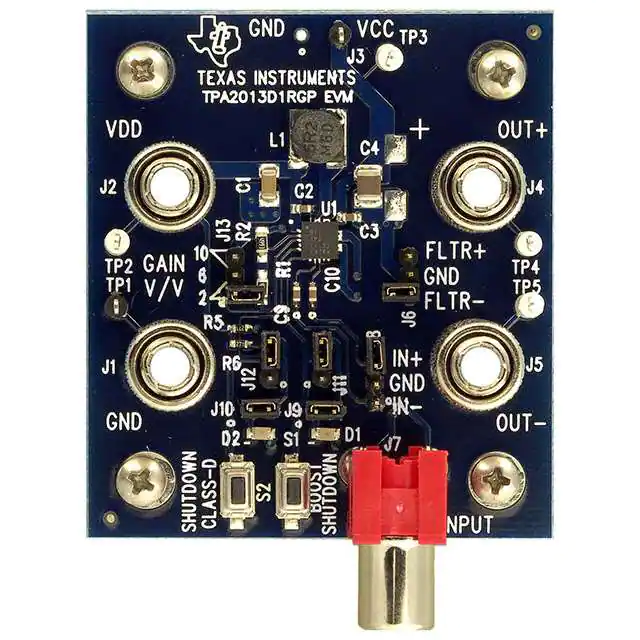

TPA2013D1EVMEVAL BOARD FOR TPA2013D1 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 2.7W x 1 @ 4Ohm | 1.8V ~ 5.5V | TPA2013D1 | Board(s) |
|

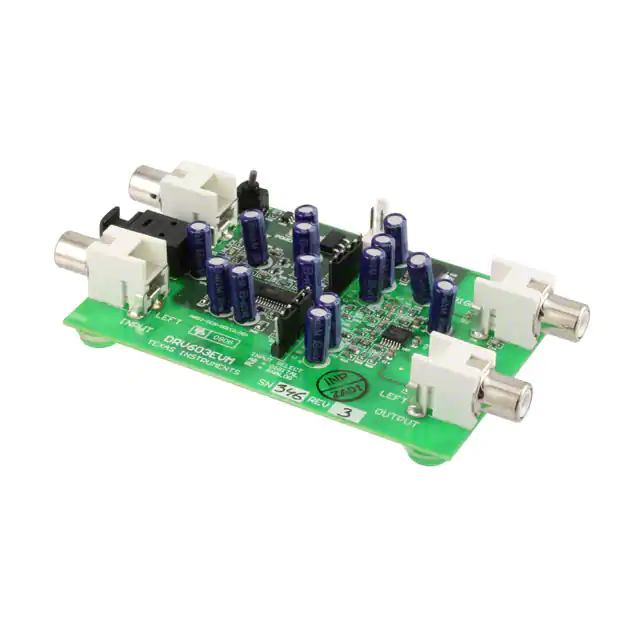

DRV603EVMEVAL BOARD FOR DRV603 |
1 |
|
Datasheet | DirectPath™ | Box | Active | Class AB | 2-Channel (Stereo) | - | 3V ~ 4.5V | DRV603 | Board(s) |
|
TPA6132A2EVM2EVAL BOARD FOR TPA6132A2 |
1 |
|
Datasheet | DirectPath™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 25mW x 2 @ 16Ohm | 2.3V ~ 5.5V | TPA6132A2 | Board(s) |
|

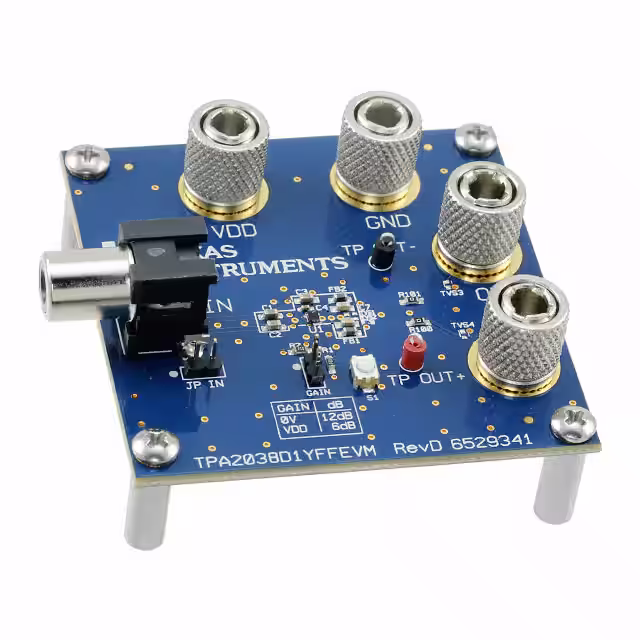

TPA2038D1YFFEVMEVAL BOARD FOR TPA2038D1 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 1.46W x1 @ 8Ohm, 2.57W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2038D1 | Board(s) |
|

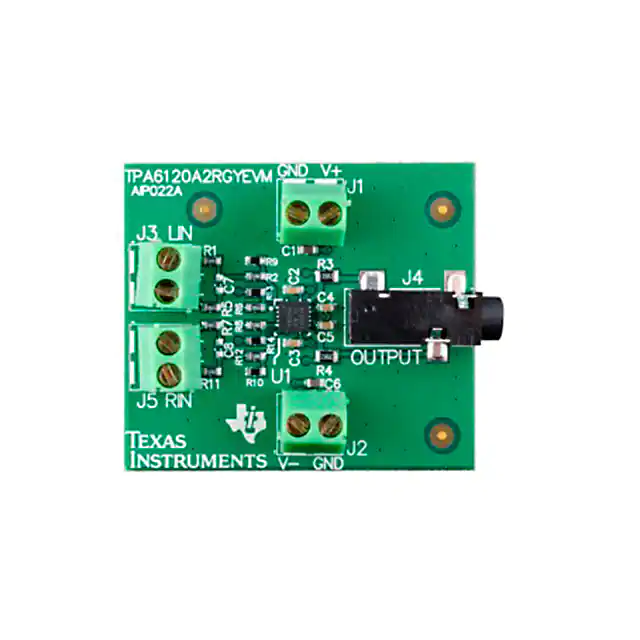

TPA6120A2RGYEVMEVAL BOARD FOR TPA6120A2 |
1 |
|
Datasheet | - | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 80mW x 2 @ 600Ohm | 10V ~ 30V, ±5V ~ 15V | TPA6120A2 | Board(s) |
|
TPA6211A1EVMEVAL BOARD FOR TPA6211A1 |
0 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 3.1W x 1 @ 3Ohm | 2.5V ~ 5.5V | TPA6211A1 | Board(s) |
|

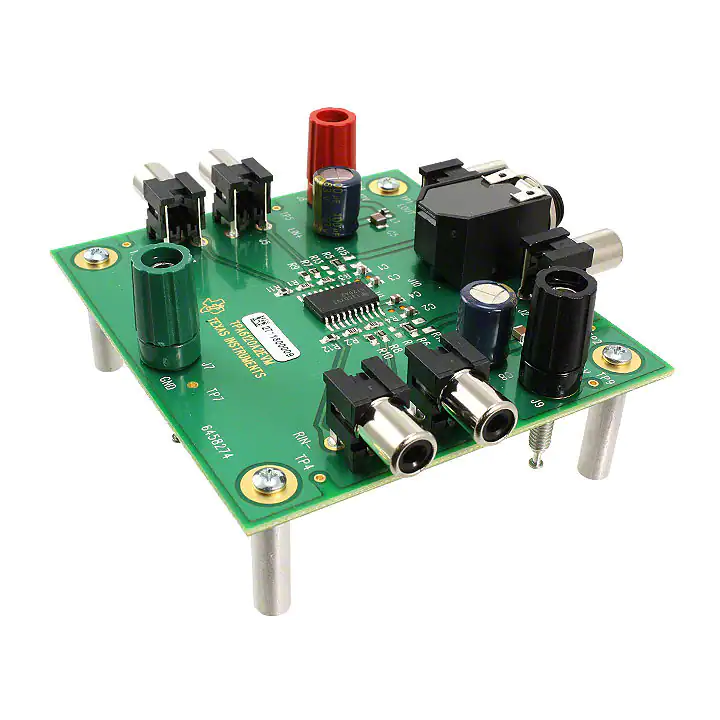

TPA6120A2EVMEVAL BOARD FOR TPA6120A2 |
0 |
|
Datasheet | - | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 80mW x 2 @ 600Ohm | 10V ~ 30V, ±5V ~ 15V | TPA6120A2 | Board(s) |
|

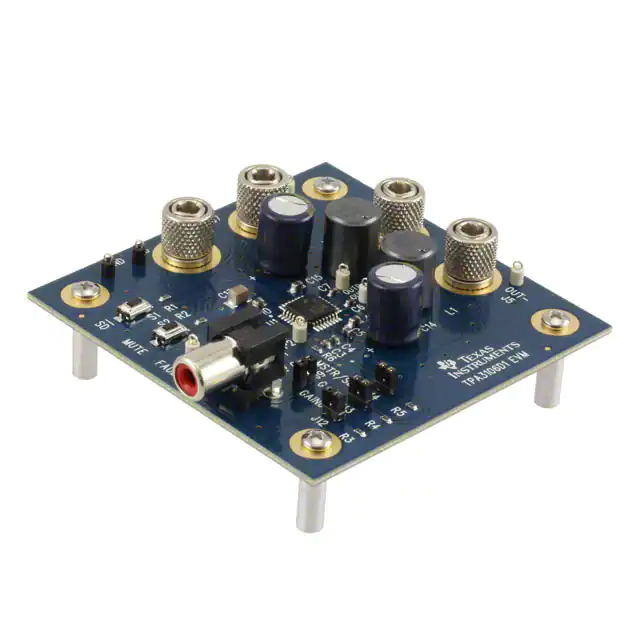

TPA3106D1EVMEVAL BOARD FOR TPA3106D1 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 40W x 1 @ 8Ohm | 10V ~ 26V | TPA3106D1 | Board(s) |
|

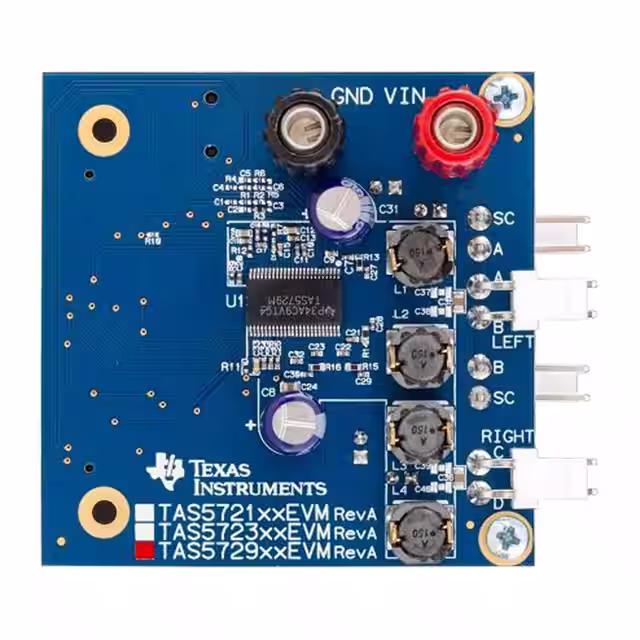

TAS5721EVMEVAL BOARD FOR TAS5721 |
0 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 8V ~ 26.4V | TAS5721 | Board(s) |
|
TAS5754MDCAEVMEVAL BOARD FOR TAS5754M |
1 |
|
Datasheet | PurePath™ | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 60W x 1 @ 4Ohm; 40W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5754M | Board(s) |
|

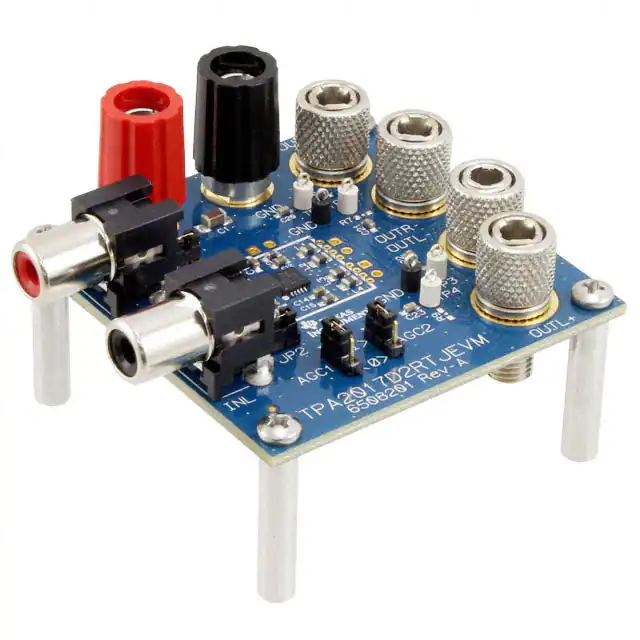

TPA2017D2RTJEVMEVAL BOARD FOR TPA2017D2 |
1 |
|
Datasheet | SmartGain™ | Box | Active | Class D | 2-Channel (Stereo) | 2.8W x 2 @ 4Ohm | 2.5V ~ 5.5V | TPA2017D2 | Board(s) |
|
LM4951ASDBD/NOPBEVAL BOARD FOR LM4951A |
1 |
|
Datasheet | Boomer® | Box | Active | Class AB | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.7V ~ 9V | LM4951A | Board(s) |
|

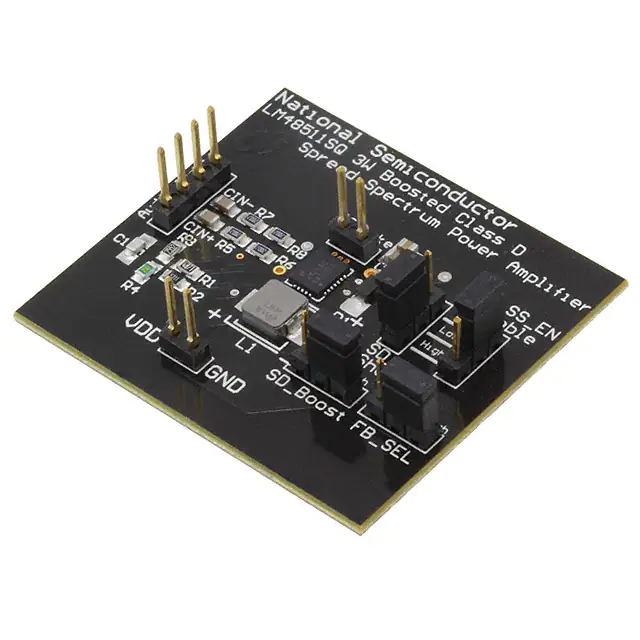

LM48511SQBD/NOPBEVAL BOARD FOR LM48511 |
1 |
|
Datasheet | Boomer® | Box | Active | Class D | 1-Channel (Mono) | 6.7W x 1 @ 4Ohm | 3V ~ 5.5V | LM48511 | Board(s) |
|
LM48560TLEVALEVAL BOARD FOR LM48560 |
1 |
|
Datasheet | Boomer® | Box | Active | Class H | 1-Channel (Mono) | - | 2.7V ~ 5.5V | LM48560 | Board(s) |
|
STEVAL-CCA030V1EVAL BOARD FOR STA350BW |
0 |
|
Datasheet | Sound Terminal™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 6Ohm | 5V ~ 26V | STA350BW | Board(s) |
