Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

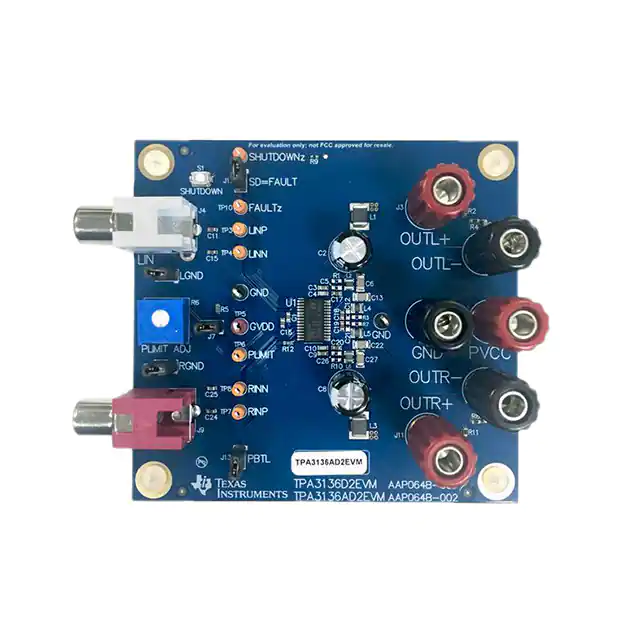

TPA3136AD2EVMEVAL BOARD FOR TPA3136AD2 |
2 |
|
Datasheet | SpeakerGuard™ | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 8V ~ 14.4V | TPA3136AD2 | Board(s) |
|

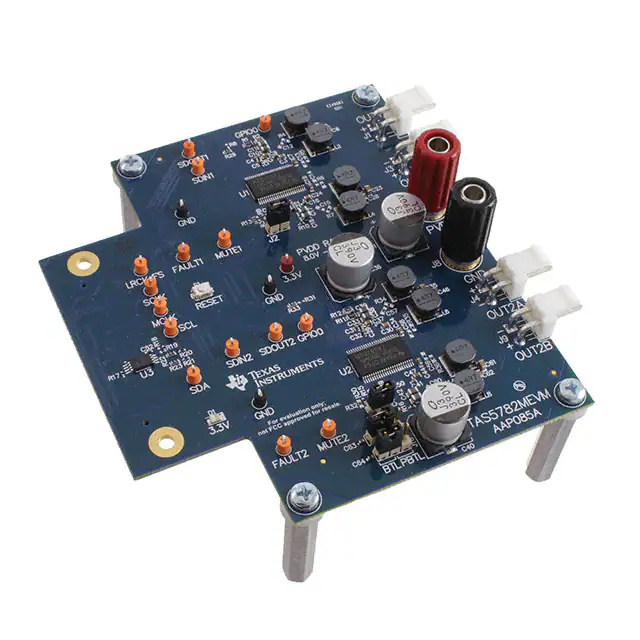

TAS5782MEVMEVAL BOARD FOR TAS5782M |
4 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5782M | Board(s) |
|
TPA3130D2EVMEVAL BOARD FOR TPA3130D2 |
2 |
|
Datasheet | SpeakerGuard™ | Box | Active | Class D | 2-Channel (Stereo) | 15W x 2 @ 8Ohm | 4.5V ~ 26V | TPA3130D2 | Board(s) |
|
ONA10IVGEVBEVAL BOARD FOR ONA10IV |
3 |
|
- |
- | Box | Active | Class D | 1-Channel (Mono) | 16W x 1 @ 4Ohm | 5.5V ~ 14V | ONA10IV | Board(s) |
|
EVAL-SSM2537ZEVAL BOARD FOR SSM2537 |
0 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 2.7W x 1 @ 4Ohm | 2.5V ~ 5.5V | SSM2537 | Board(s) |
|

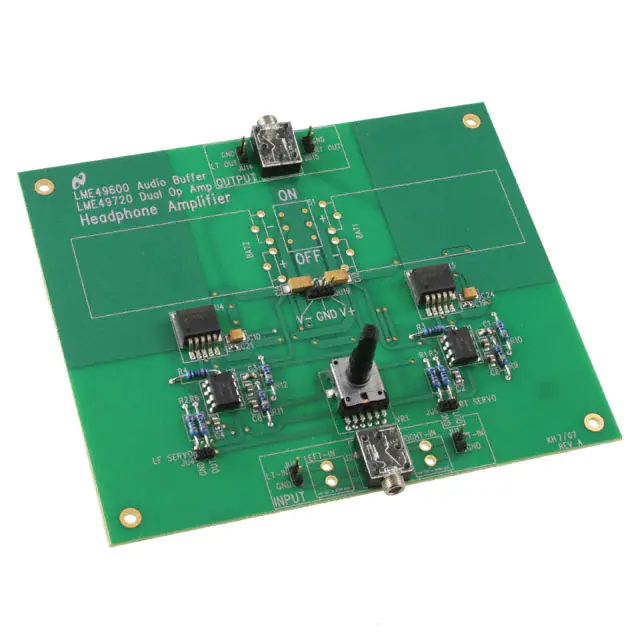

LME49600TSBDEVAL BOARD FOR LME49600 |
2 |
|
Datasheet | - | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 500mW x 1 @ 32Ohm | ±2.5V ~ ±17V | LME49600 | Board(s) |
|

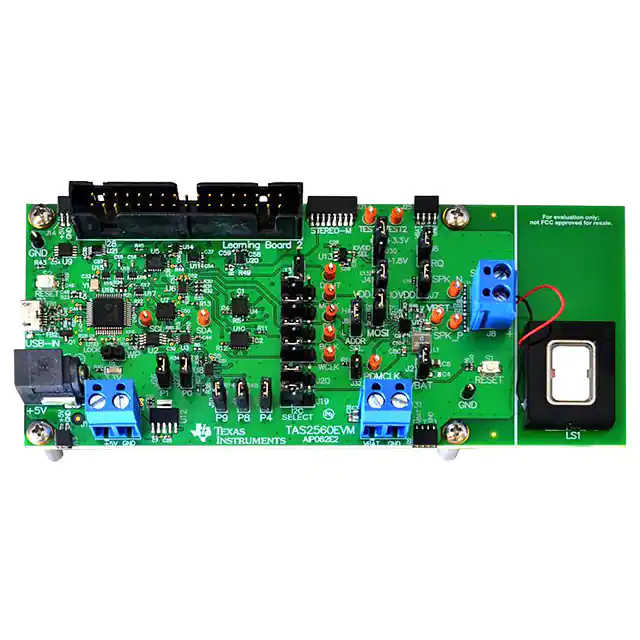

TAS2560EVMEVAL BOARD FOR TAS2560 |
3 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 6.9W x 1 @ 4Ohm | 5V | TAS2560 | Board(s) |
|

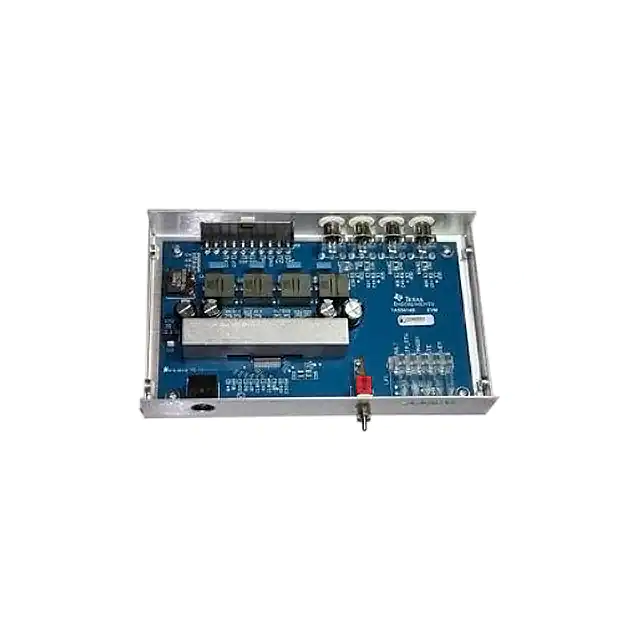

TAS5414BQ1PHDEVMEVAL BOARD FOR TAS5414B |
2 |
|
Datasheet | - | Box | Active | Class D | 4-Channel (Quad) | 150W x 2 @ 2Ohm; 79W x 4 @ 4Ohm | 8V ~ 22V | TAS5414B | Board(s), Cable(s) |
|
TAS5414CQ1PHDEVMEVAL BOARD FOR TAS5414C |
2 |
|
Datasheet | - | Box | Active | Class D | 4-Channel (Quad) | 23W x 4 @ 4Ohm, 150W x 2 @ 2Ohm | 6V ~ 24V | TAS5414C | Board(s) |
|

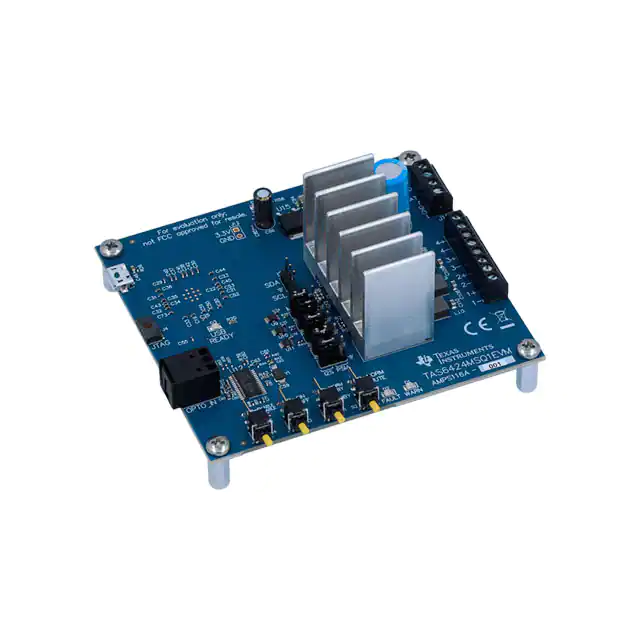

TAS6424MSQ1EVMEVAL BOARD FOR TAS6424MS-Q1 |
4 |
|
Datasheet | PurePath™ | Box | Active | Class D | 4-Channel (Stereo) | 27W x 1 @ 4Ohm, 45W x 1 @ 2Ohm, 80W x 1 @ 2Ohm | 4.5V ~ 18V | TAS6424MS-Q1 | Board(s), Cable(s) |
|
TAS5414BQ1DKDEVMEVAL BOARD FOR TAS5414B |
4 |
|
Datasheet | - | Box | Active | Class D | 4-Channel (Quad) | 150W x 2 @ 2Ohm; 79W x 4 @ 4Ohm | 8V ~ 22V | TAS5414B | Board(s) |
|

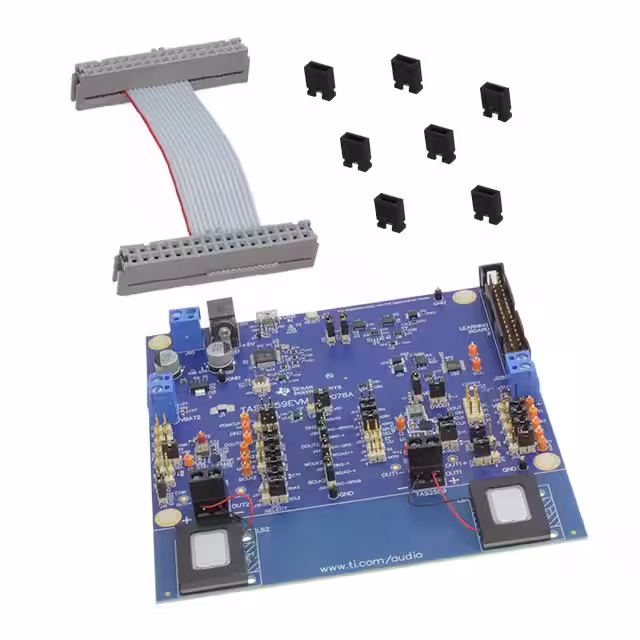

TAS2559EVMEVAL BOARD FOR TAS2559 |
2 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 6.9W x 1 @ 4Ohm | 5V | TAS2559 | Board(s) |
|

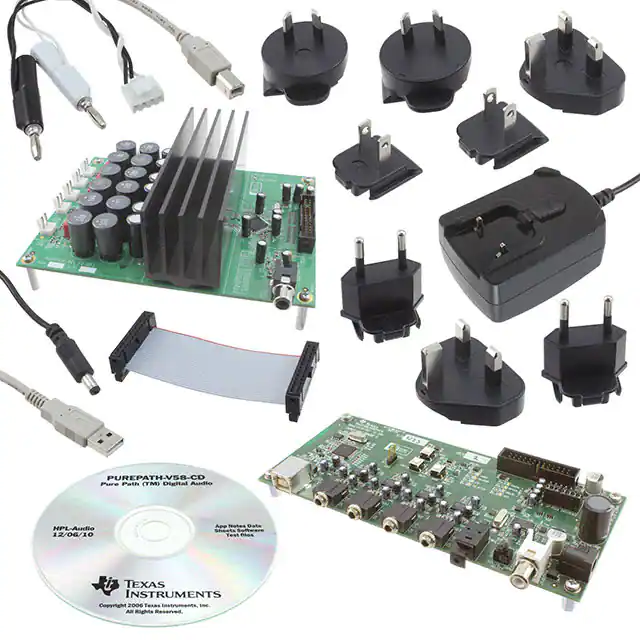

TAS5342DDV6EVMEVAL BOARD FOR TAS5342 TAS5508B |
3 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Active | Class D | 6-Channel | 225W x 1 @ 2Ohm; 120W x 4 @ 4Ohm | - | TAS5342, TAS5508B | Board(s), Cable(s), Power Supply |
|
TAS5412Q1PHDEVMEVAL BOARD FOR TAS5412-Q1 |
4 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 79W x 2 @ 4Ohm, 50W x 2 @ 2Ohm | 6V ~ 26.5V | TAS5412-Q1 | Board(s), Cable(s) |
|

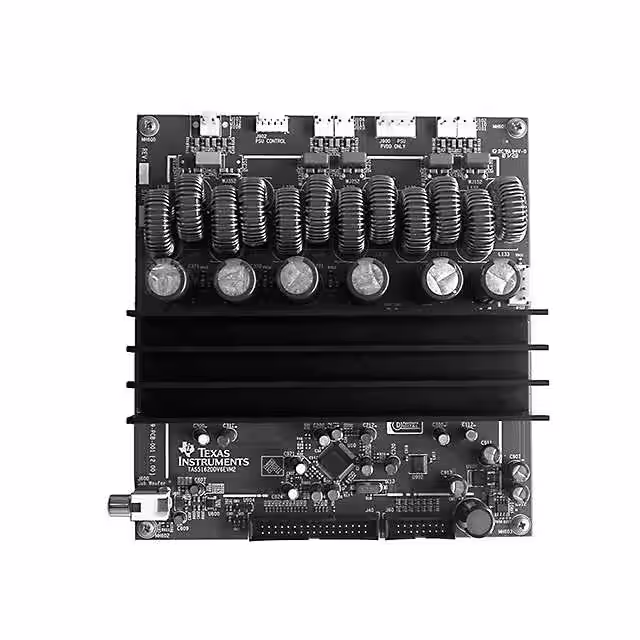

TAS5162DDV6EVM2EVAL BOARD FOR TAS5162 TAS5518 |
3 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Active | Class D | 6-Channel | - | 15V ~ 20V | TAS5162, TAS5518 | Board(s), Cable(s) |
|
EVAL-SSM3515ZEVAL BOARD FOR SSM3515 |
0 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 25W x 1 @ 4Ohm | 4.5V ~ 17V | SSM3515 | Board(s) |
|
SSM2315-EVALZEVAL BOARD FOR SSM2315 |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 4.28W x 1 @ 3Ohm | 2.5V ~ 5.5V | SSM2315 | Board(s) |
|

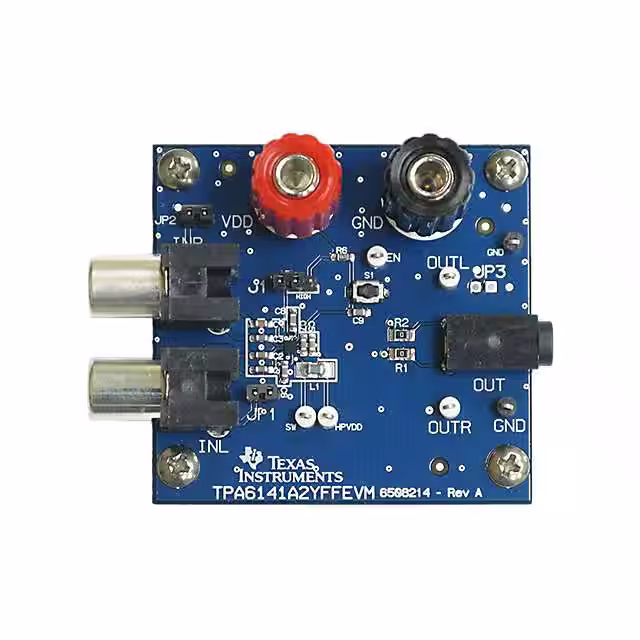

TPA6141A2YFFEVMEVAL BOARD FOR TPA6141A2 |
3 |
|
Datasheet | DirectPath™ | Box | Active | Class G | Headphones, 2-Channel (Stereo) | 32mW x 2 @ 32Ohm | 2.5V ~ 5.5V | TPA6141A2 | Board(s) |
|
EVALAUDIOMA12070PTOBO1EVAL BOARD FOR MA12070P |
3 |
|
Datasheet | MERUS™ | Bulk | Active | Class D | 2-Channel (Stereo) | - | 4V ~ 26V | MA12070P | Board(s) |
|
TSD5402Q1EVMEVAL BOARD FOR TSD5402-Q1 |
5 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | - | 5V ~ 18V | TSD5402-Q1 | Board(s) |
