Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPA3003D2EVMEVAL BOARD FOR TPA3003D2 |
3 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 3.75W x 2 @ 8Ohm | 8.5V ~ 14V | TPA3003D2 | Board(s) |
|
|
AEKD-STEREOAVASEVAL BOARD FOR FDA903D |
8 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | - | - | FDA903D | Board(s) |
|
|
EVALAUDIOMA2304DNSBTOBO1EVAL BOARD FOR MA2304DNS |
3 |
|
Datasheet | MERUS™ | Bulk | Active | Class D | 2-Channel (Stereo) | 37W x 2 @ 4Ohm | 10V ~ 20V | MA2304DNS | Board(s) |
|
|
TAS6424EQ1EVMEVAL BOARD FOR TAS6424E-Q1 |
4 |
|
Datasheet | - | Box | Active | Class D | - | 25W x 4 @ 4Ohm | 4.5V ~ 26.4V | TAS6424E-Q1 | Board(s) |
|
|
EVALMA5342MS200WX2TOBO1EVAL BOARD FOR MA5342 |
4 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 200W x 2 @ 8Ohm | ±30V ~ 60V | MA5342 | Board(s) |
|
|
EVALMA5302MS200WX2TOBO1EVAL BOARD FOR MA5302 |
3 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 200W x 2 @ 2Ohm | ±17V ~ 32V | MA5302 | Board(s) |
|
|
TAS2783EVMEVAL BOARD FOR TAS2783 |
6 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 2.8W x 1 @ 8Ohm | 1.65V ~ 1.95V | TAS2783 | Board(s) |
|

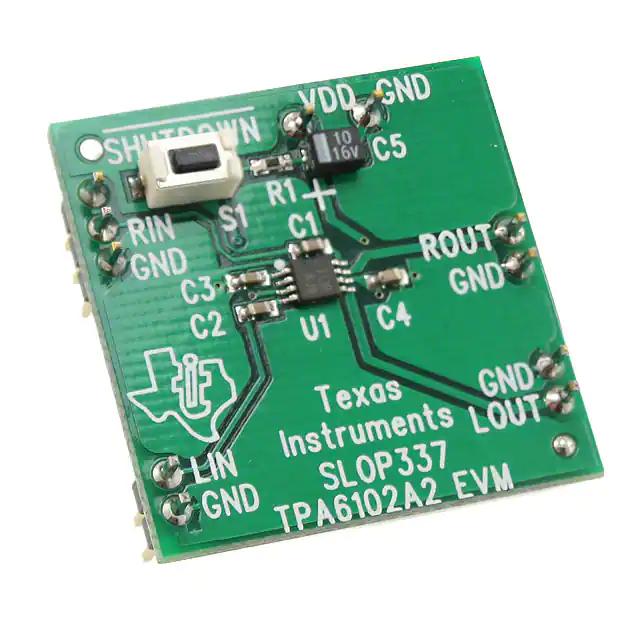

TPA6102A2EVMEVAL BOARD FOR TPA6102A2 |
5 |
|
Datasheet | - | Bulk | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 50mW x 2 @ 16Ohm | 1.6V ~ 3.6V | TPA6102A2 | Board(s) |
|
REFAUDIODMA12040PTOBO1EVAL BOARD FOR MA12040P |
4 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5V ~ 18V | MA12040P | Board(s) |
|

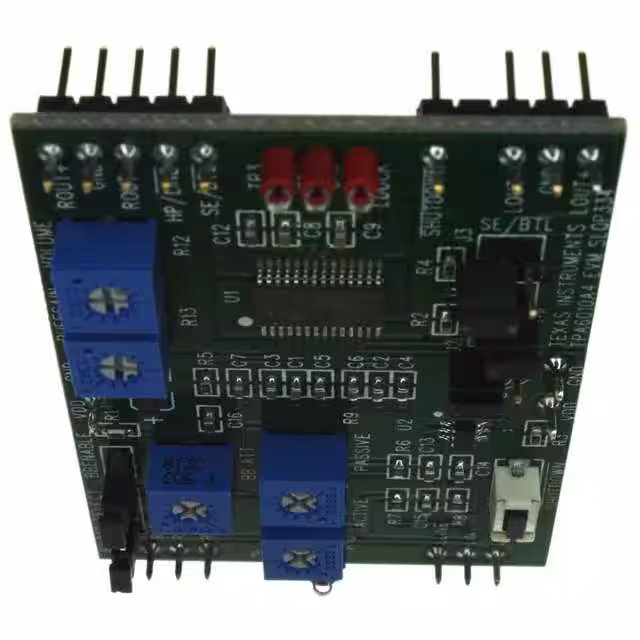

TPA6010A4EVMEVAL BOARD FOR TPA6010A4 |
4 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2.7W x 2 @ 3Ohm | 4.5V ~ 5.5V | TPA6010A4 | Board(s) |
|

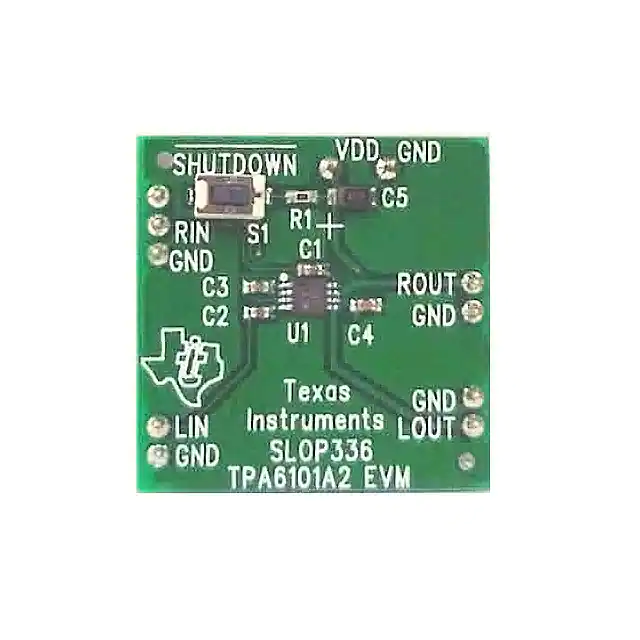

TPA6101A2EVMEVAL BOARD FOR TPA6101A2 |
2 |
|
Datasheet | - | Bulk | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 50mW x 2 @ 16Ohm | 1.6V ~ 3.6V | TPA6101A2 | Board(s) |
|
STEVAL-CCA009V1EVAL BOARD FOR TS4601 |
5 |
|
Datasheet | - | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 10mW x 2 @ 16Ohm | 2.9V ~ 5.5V | TS4601 | Board(s) |
|
KITARDMKRAMP40WTOBO1EVAL BOARD FOR MA12070P |
4 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | - | 4V ~ 26V | MA12070P | Board(s) |
|
NCP2993FCT2GEVBEVAL BOARD FOR NCP2993 |
3 |
|
Datasheet | - | Box | Active | Class AB | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.5V ~ 5.5V | NCP2993 | Board(s) |
|
DRV600EVMEVAL BOARD FOR DRV600 |
2 |
|
Datasheet | DirectPath™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | - | 1.8V ~ 4.5V | DRV600 | Board(s) |
|

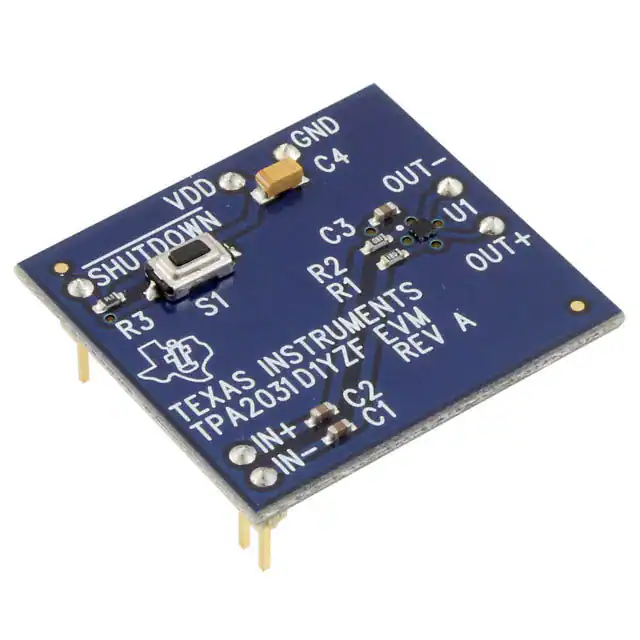

TPA2031D1EVMEVAL BOARD FOR TPA2031 |
12 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2031 | Board(s) |
|

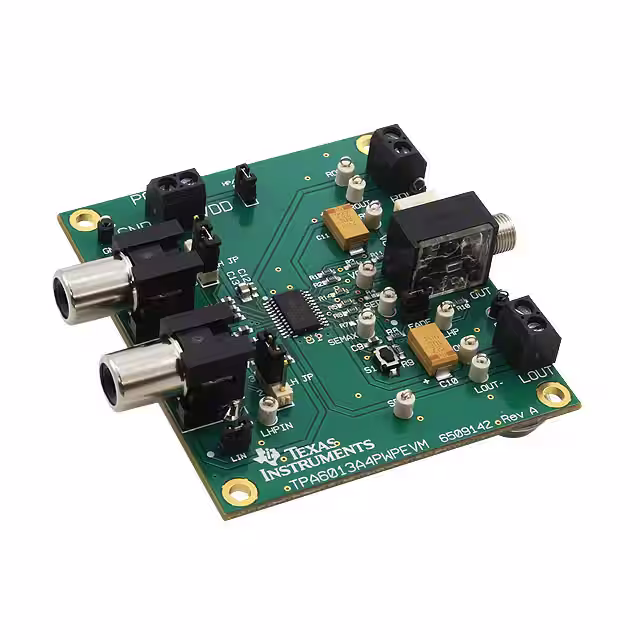

TPA6013A4PWPEVMEVAL BOARD FOR TPA6013A4 |
4 |
|
Datasheet | - | Box | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3.2W x 2 @ 3Ohm; 235mW x 2 @ 16Ohm | 4V ~ 5.5V | TPA6013A4 | Board(s) |
|

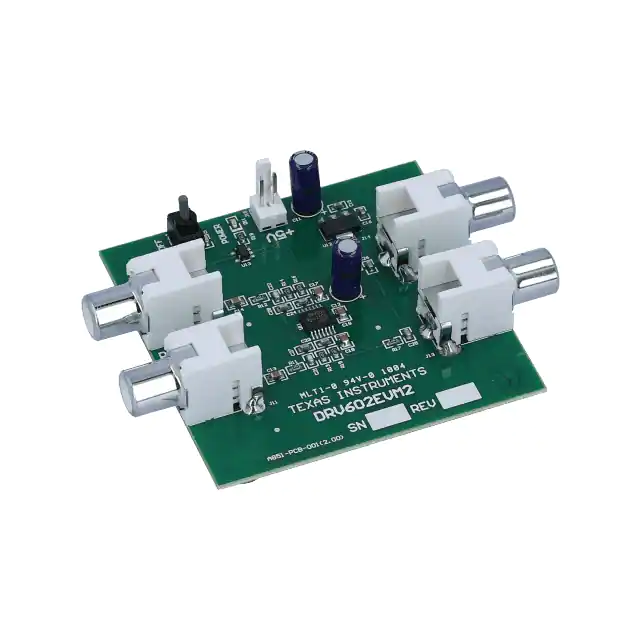

DRV602EVM2EVAL BOARD FOR DRV602 |
3 |
|
Datasheet | DirectPath™ | Box | Obsolete | Class AB | 2-Channel (Stereo) | - | 3V ~ 5.5V | DRV602 | Board(s) |
|

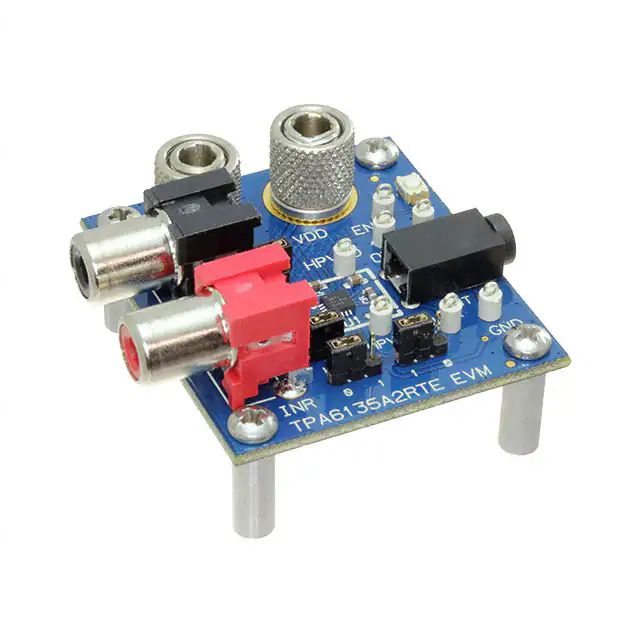

TPA6135A2EVMEVAL BOARD FOR TPA6135A2 |
3 |
|
Datasheet | DirectPath™ | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 25mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA6135A2 | Board(s) |
|
TPA2035D1EVMEVAL BOARD FOR TPA2035D1 |
2 |
|
Datasheet | NanoFree™ | Box | Obsolete | Class D | 1-Channel (Mono) | 2.75W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2035D1 | Board(s) |
