Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRAUDAMP21EVAL BOARD FOR IR4321 |
2 |
|
Datasheet | PowIRaudio™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 120W x 2 @ 3Ohm | ±12V ~ 18V | IR4321 | Board(s) |
|
LM4930LQBDEVAL BOARD FOR LM4930 |
2 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 1W x 1 @ 8Ohm; 27mW x 2 @ 32Ohm | 2.6V ~ 5.5V | LM4930 | Board(s), Cable(s) |
|

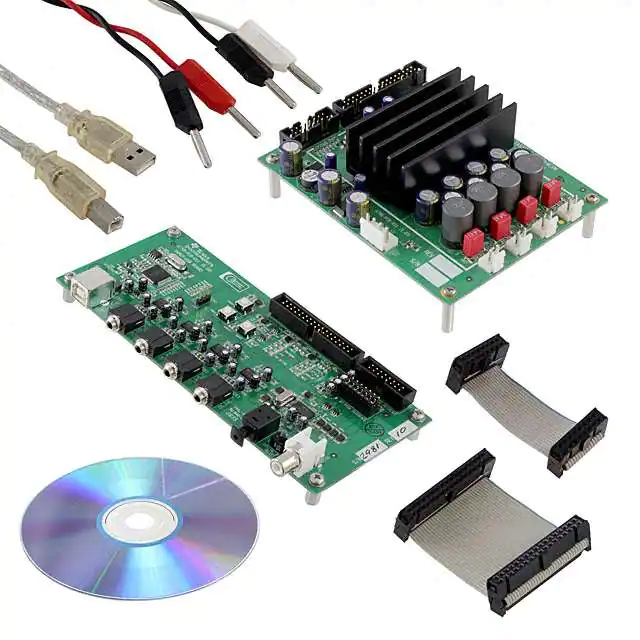

TAS5504-5142V4EVMEVAL BOARD FOR TAS5142 TAS5504A |
6 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 10.8V ~ 13.2V | TAS5142, TAS5504A | Board(s), Cable(s) |
|
LM4961LQBDEVAL BOARD FOR LM4961 |
3 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | - | 2.7V ~ 9V | LM4961 | Board(s) |
|

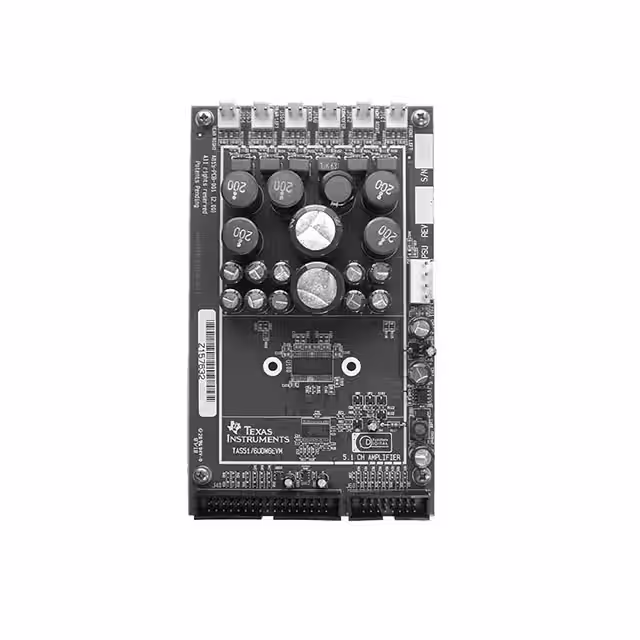

TAS5176DDW6EVMEVAL BOARD FOR TAS5086 TAS5176 |
3 |
|
Datasheet | PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | 40W x 1 @ 6Ohm; 30W x 2 @ 8Ohm | 10.8V ~ 13.2V | TAS5086, TAS5176 | Board(s), Cable(s) |
|
IRAUDAMP5EVAL BOARD FOR IRF6645 IRS2092 |
3 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 170W x 2 @ 4Ohm | ±25V ~ 35V | IRF6645, IRS2092 | Board(s) |
|

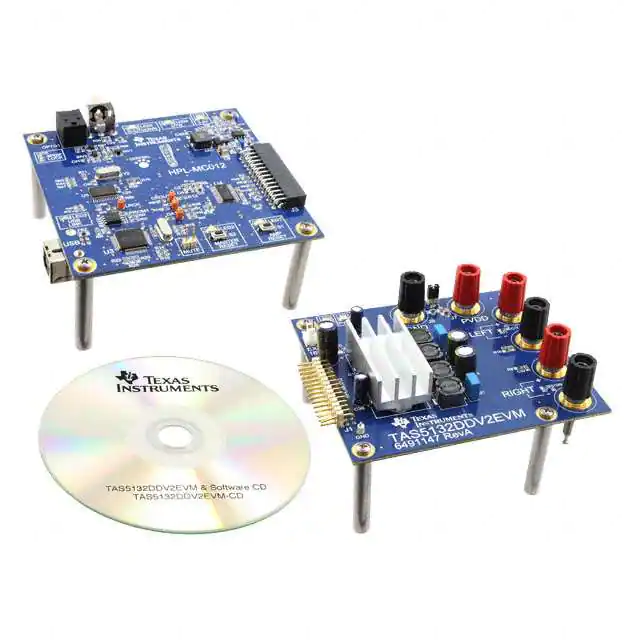

TAS5132DDV2EVMEVAL BOARD FOR TAS5086 TAS5132 |
2 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Obsolete | Class D | 2-Channel (Stereo) | 26W x 2 @ 6Ohm | 10.8V ~ 13.2V | TAS5086, TAS5132 | Board(s) |
|

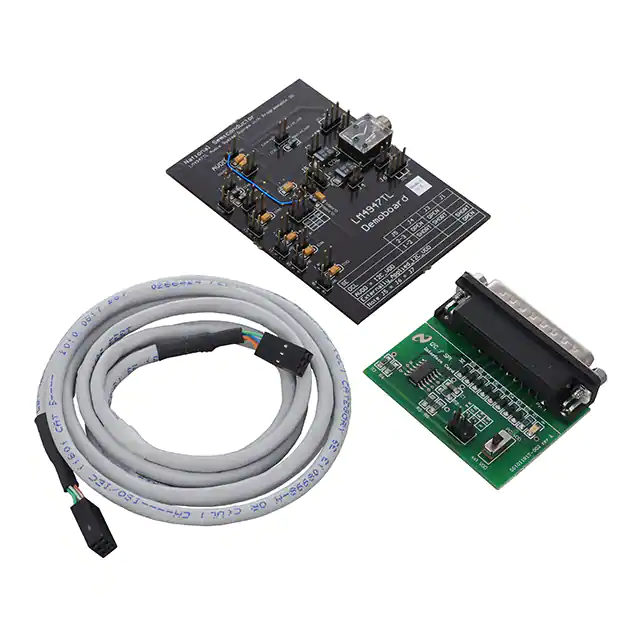

LM4947TLEVALEVAL BOARD FOR LM4947 |
2 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) with Stereo Headphones | 1.19W x 1 @ 8Ohm; 87mW x 2 @ 32Ohm | 2.7V ~ 5.5V | LM4947 | Board(s) |
|

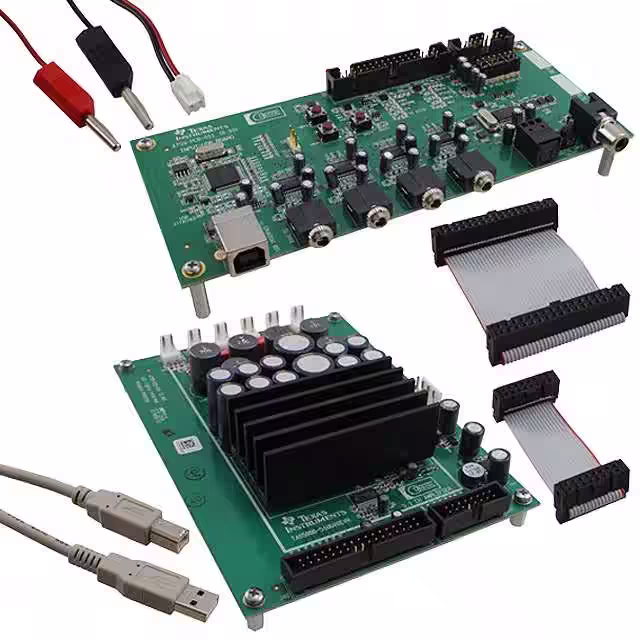

TAS5086-5186V6EVMEVAL BOARD FOR TAS5086 TAS5186A |
2 |
|
Datasheet | PurePath Digital™ | Box | Obsolete | Class D | 6-Channel | 60W x 1 @ 3Ohm; 30W x 5 @ 6Ohm | 10.8V ~ 13.2V | TAS5086, TAS5186A | Board(s), Cable(s) |
|

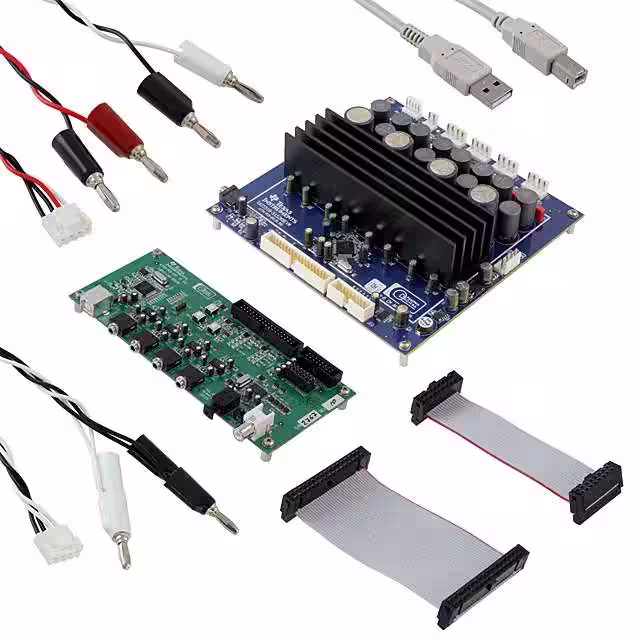

TAS5518-5152K8EVMEVAL BOARD FOR TAS5152 TAS5518 |
2 |
|
Datasheet | PurePath Digital™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 125W x 2 @ 4Ohm | 10.8V ~ 13.2V | TAS5152, TAS5518 | Board(s), Cable(s) |
|

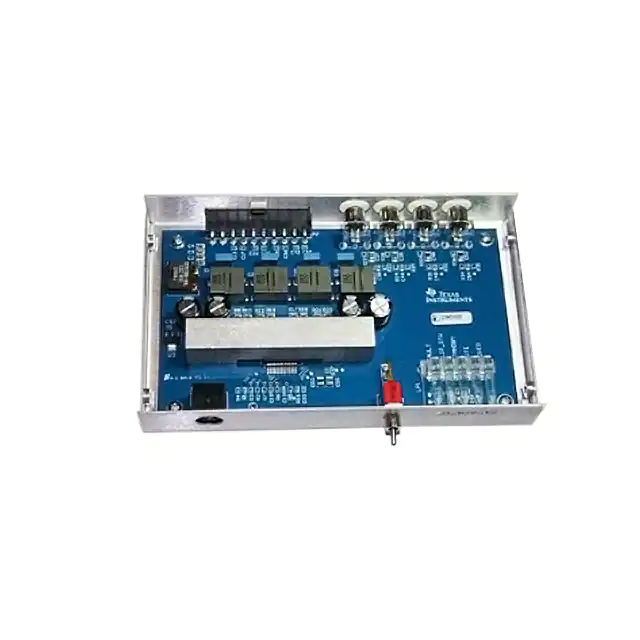

TAS5424CQ1DKEEVMEVAL BOARD FOR TAS5424C-Q1 |
4 |
|
Datasheet | - | Box | Obsolete | Class D | 4-Channel (Quad) | 50W x 4 @ 2Ohm | 6V ~ 24V | TAS5424C-Q1 | Board(s), Cable(s) |
|
EVALAUDAMP24TOBO1EVAL BOARD IGT40R070D1 E8220 |
2 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 250W x 2 @ 8Ohm | ±38V ~ 75V | IGT40R070D1 E8220, IRS20957S | Board(s) |
|
IRAUDAMP12EVAL BOARD FOR IR4301 |
3 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 130W x 2 @ 4Ohm | ±15V ~ 31V | IR4301 | Board(s) |
|

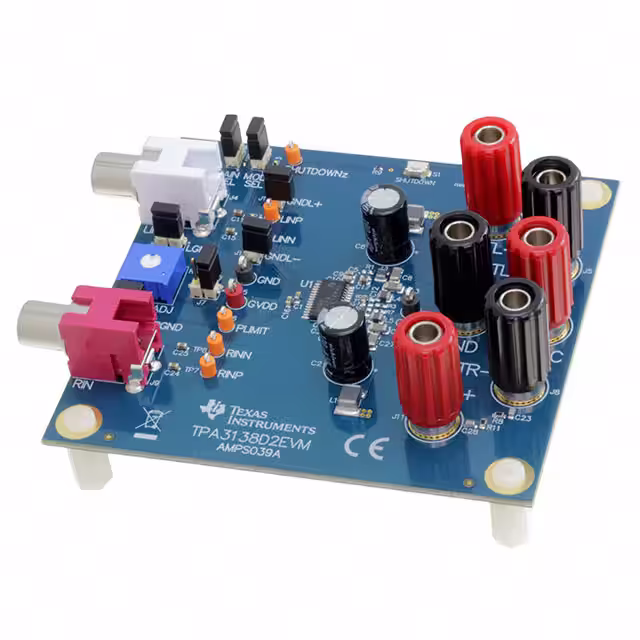

TPA3138D2EVMEVAL BOARD FOR TPA3138D2 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 4.5V ~ 14.4V | TPA3138D2 | Board(s) |
|

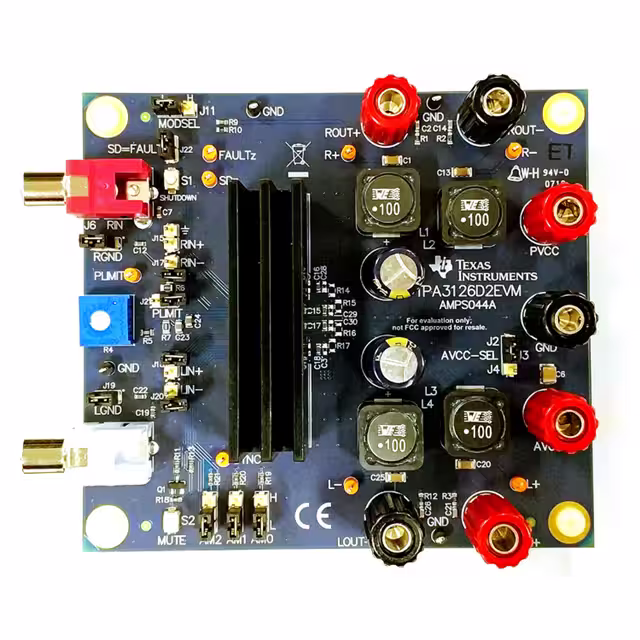

TPA3126D2EVMEVAL BOARD FOR TPA3126D2 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 4 @ 4Ohm | 4.5V ~ 26V | TPA3126D2 | Board(s) |
|

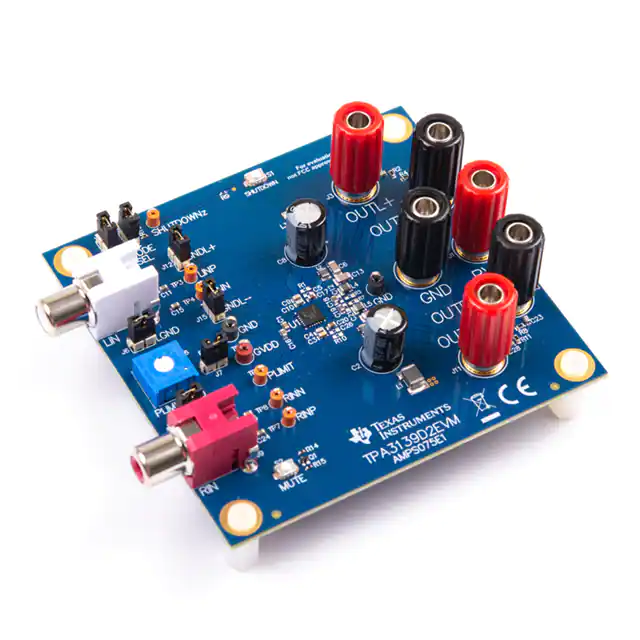

TPA3139D2EVMEVAL BOARD FOR TPA3139D2 |
0 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 6Ohm | 3.5V ~ 14.4V | TPA3139D2 | Board(s) |
|
DA7202-EVALEVAL BOARD FOR DA7202 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 10W x 1 @ 4Ohm | 1.3V ~ 5.5V | DA7202 | Board(s) |
|

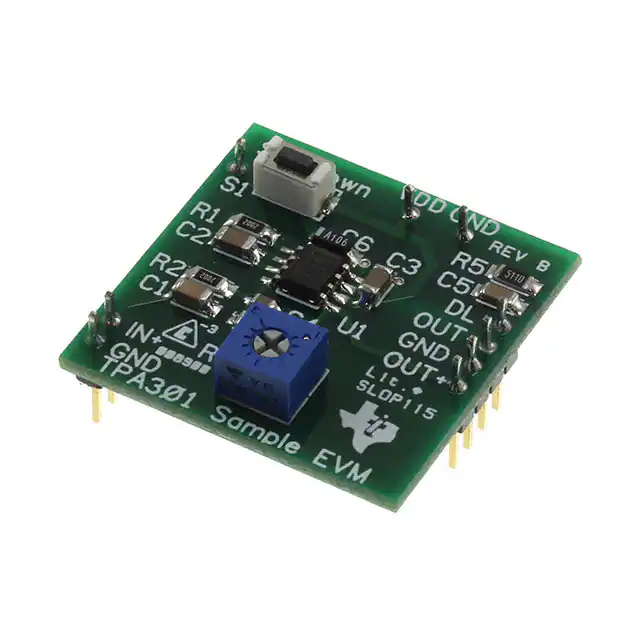

TPA301EVMEVAL BOARD FOR TPA301 |
1 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 350mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA301 | Board(s) |
|
OPA1637EVMEVAL BOARD FOR OPA1637 |
0 |
|
Datasheet | - | Box | Active | Class AB | - | - | ±1.5V ~ 18V, 3V ~ 36V | OPA1637 | Board(s) |
|

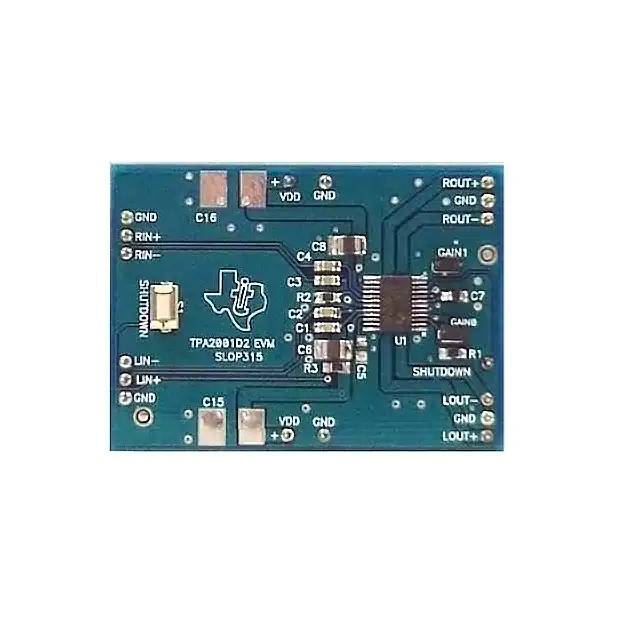

TPA2001D2EVMEVAL BOARD FOR TPA2001D2 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 1W x 2 @ 8Ohm | 4.5V ~ 5.5V | TPA2001D2 | Board(s) |
