Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP2990FCT2GEVBEVAL BOARD FOR NCP2990 |
2 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.35W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2990 | Board(s) |
|
TPA711MSOPEVMEVAL BOARD FOR TPA711 |
4 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA711 | Board(s) |
|

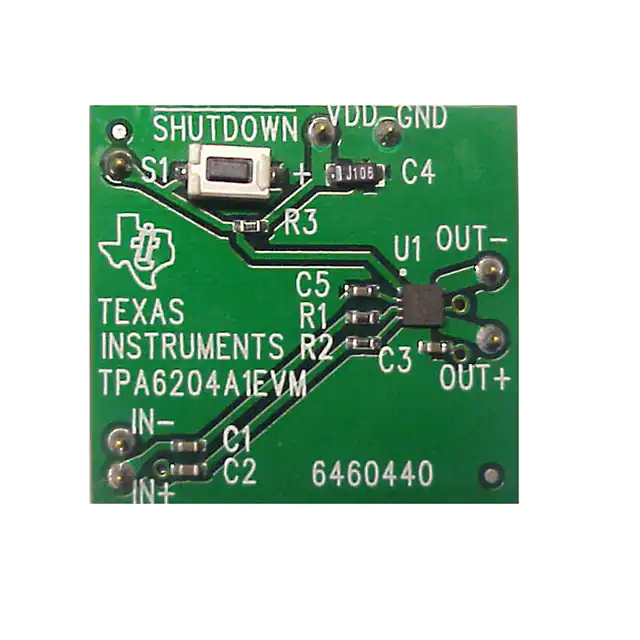

TPA6204A1EVMEVAL BOARD FOR TPA6204A1 |
4 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.7W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA6204A1 | Board(s) |
|

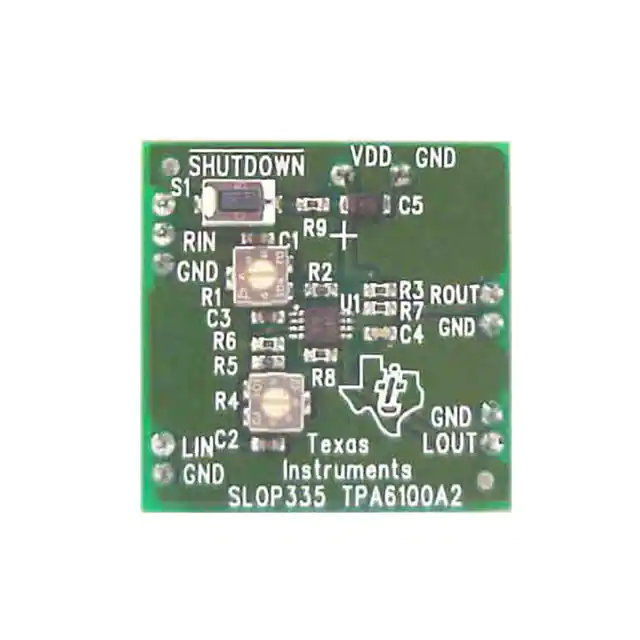

TPA6100A2EVMEVAL BOARD FOR TPA6100A2 |
2 |
|
Datasheet | - | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 50mW x 2 @ 16Ohm | 1.6V ~ 3.6V | TPA6100A2 | Board(s) |
|

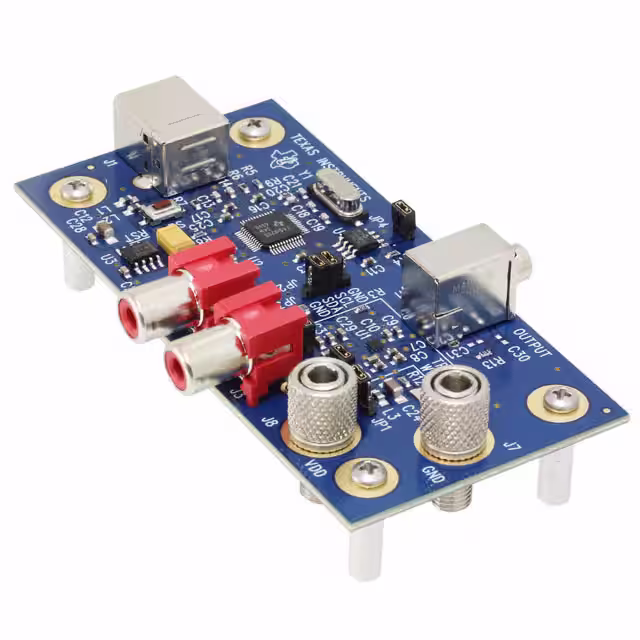

TPA6130A2EVMEVAL BOARD FOR TPA6130A2 |
2 |
|
Datasheet | DirectPath™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 290mW x 1 @ 16Ohm; 138mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA6130A2 | Board(s) |
|

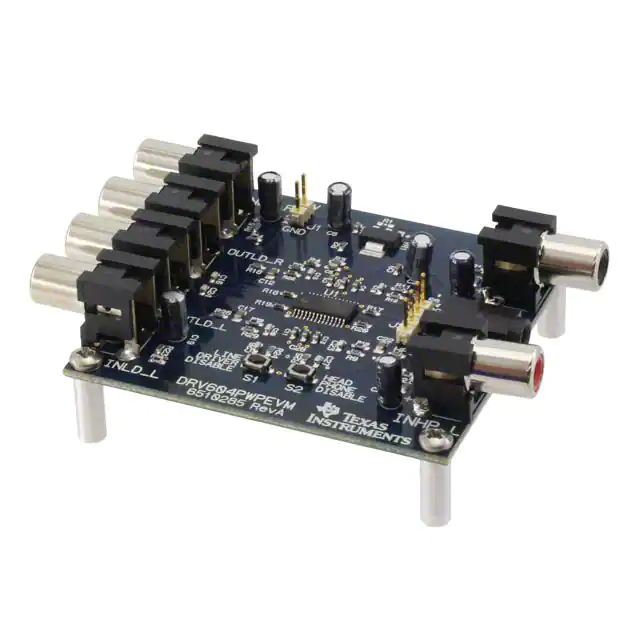

DRV604PWPEVMEVAL BOARD FOR DRV604 |
2 |
|
Datasheet | DirectPath™ | Box | Active | Class AB | 2-Channel (Stereo) with Stereo Headphones | - | 5V | DRV604 | Board(s) |
|

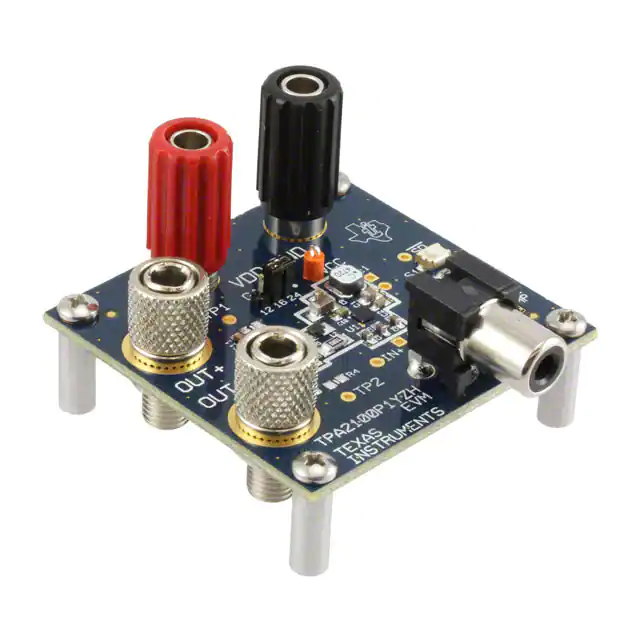

TPA2100P1EVMEVAL BOARD FOR TPA2100P1 |
3 |
|
Datasheet | NanoFree™ | Box | Active | Class D | 1-Channel (Mono) | - | 2.5V ~ 5.5V | TPA2100P1 | Board(s) |
|

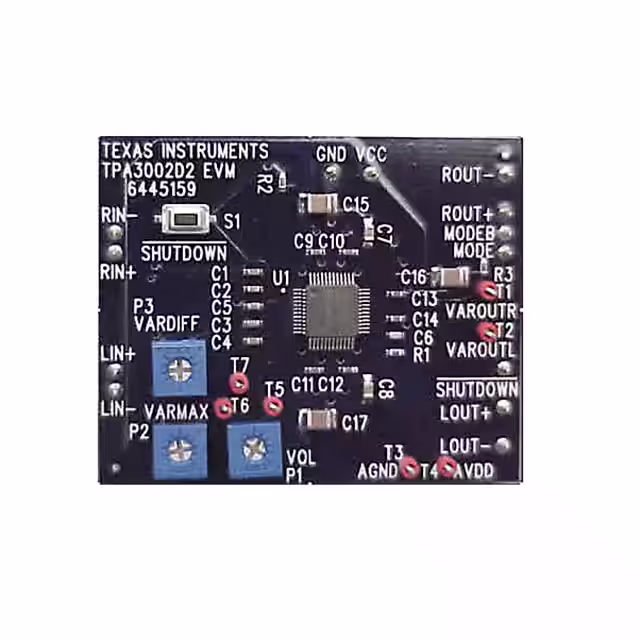

TPA3002D2EVMEVAL BOARD FOR TPA3002D2 |
16 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 9W x 2 @ 8Ohm | 8.5V ~ 14V | TPA3002D2 | Board(s) |
|

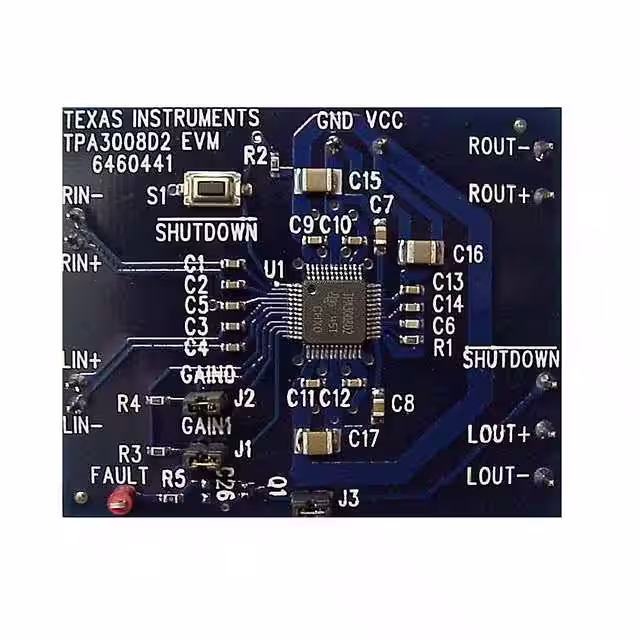

TPA3008D2EVMEVAL BOARD FOR TPA3008D2 |
3 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 16Ohm | 8.5V ~ 18V | TPA3008D2 | Board(s) |
|

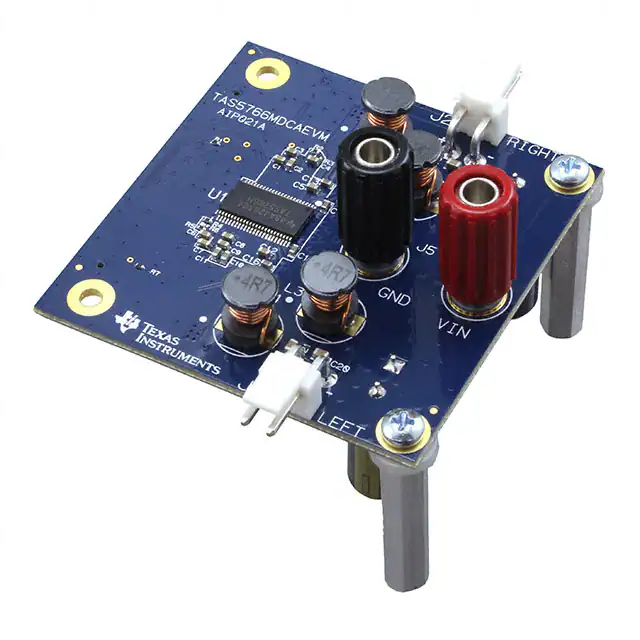

TAS5766MDCAEVMEVAL BOARD FOR TAS5766M |
2 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5766M | Board(s) |
|

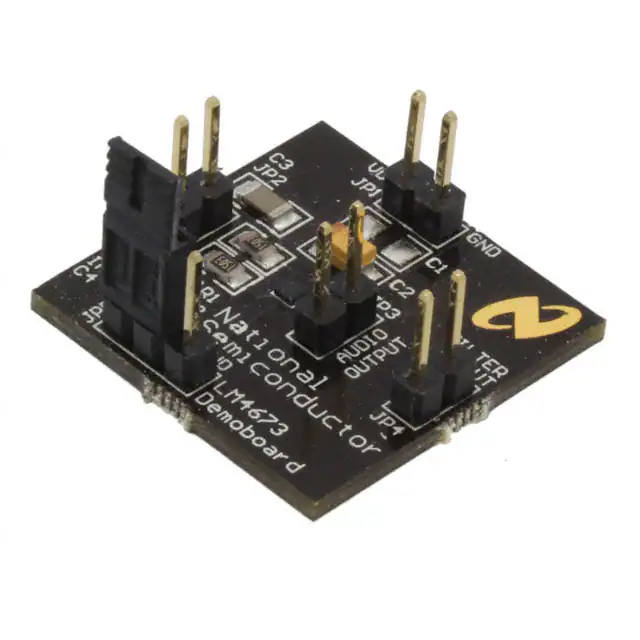

LM4673TMBDEVAL BOARD FOR LM4673 |
2 |
|
Datasheet | Boomer® | Box | Active | Class D | 1-Channel (Mono) | 2.65W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4673 | Board(s) |
|

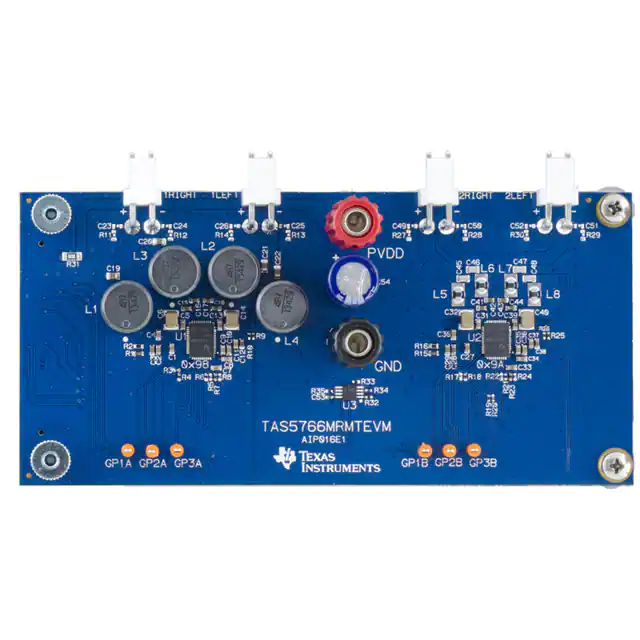

TAS5766MRMTEVMEVAL BOARD FOR TAS5766M |
3 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 7V ~ 26V | TAS5766M | Board(s) |
|
TAS5756MDCAEVMEVAL BOARD FOR TAS5756M |
2 |
|
Datasheet | PurePath™ | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 56W x 1 @ 4Ohm; 28W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5756M | Board(s) |
|

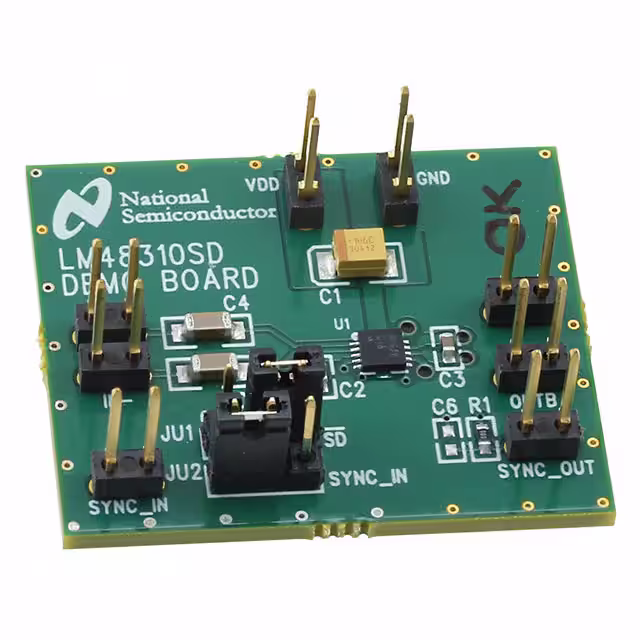

LM48310SDBD/NOPBEVAL BOARD FOR LM48310SD |
3 |
|
Datasheet | Boomer® | Bulk | Active | Class D | 1-Channel (Mono) | 2.6W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM48310SD | Board(s) |
|
TAS2564YBGEVM-DCEVAL BOARD FOR TAS2564 |
2 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 8W x 2 @ 4Ohm | 2.7V ~ 5.5V | TAS2564 | Board(s) |
|

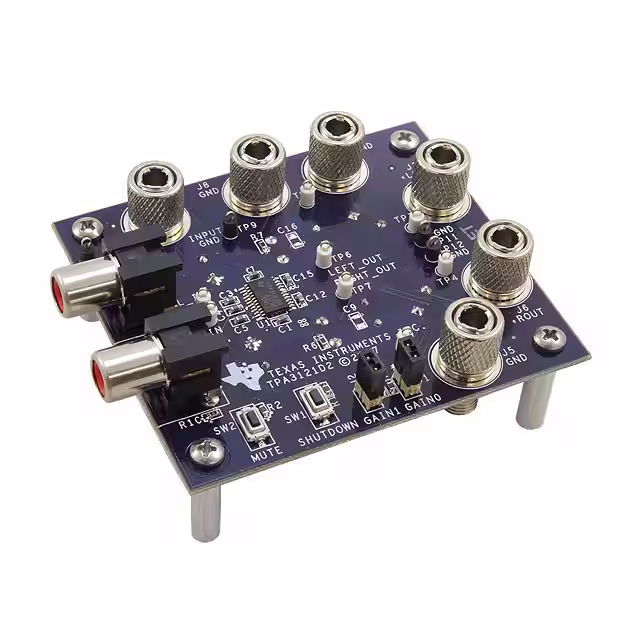

TPA3121D2EVMEVAL BOARD FOR TPA3121D2 |
2 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 30W x 1 @ 8Ohm; 15W x 2 @ 4Ohm | 10V ~ 26V | TPA3121D2 | Board(s) |
|

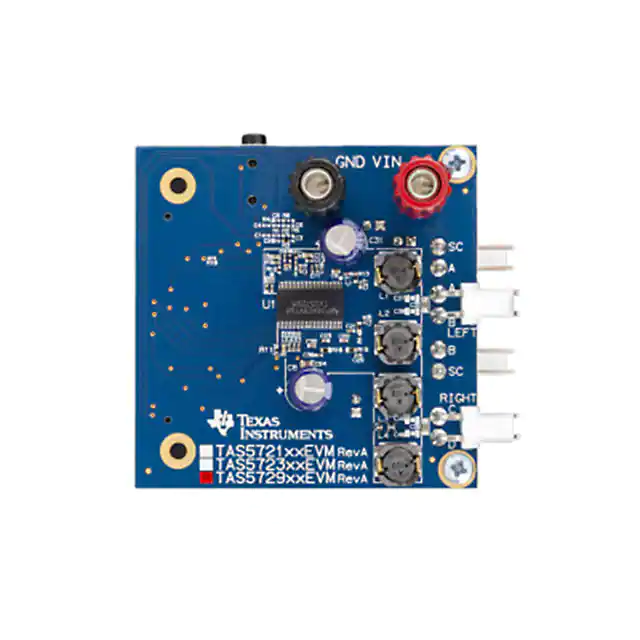

TAS5729MDEVMEVAL BOARD FOR TAS5729MD |
2 |
|
Datasheet | DirectPath™ | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | - | - | TAS5729MD | Board(s) |
|

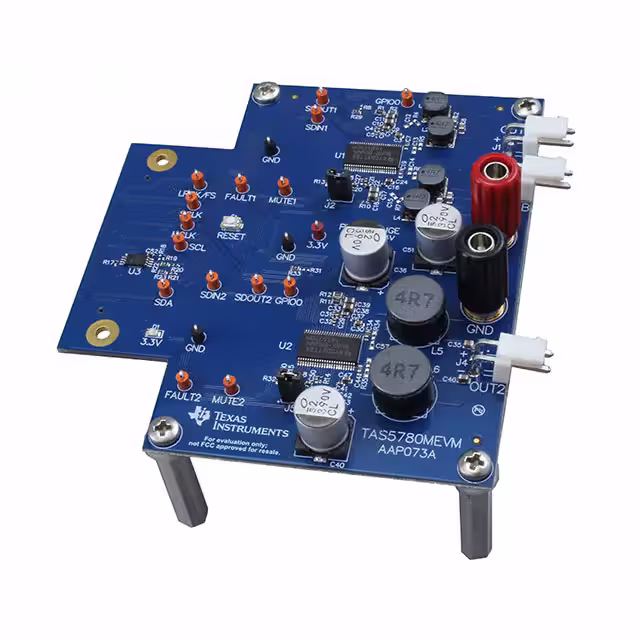

TAS5780MEVMEVAL BOARD FOR TAS5780M |
3 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 8V ~ 26.4V | TAS5780M | Board(s) |
|

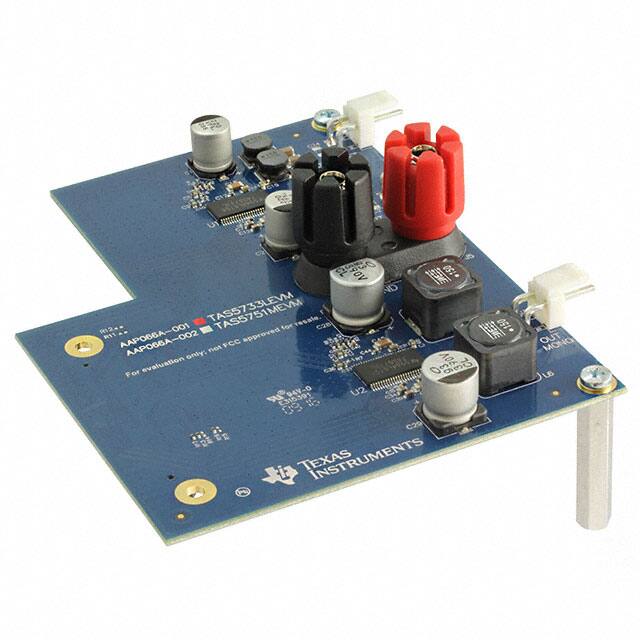

TAS5733LEVMEVAL BOARD FOR TAS5733L |
2 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 8V ~ 16.5V | TAS5733L | Board(s) |
|

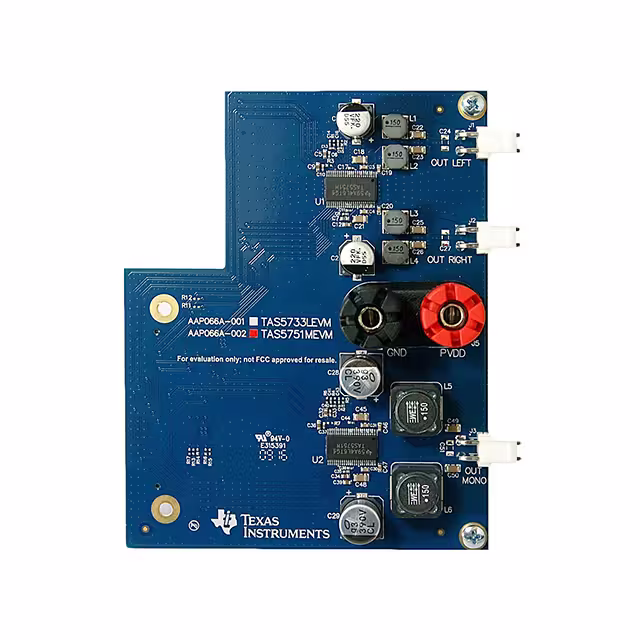

TAS5751MEVMEVAL BOARD FOR TAS5751M |
2 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 25W x 2 @ 8Ohm | 8V ~ 26.4V | TAS5751M | Board(s) |
