Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAS5827EVMEVAL BOARD FOR TAS5827 |
4 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 57W x 2 @ 6Ohm | 4.5V ~ 26.4V | TAS5827 | Board(s) |
|
LM4819MBD/NOPBEVAL BOARD FOR LM4819 |
4 |
|
Datasheet | Boomer® | Box | Active | Class AB | 1-Channel (Mono) | 350mW x 1 @ 16Ohm | 2V ~ 5.5V | LM4819 | Board(s) |
|
TPA0211EVMEVAL BOARD FOR TPA0211 |
2 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) with Mono Headphones | 2W x 1 @ 4Ohm; 92mW x 1 @ 32Ohm | 2.5V ~ 5.5V | TPA0211 | Board(s) |
|

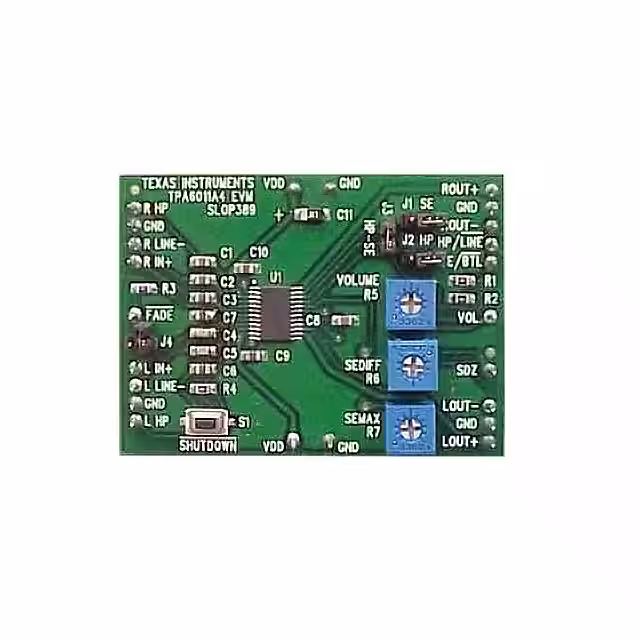

TPA6011A4EVMEVAL BOARD FOR TPA6011A4 |
2 |
|
Datasheet | - | Box | Active | Class AB | 2-Channel (Stereo) with Stereo Headphones | 3W x 2 @ 3Ohm | 4V ~ 5.5V | TPA6011A4 | Board(s) |
|
LM4906MMBDEVAL BOARD FOR LM4906 |
2 |
|
Datasheet | Boomer® | Box | Active | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.6V ~ 5.5V | LM4906 | Board(s) |
|
TPA6205A1EVMEVAL BOARD FOR TPA6205A1 |
2 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.25W x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA6205A1 | Board(s) |
|
STEVAL-CCA042V1EVAL BOARD FOR TDA7491HV |
2 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 5V ~ 18V | TDA7491HV | Board(s) |
|

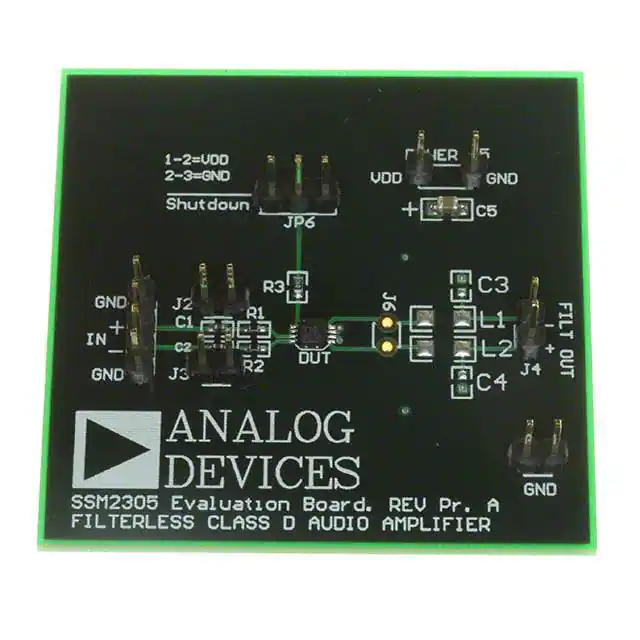

SSM2305-EVALZEVAL BOARD FOR SSM2305 |
3 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 2.8W x 1 @ 4Ohm | 2.2V ~ 5.5V | SSM2305 | Board(s) |
|
AEK-AUD-D903V1EVAL BOARD FOR FDA903D |
3 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 45W x 1 @ 2Ohm | 3.3V ~ 18V | FDA903D | Board(s) |
|
|
TPA6110A2Q1EVMEVAL BOARD FOR TPA6110A2-Q1 |
4 |
|
Datasheet | - | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 150mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA6110A2-Q1 | Board(s) |
|

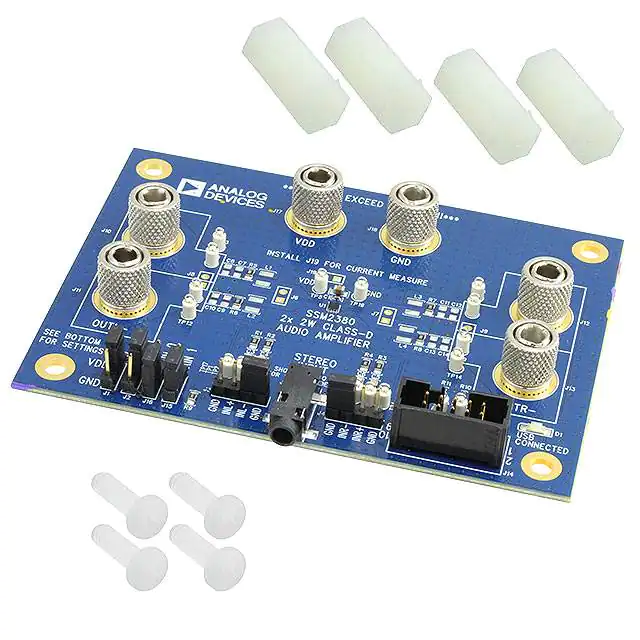

EVAL-SSM2380ZEVAL BOARD FOR SSM2380 |
1 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 3.2W x 2 @ 4Ohm | - | SSM2380 | Board(s) |
|
STEVAL-CCA027V1EVAL BOARD FOR TDA7492 |
2 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 6Ohm | 8V ~ 26V | TDA7492 | Board(s) |
|
EVAL-SSM2375ZEVAL BOARD FOR SSM2375 |
1 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.7W x 1 @ 3Ohm | 2.5V ~ 5.5V | SSM2375 | Board(s) |
|
SSM6322CP-EBZEVAL BOARD FOR SSM6322 |
1 |
|
Datasheet | - | Bulk | Active | Class AB | 2-Channel (Stereo) | - | ±3V ~ 6V | SSM6322 | Board(s) |
|

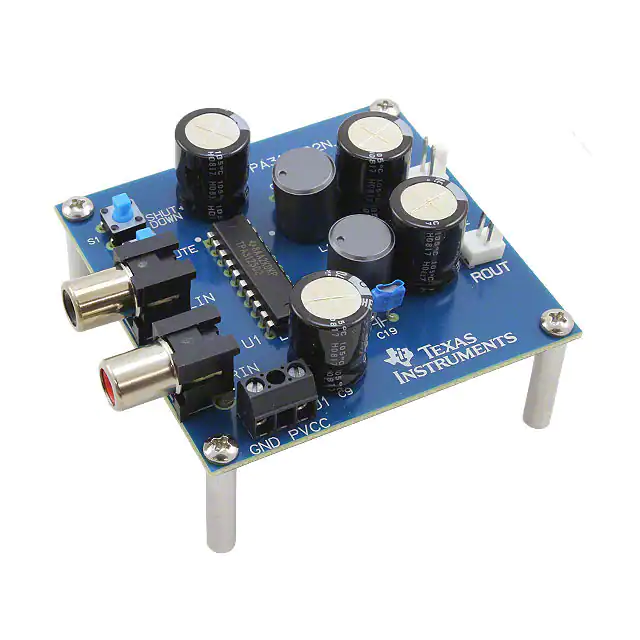

TPA3125D2EVMEVAL BOARD FOR TPA3125D2 |
3 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 36W x 1 @ 8Ohm; 10W x 2 @ 8Ohm | 10V ~ 26V | TPA3125D2 | Board(s) |
|

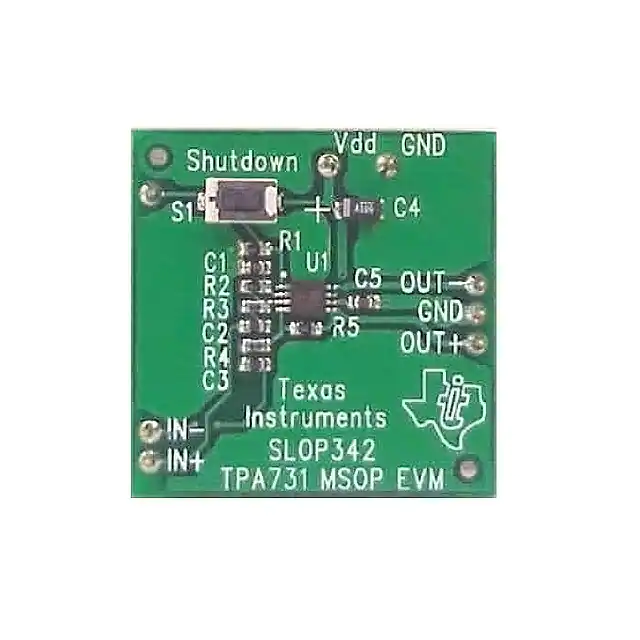

TPA731EVMEVAL BOARD FOR TPA731 |
5 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA731 | Board(s) |
|

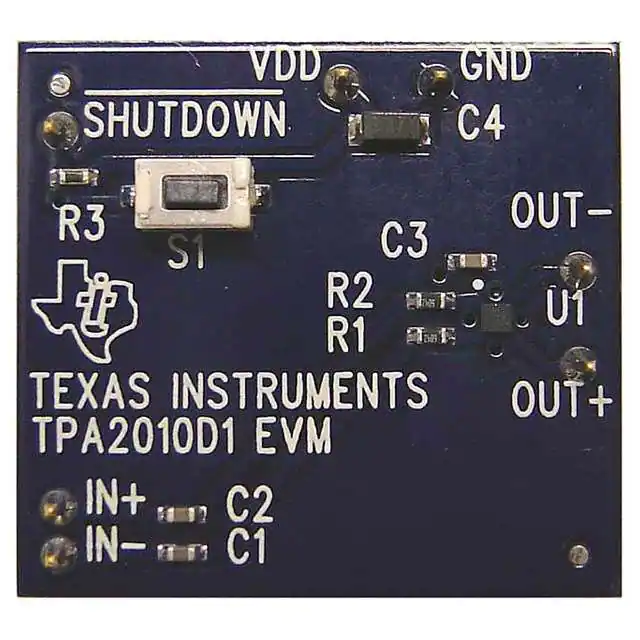

TPA2010D1EVMEVAL BOARD FOR TPA2010D1 |
5 |
|
Datasheet | NanoFree™ | Bulk | Active | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2010D1 | Board(s) |
|

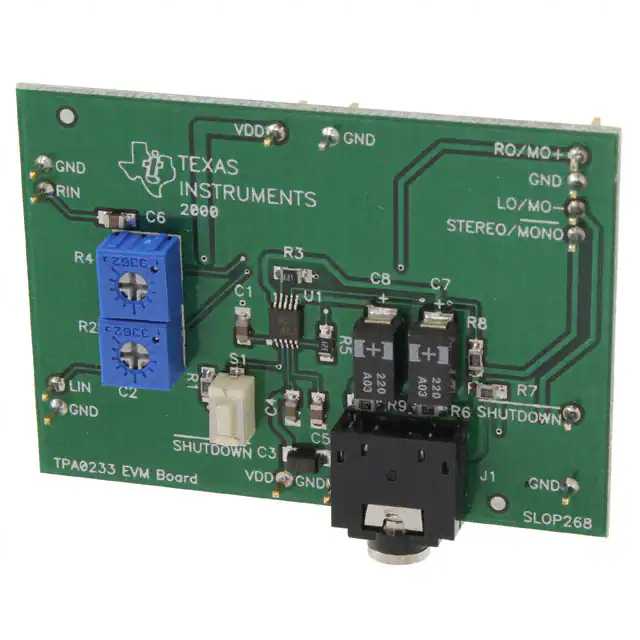

TPA0233EVMEVAL BOARD FOR TPA0233 |
4 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) with Stereo Headphones | 2W x 1 @ 4Ohm; 92mW x 2 @ 32Ohm | 2.5V ~ 5.5V | TPA0233 | Board(s) |
|
TPA2039D1YFFEVMEVAL BOARD FOR TPA2039D1 |
4 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.24W x 1 @ 4Ohm | 2.5V ~ 5.5V | TPA2039D1 | Board(s) |
|
TPA6133A2EVMEVAL BOARD FOR TPA6133A2 |
4 |
|
Datasheet | DirectPath™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 138mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA6133A2 | Board(s) |
