Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

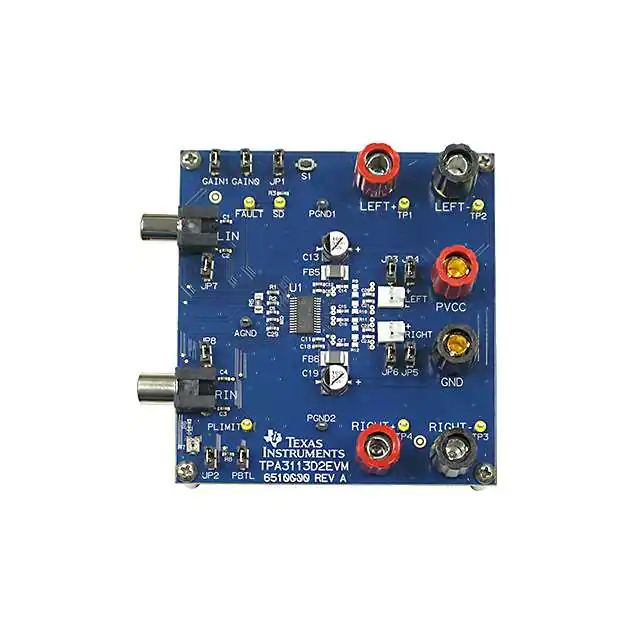

TPA3113D2EVMEVAL BOARD FOR TPA3113D2 |
2 |
|
Datasheet | SpeakerGuard™ | Box | Active | Class D | 2-Channel (Stereo) | 6W x 2 @ 8Ohm | 8V ~ 26V | TPA3113D2 | Board(s) |
|

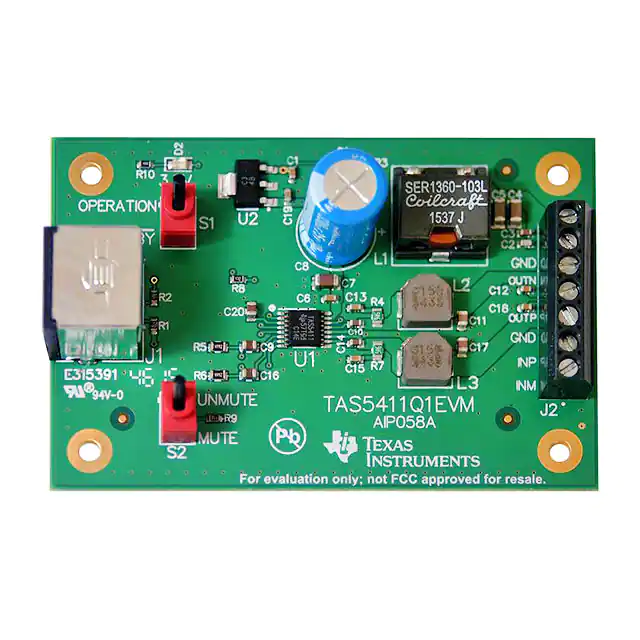

TAS5411Q1EVMEVAL BOARD FOR TAS5411-Q1 |
2 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 8W x 1 @ 4Ohm | 5V ~ 18V | TAS5411-Q1 | Board(s) |
|

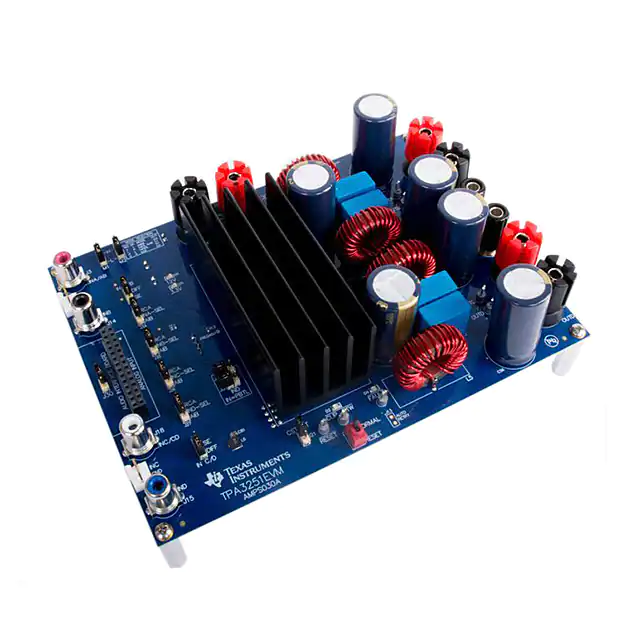

TPA3251EVMEVAL BOARD FOR TPA3251 |
12 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 350W x 1 @ 2Ohm; 220W x 2 @ 3Ohm | 18V ~ 36V | TPA3251 | Board(s) |
|

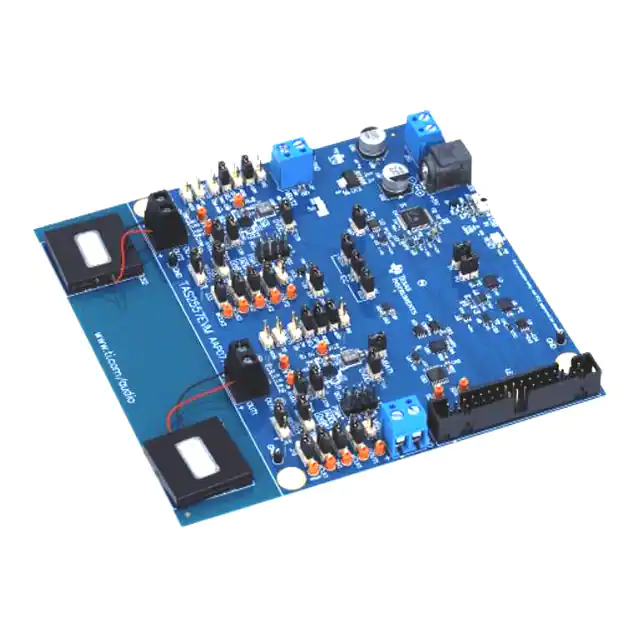

TAS2557EVMEVAL BOARD FOR TAS2557 |
4 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 6.9W x 1 @ 4Ohm | 5V | TAS2557 | Board(s) |
|

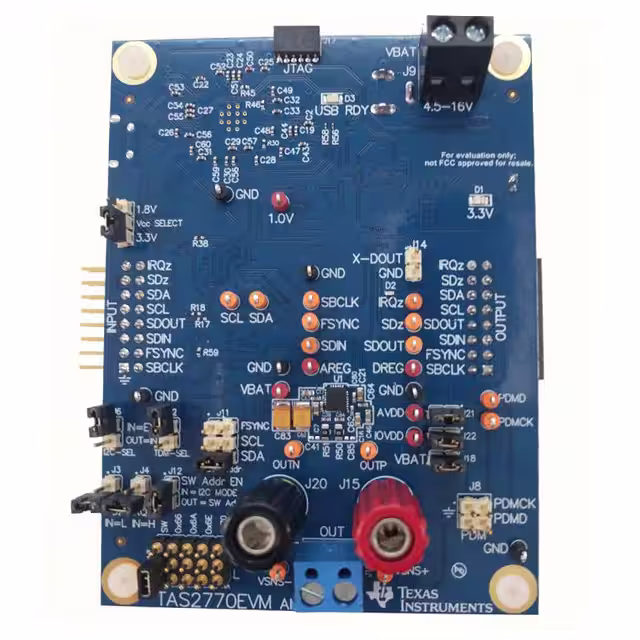

TAS2770EVMEVAL BOARD FOR TAS2770 |
3 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 18.3W x 1 @ 4Ohm | 4.5V ~ 16V | TAS2770 | Board(s) |
|
TAS5806MEVMEVAL BOARD FOR TAS5806M |
2 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 27.5W x 2 @ 8Ohm | 4.5V ~ 26.4V | TAS5806M | Board(s) |
|

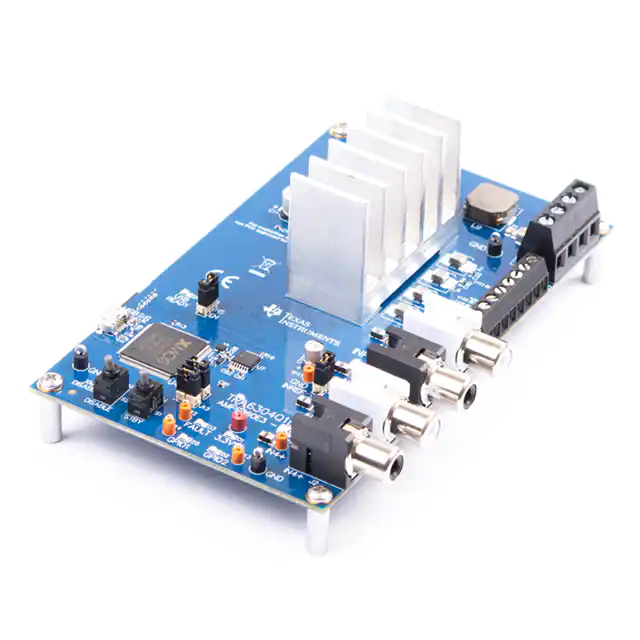

TPA6304Q1EVMEVAL BOARD FOR TPA6304-Q1 |
8 |
|
Datasheet | - | Box | Active | Class D | 4-Channel (Quad) | 45W x 4 @ 2Ohm | 4.5V ~ 18V | TPA6304-Q1 | Board(s) |
|

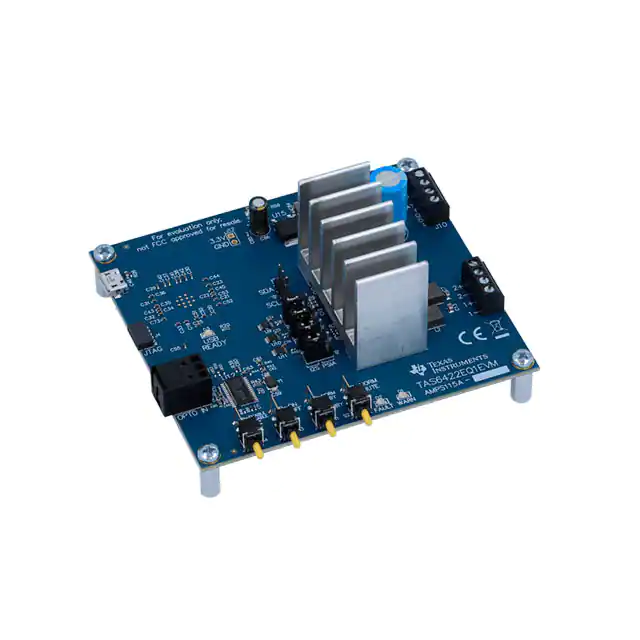

TAS6422EQ1EVMEVAL BOARD FOR TAS6422E-Q1 |
2 |
|
Datasheet | PurePath™ | Box | Active | Class D | 2-Channel (Stereo) | 27W x 2 @ 4Ohm, 45W x 2 @ 2Ohm | 4.5V ~ 26.4V | TAS6422E-Q1 | Board(s), Cable(s) |
|

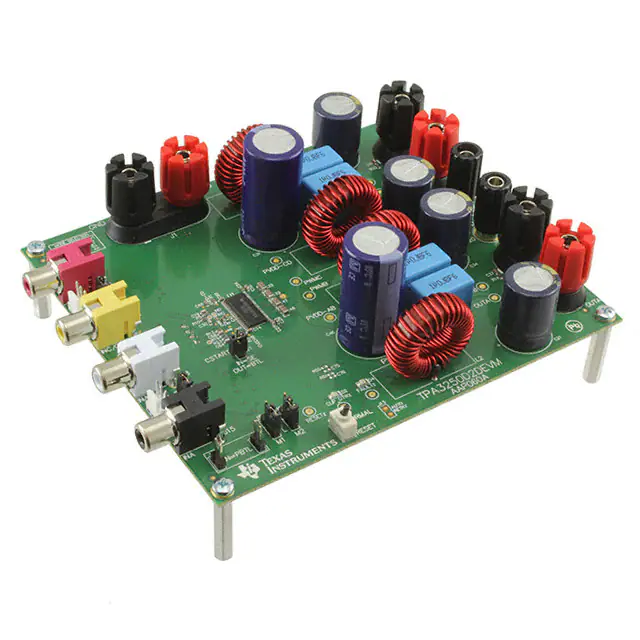

TPA3250D2EVMEVAL BOARD FOR TPA3250D2 |
5 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 130W x 2 @ 4Ohm | 18V ~ 38V | TPA3250D2 | Board(s) |
|

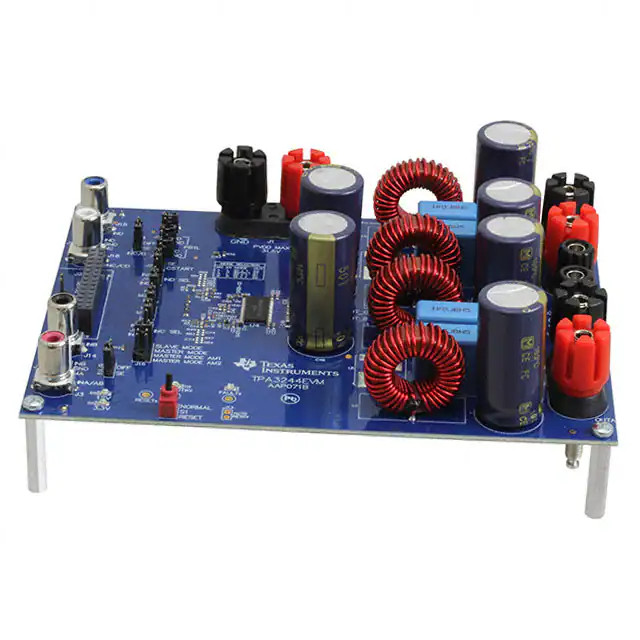

TPA3244EVMEVAL BOARD FOR TPA3244 |
2 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 14V ~ 31.5V | TPA3244 | Board(s) |
|

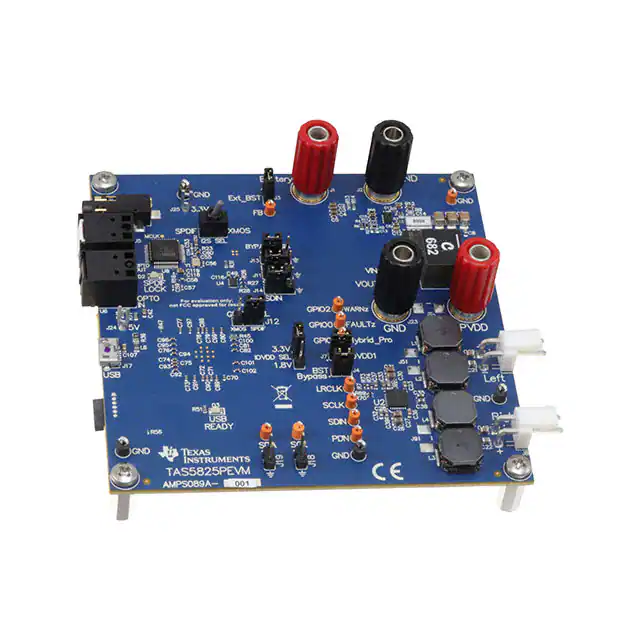

TAS5825PEVMEVAL BOARD FOR TAS5825P |
13 |
|
Datasheet | PurePath™ | Box | Active | Class D | 2-Channel (Stereo) | 65W x 2 @ 4Ohm | 5V | TAS5825P | Board(s) |
|

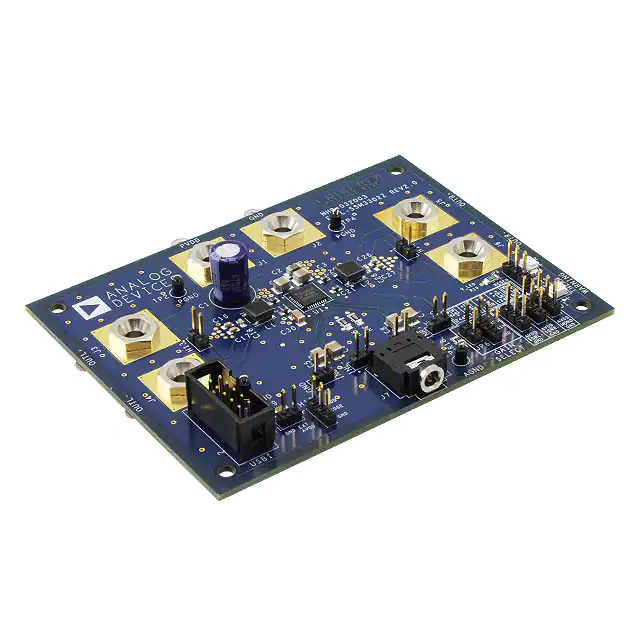

EVAL-SSM3302ZEVAL BOARD FOR SSM3302 |
0 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 36.6W x 1 @ 2Ohm; 24W x 2 @ 4Ohm | 7V ~ 18V | SSM3302 | Board(s) |
|

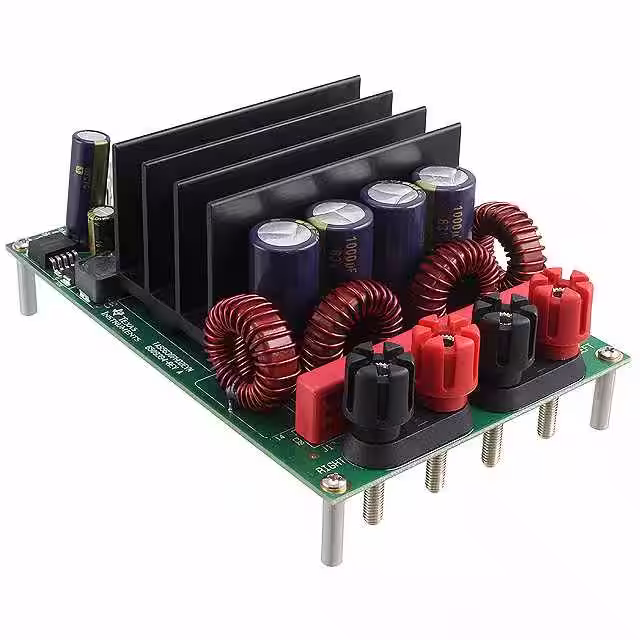

TAS5630PHD2EVMEVAL BOARD FOR TAS5630 |
2 |
|
Datasheet | PurePath™ HD | Box | Active | Class D | 2-Channel (Stereo) | 607W x 1 @ 2Ohm; 318W x 2 @ 4Ohm | 25V ~ 50V | TAS5630 | Board(s) |
|

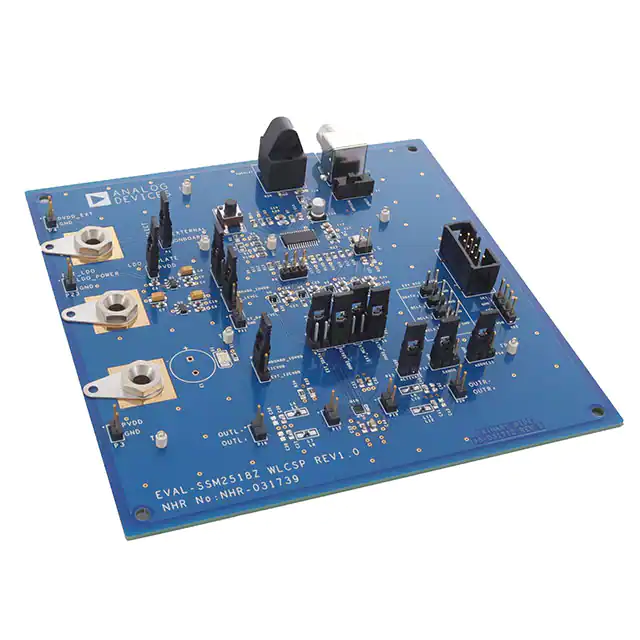

EVAL-SSM2518ZEVAL BOARD FOR SSM2518 |
2 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 2.5W x 2 @ 4Ohm | 2.5V ~ 5.5V | SSM2518 | Board(s) |
|

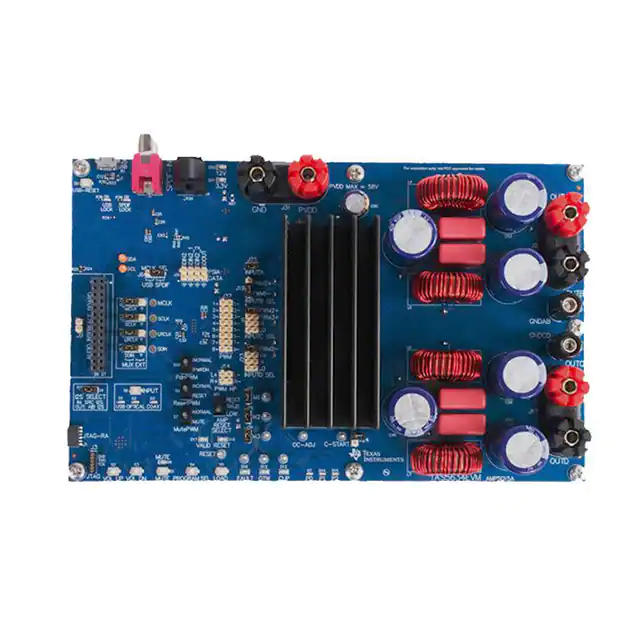

TAS5634EVMEVAL BOARD FOR TAS5634 |
8 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 600W x 1 @ 3Ohm; 300W x 2 @ 6Ohm | 12V ~ 58V | TAS5634 | Board(s) |
|

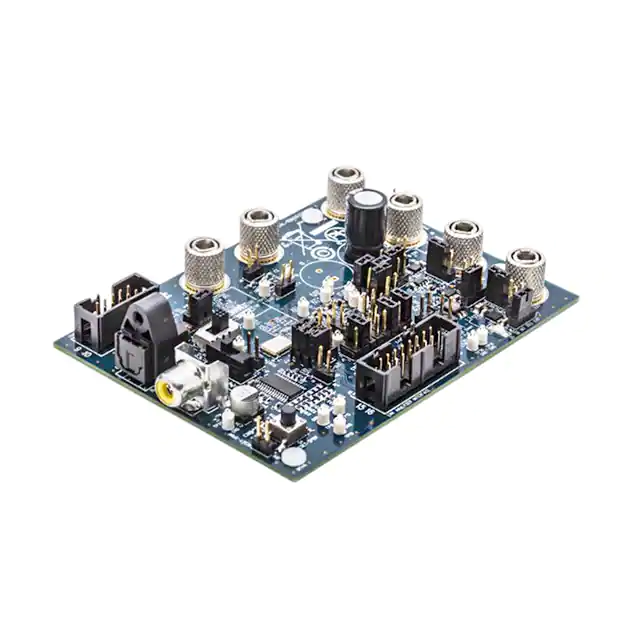

EVAL-SSM3525ZEVAL BOARD FOR SSM3525 |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 15.3W x 1 @ 4Ohm | 4.5V ~ 17V | SSM3525 | Board(s) |
|

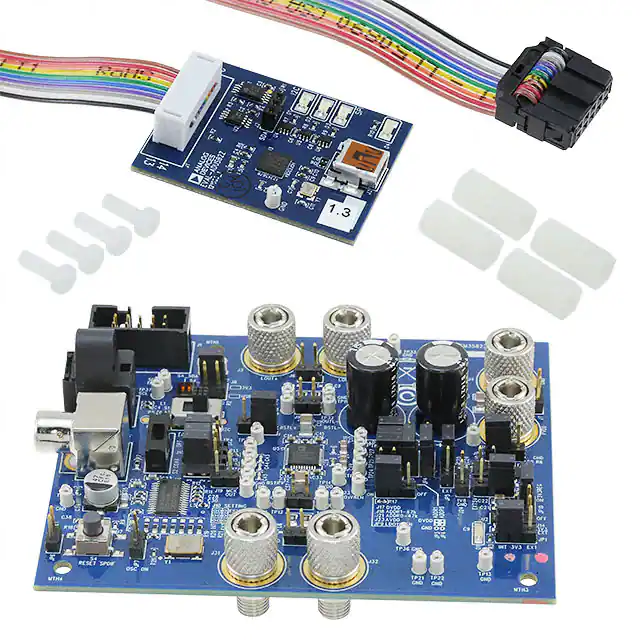

EVAL-SSM3582ZEVAL BOARD FOR SSM3582 |
9 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 31.76W x 2 @ 4Ohm | 4.5V ~ 16V | SSM3582 | Board(s), Cable(s) |
|

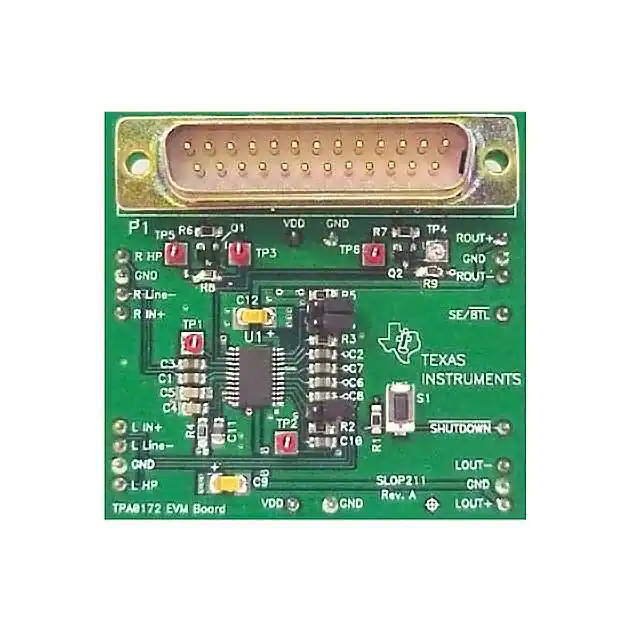

TPA0172EVMEVAL BOARD FOR TPA0172 |
13 |
|
Datasheet | - | Bulk | Active | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2W x 2 @ 4Ohm | 4.5V ~ 5.5V | TPA0172 | Board(s) |
|

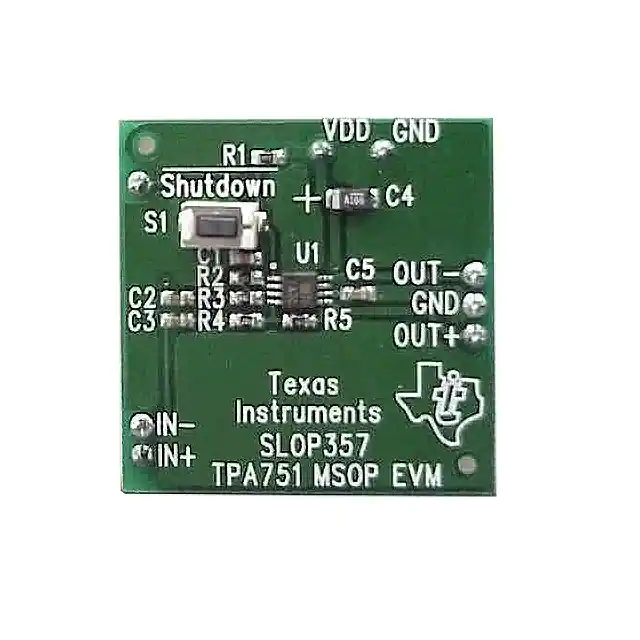

TPA751EVMEVAL BOARD FOR TPA751 |
2 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA751 | Board(s) |
|

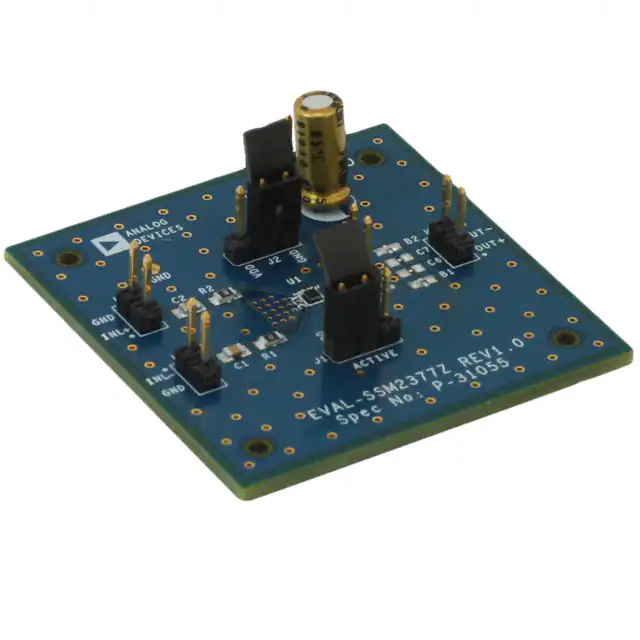

EVAL-SSM2377ZEVAL BOARD FOR SSM2377 |
0 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.17W x 1 @ 4Ohm | 2.5V ~ 5.5V | SSM2377 | Board(s) |
