Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-CCA037V1EVAL BOARD FOR TS4990 |
4 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.2W x 1 @ 8Ohm | 2.2V ~ 5.5V | TS4990 | Board(s) |
|
NCP2811AMTTXGEVBEVAL BOARD FOR NCP2811A |
0 |
|
Datasheet | NOCAP™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 110mW x 2 @ 16Ohm | 2.7V ~ 5V | NCP2811A | Board(s) |
|
NCP2811BMTTXGEVBEVAL BOARD FOR NCP2811B |
0 |
|
Datasheet | NOCAP™ | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 110mW x 2 @ 16Ohm | 2.7V ~ 5V | NCP2811B | Board(s) |
|
NCP2892BEVBEVAL BOARD FOR NCP2892 |
0 |
|
- |
- | Bulk | Active | Class AB | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2892 | Board(s) |
|
NCP2823AGEVBEVAL BOARD FOR NCP2823A |
0 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.5V ~ 5.5V | NCP2823A | Board(s) |
|
NCP2890GEVBEVAL BOARD FOR NCP2890 |
0 |
|
Datasheet | - | Box | Active | Class AB | 1-Channel (Mono) | 1.08W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2890 | Board(s) |
|

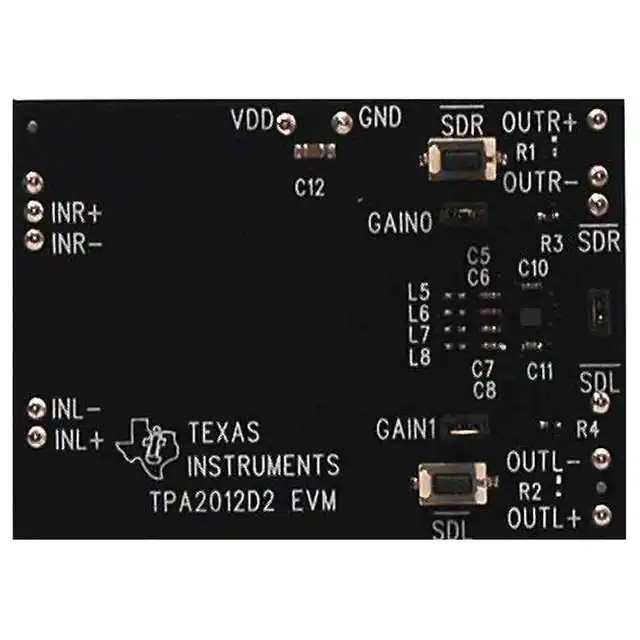

TPA2012D2EVMEVAL BOARD FOR TPA2012D2 |
0 |
|
Datasheet | NanoFree™ | Box | Active | Class D | 2-Channel (Stereo) | 2.1W x 2 @ 4Ohm | 2.5V ~ 5.5V | TPA2012D2 | Board(s) |
|

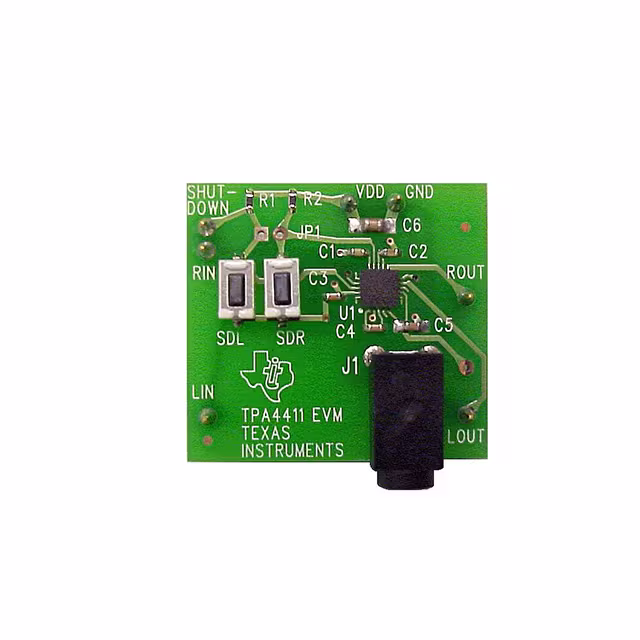

TPA4411EVMEVAL BOARD FOR TPA4411 |
1 |
|
Datasheet | DirectPath™ | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 100mW x 2 @ 16Ohm | 1.8V ~ 4.5V | TPA4411 | Board(s) |
|

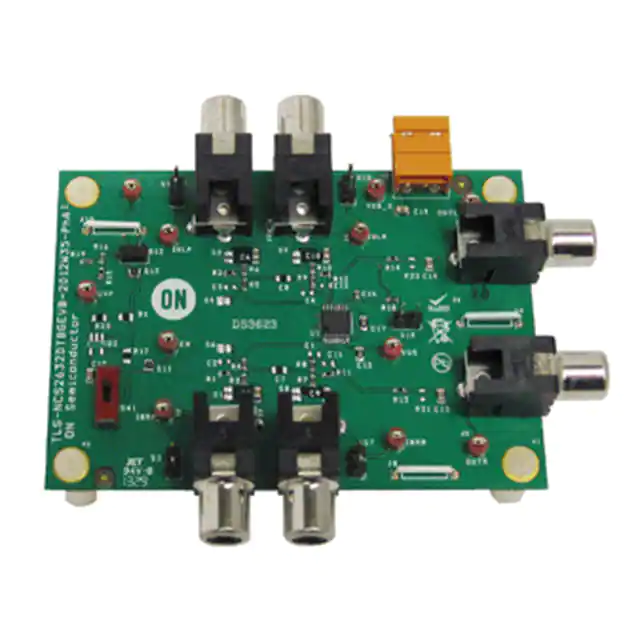

NCS2632DTBGEVBEVAL BOARD FOR NCS2632 |
0 |
|
Datasheet | NOCAP™ | Box | Active | Class AB | 2-Channel (Stereo) | - | 3.3V | NCS2632 | Board(s) |
|
|
NCS8353MNGEVBEVAL BOARD FOR NCS8353 |
0 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 8V ~ 26V | NCS8353 | Board(s) |
|

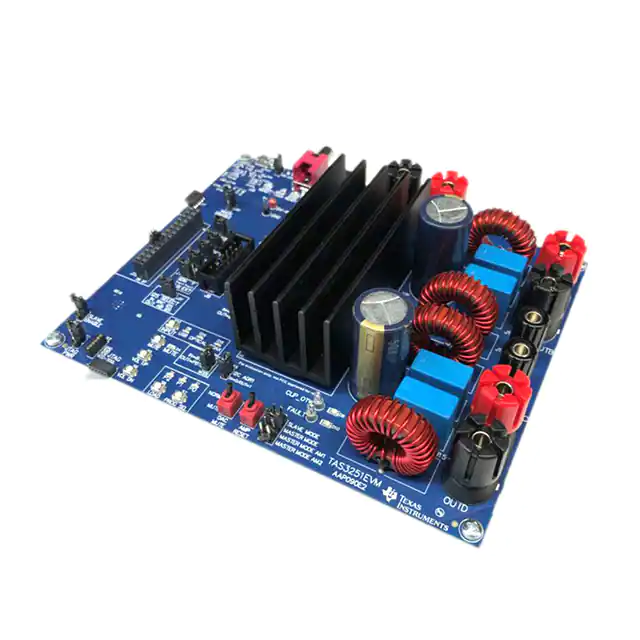

TAS3251EVMEVAL BOARD FOR TAS3251 |
1 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | - | 15V ~ 36V | TAS3251 | Board(s) |
|

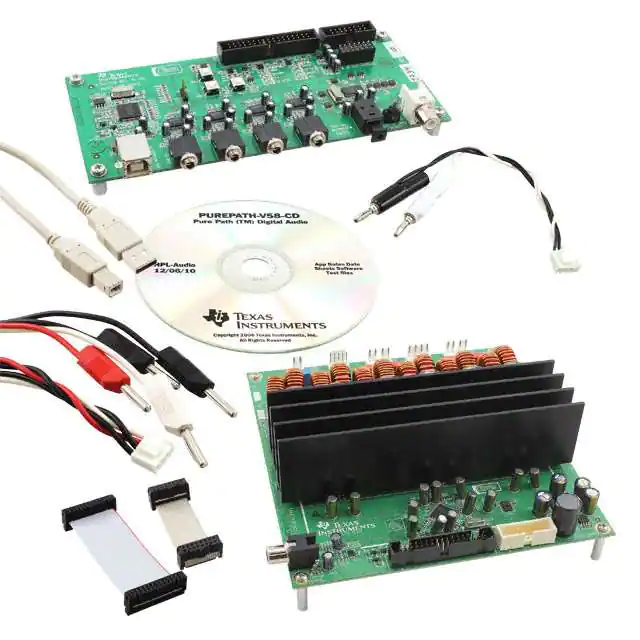

TAS5162DKD6EVMEVAL BOARD FOR TAS5162 TAS5518 |
1 |
|
Datasheet | Equibit™, PurePath Digital™ | Box | Active | Class D | 6-Channel | 210W x 2 @ 6Ohm | 10.8V ~ 13.2V | TAS5162, TAS5518 | Board(s), Cable(s) |
|
DEMOTS4909QEVAL BOARD FOR TS4909 |
0 |
|
Datasheet | - | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 158mW x 2 @ 16Ohm | 2.2V ~ 5.5V | TS4909 | Board(s) |
|
DEMOTS488SEVAL BOARD FOR TS488 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 130mW x 2 @ 16Ohm | 2.2V ~ 5.5V | TS488 | Board(s) |
|
EVALAUDIOI2SCOMTOBO1EVAL BOARD FOR MA12040P |
1 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 4V ~ 18V | MA12040P | Board(s) |
|
DEMOTS4997QEVAL BOARD FOR TS4997 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 1W x 2 @ 8Ohm | 2.7V ~ 5.5V | TS4997 | Board(s) |
|
DEMOTS2007QEVAL BOARD FOR TS2007 |
0 |
|
- |
- | Bulk | Active | Class D | 1-Channel (Mono) | 2.8W x 1 @ 4Ohm | 2.4V ~ 5.5V | TS2007 | Board(s) |
|
DEMOTS4995JEVAL BOARD FOR TS4995 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 1.2W x 1 @ 8Ohm | 2.5V ~ 5.5V | TS4995 | Board(s) |
|
STEVAL-CCA002V1EVAL BOARD FOR TS4994 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.5V ~ 5.5V | TS4994 | Board(s) |
|
STEVAL-CCA003V1EVAL BOARD FOR TS4984 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 1W x 2 @ 8Ohm | 2.2V ~ 5.5V | TS4984 | Board(s) |
