Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

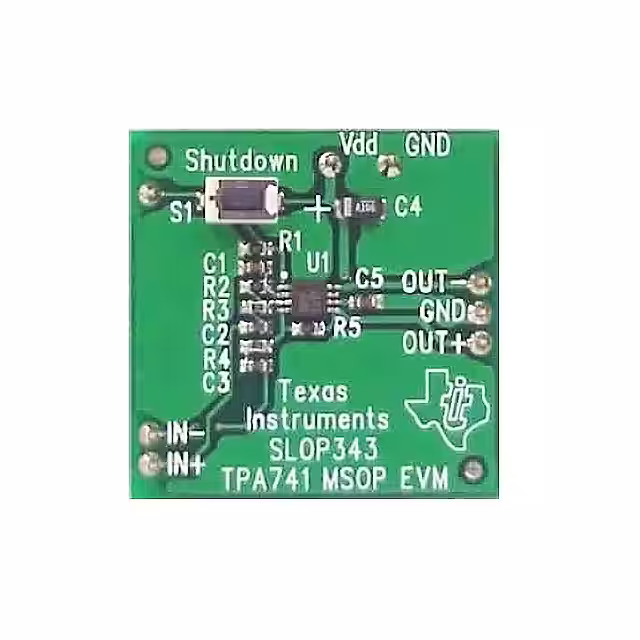

TPA741EVMEVAL BOARD FOR TPA741 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA741 | Board(s) |
|

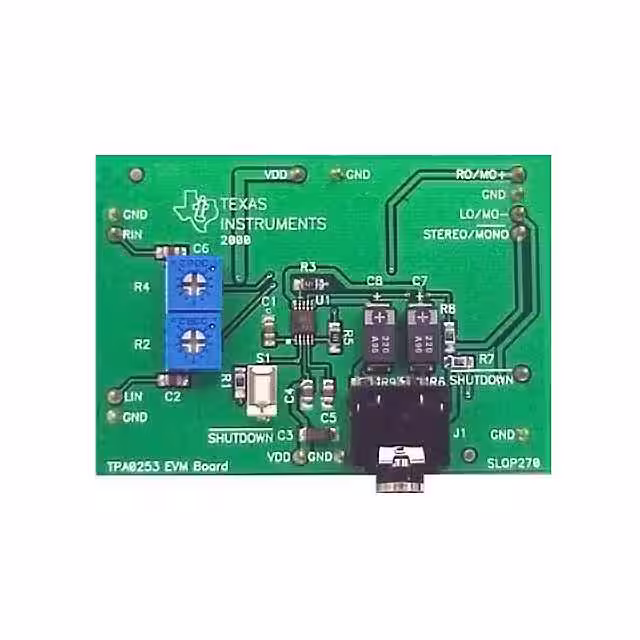

TPA0253EVMEVAL BOARD FOR TPA0253 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 1W x 1 @ 8Ohm; 85mW x 2 @ 32Ohm | 2.5V ~ 5.5V | TPA0253 | Board(s) |
|

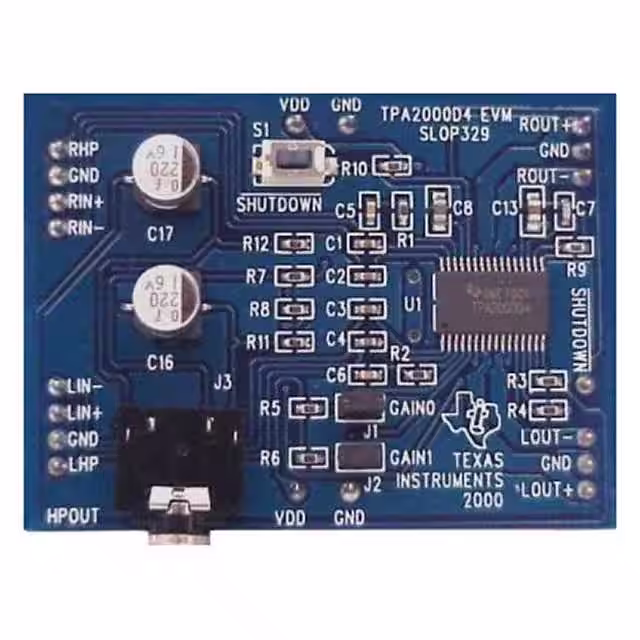

TPA2000D4EVMEVAL BOARD FOR TPA2000D4 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 2-Channel (Stereo) with Stereo Headphones | 2W x 2 @ 4Ohm; 90mW x 2 @ 32Ohm | 2.7V ~ 5.5V | TPA2000D4 | Board(s) |
|
TPA321EVMEVAL BOARD FOR TPA321 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA321 | Board(s) |
|

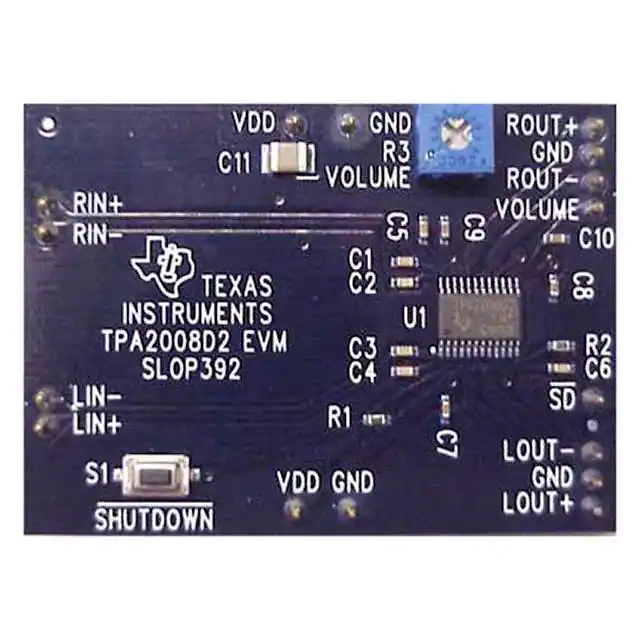

TPA2008D2EVMEVAL BOARD FOR TPA2008D2 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 3W x 2 @ 3Ohm | 4.5V ~ 5.5V | TPA2008D2 | Board(s) |
|
SSM2304Z-EVALEVAL BOARD FOR SSM2304 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 2.4W x 2 @ 4Ohm | 2.5V ~ 5V | SSM2304 | Board(s) |
|
SSM2317-MINI-EVALZEVAL BOARD FOR SSM2317 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 3.89W x 1 @ 3Ohm | 2.5V ~ 5.5V | SSM2317 | Board(s) |
|

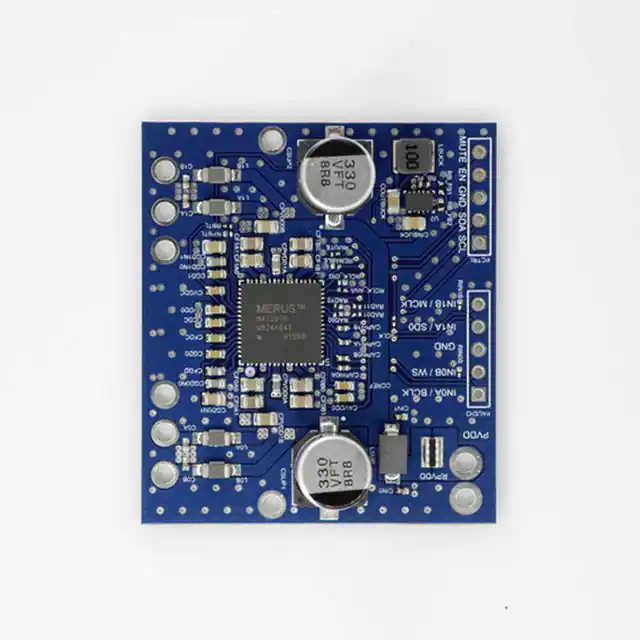

REFAUDIOAMA12070TOBO1EVAL BOARD FOR MA12070 |
0 |
|
Datasheet | MERUS™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 80W x 4 @ 4Ohm | 5V ~ 26V | MA12070 | Board(s) |
|
STEVAL-CCA025V1EVAL BOARD FOR TS4621E |
0 |
|
Datasheet | - | Bulk | Not For New Designs | Class G | Headphones, 2-Channel (Stereo) | - | 2.3V ~ 4.8V | TS4621E | Board(s) |
|
STEVAL-CCA048V1EVAL BOARD FOR STA333 |
0 |
|
Datasheet | Sound Terminal™ | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 4.5V ~ 20V | STA333 | Board(s) |
|
STEVAL-CCA049V1EVAL BOARD FOR STA335ML |
0 |
|
- |
Sound Terminal™ | Box | Obsolete | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 5V ~ 26V | STA335ML | Board(s) |
|
STEVAL-CCA019V1EVAL BOARD FOR TS4982 |
0 |
|
Datasheet | - | Box | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2W x 2 @ 4Ohm; 125mW x 2 @ 16Ohm | 4.5V ~ 5.5V | TS4982 | Board(s) |
|
REFAUDIOAMA12040TOBO1EVAL BOARD FOR MA12040 |
0 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5V ~ 18V | MA12040 | Board(s) |
|
TPA1517DWPEVMEVAL BOARD FOR TPA1517 |
0 |
|
Datasheet | - | Box | Obsolete | Class AB | 2-Channel (Stereo) | 6W x 2 @ 4Ohm | 9.5V ~ 18V | TPA1517 | Board(s) |
|

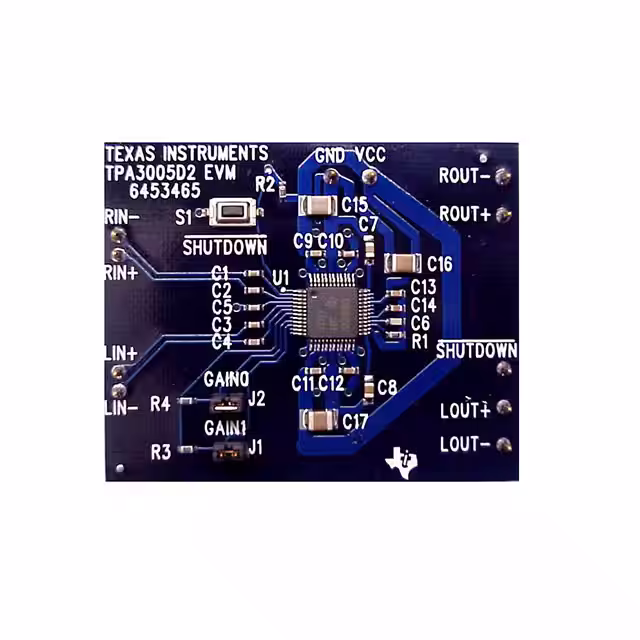

TPA3005D2EVMEVAL BOARD FOR TPA3005D2 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 6W x 2 @ 8Ohm | 8.5V ~ 18V | TPA3005D2 | Board(s) |
|

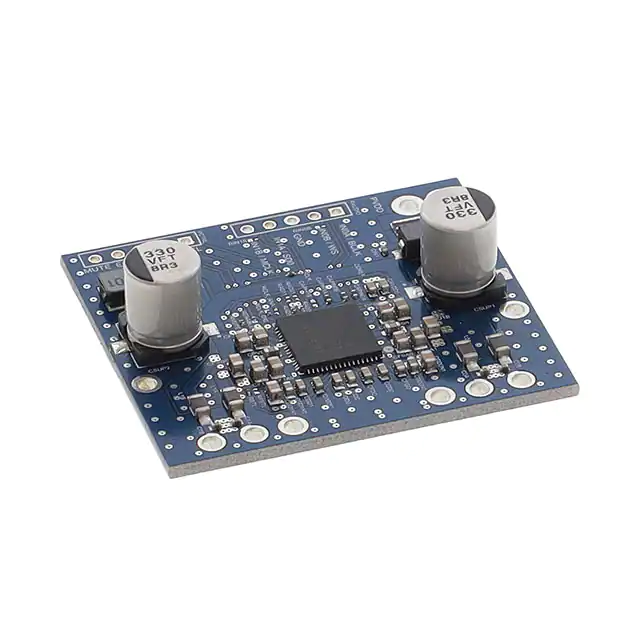

REFAUDIODMA12070PTOBO1EVAL BOARD FOR MA12070P |
0 |
|
Datasheet | MERUS™ | Bulk | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 80W x 4 @ 4Ohm | 5V ~ 26V | MA12070P | Board(s) |
|
NCP2890EVBEVAL BOARD FOR NCP2890 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 1.08W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2890 | Board(s) |
|
NCP2820EVBEVAL BOARD FOR NCP2820 |
0 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) | 2.65W x 1 @ 4Ohm | 2.5V ~ 5.5V | NCP2820 | Board(s) |
|
|
STEVAL-CCA040V1EVAL BOARD FOR STA540SAN |
0 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) or 4-Channel (Quad) | 26W x 2 @ 4Ohm; 10W x 4 @ 4Ohm | 8V ~ 22V | STA540SAN | Board(s) |
|
SSM2306-MINI-EVALZEVAL BOARD FOR SSM2306 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.4W x 2 @ 4Ohm | 2.5V ~ 5V | SSM2306 | Board(s) |
