Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4819MBDEVAL BOARD FOR LM4819 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 350mW x 1 @ 16Ohm | 2V ~ 5.5V | LM4819 | Board(s) |
|
SSM2306-EVALZEVAL BOARD FOR SSM2306 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.4W x 2 @ 4Ohm | 2.5V ~ 5V | SSM2306 | Board(s) |
|
EVAL-TDA756XEVAL BOARD FOR TDA756X |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 4-Channel (Quad) | - | 6V ~ 18V | TDA756x | Partially Populated Board(s) |
|
LM4929MMBDEVAL BOARD FOR LM4929 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 80mW x 2 @ 16Ohm | 2V ~ 5.5V | LM4929 | Board(s) |
|

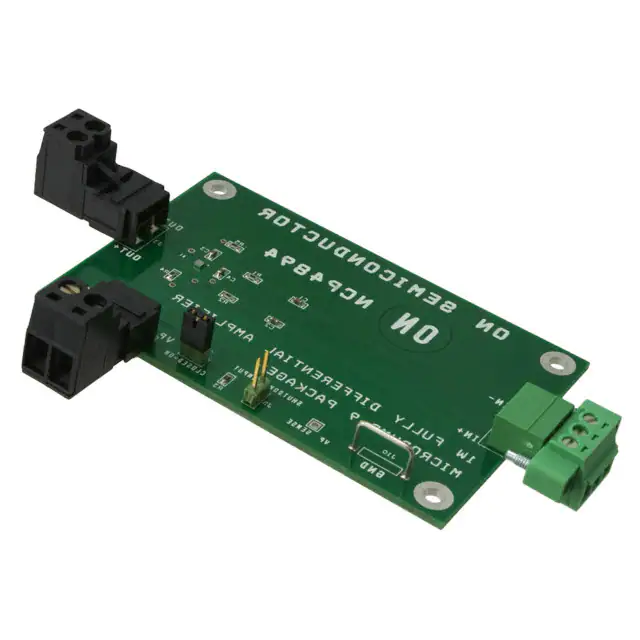

NCP4894FCEVBEVAL BOARD FOR NCP4894 |
1 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP4894 | Board(s) |
|
STEVAL-CCA012V1EVAL BOARD FOR TS2007 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 2.8W x 1 @ 4Ohm | 2.4V ~ 5.5V | TS2007 | Board(s) |
|
STEVAL-CCA029V1EVAL BOARD FOR TDA7491LP |
0 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 5W x 2 @ 8Ohm | 5V ~ 14V | TDA7491LP | Board(s) |
|

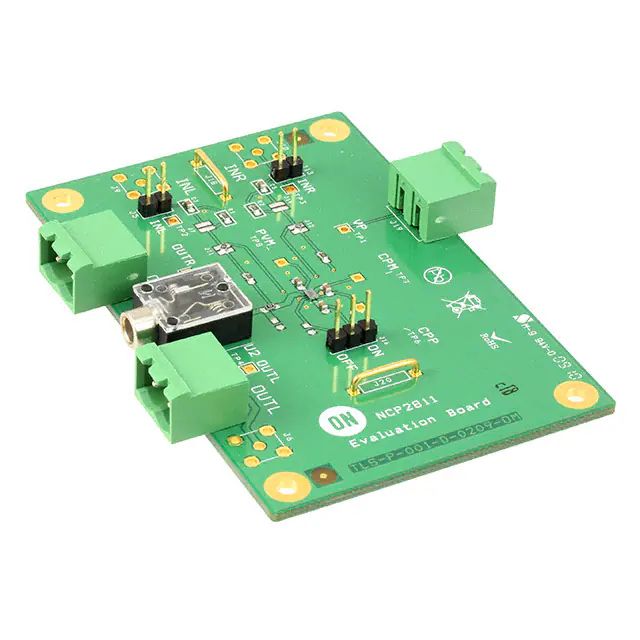

NCP2811AFCT1GEVBEVAL BOARD FOR NCP2811A |
0 |
|
Datasheet | NOCAP™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 110mW x 2 @ 16Ohm | 2.7V ~ 5V | NCP2811A | Board(s) |
|
STEVAL-CCA028V1EVAL BOARD FOR TDA7491P |
0 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 6Ohm | 5V ~ 18V | TDA7491P | Board(s) |
|
|
LM4900MMBDEVAL BOARD FOR LM4900 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 675mW x 1 @ 8Ohm | 2V ~ 5.5V | LM4900 | Board(s) |
|
STEVAL-CCA021V1EVAL BOARD FOR STM32F103 TS4657 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 2.2W x 1 or 2 @ 4Ohm | - | STM32F103, TS4657(TS2012, TS4962, TS472) | Board(s) |
|
TPA3140D2PWPEVMEVAL BOARD FOR TPA3140D2 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 4.5V ~ 14.4V | TPA3140D2 | Board(s) |
|
LM48510SDBDEVAL BOARD FOR LM48510 |
0 |
|
- |
Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 1.9W x 1 @ 4Ohm | 2.7V ~ 5V | LM48510 | Board(s) |
|
LM4940TSBD/NOPBEVAL BOARD FOR LM4940 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 2-Channel (Stereo) | 6W x 2 @ 4Ohm | 10V ~ 16V | LM4940 | Board(s) |
|
LM4898MMBDEVAL BOARD FOR LM4898 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.4W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4898 | Board(s) |
|

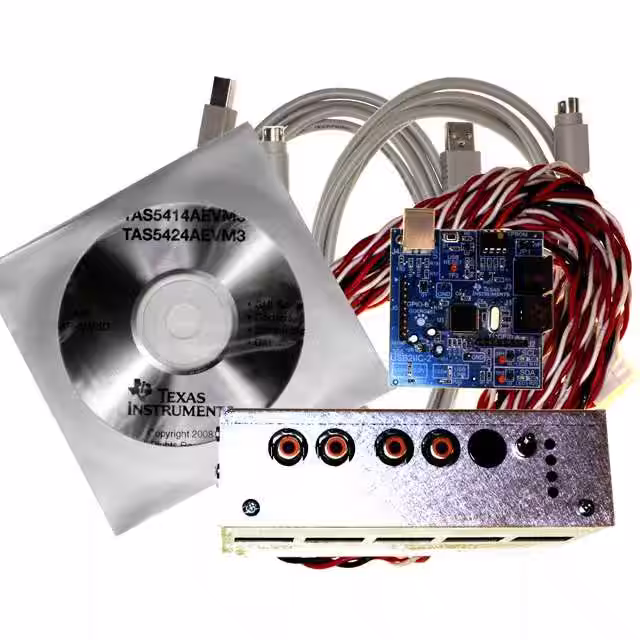

TAS5424AEVM3EVAL BOARD FOR TAS5424A |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 4-Channel (Quad) | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 8V ~ 22V | TAS5424A | Board(s), Cable(s) |
|
|
TPA3120D2EVMEVAL BOARD FOR TPA3120D2 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 25W x 2 @ 4Ohm | 10V ~ 30V | TPA3120D2 | Board(s) |
|
|
TPA2050D4EVMEVAL BOARD FOR TPA2050D4 |
0 |
|
Datasheet | DirectPath™ | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) with Stereo Headphones | 1.4W x 2 @ 8Ohm | 2.5V ~ 5.5V | TPA2050D4 | Board(s) |
|
|
TPA2026D2YZHEVMEVAL BOARD FOR TPA2026D2 |
0 |
|
Datasheet | SmartGain™ | Box | Obsolete | Class D | 2-Channel (Stereo) | 1.7W x 2 @ 8Ohm | 2.5V ~ 5.5V | TPA2026D2 | Board(s) |
|

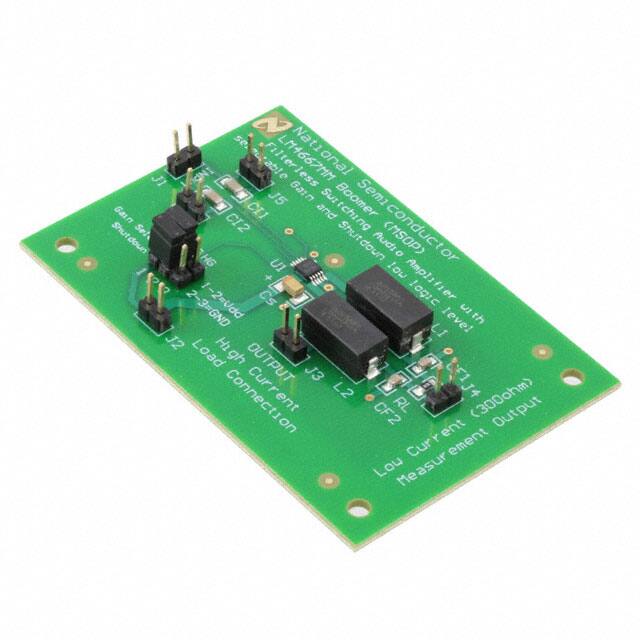

LM4667MMBD/NOPBEVAL BOARD FOR LM4667 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.7V ~ 5.5V | LM4667 | Board(s) |
