Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

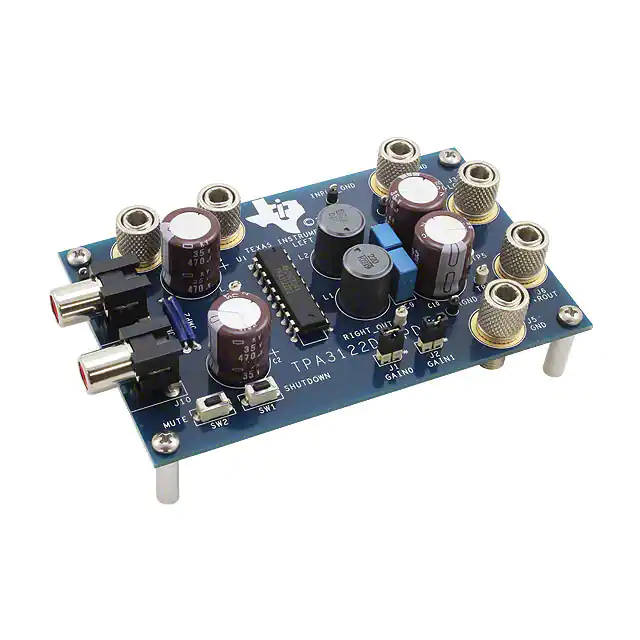

TPA3122D2EVMEVAL BOARD FOR TPA3122D2 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 15W x 2 @ 8Ohm | 10V ~ 30V | TPA3122D2 | Board(s) |
|

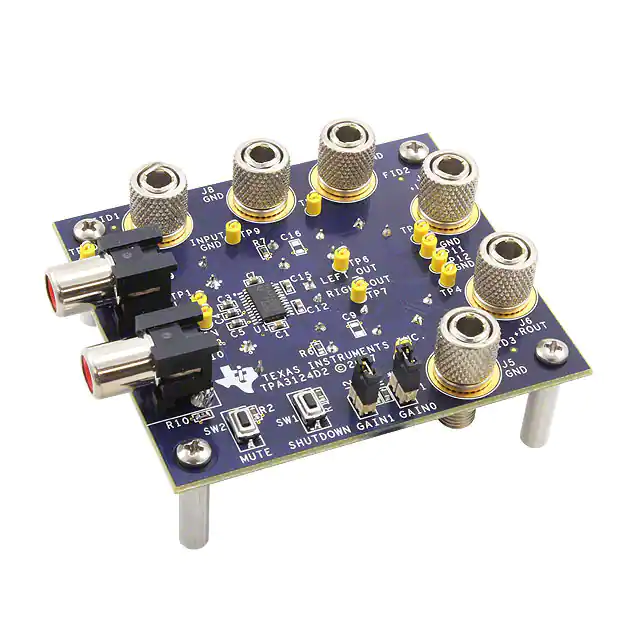

TPA3124D2EVMEVAL BOARD FOR TPA3124D2 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 30W x 1 @ 8Ohm; 15W x 2 @ 4Ohm | 10V ~ 26V | TPA3124D2 | Board(s) |
|
LM4671ITLBDEVAL BOARD FOR LM4671 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4671 | Board(s) |
|
|
LM4818MABDEVAL BOARD FOR LM4818 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 350mW x 1 @ 16Ohm | 2V ~ 5.5V | LM4818 | Board(s) |
|
|
LM4899ITLBDEVAL BOARD FOR LM4899 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.4W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4899 | Board(s) |
|
|
LM4901MMBDEVAL BOARD FOR LM4901 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.6W x 1 @ 4Ohm | 2V ~ 5.5V | LM4901 | Board(s) |
|
|
TDA7482BOARDEVAL BOARD FOR TDA7482 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 25W x 1 @ 8Ohm | ±10V ~ 25V | TDA7482 | Board(s) |
|
EVAL-TDA7803APSOEVAL BOARD FOR TDA7803A TDA7808 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 4-Channel (Quad) | - | 6V ~ 18V | TDA7803A, TDA7808 | Partially Populated Board(s) |
|
|
EVAL-FDA803D-SAEVAL BOARD FOR FDA803D |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 45W x 1 @ 2Ohm | 3.3V ~ 18V | FDA803D | Board(s) |
|
|
EVAL-FDA903D-SAEVAL BOARD FOR FDA903D |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 45W x 1 @ 2Ohm | 3.3V ~ 18V | FDA903D | Board(s) |
|

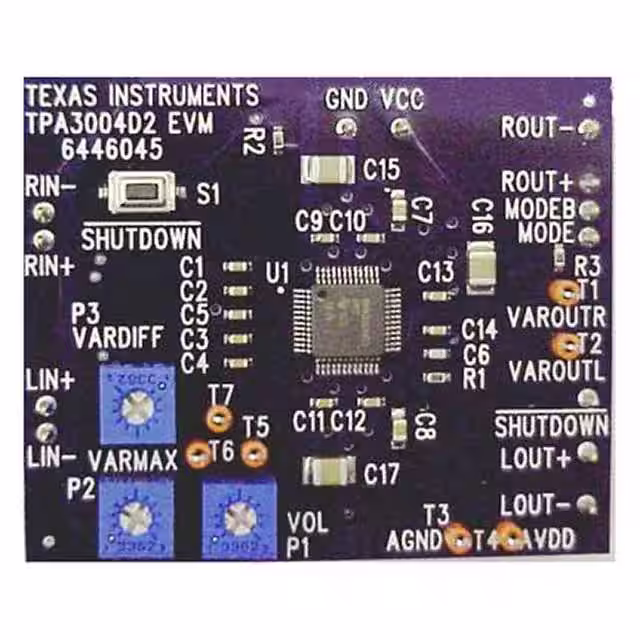

TPA3004D2EVMEVAL BOARD FOR TPA3004D2 |
1 |
|
Datasheet | - | Bulk | Obsolete | Class D | 2-Channel (Stereo) | 12W x 2 @ 8Ohm | 8.5V ~ 18V | TPA3004D2 | Board(s) |
|
EVAL-FDA903U-SAEVAL BOARD FOR FDA903U |
0 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | - | 3.3V ~ 18V | FDA903U | Board(s) |
|
|
LM4919MMBDEVAL BOARD FOR LM4919 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) with Stereo Headphones | 85mW x 1 @ 8Ohm; 14mW x 2 @ 16Ohm | 0.9V ~ 2.5V | LM4919 | Board(s) |
|
|
EVAL-FDA802SB-SAEVAL BOARD FOR FDA802 |
0 |
|
- |
- | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | - | 5.5V ~ 50V | FDA802 | Board(s) |
|
LM4951ASDBDEVAL BOARD FOR LM4951A |
0 |
|
Datasheet | Boomer® | Bulk | Obsolete | Class AB | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.7V ~ 9V | LM4951A | Board(s) |
|
|
BD28411MUV-EVK-001EVAL BOARD FOR BD28411 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 9W x 2 @ 8Ohm | 4.5V ~ 13V | BD28411 | Board(s) |
|

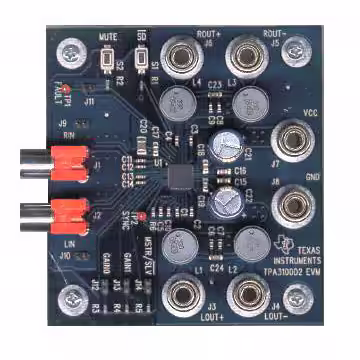

TPA3100D2EVMEVAL BOARD FOR TPA3100D2 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 10V ~ 26V | TPA3100D2 | Board(s) |
|

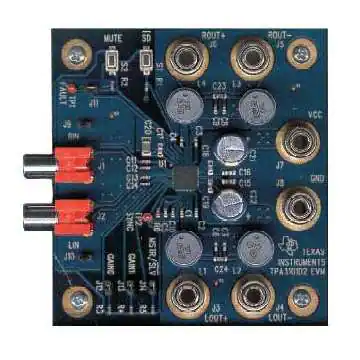

TPA3101D2EVMEVAL BOARD FOR TPA3101D2 |
0 |
|
Datasheet | - | Box | Obsolete | Class D | 2-Channel (Stereo) | 10W x 2 @ 8Ohm | 10V ~ 26V | TPA3101D2 | Board(s) |
|
LM4674ATLBDEVAL BOARD FOR LM4674A |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class D | 2-Channel (Stereo) | 2.5W x 2 @ 4Ohm | 2.4V ~ 5.5V | LM4674A | Board(s) |
|
|
LM4898ITLBDEVAL BOARD FOR LM4898 |
0 |
|
Datasheet | Boomer® | Box | Obsolete | Class AB | 1-Channel (Mono) | 1.4W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4898 | Board(s) |
